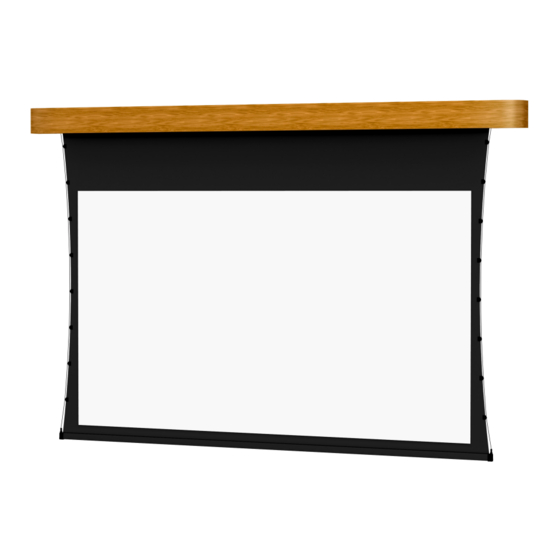

- Page 1 INSTRUCTION BOOK FOR Designer Da-Tab Electrol ®...
-
Page 2: Important Safety Instructions
Important Safety Instructions When using your video equipment, basic safety precautions should always be followed, including the following: Read and understand all instructions before using. Position the cord so that it will not be tripped over, pulled, or contact hot surfaces. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. -
Page 3: Pre-Installation
Pre-Installation Before proceeding with the installation of the screen, please read the installation and operations instructions thoroughly! CAUTION! Do not cut wrapping paper or tape with knife or any sharp tool. Remove by hand. ATTENTION! Ne coupez pas le papier d'emballage ou le ruban adhésif avec un couteau ou un outil tranchant. Retirez à... -
Page 4: Installation
Designer Da-Tab Electrol Installation ® 1. Hang screen from wall or ceiling. wall, drill 1 ⁄ 2" holes and insert the toggle bolts. Then fasten the “V” bar to the wall with the toggle bolts. Now For Wall Mounting set the case in place on the wall with the “V” bar of the Hardware Provided case nestled into the “V”... - Page 5 Contact the factory for further information. 240 Volt Wiring Diagram For Standard Wall Switch: Da-Lite offers two styles of 240 volt wall switches for standard operation. Please see wiring diagram included in wall switch box included with screen.
-
Page 6: Troubleshooting
Visit www.da-lite.com to find installation and troubleshooting tutorials. You will also find a link to Live Chat for interactive support and you can contact us by email at info@da-lite.com or by phone at (800) 622-3737 or (574) 267-8101 with any troubleshooting questions. - Page 8 OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.
