Hints and tips

Printing full-page images on booklets

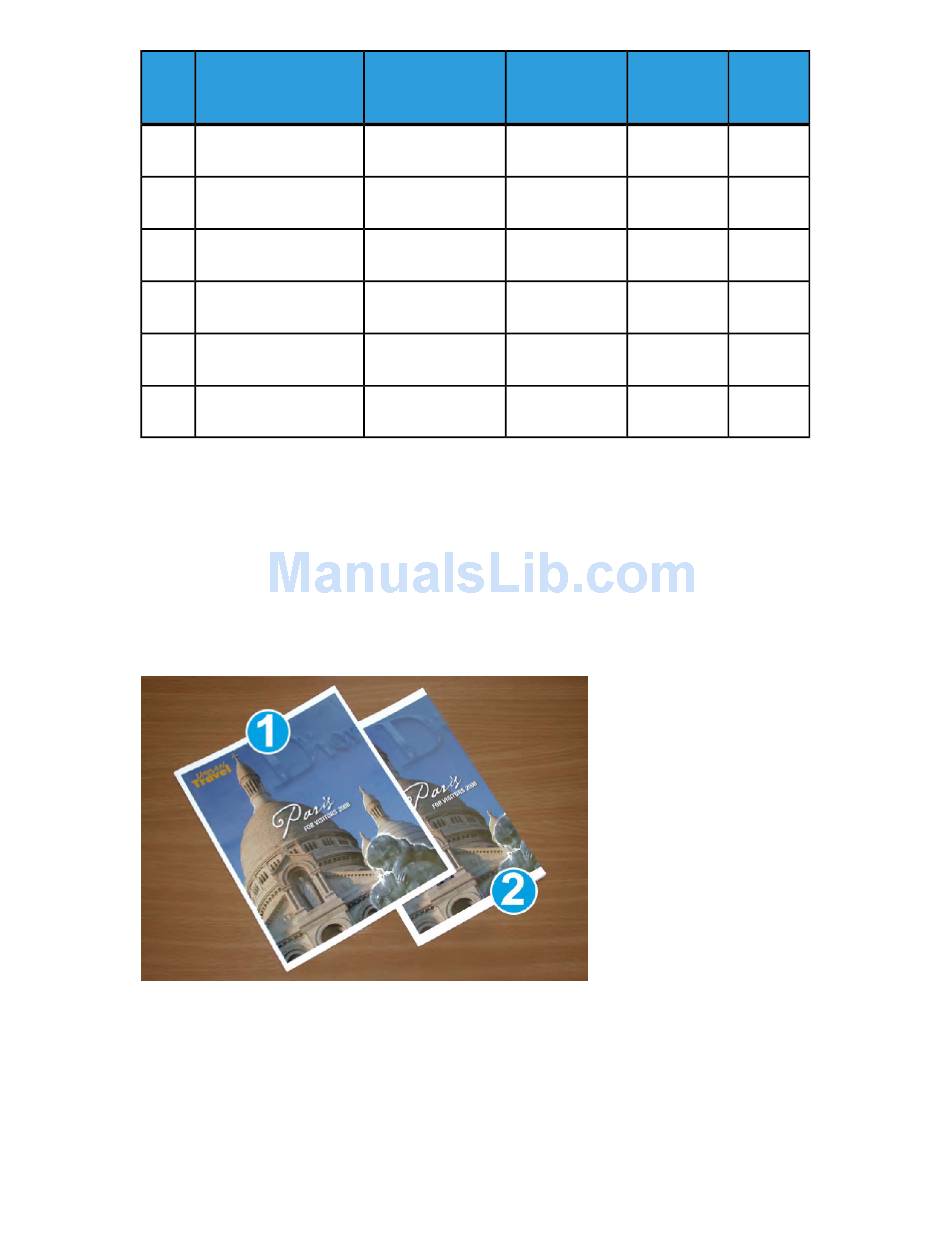

When using full-page images, ensure that the finished booklet size accommodates any
full-page images, and that when the booklet is trimmed, these images are not truncated.
Refer to the illustration.
1. This booklet has preprinted front and back covers with a full-page image. It was
printed on 8.5 x 14 in./B4 paper. The front cover, which was trimmed, displays the
entire image.
2. This same booklet was printed on 8.5 x 11 in./A4 paper. The image on the front
cover is truncated after trimming it.
