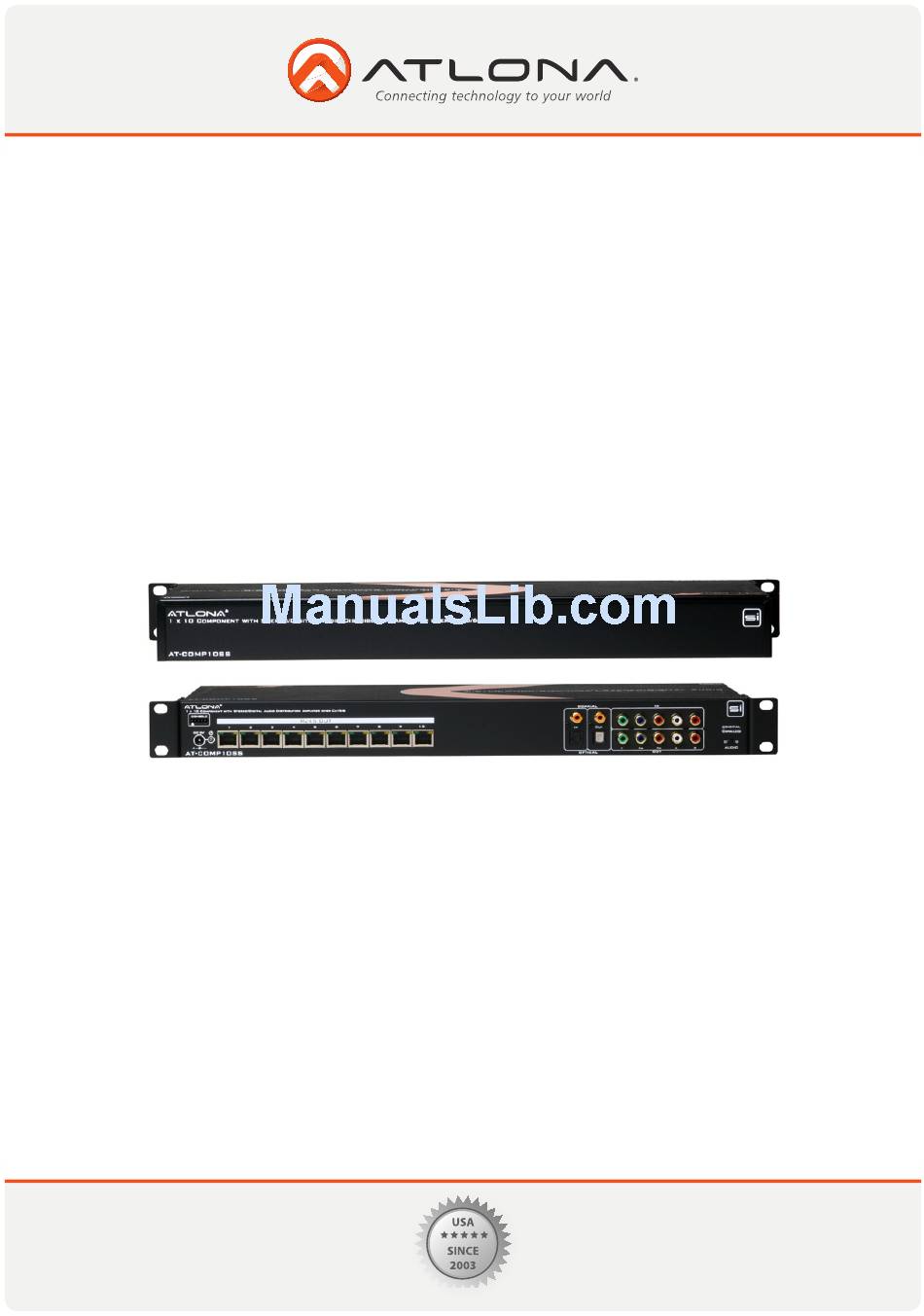

- Page 1 1 x 10 Component Video with Stereo and Digital Audio Distribution Amplifier over CAT5/6 compatible with AT-COMP300RL AT-COMP10SS User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Connection and Operation 6. RJ45 Pin Configuration 7. Troubleshooting 8. LED Indicators 9. DIP Switch 10. Safety Information 11. Warranty 12. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
10+ locations. The COMP10SS is fea- tured with 1 x Component/Audio input and 10 x CAT5/6/7 outputs which could be connected with Atlona AT-COMP300RL receiving modules up to 1000ft away. -
Page 4: Specifications
1. Connect the Component Source e.g., Cable/Sat receiver, DVD player, Video Codec, switch to the AT-COMP10SS (transmitting unit) 2. Connect the Component Display e.g., Projector, LCD/LED or a switch to (receiving unit (AT-COMP300RL)) – (receiving unit is sold separately) 3. Terminate the CAT5, 6 or 7 wire with 568B termination and use a tester to make sure all pins are wired correctly before connect it to the VGA10SS transmitter. -
Page 5: Rj45 Pin Configuration
We include 2 x Skew adapters in the package, it is recommended to use them. Total Distance 1/2 Distance 1/2 Distance Short cable to the Skew Skew receiver adapter adapter Transmitter Receiver Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Led Indicators
If the digital audio is selected, the optical and digital coaxial connections can be used; however not at the same time. If you have both SPDIF and Optical connected to the amplifier the priority will be given to Optical. Compatible with following receiver module: AT-COMP300RL Front Side Back Side Toll free: 1-877-536-3976 www.atlona.com... -
Page 7: 10. Safety Information
It may also cause damage to your AT- COMP10SS. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 8: 11. Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 9: 12. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
