Atlona AT-COMP300SL User Manual

Component video & analog / digital audio cat5 extender with chainable output
Hide thumbs Also See for AT-COMP300SL:

Advertisement

Table of Contents

See also: User Manual

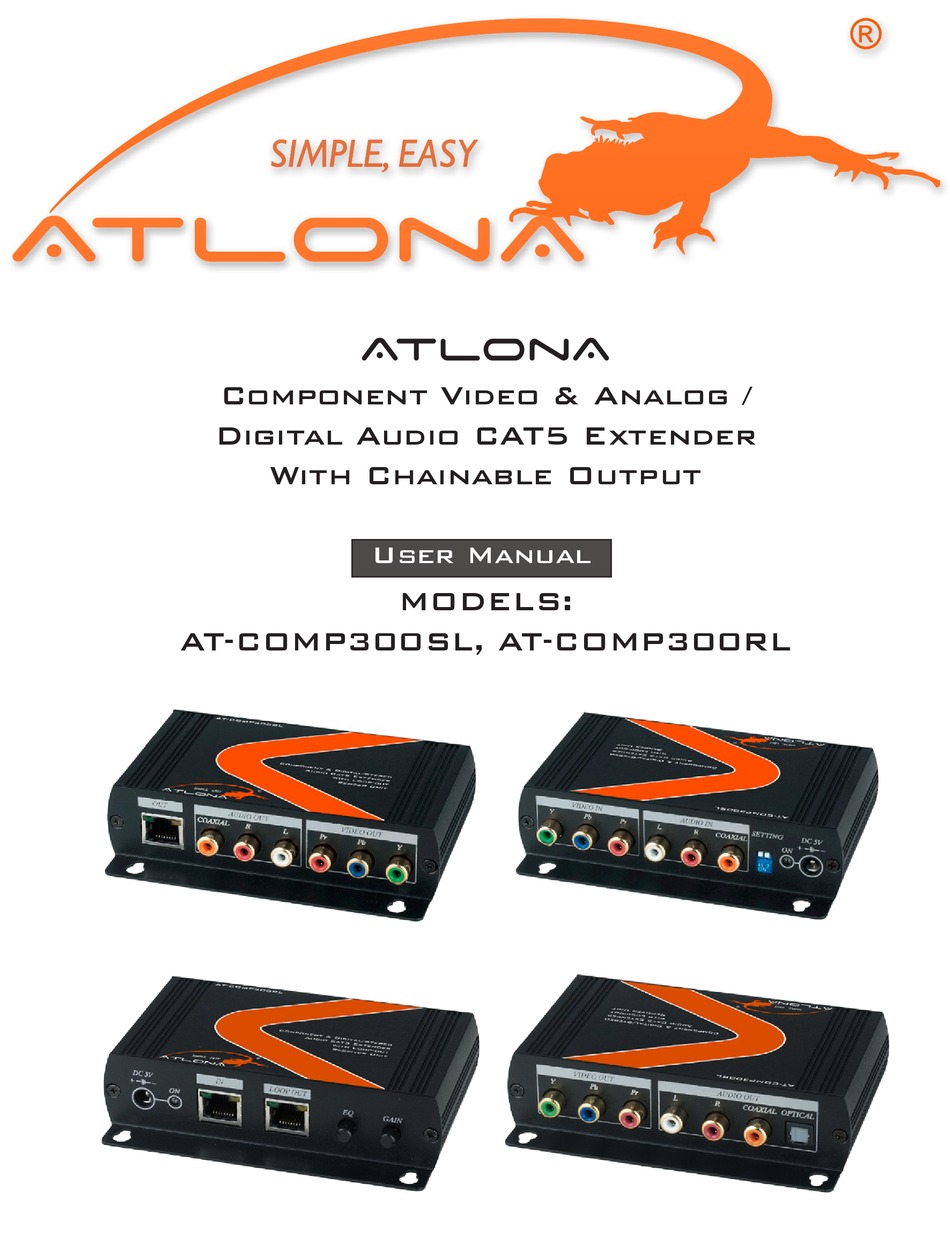

AtlonA
Component Video & Analog /
Digital Audio CAT5 Extender
With Chainable Output
User Manual
MODELS:
AT-COMP300SL, AT-COMP300RL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-COMP300SL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlona AT-COMP300SL

Summary of Contents for Atlona AT-COMP300SL

  • Page 1 AtlonA Component Video & Analog / Digital Audio CAT5 Extender With Chainable Output User Manual MODELS: AT-COMP300SL, AT-COMP300RL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..........2. Installation ..........3. Specifications ..........4. Installation Tips ..........5. Safety Informations ..........6. Warranty ..........

  • Page 3: Introduction

    AT-COMP300rL ( reCeiVer uniT ) COMPOnenT VideO wiTh STereO AudiO CAT5 exTender – ChAinAbLe funCTiOn • Works with AT-COMP300SL as receiver for extra remote component Video display equipment. • It can be daisy chained for another AT-COMP300RL to an extended working range over 300 meters and multiple displays.

  • Page 4: Installation

    Installation AT-COMP300RL AT-COMP300SL color 300 (Max) AT-COMP300RL AT-COMP300RL PAneL View: AT-COMP300SL AT-COMP300RL Cable: Video Link cable using hi quality CAT5E UTP/STP or CAT6 UTP cable. Please note:STP cable can not only enhance noise rejection, but also lessen transmission range and picture sharpness...
  • Page 5 Audio - Blue-white Audio + Green Video Y- Brown-white Video Pb+ Brown Video Pb- AT-COMP300SL Switch Setting:: DIP Switcher Setting: Audio Source Select Stereo audio input (Analog) Digital Audio input (Coaxial) Analog Sampling Frequency 48Khz 44Khz AT-COMP300SL LED indication: Blue power on/off...

  • Page 6: Specifications

    Specifications iTeM nO. AT-COMP300SL Resolution Up to 1080p Video Bandwidth Local 750MHz-3dB / Remote 350MHz-3dB Video Input / Output Y/Pb/Pr RCA x 1 (Y 1V p-p 75Ω - Pb 0.7V p-p 75Ω - Pr 0.7V p-p 75Ω) Audio Input / Output Analog audio L-R stereo audio RCA x 1( 3Vp-p Max.10KΩ)

  • Page 7: Installation Tips

    2. Recommend to use following cabling design to reduce skew status, to add special made “skew immunized adaptor”, 2 pieces included at the package. CAUTION: to avoid display equipment damaged, be sure to make correct cable connection and power for both AT-COMP300SL before connecting AT-COMP300RL.

  • Page 8: Safety Informations

    Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features.

  • Page 9: Warranty

    Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.

This manual is also suitable for:

At-comp300rl
