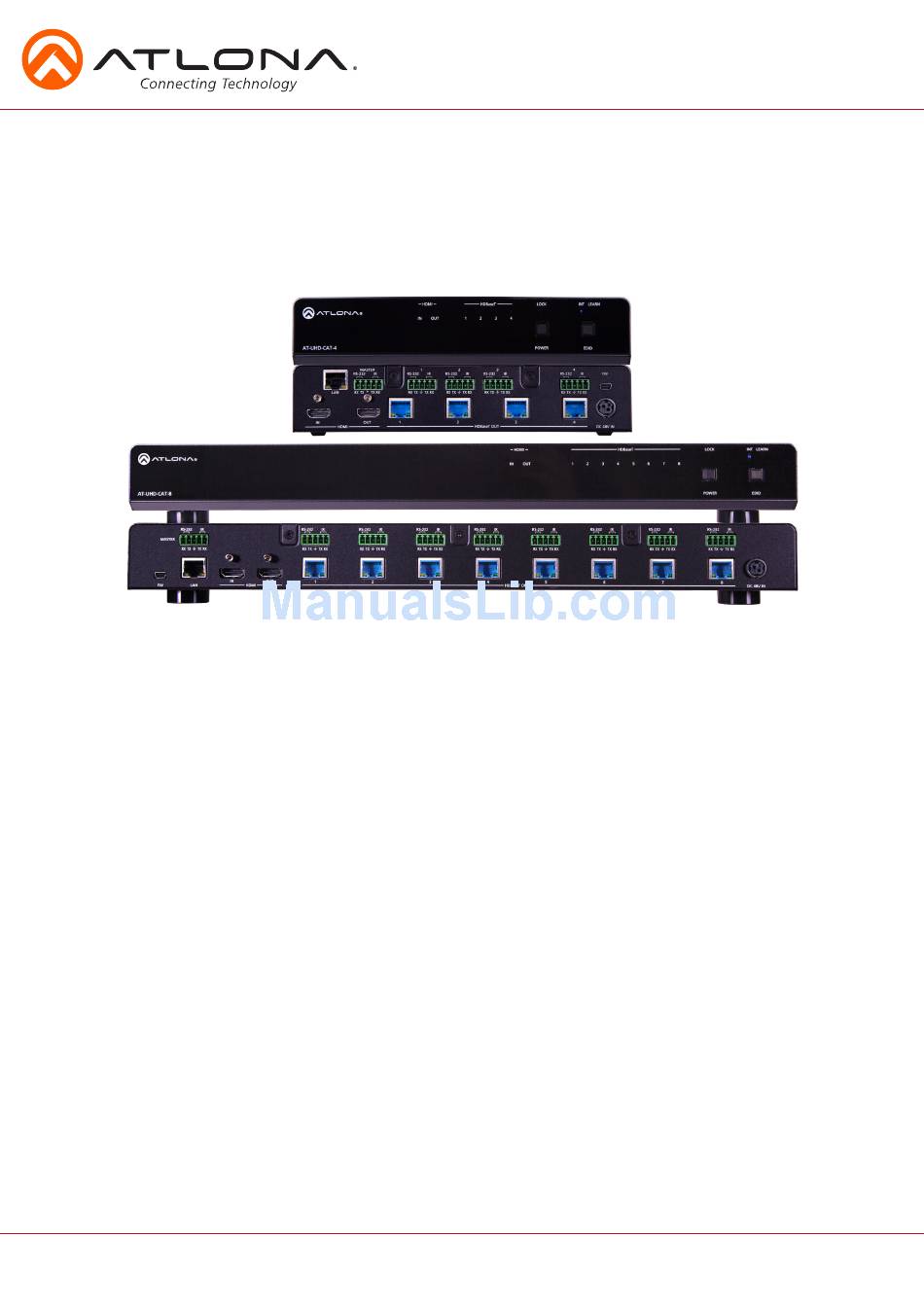

4K/UHD 4/8-Output HDMI to HDBaseT
AT-UHD-CAT-4 / AT-UHD-CAT-8 Installation Guide
Please check http://www.atlona.com/product/AT-UHD-CAT-4
and http://www.atlona.com/product/AT-UHD-CAT-8 for the
most recent firmware update or manual.

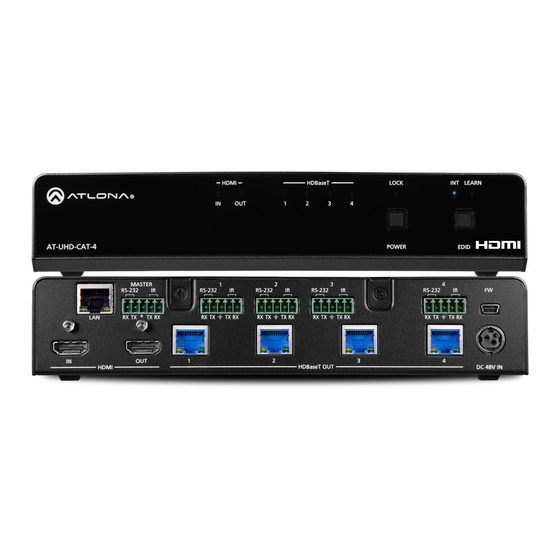

The Atlona AT-UHD-CAT-4 is a 4K/UHD HDMI to HDBaseT™ distribution amplifier featuring pass-
through HDMI input connections, four HDBaseT outputs and display control capability. The Atlona
AT-UHD-CAT-8 has the same capabilities, but adds an additional four HDBaseT outputs and RS-
232/IR connectors. Each output transmits AV and control signals up to 230 ft. (70 m) @ 1080p
and 130 ft. (40 m) @ 4K/UHD. Features include 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling,
HDCP 2.2 compliance, EDID management, and PoE for remote receiver powering. A wide variety of
consumer and commercial displays may be controlled by the AT-UHD-CAT-4 / AT-UHD-CAT-8 using
CEC. Designed for commercial or residential distribution applications, both the AT-UHD-CAT-4 /
AT-UHD-CAT-8 are control system-friendly and integrate with any TCP/IP, RS-232, or IR control
system. Both units feature a 1U, full-rack width enclosure with external, international power
supply.

CAT-4 Package Contents

• 1 x AT-UHD-CAT-4
• 5 x Female captive screw connectors
5 pin: RS-232 and IR
• 1 x Short rack ear
• 1 x Long rack ear
• 2 x Mounting plates
• 1 x Rubber feet
• 1 x 48V/3.125A DC power supply adaptor
• 1 x Installation Guide
atlona.com

Distribution Amplifiers

CAT-8 Package Contents

• 1 x AT-UHD-CAT-8
• 9 x Female captive screw connectors
5 pin: RS-232 and IR
• 1 x Pair rack ears
• 1 x Rubber feet
• 1 x 48V/3.125A DC power supply adaptor
• 1 x Installation Guide
Toll free: 1-877-536-3976
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-UHD-CAT-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlona AT-UHD-CAT-4

  • Page 1: Distribution Amplifiers

    The Atlona AT-UHD-CAT-4 is a 4K/UHD HDMI to HDBaseT™ distribution amplifier featuring pass- through HDMI input connections, four HDBaseT outputs and display control capability. The Atlona AT-UHD-CAT-8 has the same capabilities, but adds an additional four HDBaseT outputs and RS- 232/IR connectors.
  • Page 2: Front Panel

    CAT-4 Panel Description Front Panel HDMI HDBaseT LOCK LEARN AT-UHD-CAT-4 POWER EDID MASTER RS-232 RS-232 RS-232 RS-232 RS-232 1. HDMI LED - Illuminates when receiving/transmitting signals RX TX RX TX RX TX 2. HDBaseT LEDs - Illuminates when connected to a compatible PoE receiver 3.
  • Page 3 6. HDBaseT OUT ports - Connect HDBaseT PoE receivers to this port (e.g. AT-UHD-EX-70C-RX, etc) Note: Compatible PoE receivers do not need power 7. DC 48V port - Connect included 48V power supply to this port Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 4 The pins will have functions associated with them, some will be unassigned. Note: Typical DB9 connectors use pin 2 for TX, pin 3 for RX, and pin 5 for ground. On some devices functions of pins 2 and 3 are reversed. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
  • Page 5 System IR is typically used to connect to control system processors. This input is used to control the UHD-CAT-4 and UHD-CAT-8. Note: The IR receiver is optional for the UHD-CAT-4 / UHD-CAT-8. The compatible IR receiver (AT-IR-CS-RX) can be purchased through atlona.com. The wires of the emitter and receiver have been marked to differentiate the pin outs.
  • Page 6 TCP/IP webGUI Atlona has created an easy to use webGUI for initial setup and later changes to the configuration of the UHD-CAT-4 / UHD-CAT-8. To begin, connect the LAN port of the UHD-CAT-4 / UHD-CAT-8 to your network. Type the IP...
  • Page 7 Note: Atlona is constantly improving and updating features and stability. It is recommended that you check to make sure you are on the most current firmware before installation, especially when using a control system.
  • Page 8: Troubleshooting

    5. How do I update the firmware? Firmware and instructions can be found and downloaded from the firmware tab at http://www.atlona.com/product/AT-UHD-CAT-4ED/ 6. The buttons on the front panel aren’t working. What’s wrong? Make sure that the Lock feature is disabled. This can be done within AMS or the webGUI, or by sending the Unlock command, using TCP/IP or RS-232.
