Summary of Contents for Atlona AT-HD-V214

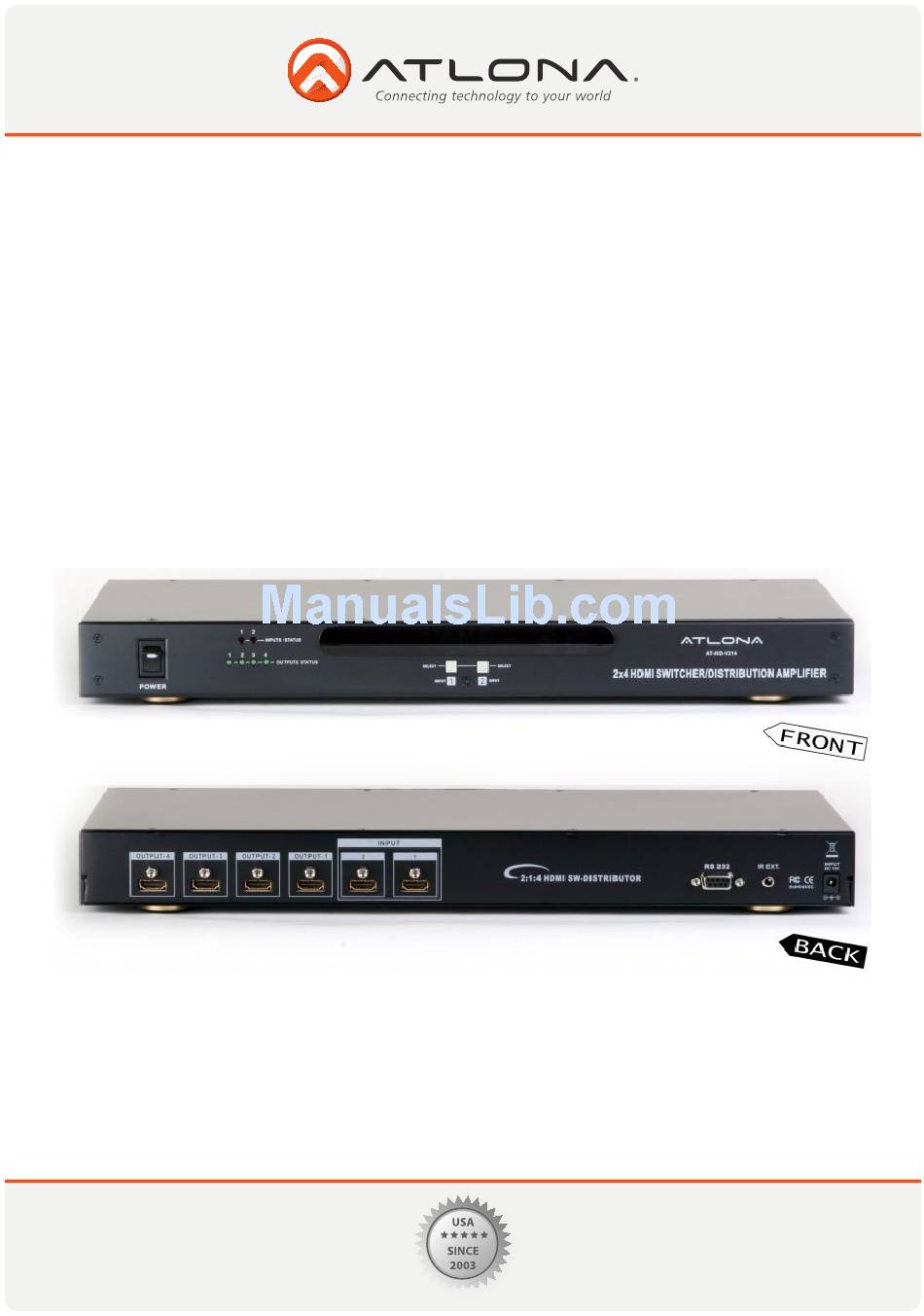

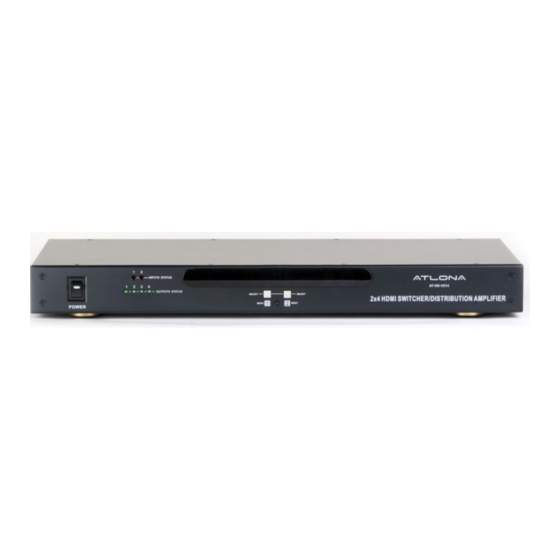

- Page 1 User Manual 2x4 HDMI Distribution Amplifier/Switcher AT-HD-V214 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
7. RS-232 Protocol Commands ..........7.1 Power Off Mode ..........7.2 Front Panel Lock ..........7.3 Unit Reset ..........8. Application ..........9. Safety Information ..........10. Warranty ..........11. Atlona Product Registration ..........Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Atlona’s distribution amplifier is the perfect device for allowing users to connect any digital video source, such as: (DVD, Satellite, Cable Box, PC, Xbox, PS3 and more) to multiple displays. The AT-HD-V214 is basically a 1x4 hdmi splitter with a 2 x input switcher built-in. When user will switch between inputs, all the outputs... -
Page 4: Specification
5. SOURCES SELECT BUTTONS. A separate input 1 and 2 source select buttons are provided for each des- tination. 6. IR SENSOR. The IR sensor receives IR commands from the supplied remote control. 7. 9 INCH Rack Ears. 19 inch Rack Ears (pair) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rear Panel
3. RS232 CONNECTION. RS232 Remote: DB-9Pin Female connector. RS232 control via this DB-9Pin Female connector for serial RS-232 control. 4. VIDEO INPUTS: HDMI Input 1-2. HDMI digital video/audio connector (Female) 5. VIDEO OUTPUTS: HDMI Outputs 1-16. HDMI digital video/audio connector (Female) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Rs-232 Serial Interface
2. RS232 This Atlona switcher can be controlled via RS-232. The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. When the unit recognizes a complete command it will perform the requested action - there is no delimiter character required. -
Page 7: Rs-232 Protocol Commands
- Reset every output to Input 1 Unit will respond with: SBRSTACK - Unit has reset each Output to Input 1 Example: Reset all outputs to Input 1 SBALLRST - Send SBRSTACK - Rcvd Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Application
1. HDMI - HDMI output connector with fix screw 2. HDMI - HDMI output connector with fix screw 3. HDMI - HDMI output connector with fix screw 4. HDMI - HDMI output connector with fix screw Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your AT-HD-V214. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 11: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
