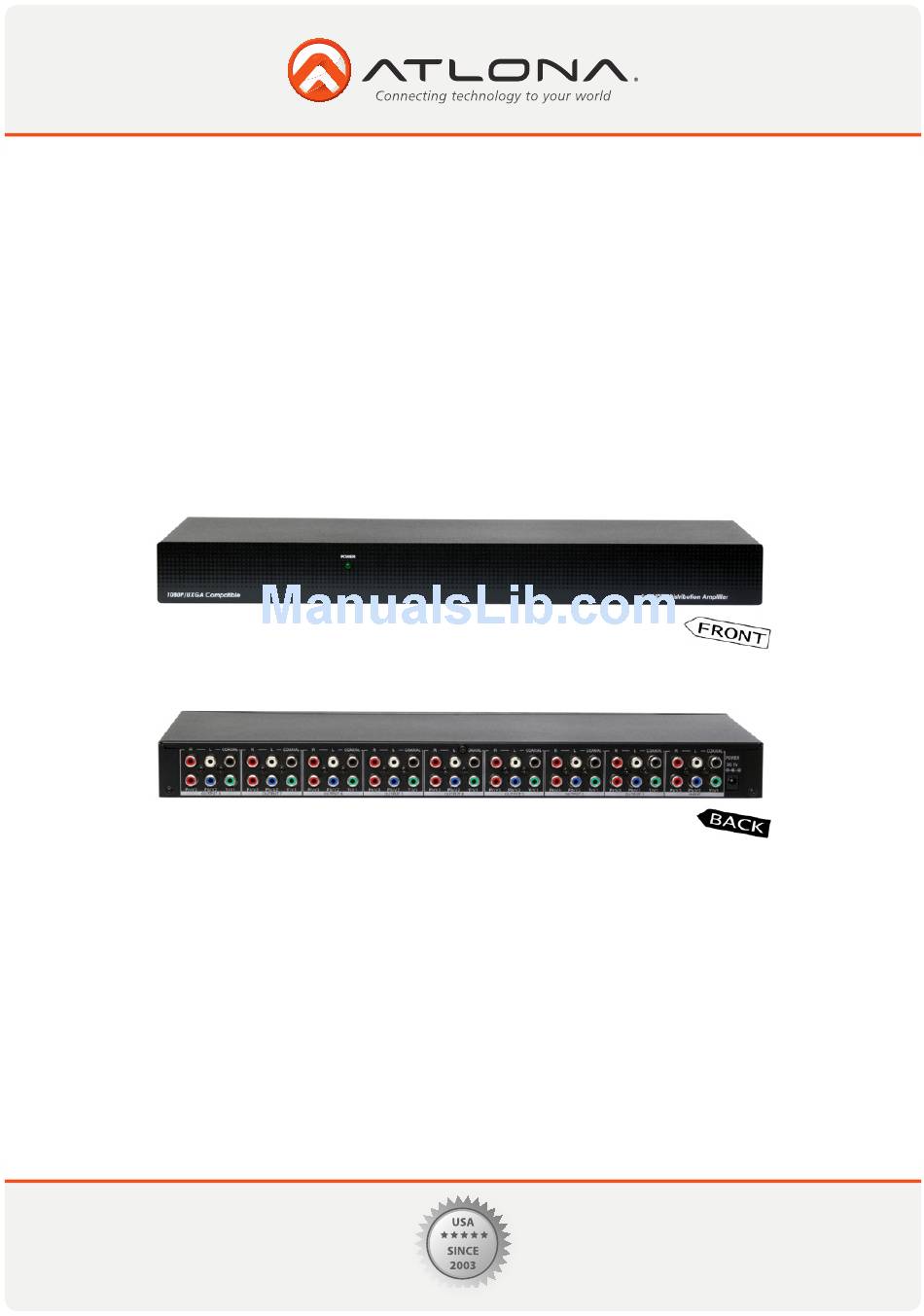

- Page 1 Component Video W/Audio Distribution Amplifier AT-COMP18AD User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel Description 5.1. Front Panel 5.2. Rear Panel 6. Connection and Installation 7. Safety Information 8. Warranty 9. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i and 1080p. The AT-COMP18AD is capable to send signal from one source to all 8 displays at the same time without signal degradation. The 1x8 Splitter will support long cable runs up to100ft ( 30M ). -
Page 4: Specifications
17.21”W x 6.69”D x 1.85”H Shipping Weight 7Lbs PANEL DESCRIPTION 1. Front Panel 2. Rear Panel 1. DC power supply input. 2. Input: Input connector for YPbPr/YCbCr,(or Composite Video), L/R stereo analog Audio and digital coaxial audio. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Connection And Installation
2. Works as three 1-in 8-out distribution Amps for video sources. CV3 In CV1 In CV2 In Output8 Output7 Output6 Output5 Output4 Output3 Output2 Output1 CV - Composite Video CV1 - Yellow Cable CV2 - White Cable CV3 - Red Cable Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
It may also cause damage to your AT-COMP- 18AD. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
