Summary of Contents for Atlona AT-PA100

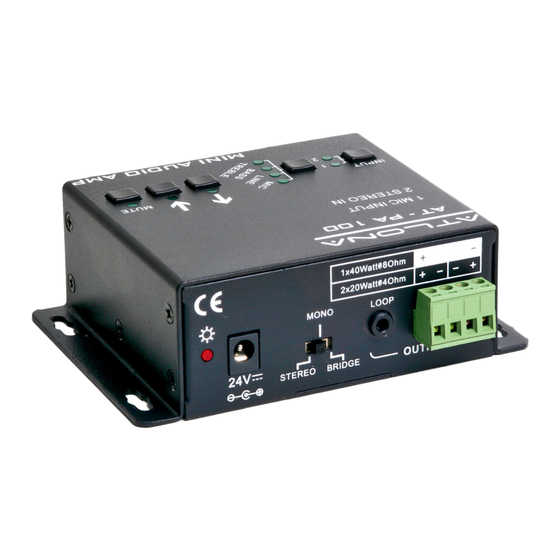

- Page 1 User Manual AtlonA Stereo/Mono Audio Amplifier with 3 Inputs (2 x Stereo, 1 x MIC) AT-PA100 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
..........4.3. Dual-mono mode ..........5. Push-Button Controls ..........6. RS232 Communication Protocol ..........7. Connection & Loop-out Diagram ..........8. Safety Information ..........9. Warranty ..........10. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION The Atlona AT-PA100 is an Audio Amplifier with 3 Inputs (2 x Stereo, 1 x MIC). The PA100 is based on the digital amplification circuit (Class-D) and can operate in Stereo mode 2x20w or in Bridge mode (Mono) at 1x40W. -
Page 4: Audio Connection
The PA100 has a Bridge-Mono mode, which allows you to double the wattage to 40Watts by combining 2 chan- nels together and increasing the impedance to 8Ω. 1x40Watt@8Ω Switching to the “BRIDGE” To connect, follow the +/- 40Watt il- lustration on the back pannel www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: 4.3. Dual-Mono Mode
4.3. Dual-mono mode. The AT-PA100 has a dual-mono mode. This mode sends the same L/R audio signal to both channels (speakers). Switching to the “MONO” Positive and negative per channel (2 cables total) PUSH-BUTTON CONTROLS The PA100 has push-buttons for volume/EQ control and input switching. -
Page 6: Rs232 Communication Protocol
Turning up the volume of the line audio should be [603%] Example 3: Preset the MIC volume to be “21” degree should be [521%] Example 4: Checking the current status of the PA100 should be [600%] www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Connection & Loop-Out Diagram
CONNECTION DIAGRAM Ω 1x40Watt@8 Looping* connection Ω 2x20Watt@4 * The “loop” out port allows a source to pass-through to another device. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your the manufacturer could void the AT-PA100. Opening the product will void the user’s authority to operate this warranty. equipment. - Page 9 Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
-
Page 10: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
