Summary of Contents for Atlona AT-HDCAT-4
-

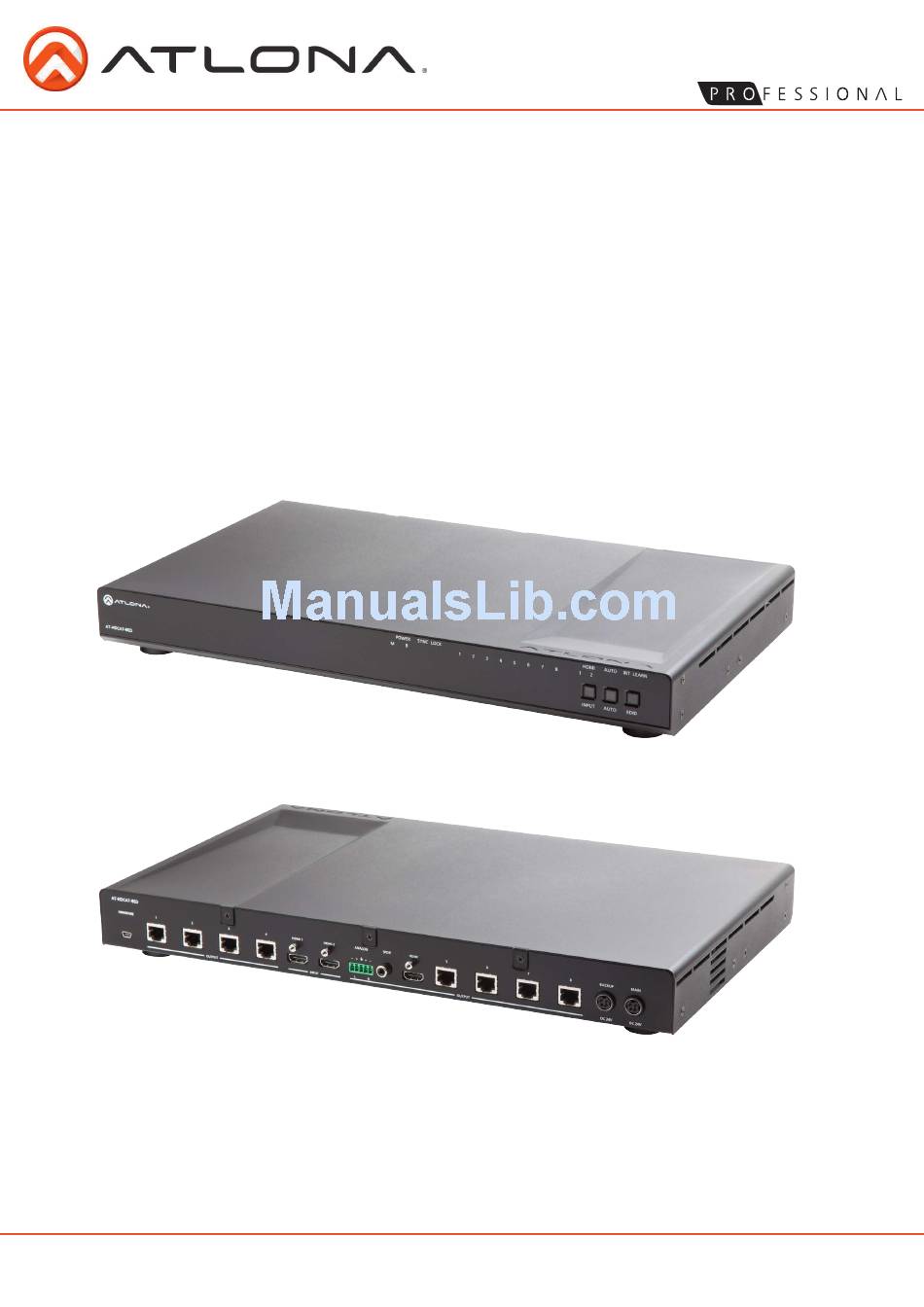

Page 1: User Manual

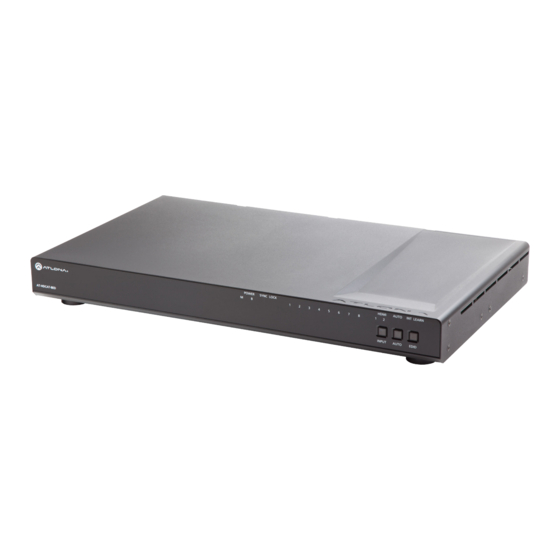

® Atlona HDBaseT HDMI Distribution Amplifier over Single Category Cable AT-HDCAT-4, 8, & 8ED (HDCAT-8ED pictured below) USER MANUAL Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
6. Captive Screw Audio .................... 5 7. EDID™ .................... 6 8. Rack/Wall Mount .................... 6 9. Connection and Installation .................... 7 10. Safety Information .................... 8 11. Warranty .................... 9 12. Atlona Product Registration .................... 10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The HDCAT allows you to send one source to multiple displays over long distances. With built in audio de-embedding, all audio needs are met in zone and locally. The Atlona HDBaseT HDMI ® Distribution Amplifier over Single Category Cable extends audio and video signals up to 230ft (328ft with HDCAT-8ED). -
Page 4: Panel Description
5. Back up power port - Connect second optional power supply (AT-PW24V6.25A - sold separately) 6. Main power port - Connect main power supply to this port. 7. CAT5e/6/7 Output - Connect to a receiver (purchased separately @ atlona.com) to pass signals over extended distances. -
Page 5: Captive Screw Audio
Note: Pin outs may vary, please refer to the audio amplifier’s manual to ensure a correct connection. Important! When terminating cables, please ensure exposed adjacent wires do not touch. This may result in a short that can damage connected devices. ╧ ╧ ╧ ╧ ╧ ╧ Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Edid
To install the HDCAT into a rack, use the front screws on the side of the case (A - pictured below) To install the HDCAT onto a wall, use the bottom screws on the side of the case (B - pictured above) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Connection And Installation
Connection and Installation Note: Use optional receiver AT-HDRX for a distance of 230ft with all HDCAT products. For extended distance with the AT-HDCAT-8ED use AT-HDRX-RSNET (328ft). Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your AT-HDCAT-4, 8, & 8ED. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 9: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 10: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
