Manual
Stereo/Mono Audio Power Amplifier - 120 Watts
AT-GAIN-120

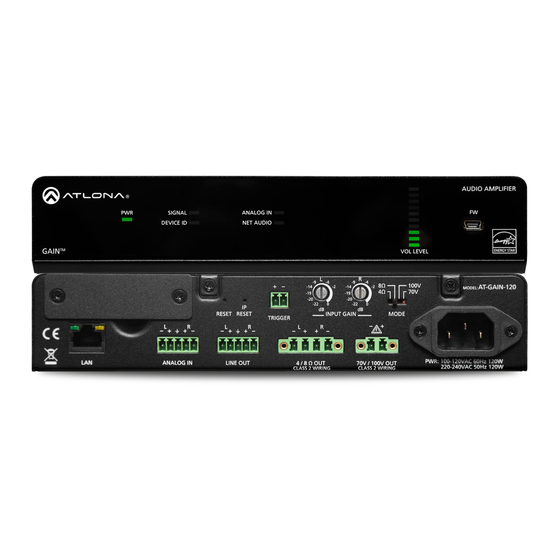

The Atlona Gain™ 120 (AT-GAIN-120) is a compact power amplifier designed for low or high
impedance applications. A mode selector switch allows it to deliver two channels of 60 watts
each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts. This Class-D amplifier
is energy efficient, ENERGY STAR® qualified, and is also convection-cooled to allow installation
in conference rooms and quiet installation environments without the need for fans. In addition to
the amplified speaker output, a line level audio output allows the incoming audio to be fed into an
additional amplifier or audio system. The Gain 120 is controllable via TCP/IP or external trigger,
and can be integrated with Atlona AV switchers and HDBaseT™ receivers for a wide variety of
sound reinforcement applications.
Package Contents
1 x AT-GAIN-120
2 x Captive screw connector, 2-pin
1 x Captive screw connector, 4-pin
2 x Captive screw connector, 5-pin
1 x IEC power cord
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-GAIN-120 for the latest firmware
updates and User Manual.
1

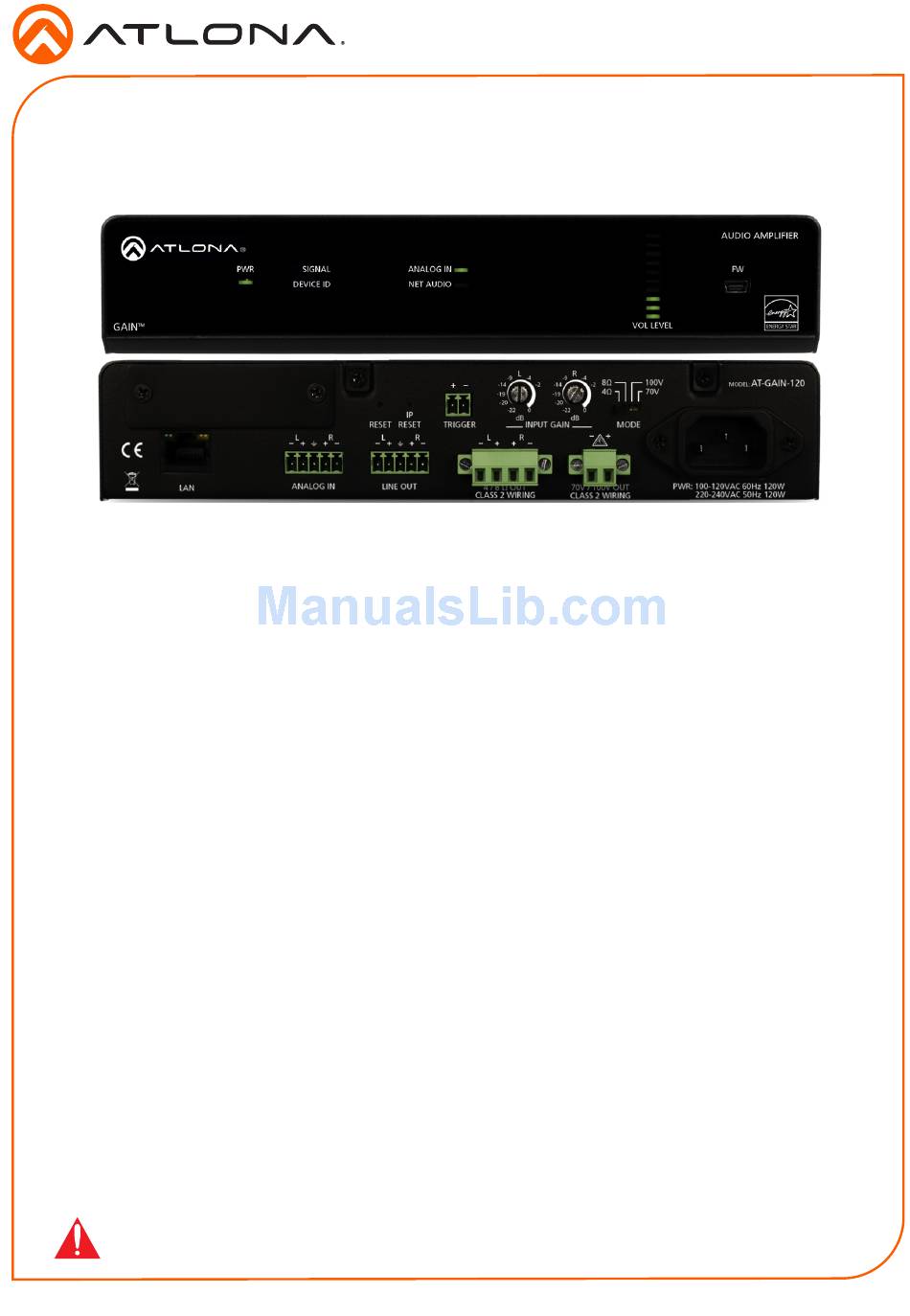

Installation Guide
AT-GAIN-120
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlona AT-GAIN-120
Summary of Contents for Atlona AT-GAIN-120
-
Page 1: Installation Guide
Stereo/Mono Audio Power Amplifier - 120 Watts AT-GAIN-120 The Atlona Gain™ 120 (AT-GAIN-120) is a compact power amplifier designed for low or high impedance applications. A mode selector switch allows it to deliver two channels of 60 watts each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts. This Class-D amplifier is energy efficient, ENERGY STAR®... -
Page 2: Front Panel Descriptions
Installation Guide AT-GAIN-120 Front Panel Descriptions AUDIO AMPLIFIER AUDIO AMPLIFIER SIGNAL ANALOG IN DEVICE ID NET AUDIO SIGNAL ANALOG IN DEVICE ID NET AUDIO GAIN VOL LEVEL GAIN VOL LEVEL 100V AT-GAIN-120 MODEL: 100V AT-GAIN-120 MODEL: RESET RESET TRIGGER INPUT GAIN... -
Page 3: Line Out
Installation Guide AT-GAIN-120 Analog In Connect to an audio DSP or other audio distribution or source devices. Either balanced or unbalanced connections may be used. Use a jumper between the negative and ground pins when using an unbalanced connection. ANALOG IN... -
Page 4: Installation
AT-RACK-1RU When installing the AT-GAIN-120 into the AT-RACK-1RU, it can be installed as a single unit on either side of the rack or paired with any of Atlona’s other 1/2 rack units. e.g. UHD-SW series products or another AT-GAIN-120 Turn the rack and unit upside down. - Page 5 Installation Guide AT-GAIN-120 NOTE: Do not over-tighten the rack screws to avoid damaging the unit. F I E P L I D I O D I O N E T V I C S I G G A I F I E...
-
Page 6: Accessing The Webgui
IP Modes DHCP By default, the AT-GAIN-120 is set to DHCP mode. In this mode, when the AT-GAIN-120 is connected to the Local Area Network (LAN), it will automatically be assigned an IP address by the DHCP server (if available). -
Page 7: Connection Diagram
Installation Guide AT-GAIN-120 Connection Diagram r i c K ER K ER Laptop r i c K ER K ER Ceiling Speakers FI E P LI D IO V EL L LE G IN A LO D IO N ET... - Page 8 • © 2018 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and...
