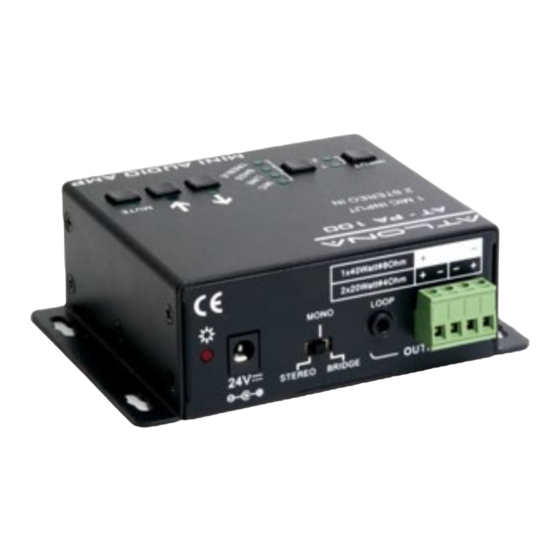

Stereo/mono audio amplifier with 3 inputs (2 x stereo, 1 x mic)
Hide thumbs Also See for AT-PA100:

Advertisement

Quick Links

User Manual
Stereo/Mono Audio Amplifier with 3 Inputs
(2 x Stereo, 1 x MIC)
AT-PA100
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-PA100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-PA100

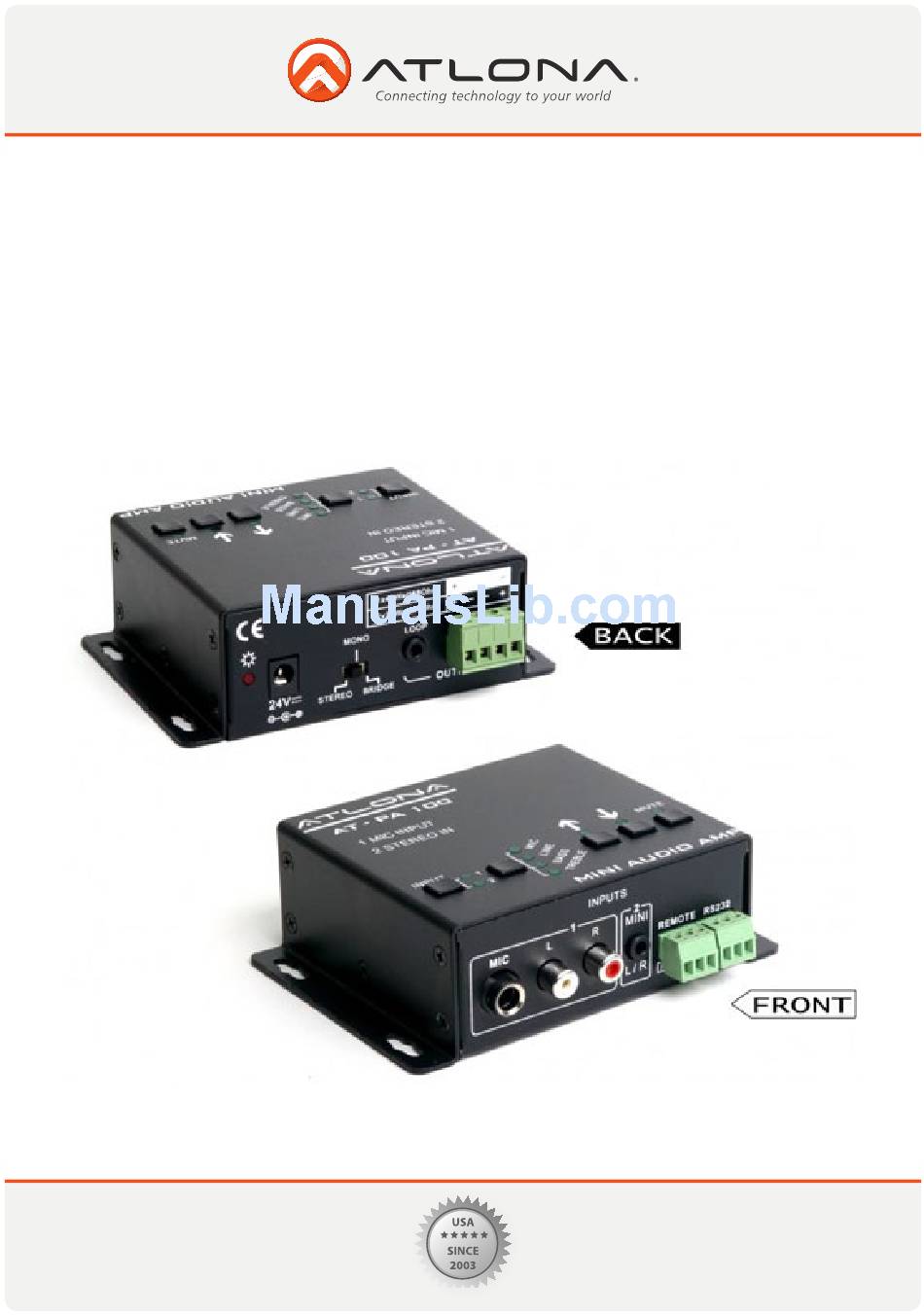

  • Page 1 User Manual Stereo/Mono Audio Amplifier with 3 Inputs (2 x Stereo, 1 x MIC) AT-PA100 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    4.3. Dual-mono mode ..........4 5. Push-Button Controls ..........4 6. RS232 Communication Protocol ..........5 7. Connection Diagram ..........6 8. Safety Information ..........7 9. Warranty ..........8 10. Atlona Product Registration ..........9 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    INTRODUCTION The Atlona AT-PA100 is an Audio Amplifier with 3 Inputs (2 x Stereo, 1 x MIC). The PA100 is based on the digi- tal amplification circuit (Class-D) and can operate in Stereo mode 2x20w or in Bridge mode (Mono) at 1x40W.
  • Page 4: Audio Connection

    The PA100’s default output of the amplifier is 2x20Watt@4Ω. 4.2. Bridge mode: 1x40Watt@8Ω The PA100 has a Bridge-Mono mode, which allows you to double the wattage to 40Watts by combining 2 channels together and increasing the impedance to 8Ω. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 5: 4.3. Dual-Mono Mode

    4.3. Dual-mono mode. The AT-PA100 has a dual-mono mode. This mode sends the same L/R audio signal to both channels (speakers). PUSH-BUTTON CONTROLS The PA100 has push-buttons for volume/EQ control and input switching. 1. Audio input switching: There are two switchable stereo audio inputs, Stereo RCA and Stereo 3.5mm ter- minals.
  • Page 6: Rs232 Communication Protocol

    Example 2: Turning up the volume of the line audio should be [603%] Example 3: Preset the MIC volume to be “21” degree should be [521%] Example 4: Checking the current status of the PA100 should be [600%] Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 7: Connection Diagram

    CONNECTION DIAGRAM Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 8: Safety Information

    It may also cause damage to your AT-PA100. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.
  • Page 9: Warranty

    Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence.
  • Page 10: Atlona Product Registration

    ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
