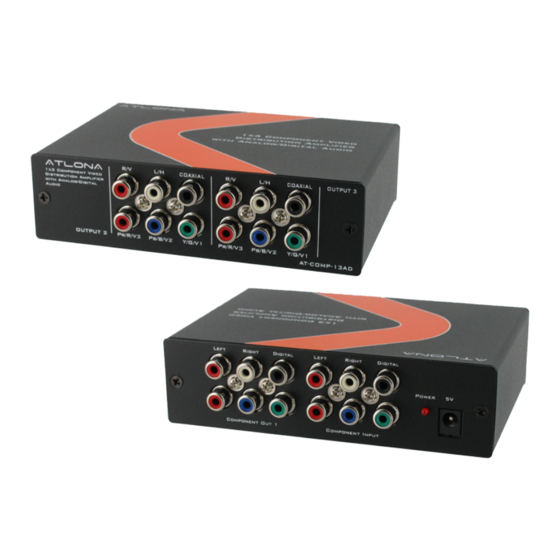

- Page 1 1 x 3 Component Video W/Audio Distribution Amplifier AT-COMP-13AD User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel View 5.1. Front Panel 5.2. Rear Panel 6. Connection and Installation 7. Safety Information 8. Warranty 9. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Video Bandwidth 480MHz (-3dB) Video System NTSC or Pal compatible Resolution up to 1080p Differential gain 0.05% Differential phase 0.05 degree Power Supply 5V 2A~1A Dimensions 5.5”W x 1.5”H x 4.1”D Shipping Weight 3Lbs Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 4: Panel View
Step 2. Connect Stereo Audio (Red, White) cables to your Source and to AT-COMP-13AD. Step 3. Connect Digital Coaxial Audio (Black or Orange) cable to your Source and to AT-COMP-13AD Step 4. Connect Component Video (Red, Green, Blue) cables to your Displays and to AT-COMP-13AD. - Page 5 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 6: Safety Information
It may also cause damage to your AT-COMP- 13AD. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
