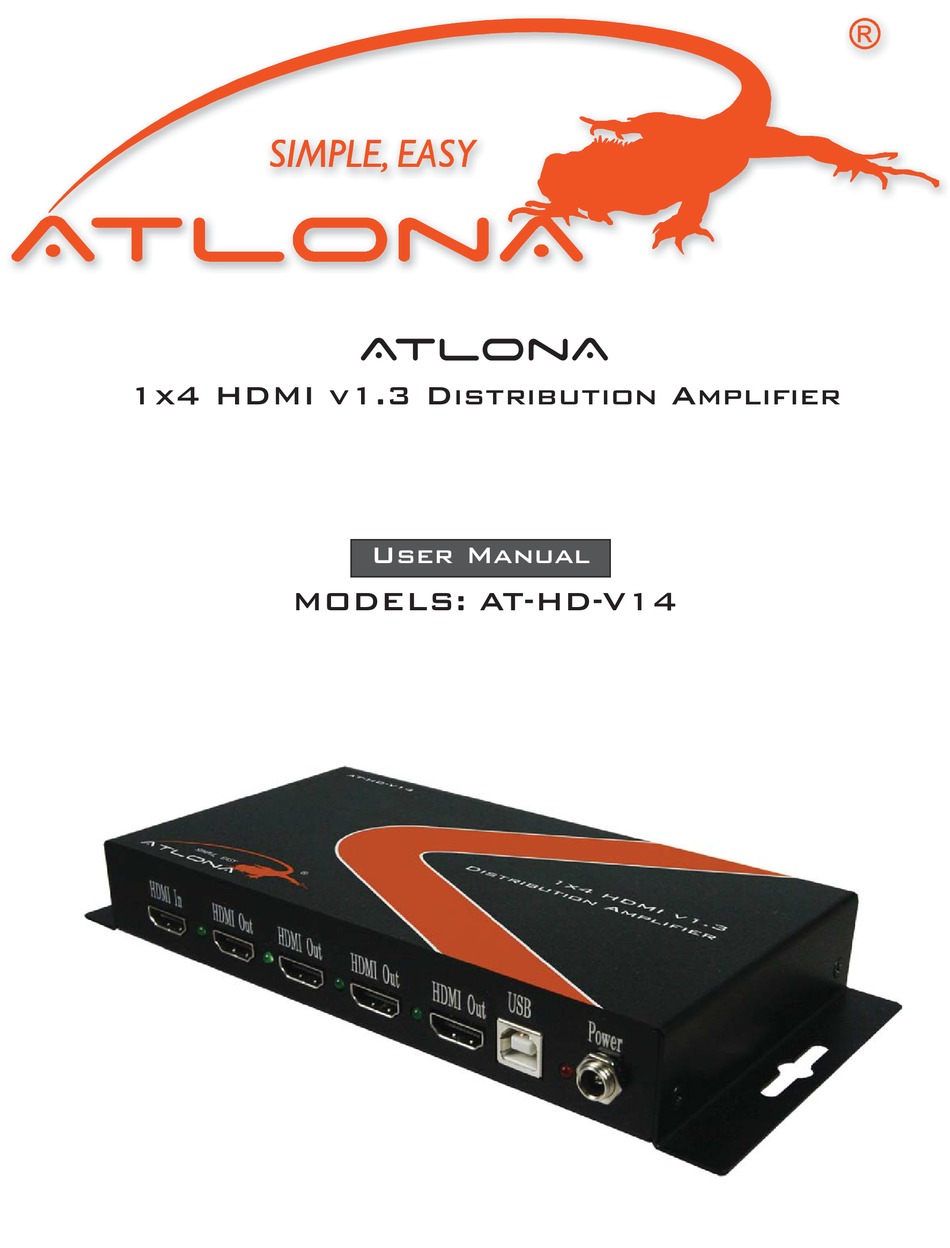

- Page 1 AtlonA 1x4 HDMI v1.3 Distribution Amplifier User Manual MODELS: AT-HD-V14...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........3. Specifications & Package Contents ......4. Panel Descriptions ..........5. Hardware Installation ..........6. Notice ..........7. Safety Informations ..........8. Warranty .......... -
Page 3: Introduction
4 different locations without losing quality. With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. With 12 bit deep color video and high definition audio support, AT-HD-V14 is suitable for high quality A/V broadcasting, digital signage and education applications! Features: •... - Page 4 5V 2A DC Power consumption 4 Watts [max] 0~40 o C [32~104 o F] Operation temperature -20~60 o C [-4~140 o F] Storage temperature Relative humidity 20~90% RH [no condensation] Package Contents 1x AT-HD-V14 1x 5V power adapter 1x User Manual...
-
Page 5: Panel Descriptions
Connect to the receivers. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. Plug in 5V DC power supply. Power on the HDMI monitors. Power on the HDMI source. AT-HD-V14 HDMI cables HDMI source Up to 4 HDTV’s... -
Page 6: Notice
Notice 1. While connecting a new monitor to the splitter, experiencing a short period no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2. -
Page 7: Safety Informations
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: Warranty
WARRANTY LIMITED ONE-YEAR WARRANTY ATLONA by Lenexpo Electronics warrants only to the initial purchaser of this product for a period of one year from the date of purchase from an Authorized ATLONA Reseller, the product will be free of electrical and mechanical defects that materially affect the products operation as described in this users manual.
