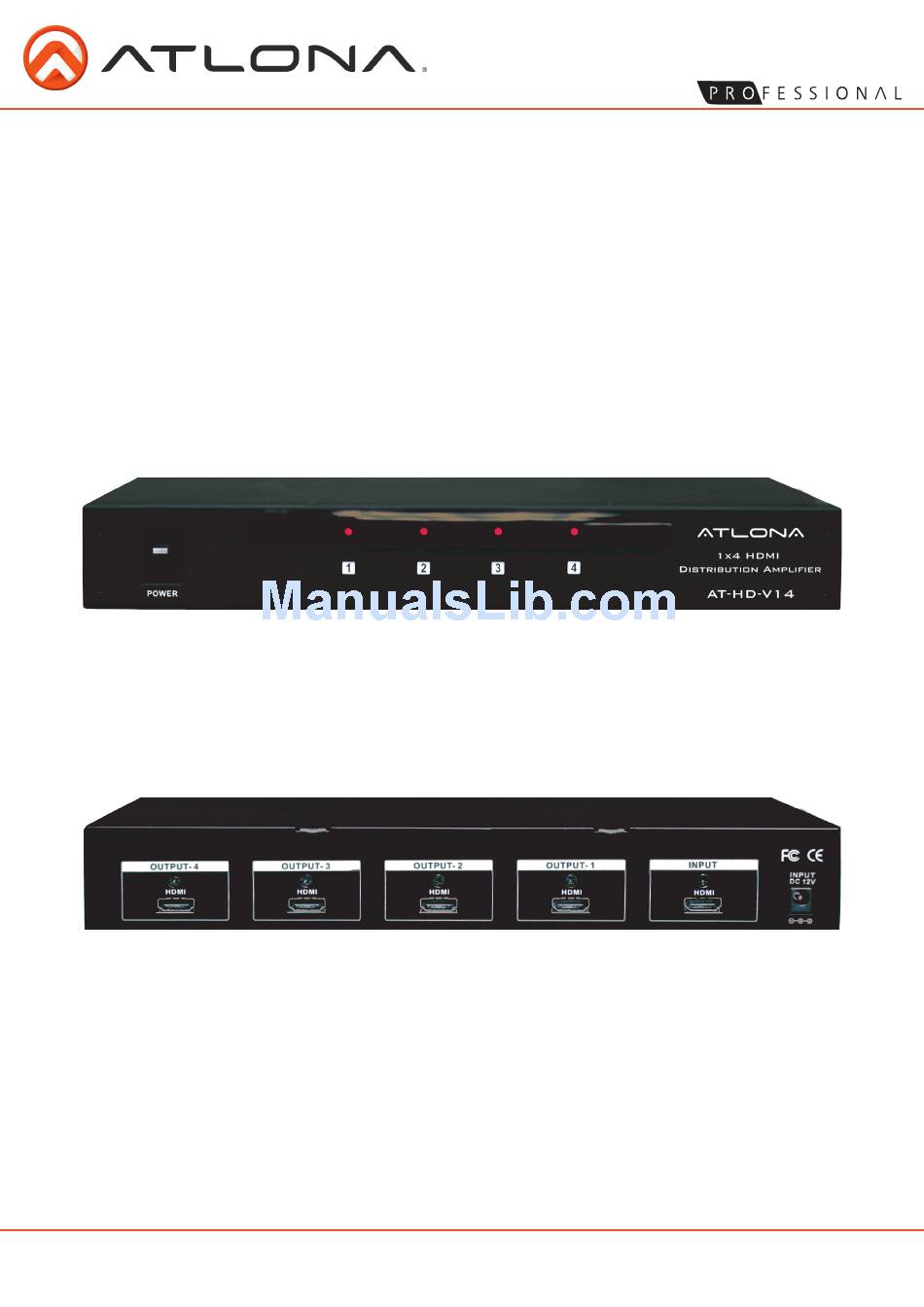

Page 1: User Manual
Atlona 1 by 4 HDMI Distribution Amplifier AT-HD-V14 User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
1. Introduction ......................2. Features ......................3. Package Contents ......................4. Specifiations ......................5. Panel Descriptions ......................6. Hardware Installation ......................7. Notice ......................8. Safety Informations ......................9. Warranty ......................10. Registration ......................Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

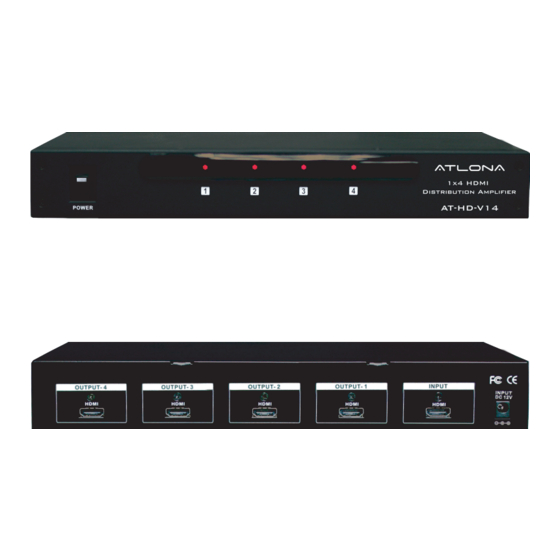

Introduction The Atlona AT-HD-V14 1x4 HDMI Distribution Amplifier provides the most cost effective and advanced HDMI splitter solutions on the market, by which the high definition video and high quality audio can be transmitted to 4 different locations without losing quality. With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed. -
Page 4: Package Contents
Package Contents • 1x4 HDMI Distribution Amplifier (AT-HD-V14) • Rack Ears - 1U • 12V Universal Power Supply • User's Manual Specifications • Inputs: 1 x HDMI • Outputs: 4 x HDMI • Signal Supports: DVI and HDCP Compliant • Supports HDMI formats up 1080p or 1920x1200 •... -
Page 5: Panel Descriptions
3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI IN. 4. Plug in 12V DC power supply. 5. Power on the HDMI monitors. 6. Power on the HDMI source. AT-HD-V14 HDMI source Up to 4 HDTV ’s Broadcasts HDMI signal to 4 HDMI displays! Toll free: 1-877-536-3976 atlona.com... -
Page 6: Notice
Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2. For long range high definition HDMI transmission applications, please adopt CAT-5 cable based HDMI extenders. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Safety Informations
It may also cause damage to your AT-HD-V14. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona Technologies’ and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. -
Page 9: 10. Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
