Component Video & Analog /Digital Audio
CAT5 Extender
With Chainable Output
AT-COMP300SL & AT-COMP300RL
AT-COMP300SL
AT-COMP300RL
User Manual
Toll free: 1-877-536-3976
www.atlona.com
Local: 1-408-962-0515

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-COMP300SL and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-COMP300SL

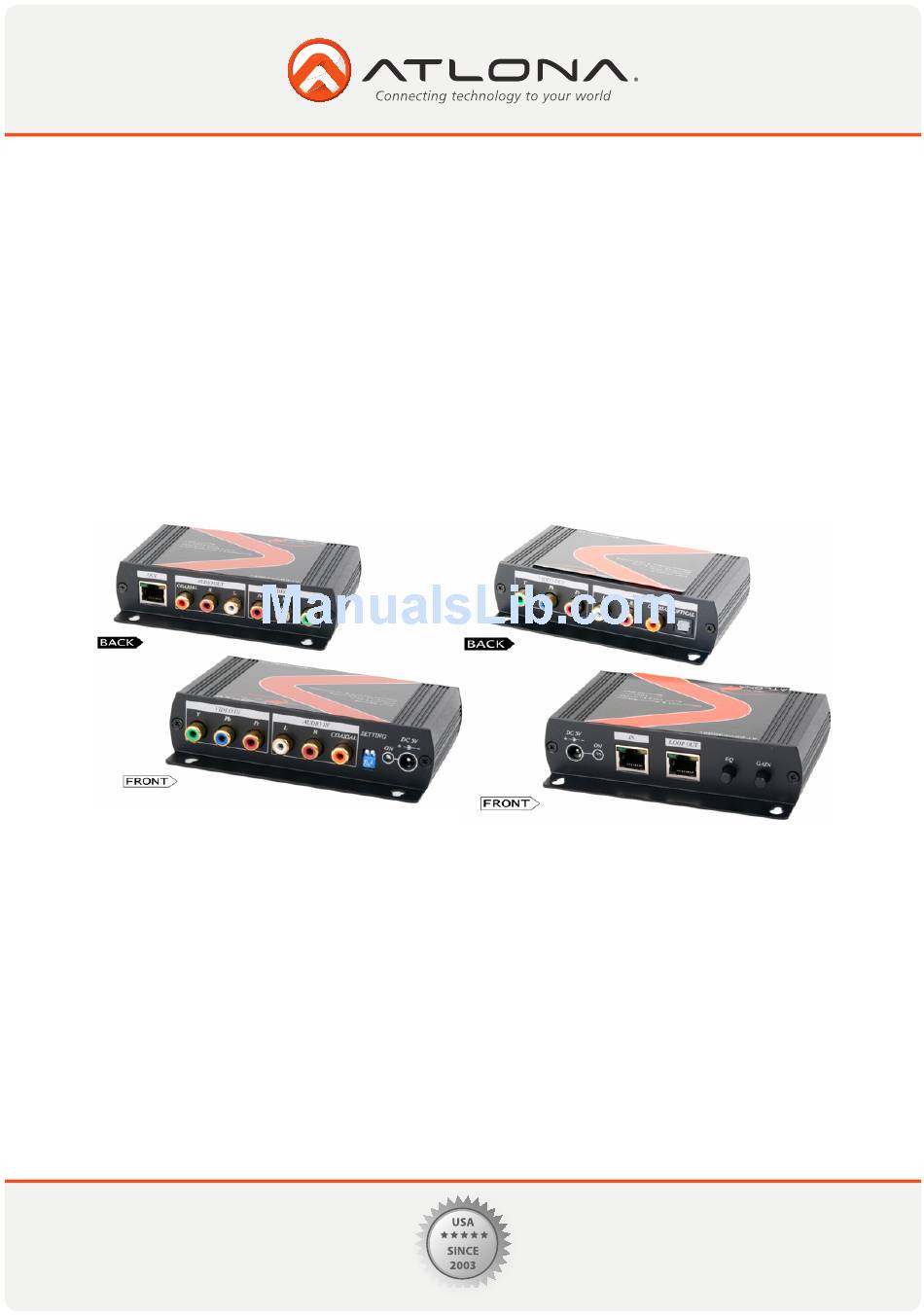

  • Page 1 Component Video & Analog /Digital Audio CAT5 Extender With Chainable Output AT-COMP300SL & AT-COMP300RL AT-COMP300SL AT-COMP300RL User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction 2. Specifications 3. Installation 4. Installation Tips 5. Safety Information 6. Warranty 7. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 3: Introduction

    300 meters. • Application for airports, train & bus stations, window display, trades shows and an exhibitions. AT-COMP300RL ( RECEIVER UNIT ) COMPONENT VIDEO WITH STEREO AUDIO CAT5 EXTENDER – CHAINABLE FUNCTION • Works with AT-COMP300SL as receiver for extra remote component Video display equipment. • It can be daisy chained for another AT-COMP300RL to an extended working range over 300 meters and multiple displays. • Built in equalization, gain adjustment. • Supports up to 1080p. • Built in LPCM 44.1K / 48K 16Bit stereo audio decode function, digital & analog audio can be output simultaneously. • Supports Dolby Digital (AC3) & DTS digital output. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 4: Specifications

    Link Connector 1 x RJ45 Loop output Connector 1 x RJ45 Max Distance Up to 300M (1000 feet) Power Supply 5V DC 2000mA Regulated (External) Power Consumption 600mA (Max) Dimensions (mm) 125 x 95 x 30 Weight (g) Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 5: Installation

    AT-COMP300SL AT-COMP300RL Cable: Video Link cable using hi quality CAT5E UTP/STP or CAT6 UTP cable. Please note:STP ca- ble can not only enhance noise rejection, but also lessen transmission range and picture sharpness quality. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 6 * Recommend to adjust the EQ trimmer to the right end, then slightly turn to left side for the best picture quality. Improper adjustment can cause picture to become unstable, even resilting in no picture display. AT-COMP300RL LED Indication: Blue Power on/off Link Cable Connector: Green: Digital audio signal setup Caution: The cabling must remain away from any equipment with electromagnetic wave, i.e.: microwave, radio equip- ment, high voltage lines. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 7: Installation Tips

    This is seen on the monitor as separation, or lack of convergence in colors. Normally it happens on long CAT 5 cable runs. 2. Recommend to use following cabling design to reduce skew status, to add special made “skew immunized adaptor”, 2 pieces included at the package. CAUTION: to avoid display equipment damaged, be sure to make correct cable connection and pow- er for both AT-COMP300SL before connecting AT-COMP300RL. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 8: Safety Information

    Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product. Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT- COMP300SL, AT-COMP300RL. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
  • Page 9: Warranty

    To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss.
  • Page 10: Atlona Product Registration

    At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
