Disassembly Of The Parts

Attention: Turn off the air-conditioner and pull out the plug of the power supply before
the service.

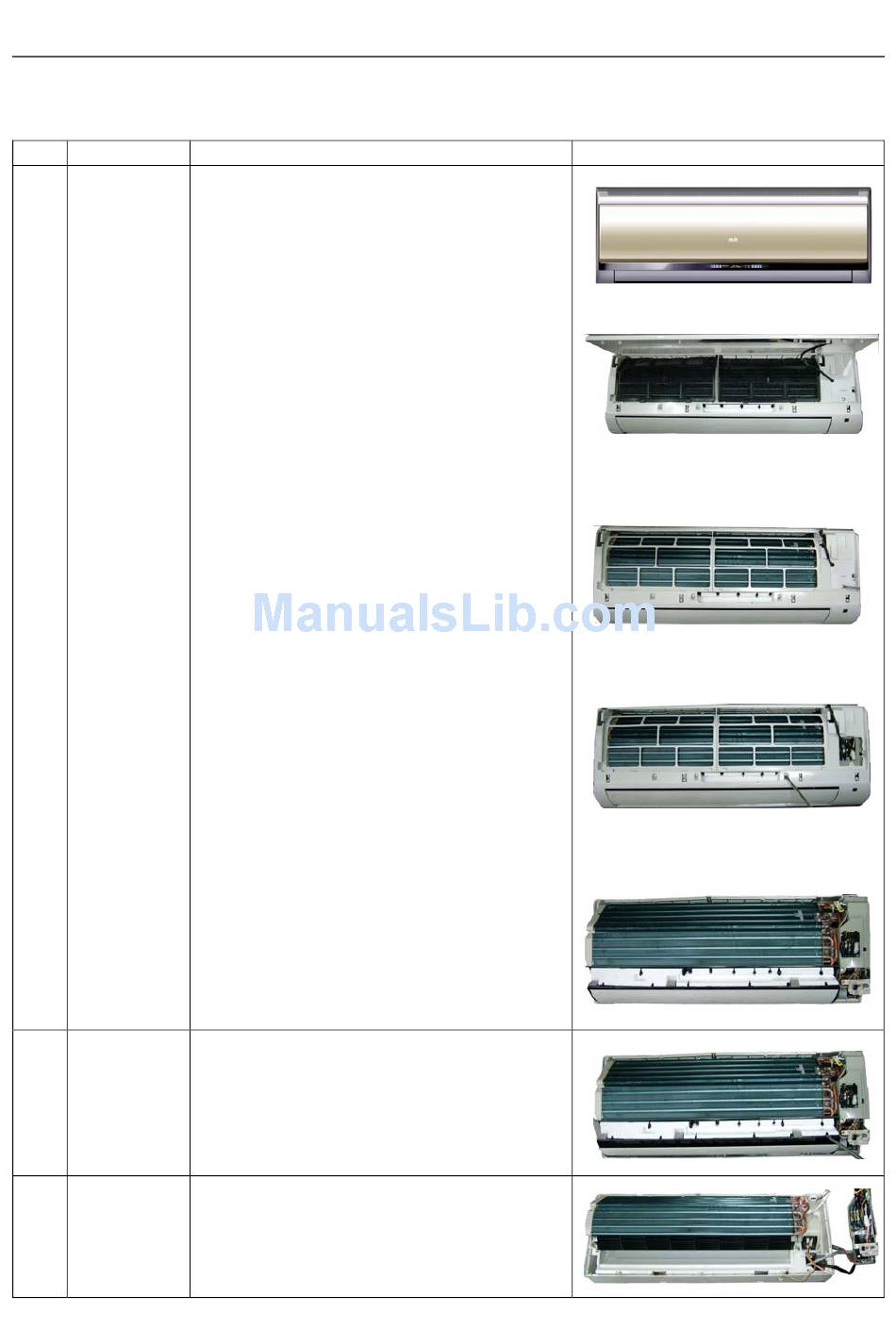

1. Indoor unit:
No. Part
1 Panel
Electrical
2
component
Water
3 draining
tank
Operation Process
1) Turn off the air-conditioner and cut
off the power supply;
2) Tear the adhesive tape sticking to
the panel;
3) Hold the handles at both sides of
the panel and push upward to have it
slip out;
4) Grasp the both sides of the panel
and push upward;
5) Turn the upper board by 90°and
unload it from the connecting pole
carefully;
6) Take out the filter from the right and
left side.
7) Screw off the bolts on the electrical
box cover and unload the box cover;
8) Screw off the 5 bolts (for 1Hp AC)
or 8 bolts (for 1.5Hp AC) on the
medium frame;
9) Hold the both sides of the medium
frame and open it gently
10) Turn up the medium frame by about
90°;
11) Offload the medium frame once
hearing the crack sound;
1) Do No."1" and "2" firstly, offload the
water drainage soft tube;
2) Offload the water draining tank from
chassis and take out the electrical
components.
1) Do No. "1" firstly;
2) Pull out all tie-in connecting with
PCB and the temperature sensor, etc.;
3) Screw off the screws and bolts as
indicated in the picture. Untie the
36
Remark
