3. Installation
Outdoor Unit:
① The outdoor unit must be firmly fixed to avoid falling in
strong wind.

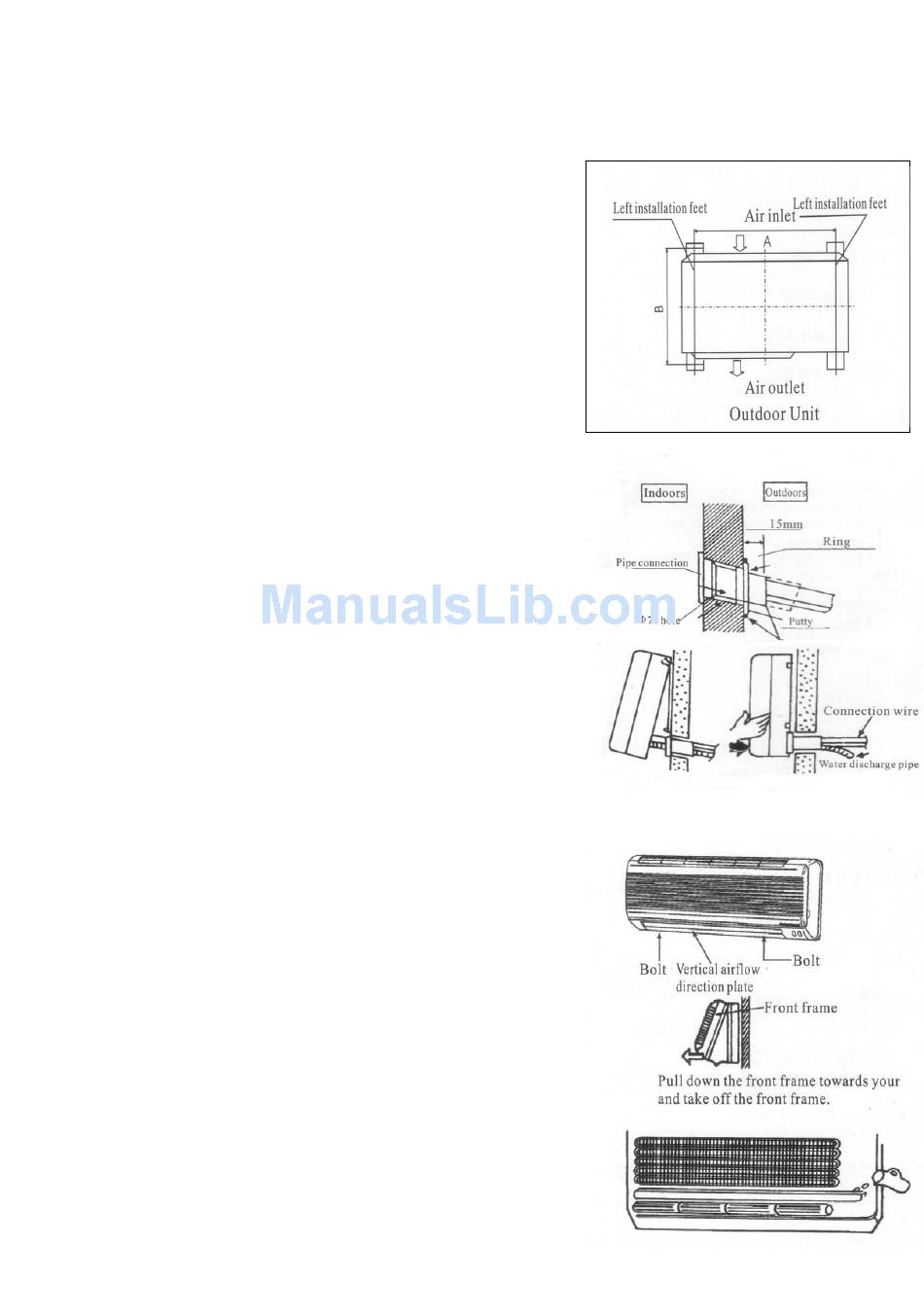

② Install on the cement base as in the drawing.
③ If it is installed at seaside or at a place high above the
ground and with strong wind, the AC should be installed
against the wall to ensure the normal operation of the fan
and the blocking plate should be used.
④ If it is an overhanging installation, the structure of the
mounting wall should be made of solid, cement or materials
with equivalent strength, and of sufficient support capacity.
Otherwise, measures such as reinforcement, support or
vibration damping should be adopted.
Indoor Unit
①First make changes to wall and make sure that is hard
and secure. Using four "+" type screws to fasten the
installation board onto the wall. Keep it level in horizontal
direction and perpendicular in vertical direction. Otherwise
it might cause water drips when air-conditioner is running
in cooling operation.
②Drill 70mm diameter pipe hole at the left lower or right
lower side of the installation board. The hole shall slant
outward slightly.
③Hang the indoor unit to the oard and make sure the
machine is in the middle of the board.
④Push the machine towards the left lower and right lower
side of the installation board until the hangers enter tightly
into the grooves (it produces "click" sound)

4. Check the water discharge

(1)Take off the frame from the unit cover.
Take off the front frame for maintenance according to the
following steps:
①As shown in the picture on the right, take off two covers
from the front frame and then unfasten two fixture screws.
②Pull the front frame towards yourself and take it off.
To put the front frame back, reverse the steps.
You should check whether the front frame is firmly fixed
into the fixture groove on the top.
(2)Check the water discharge
①Pour a cup of water into groove.
②Check whether the water flow through the water
discharge hole.
17
