AUX ASW-H09A4/SAR1DI Service Manual page 39

outdoor unit's interconnection cord and
power supply cord from the terminal of
the electrical box.
4) If the main PCB board is loosed by
chance, remove it away;
1) Do No."1" , "2" and "3" firstly;
2) Offload the connecting pipe;
3) Offload the tube clip at the rear;
4) Screw off the bolts at the right and
left side;
5) Lift up the evaporator, and draw it
4 Evaporator
out from the indoor unit;

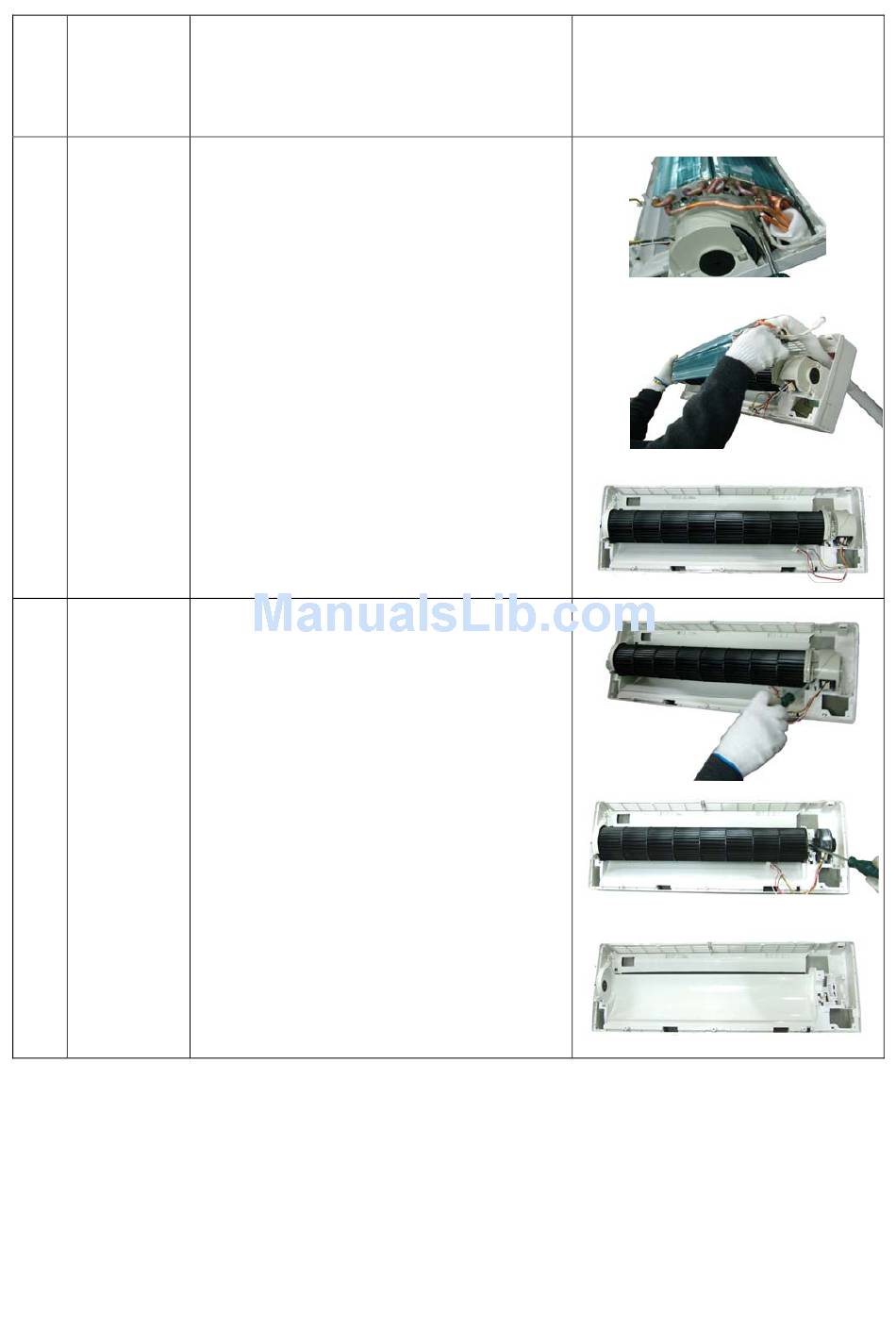

1) Screw off one bolt from the motor
cover, and remove the motor cover;
Indoor fan
5 2) Offload the motor from the fan;
Fan motor
3) Offload the fan from bearing;
37
