Vitek VT-SRL User Manual

Vt-srl series 4, 8, & 16 channel 960h digital video recorders
Hide thumbs Also See for VT-SRL:
Table of Contents

Advertisement

Quick Links

Supports High Resolution 960H Cameras
•
4, 8 or 16 Video Inputs with 1 HDMI, 1 Monitor Output, and 1
•
VGA output
H.264 Compression
•
Up to 480fps Live Display & 480fps Recording (VT-SRL916) /
•
240/240 (VT-SRL908) / 120/120 (VT-SRL904)
Supports both Dynamic and Static IP Addresses
•
Supports 2x internal Hard Drives (VT-SRL908/VT-SRL916) / 1x
•
HDD (VT-SRL904)
Remote Viewing over the Internet, with IE, Safari, Firefox, and
•
Opera
Applications for iPhone, iPad, iPod Touch and Android Devices
•
Mac OSX Client & PC CMS Central Management Software
•
Included
Thumbnail Search
•
Automatic sending of Health & Event notifications via email
•
Control locally with the Included USB Mouse or IR Remote
•
control
PTZ Control over RS-485
•
4 Alarm Inputs / 1 Relay Out
•

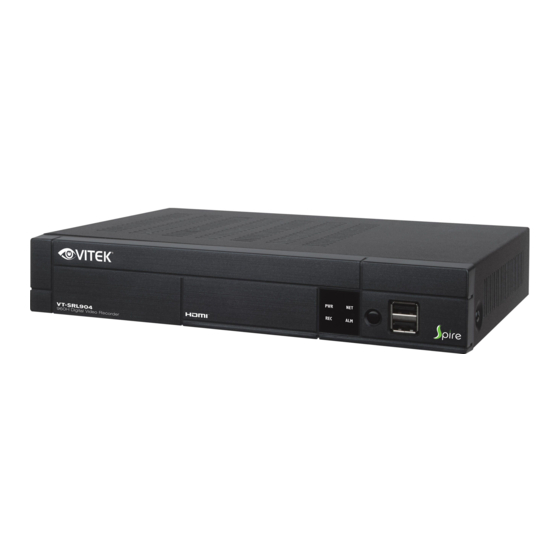

VT-SRL
4, 8, & 16 Channel 960H

Digital Video Recorders

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-SRL and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VT-SRL

Summary of Contents for Vitek VT-SRL

  • Page 1: Digital Video Recorders

    VT-SRL 4, 8, & 16 Channel 960H Digital Video Recorders Supports High Resolution 960H Cameras • 4, 8 or 16 Video Inputs with 1 HDMI, 1 Monitor Output, and 1 • VGA output H.264 Compression • Up to 480fps Live Display & 480fps Recording (VT-SRL916) / •...

  • Page 3: Table Of Contents

    Content OVERVIEw PLAy Safety Instructions If you want to Play Key Features what's Included Rear Panel Remote Control at a Glance InSTALLATIOn ARCHIVInG Replacing the Hard Drive(s) To start the Archive Menu Basic Layout Connecting to an External Device MOnITORInG wEB VIEwER Live Screen At a Glance what is the web Viewer?
  • Page 4 Overview Safety Instructions Vitek shall not have any responsibility for any accident or damage that may incur during the use of the product. For your safety, we provide the following instructions regarding installation, cleaning, assembly/disassembly of the product. Please read carefully, and comply with the instructions.

  • Page 5: Key Features

    Key Features This product is capable of receiving up to 16 channels of 960H camera inputs of video and audio and recording onto a hard disk drive in real-time, as well as providing monitoring, playback and backup footage in 960H resolution. It also provides transferring video and audio data to the networked external devices, which allows remote monitoring environment for computers and mobile devices including cell phones.

  • Page 6: What's Included

    Overview what's included LOGOUT PANIC SEARCH ARCHIVE SETUP ALARM DISPLAY FREEZE KEYLOCK AUDIO PREV / NEXT SNAPSHOT RESERVE EXIT MENU ENTER ZOOM FOCUS PRESET ZOOM Mouse x1 Remote Control x1 & Batteries (AAA x2) Power Cable x1 DC 12V Adaptor x1 Screws Adapter cable retainer clip x1 User manual CD...

  • Page 7: Rear Panel

    Rear Panel 4 channels ALARM IN RELAY RS485 DC 12V AUDIO AUDIO NTSC ETHERNET HD MONITOR VIDEO IN 8 channels AUDIO ALARM IN RELAY RS485 DC 12V AUDIO NTSC ETHERNET HD MONITOR VIDEO IN 16 channels AUDIO ALARM IN RELAY RS485 DC 12V AUDIO NTSC...
  • Page 8 Overview name Description VIDEO In Video input terminal for cameras. ETHERnET network port for connection to the Internet, router or hub. VGA monitor video output port. 1/2 : Audio input terminal that supports channels 1 and 2. AUDIO In 3/4 : Audio input terminal that supports channels 3 and 4. ALARM In Alarm input signal port.

  • Page 9: Remote Control At A Glance

    Remote Control At a Glance LOGOUT Log out. LOGOUT PANIC POwER SEARCH ARCHIVE SETUP ALARM PAnIC SEARCH Start the emergency recording. Display the search window. ALARM ARCHIVE Show the alarm status with a popup Display the backup window. window. SETUP nUMBER BUTTOnS Display the system setup menu.

  • Page 10: Change The Remote Control Id

    Overview Change the remote control ID The remote control will only function if the Remote Control ID matches with that specified on the DVR. If multiple DVRs are installed at one location and you would like to have just a single remote control, use the ID button to set the remote control ID.

  • Page 11: Installation

    Installation Replacing HDD when a hard drive is full or problematic, it is possible to replace it yourself. 4-Channel Model Remove the screw from the bracket on the bottom of the DVR. Hold the HDD bracket with your finger as shown in the figure and pull it to separate it from the DVR.
  • Page 12 Installation Install the HDD to the bracket (see figure). when installing the HDD, make sure to install in the correct direction. Insert the bracket back into the DVR. Secure the bracket by fastening the screw.
  • Page 13 8/16-Channel Models Remove the screw from each bracket on the bottom of the DVR. Hold the HDD bracket with your finger as shown in the figure and pull it to separate it from the DVR. Install the HDD to the bracket (see figure) when installing the HDD, make sure to install in the correct direction.
  • Page 14 Installation Insert the bracket back into the DVR. Secure the bracket by fastening the screw.

  • Page 15: Basic Layout

    Basic Layout V ID E O IN A U D A LA R E LA 1/ 2 S 48 A U D O U T 3/ 4 960H IP Router Camera SPOT or HUB Full HD Monitor Monitor Control DC 12V Devices Power Speaker...

  • Page 16: Connecting To An External Device

    Installation Connecting to an external device Connecting to a Monitor This product supports 1080p 60 Hz HDMI monitors and regular monitors that support DVI and VGA inputs. Use the switch AUDIO on the product’s rear side to set it for HDMI or VGA monitor. Connect an HDMI cable to the port on the product’s rear bottom, or connect an HDMI-DVI converter cable to connect a DVI monitor.
  • Page 17 Alarm I/O Connection AUDIO AUDIO AUDIO ALARM IN RELAY RS485 ALARM IN ALARM IN RELAY RS485 RELAY RS485 DC 12V DC 12V DC 12V AUDIO AUDIO NTSC NTSC ETHERNET ETHERNET HD MONITOR HD MONITOR VIDEO IN VIDEO IN AUDIO NTSC ETHERNET HD MONITOR VIDEO IN...

  • Page 18: Audio Device Connection

    Installation Communication Port AUDIO AUDIO AUDIO ALARM IN RELAY RS485 ALARM IN ALARM IN RELAY RS485 RELAY RS485 DC 12V DC 12V DC 12V AUDIO AUDIO NTSC NTSC ETHERNET ETHERNET HD MONITOR HD MONITOR VIDEO IN VIDEO IN AUDIO NTSC ETHERNET HD MONITOR VIDEO IN...

  • Page 19: Network Connection

    Network Connection PC Connection - Local Network you can connect the DVR to a PC in the same local area network. VI D EO AU D AL AR M IN RE LA Y RS 1/ 2 48 5 AU D 3/ 4 O U T Broadband router...
  • Page 20 Installation Connect a CAT-5 network cable to the DVR's [ETHERnET] port on the rear panel to a router or hub. Connect the [wAn(UPLInK)] port of the router directly to the fixed IP LAn cable, or connect it to the ADSL modem. If using a router, make sure BOTH the web Service Port and RTSP Port have been port forwarded.

  • Page 21: Monitoring

    Monitoring START Connect the 12V power input to the rear panel of the DVR. The logo screen appears several seconds after the front LED turns on. when the booting process is completed, the login screen appears. Log In when the system starts, the login screen appears. Select a user and provide the password.

  • Page 22: System Shutdown

    Monitoring System Shutdown In the monitoring screen, click <MEnU> in the bottom left corner of the screen to <SHUTDOwn> the system, or press the [POwER] button on the remote control. • If you turn off the system in an abnormal manner such as removing the power cord while the system is in operation, the disk can be damaged, causing data loss and shortened life cycle of the disk.

  • Page 23: Live Screen At A Glance

    Live Screen At a Glance The live screen largely consists of three components: video window, status bar and timeline. Video window Quick Menu Timeline Status Bar Video Window Icons used in the video window. Item Description Camera ID Show the camera ID. Displayed if an event recording is reserved.

  • Page 24: Status Bar

    Monitoring Status Bar Press the [▼] button on the remote control, or place the mouse in the lower area of the screen to display the status bar. Item Description Menu Button Allows access to the DVR's menu system User ID Show the ID of the currently logged in user Edit the screen layout to show the status bar and timeline at all times or only when the mouse cursor hovers on the status bar/timeline.

  • Page 25: Quick Menu

    area. Item Description Displays the date of the current timeline. Timeline Date Click this to select a desired date of the timeline. Expand/Collapse Expand or collapse the timeline. the timeline navigation through navigate through the timeline. Timeline you can also use the mouse wheel. Displays the recording data with time.
  • Page 26 Monitoring Using the status bar in the live mode Selecting a Split Mode Click a desired split mode from 1, 4, 9 and 16 split screen. Or press the [DISPLAy] button on the remote control until a desired split mode is displayed. Auto Sequence Click the Sequence button in the status bar, or press the [SEQ] button on the remote control.

  • Page 27: Digital Zooming

    Digital Zooming you can enlarge the monitoring screen for better view. Zooming will enlarge the video of the selected channel. If no channel is selected, channel 1 will be zoomed. Click Zoom in the status bar or move the cursor to a desired channel and right-click it to display the context menu.
  • Page 28 Monitoring Select an Audio Input Channel Select a channel from which the audio signal will be received. i CHAnnEL : Produces the selected channel’s audio, regardless of the split screen mode. i LInK TO FULL SCREEn : when switching the DVR display mode to view one channel (Single Split), it produces the selected channel’s audio.

  • Page 29: Saving Captured Snapshots

    currently connected to the system. Click <OK> to close the window. For more information, refer to "Disk Information". (page 50). Saving Captured Snapshots you can capture the current video screen and save or export it to a connected storage device. Select a channel first, and right click to open popup menu, and select <SnAPSHOT>...
  • Page 30 System Setting To move to the System Setup menu ➠ How to use the mouse SEARCH SETUP SEARCH SETUP ENTER ENTER � ➠ How to use the remote control 1 MENU ENTER MENU MENU ENTER ENTER ENTER ENTER ENTER ➠ How to use the remote control 2 SETUP...

  • Page 31: Setting

    Camera Setting you can configure the display settings of: camera title, hidden option, motion and camera type. CAMERA TITLE you can change the camera ID that is displayed on the screen. From <SySTEM SETUP> - <CAMERA>, select <CAMERA TITLE>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to select a channel that you want to rename.

  • Page 32: Image Setup

    System Setting Image Setup you can adjust the brightness, contrast, color, and quality setting of each channel’s camera. From <SySTEM SETUP> - <CAMERA>, select <IMAGE SETUP>. Use [▲▼◀▶/EnTER] buttons of the remote control or mouse to edit settings. To apply your changes, click <APPLy> button. Once completed, press the [EXIT] button of the remote control or click the <CLOSE>...

  • Page 33: Motion Sensor

    Motion Sensor Set the motion sensor of the camera . From <SySTEM SETUP> - <CAMERA>, select <MOTIOn SEnSOR>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to specify the use of each option item. i ACTIVATIOn : turn on or off the motion sensor. i MARK : Set to <On>...

  • Page 34: Ptz Settings

    System Setting Press the [EXIT] button on the remote control or right- click any area to display the popup window as in the right picture. while the popup window is displayed, select <Sensitivity> to set the motion detection sensitivity of the channel currently selected.

  • Page 35: Display Setting

    Display Setting you can configure screen display setup for the On-screen Display, Sequence, and SPOT Out. you can set the Camera name, Icon, Status Bar, Timeline, Borderline, User name and Language. From <SySTEM SETUP> - <DISPLAy>, select <OSD>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to set each option of the OSD item.
  • Page 36 System Setting Monitor Adjust the dwell times for Sequence and Spot. From <SySTEM SETUP> - <DISPLAy>, select <MOnITOR>. Use the [▲▼◀▶/EnTER] buttons of the remote control or mouse to set the dwell times for Sequence mode and SPOT Out. i SEQUEnCE DwELL : Sets the time interval to the next screen (Can set to 1 sec ~ 60 sec) i SPOT DwELL : Sets the time interval to the next view type.
  • Page 37 To add a sequence Click <ADD> in the bottom of the screen. when the "ADD" dialog appears, enter a title using the virtual keyboard. Enter the name of the sequence and click <SAVE>. Select <ADD VIEw TyPE> . when the "SEQUEnCE SETUP" dialog appears, select a split mode that you want to add from <VIEw TyPE>.
  • Page 38 System Setting To edit a sequence Select a sequence that you want to edit in the list by clicking the <EDIT> button, or double-clicking the sequence title The "EDIT" dialog appears. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to edit the selected sequence. i SEQUEnCE TITLE : enter a new sequence name.

  • Page 39: Audio Setup

    SPOT OUT you can configure the Spot Out to display a Live channel in various live view types. From <SySTEM SETUP> - <DISPLAy>, select <SPOT OUT>. Use [▲▼◀▶/EnTER] button of the remote control or mouse to edit Spot Out properties. i SPOT TITLE : name the Spot Out.
  • Page 40 System Setting Audio Choose whether to receive the live sound source and select an audio channel. From <SySTEM SETUP> - <AUDIO>, select <AUDIO>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to select an item that you want to edit. i DEFAULT LIVE AUDIO CHAnnEL : select an audio channel to monitor on the live screen.
  • Page 41 User Settings Configure user management as well as user and group permissions. Management you can add a user account(s) that can be edited at a later time. From <SySTEM SETUP> - <USER>, select <MAnAGEMEnT>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to add a user account or select an item that you want to edit.

  • Page 42: Group Authority

    System Setting To edit the user account information From the list of users, select a user account to edit and click <EDIT> next to it. From the Edit window, make necessary changes and click <OK>. To delete the user account, click <DELETE>. The <ADMIn>...

  • Page 43: Network Setup

    network Setup you can configure the IP address, DDnS, E-mail settings, and check the network status. IP Setup Configure the IP address and related properties for remote access. From <SySTEM SETUP> - <nETwORK>, select <IP SETUP>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to specify each item of the network settings.
  • Page 44 System Setting DDNS you can configure the DDnS settings for remote access. DDnS is an IP redirection service in a dynamic IP environment that redirects (maps) the new IP address to a registered domain name each time the IP address is changed. Simply, it allows users to remotely access the DVR with a static name instead of an IP address. From <SySTEM SETUP>...

  • Page 45: Network Status

    Network Status From the network status screen, you can check the status of the network connection, as well as all connected cameras. From <SySTEM SETUP> - <nETwORK>, select <nETwORK STATUS>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to select one between <nETwORK MAP> and <DETAIL STATUS>.
  • Page 46 System Setting System Setting you can configure the date/time, system management, remote control ID, and keyboard controller. Date/Time Specify the current date and time. From <SySTEM SETUP> - <SySTEM>, select <DATE/ TIME>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to change the time or set the options as necessary.

  • Page 47: System Management

    System Management you can check, update or reset the system information. From <SySTEM SETUP> - <SySTEM>, select <SySTEM MAnAGEMEnT>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to set each option of the system management. i Fw UPDATE : you can update the current firmware with the latest version.
  • Page 48 System Setting To perform an upgrade Connect the USB storage device that contains the updatable files. Click <USB>. Select the file listed in <F/w LIST>. Click <UPGRADE>. when the confirmation message appears, click <OK>. The progress bar displays the progress of the firmware upgrade. when the upgrade is complete, reboot the system.

  • Page 49: System Information

    System Information you can check the current system version and system-related settings. From <SySTEM SETUP> - <SySTEM>, select <SySTEM InFORMATIOn>. Check the status of the current system. when done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen to return to the previous menu.

  • Page 50: Storage

    System Setting Storage you can configure and view the disk settings. Disk Information It will show information about the connected disk. From <SySTEM SETUP> - <STORAGE>, select <DISK InFORMATIOn>. Use [▲▼◀▶/EnTER] buttons of the remote or the mouse to check each connected hard drive. i START / EnD TIME : show the start time and end time of data stored on each disk.

  • Page 51: Disk Operations

    Disk Operations you can configure the DVR to delete the HDD data automatically and set the overwrite options. you can also format the HDD. From <SySTEM SETUP> - <STORAGE>, select <DISK OPERATIOnS>. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to set the operation conditions of the disk.

  • Page 52: Event Setup

    System Setting - nORMAL : The disk is in a normal state. - CHECK : The disk has an error; check the disk and/or the connection cables. If you leave the problem unresolved, it may affect the recording; it is recommended that you replace the disk immediately.

  • Page 53: Event Notification

    ON/OFF Schedule you can activate or turn off the alarm output as scheduled. Use the [▲▼◀▶/EnTER] buttons on the remote control or use the mouse to select a <DATE> for the schedule. Drag the mouse to resize the cell or use the on the [▲▼◀▶] buttons to move to the cell, then press [EnTER].

  • Page 54: Buzzer Output

    System Setting Buzzer output you can notify the user of an event using the buzzer. i DURATIOn - TRAnSPAREnT : Keep the buzzer out for as long as the event occurs. - UnTIL KEy : Keep the buzzer out until a mouse or remote control button is pressed.

  • Page 55: Alarm Sensor

    Email If an event occurs, this will notify registered users of the event by email. If you do not want to receive the email, uncheck the <EMAIL nOTIFy> option in <MAnAGEMEnT>. (Page 41) i ADD nEw EMAIL If you want to add a new mail recipient beside the existing ones, click this to add the recipient.

  • Page 56: Video Loss

    System Setting Motion Sensor you can set an action to execute when motion is detected. To configure the motion sensor of each camera, see <CAMERA SETUP>. From <SySTEM SETUP> - <EVEnT>, select <MOTIOn SEnSOR>. Use the [▲▼◀▶] buttons on the remote control or use the mouse to specify the ignoring interval and operation.

  • Page 57: Record

    System Event you can configure the DVR to send a notifiction if a system event occurrs (i.e. an event related to the disk, recording, network or system). From <SySTEM SETUP> - <EVEnT>, select <SySTEM EVEnT>. Use the [▲▼◀▶] buttons on the remote control or use the mouse to specify the reaction to each event. To apply the change, click <APPLy>...
  • Page 58 System Setting System i BOOTInG EVEnT: This event occurs when the DVR is restarted or booting up.. i LOGIn FAIL EVEnT: This event occurs when a user fails to log in to the DVR. you can specify the trigger threshold by selecting the drop down <...

  • Page 59: To Start The Record Setup Menu

    Record Setting you can configure the record settings for the DVR. Only authorized users can access the Record Setup menu. To start the Record Setup menu ➠ How to use the mouse SEARCH SETUP SEARCH SETUP ENTER ENTER ➠ How to use the remote control MENU ENTER MENU...

  • Page 60: Record Setup

    Record Setting Record Setup Operation Mode you can set the recording options for Auto or Manual mode. From <RECORDInG> menu, select <OPERATIOn MODE>. Use the [▲▼◀▶] buttons or use the mouse to set <RECORDInG COnFIGURATIOn MODE> to <AUTO COnFIGURATIOn> or <MAnUAL COnFIGURATIOn>. Set the recording options for each selected Record mode.

  • Page 61: Continuous Recording

    Continuous Recording you can configure the settings of: continuous recording time, recording size, frame rate per second and quality. From the <RECORDInG> menu, select <COnTInUOUS RECORDInG>. From <OPERATIOn MODE>, you must set <RECORDInG COnFIGURATIOn MODE> to <MAnUAL COnFIGURATIOn> before you can set the <COnTInUOUS RECORDInG>.

  • Page 62: Schedule Setting

    Record Setting Schedule Setting Select a day of the week <DAy> to configure the recording schedule. Click a time cell from which you want to make the schedule and drag it to a desired cell. For example, to schedule recording between 8am and 5pm, click the cell in the "08"...

  • Page 63: Alarm Recording

    when done, press the [EXIT] button on the remote control or click <CLOSE> in the lower screen. The confirmation message appears and you will return to the previous menu. Alarm Recording you can configure the settings of: alarm recording time, recording size, frame rate per second and quality From the <RECORDInG>...

  • Page 64: Search

    Search you can search for the recorded video data in the HDD by time, thumbnail, event, etc. To move to the Search menu while in monitoring ➠ How to use the mouse SEARCH SETUP SEARCH SETUP ENTER ENTER ➠ How to use the remote control 1 MENU ENTER MENU...

  • Page 65: Search Settings

    Search Settings Time Search Using the calendar, you can search by date. From the <SEARCH> menu, select <TIME SEARCH>. Use the [▲▼◀▶] buttons or use the mouse to specify the search date and time from the calendar in the left corner of the screen.

  • Page 66: Thumbnail Search

    Search If you want to stop playing and return to the search screen, press [EXIT] or [SEARCH] on the remote control. you can also click <MEnU> in the lower left corner and select a desired menu. Thumbnail Search To improve your search, you will be provided with a list of thumbnails. Select Day, Hour or Minute to narrow down the search results.

  • Page 67: Event Search

    Event Search Search for events that occurred at the specified time and select an event to play from the list. From the <SEARCH> menu, select <EVEnT SEARCH>. Use the [▲▼◀▶] buttons or use the mouse to specify the <START> and <EnD> times in the left of the event search list.

  • Page 68: If You Want To Play

    Play If you want to play To play recorded video from the live screen, move the cursor to the right margin to display the Timeline. - Simply double-click a desired time point the Timeline. - Select a desired channel in the live screen and right-click to select <PLAy> in the context menu. Then, select a desire play time.

  • Page 69: Playback Channel Selection Menu

    Playback channel selection menu Item Description CAM1 Display the title of the selected channel. Zoom the video of the selected channel. (The zooming function is active only in '1' Zoom split screen.) The "Set bookmark" popup appears, and you can bookmark a play point for the Start bookmarking backup purpose.
  • Page 70 Play Bookmarking During playback, you can add a bookmark for reserving the video data. you can view the bookmarked data in the Archive menu, it can also be saved to a connected USB device. Provide a tag name in the <TAG> box. Provide the details of the reserved data in the <MEMO>...

  • Page 71: To Start The Archive Menu

    Archiving To start the Archive menu Archive you can archive the searched data or reserve it. From the <ARCHIVInG> menu, select <nEw ARCHIVInG>. Select a date for the archive from the calendar in the left. Days containing recording data will be marked in a colored box. - FIRST : The first date of recording is automatically selected.

  • Page 72: Reserved Data Management

    Archiving Reserved data management you can search for the reserved data and delete or export it to a storage device. From the <ARCHIVInG> menu, select <RESERVED DATA MAnAGEMEnT>. The reserved data will be listed. Select a data type from <AVI> and <Snapshot Capture>.

  • Page 73: Archive Devices Setup

    Archive Devices Setup Provide the FTP server information for archiving data to an existing FTP site From the <ARCHIVInG> menu, select <ARCHIVE DEVICES SETUP>. Move to the FTP information box. Fill in each item using a virtual keyboard. i HOST nAME : provide the FTP server address. i PORT : enter the port number.

  • Page 74: What Is The Web Viewer

    Viewer? The web Remote Viewer enables you to access the DVR remotely via a web browser. nOTE: Vitek recommends using Internet Explorer 7.0 or later. System Requirements The following is the minimum hardware and operating system requirements to run web RA.
  • Page 75 Provide the User name and Password. The default User name : ADMIn; the default Password is 1234. Click the upper warning bar to install the ActiveX. If you fail to download the ActiveX control, go to Tools Internet Options Security Custom Level Download unsigned ActiveX control, and change its setting from “Disable (recommended)”...

  • Page 76: Live

    Web Viewer Live Live Screen At a Glance Item Description View selection tab you can switch to the live, playback and setup screen and check the provided information. Live Display the live screen of the currently connected DVR. Split Mode Select and switch to a desired split-screen mode.

  • Page 77: Switching The Split Mode

    Item Description Voice transmission you can turn on or off the output of the voice signal. Channel Select a channel to view. Save Save the live video on the screen. Print Print out the current screen. Capture Capture the selected image. ActiveX Settings Configure the ActiveX settings or specify the default save location for archiving.

  • Page 78: Activex Settings

    Web Viewer To save the video Click < > to start saving. The video from the selected channel will be saved to the PC in the AVI format. (Default path: C:\SaveFolder) Click < > again to stop saving. Click <ActiveX Setting ( )>...

  • Page 79: Status Tab

    Status tab Click <STATUS> at the bottom of the screen. you can check the event occurrence for each channel. Log tab Click <LOG> at the bottom of the screen. you can check the log of the connected DVR. PTZ tab Click <PTZ>...

  • Page 80: Search

    Web Viewer Search Click <SEARCH> to display the Search Viewer for the DVR. Search Viewer at a Glance Item Description View selection tab you can switch to the live, playback and setup screen and check the provided information. Playback Screen Play the recording data.

  • Page 81: Search By Time

    Item Description REFRESH Reload the time line. PLAy Play the video that satisfies your search criteria. Backup Archive the video that satisfies your search criteria. Channel Selection Select a channel listed in the screen. Screen Print out the current screen. Image Capture Capture the selected image.

  • Page 82: Setup

    Web Viewer Setup Click <SETUP> to display the setup control screen for the DVR. when done, click <APPLy> to apply the changes. If the DVR's menu is being configured locally, the remote setup will be disabled. Setup Viewer at a Glance Camera Name the camera title you can name the camera title that is displayed on each...

  • Page 83: Covert Setting

    Covert Setting you can hide video from a specific camera from specific user groups. Set to hide the camera video so that a specific user or user group can not view. nOTE: To hide video from specific users, move to the <USER> menu and make necessary changes.

  • Page 84: Web Viewer

    Web Viewer PTZ Setup To allow the DVR to utilize camera’s PTZ functions, match the address, protocol and baud rate of connected cameras and DVR.

  • Page 85: Osd Setting

    Display OSD Setting Configure the settings for the camera titles, recording mode icons, boundary, icon and language that will be displayed on the screen. Make changes to each item of the OSD menu and click <APPLy> to apply the changes. For details about each displayed item, refer to "OSD"...

  • Page 86: User Management

    Web Viewer User User Management you can add a user account and change the password. For details about each displayed item, refer to "User Setting" (page 41) To add a user, click <ADD> and provide the user information. If you want to delete the user click <DELETE> next to it. when done, click <APPLy>...

  • Page 87: Network Setting

    Network Network Setting you can check the network connection status and change the baud rate. Change the maximum transfer rate and click <APPLy> to apply it. For more information about each network entry, refer to "IP Setup" (page 43) DDNS Setting you can configure the DDnS settings.
  • Page 88 Web Viewer System Date/Time Setting Specify the current date and time. when done, click <APPLy> to apply the changes. For more information about each of the time and date settings, refer to "Date/Time" (page 46) System Management you can configure the access settings of: log in, log out, and auto logout.

  • Page 89: Control Device Setting

    Control Device Setting Configure the keyboard controler. Change the communication settings and click <APPLy> to apply the changes. For more information, refer to "Control Device". (page 49) Storage Device Information Internal storage devices physically installed in the DVR and their recording time information are displayed. S.M.A.R.T Status The detailed S.M.A.R.T information of each internal storage device is displayed.

  • Page 90: Alarm Output

    Web Viewer Sensor Alarm Output Specify the alarm output conditions. when done, click <APPLy> to apply the changes. For more information about the alarm output and On/OFF schedule, refer to "Alarm Out" (page 52) Event Notification Specify the notification method for <BUZZER OUT>, <DISPLAy> and <EMAIL>. Specify the buzzer output time, display time and email notification, and click <APPLy>...
  • Page 91 Alarm Sensor you can configure the settings of the alarm sensor. when done, click <APPLy> to apply the changes. For more information about each of the alarm sensor actions, refer to "Alarm Sensor" (page 55) Motion Sensor you can set an action to execute when motion is detected. when done, click <APPLy>...
  • Page 92 Web Viewer System Event you can set which action to perform if an event related to the disk, recording, network or system happens. you can notify the user of the event using the alarm output, buzzer, OSD popup and email. when done, click <APPLy>...
  • Page 93 Record Setup Record Setting you can set the recording options for Auto or Manual mode. when done, click <APPLy> to apply the changes. For more information about how to set each mode, refer to "Operation Mode" (page 60)
  • Page 94 Web Viewer Continuous Recording you can configure the settings of: continuous recording time, recording size, frame rate per second and quality. Click < > next to each item to display the list of values available. when you complete the recording size and schedule settings, click <APPLy>...

  • Page 95: Motion Recording

    Motion Recording Set the <SIZE/FPS/QUALITy/AUDIO> and the <SCHEDULE> to apply if a motion event occurs. Click < > next to each item to display the list of values available. Complete setting the <SIZE/FPS/QUALITy/AUDIO> for the motion recording as well as the <SCHEDULE>, and click <APPLy>...
  • Page 96 Web Viewer Alarm Recording Set the <SIZE/FPS/QUALITy/AUDIO> and the <SCHEDULE> to apply if an alarm event occurs. Click < > next to each item to display the list of values available. Complete configuring the <SIZE/FPS/QUALITy/AUDIO> for the alarm recording as well as the <SCHEDULE>, and click <APPLy>.
  • Page 97 Panic Recording From the <PAnIC RECORD> menu, you can set the resolution, FPS, quality and audio settings. Click < > next to each item to display the list of values available. when you have finished, click <APPLy>. For more information about the manual record settings, refer to "Panic Recording"...
  • Page 98 Mobile Viewer SPIRE DVR SMARTPHOnE APP you can use the EH / SPIRE Viewer app to connect to and view your DVR system anytime, anywhere. EH / SPIRE Viewer specification Minimum / recommended specification Minimum specification Recommended specification Processor :800 MHz or higher Processor : 1 GHz or higher Flash : 512 MB or higher Flash : 512 MB...
  • Page 99 Using the EH / SPIRE Viewer on the iPhone How to download the iPhone-dedicated application From your iPhone, access the App Store. Enter "Vitek SPIRE Viewer" in the search bar. Install the application on your iPhone. The DVR Viewer supports the 1/4 split screen mode. •...
  • Page 100 Mobile Viewer Provide the IP address, HTTP port number and RTSP port number, and click <Save>. Provide the access ID of the DVR as well as the password. Specify the use of the Auto Login. Click <Save>. Select the site that you added in the DVR List.

  • Page 101: Split Mode

    Accessing the DVR. If connected successfully, you will see the screen as shown. Split Mode Click any area on the screen. The main menu appears at the bottom of the screen. Click < > in the top left corner to switch to 1-split mode;...

  • Page 102: Using The Log View

    Mobile Viewer Using the Log View From the main menu, click < >. you can check the log of the data stored. Select one from Alarm, Motion, Record, Etc. and click < >. you will view the log of the related item.

  • Page 103: Using The Search Function

    Using the Search function From the main menu, click < >. you can view the history of the data stored. Select a desired time and date. you can use the vertical time bar to specify the start time. Click < >...

  • Page 104: Using The Setup Function

    Mobile Viewer Using the Setup function From the main menu, click < >. you will be connected Setup menu of the DVR. For details about each displayed item, refer to "Setup" (page 82)
  • Page 105 Using nViewer with Android How to download the Android-dedicated application From your smart phone, access the Play Store. Enter "nViewer" in the search bar to find it before downloading. Install the application on your Smart Phone. The nViewer supports the 1/4 split screen mode. •...
  • Page 106 Mobile Viewer Select the site that you added in the DVR List. Press and hold to display the pop-up window. Select <Connect>. when connected successfully, you will see the screen as shown. Split Mode Click any area on the screen. The main menu appears at the bottom of the screen.

  • Page 107: Using The Log View

    Click < > in the top left corner to switch to 1-split mode; click < > to switch to 4-split mode. scroll the screen to the left or right to move to the next camera Using the Log View From the main menu, click < >.
  • Page 108 Mobile Viewer Using the Search function From the main menu, click < >. you can view the video of the recording data. Select a desired time and date. you can use the vertical time bar to specify the start time. Click <...

  • Page 109: Using The Setup Function

    Using the Setup function From the main menu, click < >. you will be connected to the setup menu of the DVR. For details about each displayed item, refer to "Setup" (page...

  • Page 110: Getting Started With The Backup Player

    Archive Viewer you can play the data archived in the DVR. you can play the HDD data recorded by the DVR. Getting started with the Backup Player Successfully Archive from the DVR to a USB device (or, if archiving from the browser, save the file directly to your PC).
  • Page 111 Check the integrity of the archived file. when done, the archived file will be played on the screen.

  • Page 112: Backup Player At A Glance

    Archive Viewer Backup Player At a Glance Item Description Setup Configure the environment settings. Minimize, Close Minimize or close the Backup Player. Channel Information Show the channel information and the video resolution. Play Time Display the time of the current video image. Play Time Display the current playback time.

  • Page 113: Image Capture

    Image Capture Click < > to capture the current video image. i Selected Video : Capture the actual frame of the current video. i Screen : Capture the visible portion of the current video. i Format : Select a saving format.(BMP, JPG, PnG) i Path : Specify the saving path.
  • Page 114 Archive Viewer Settings Click < > to configure the Backup Player settings. you can check the version of the Backup Player. i Maintain image aspect ratio : Preserve the aspect ratio of the image. If you do not mark this option, the image will be adjusted to fit the screen.

  • Page 115: Specification

    Appendix Specification Item 16CH InPUT SIGnAL nTSC/PAL nTSC/PAL nTSC/PAL MAIn MOnITOR HDMI / VGA HDMI / VGA HDMI / VGA Analog 1CH(1Vpp, 75Ohm) Digital 1CH/4CH (1Vpp, Digital 1CH/4CH (1Vpp, VIDEO SPOT OUT 75Ohm) x1 75Ohm) x1 LOOP THROUGH MOTIOn DETECTIOn InPUT SIGnAL 4CH(10KOhm, 2.8Vpp) 4CH(10KOhm, 1Vrms)
  • Page 116 Appendix Item 16CH 2 front 2 front 2 front RS-485 InTERFACES RS-232 1x 10/100 1x 10/100/1000 1x 10/100/1000 REMOTE COnTROL SIGnAL SwITCH wATCHDOG COOLInG FAn 1x 40mm 1x 40mm DC12V, Adaptor, 3.3A, DC12V, Adaptor, 3.3A, DC12V, Adaptor, 3.3A, POwER SUPPLy 100~240V AC, 50-60Hz 100~240V AC, 50-60Hz 100~240V AC, 50-60Hz...

  • Page 117: Compatible Hdd Specifications

    Compatible HDD Specifications ~ SATA1(1.5G) : Can be used ~ SATA2(3.0G) : Can be used Maximum SATA Speed ~ SATA3(6.0G) : Devices of backward compatibility to SATA2 (3.0G) can be used. Maximum Start-up Current 12V, 2A (or lower) Maximum Average Operation Power 7w (or lower) Consumption Maximum R/w Latency...

  • Page 118: Troubleshooting (Faq)

    Appendix Troubleshooting (FAQ) Problem Action ~ Make sure that the system gets supplied with power properly. The system does not operate at all with no active LED in the front panel. ~ Check the input voltage. ~ Check if the system fan the side panel of the unit. If it fails, contact the retailer or the service center.
