Super Micro Intelligent Switch Command Line Interface User Guide
Switch CLI Reference Guide for

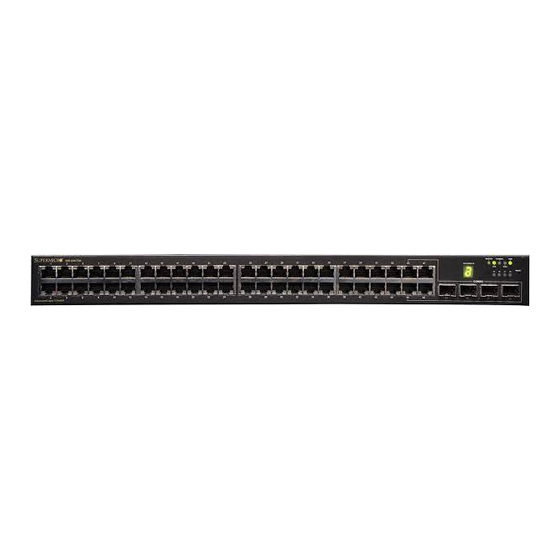

SSE-G48-TG4
SSE-G24-TG4
SSE-X24S
SSE-X24SR
SSE-X3348S
SSE-X3348SR
SSE-X3348T
SSE-X3348TR
SBM-GEM-X2C
SBM-GEM-X2C+
SBM-GEM-X3S+
SBM-XEM-X10SM
Release : 1.1f
1 / 985

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSE-G48-TG4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro SSE-G48-TG4

Summary of Contents for Supermicro SSE-G48-TG4

  • Page 1 Super Micro Intelligent Switch Command Line Interface User Guide Switch CLI Reference Guide for SSE-G48-TG4 SSE-G24-TG4 SSE-X24S SSE-X24SR SSE-X3348S SSE-X3348SR SSE-X3348T SSE-X3348TR SBM-GEM-X2C SBM-GEM-X2C+ SBM-GEM-X3S+ SBM-XEM-X10SM Release : 1.1f 1 / 985...
  • Page 2 Super Micro. Except as expressly authorized in writing by Super Micro, the holder is granted no rights to use the information contained herein and this document shall not be published, copied, produced or reproduced, modified, translated, compiled, distributed, displayed or transmitted, in whole or part, in any form or media.

  • Page 3: Table Of Contents

    Super Micro Intelligent Switch Command Line Interface User Guide Contents   Introduction ....................... 22       Purpose ....................... 22   Scope ........................22     Document Conventions ..................23     Key Conventions ....................23   1.4.1   Keyboard shortcuts ..................23  ...
  • Page 4 Super Micro Intelligent Switch Command Line Interface User Guide 3.15   set ip http ......................52   3.16   web session-timeout ..................53       3.17 show http server status ..................54 3.18   authorized-manager ip-source ................ 55  ...
  • Page 5 Super Micro Intelligent Switch Command Line Interface User Guide 3.60   ip address dynamic ..................98   3.61   mtu frame size ....................99       3.62 system mtu frame size .................. 100 3.63   flowcontrol....................101   3.64  ...
  • Page 6 Super Micro Intelligent Switch Command Line Interface User Guide   Stack ......................... 149     Show stack brief ....................150       Show stack details .................... 151   Show stack counters ..................152     Show stack switchid ..................153  ...
  • Page 7 Super Micro Intelligent Switch Command Line Interface User Guide   spanning-tree mst max-hops................202     spanning-tree priority ..................203       spanning-tree pathcost method ................. 204   spanning-tree mst configuration ............... 205   9.10   name......................206  ...
  • Page 8 Super Micro Intelligent Switch Command Line Interface User Guide 11.2   debug radius ....................270   11.3   show radius server ..................271       11.4 show radius statistics ..................272   TACACS ......................... 273   12.1   tacacs-server host ..................274  ...
  • Page 9 Super Micro Intelligent Switch Command Line Interface User Guide 14.24   show ip igmp snooping statistics ..............331     VLAN ........................335       15.1 vlan ....................... 337 15.2   protocol-vlan ....................338   15.3   map protocol ....................339  ...
  • Page 10 Super Micro Intelligent Switch Command Line Interface User Guide 15.44   show mac-address-table static multicast ............395   15.45   show mac-address-table dynamic unicast ............. 397       15.46 show mac-address-table dynamic multicast ..........399 15.47   show mac-address-table aging-time ............. 401  ...
  • Page 11 Super Micro Intelligent Switch Command Line Interface User Guide 17.2   snmp group ....................448   17.3   snmp access ....................449       17.4 snmp engineid ....................451 17.5   snmp view ..................... 452   17.6   snmp targetaddr .................... 453  ...
  • Page 12 Super Micro Intelligent Switch Command Line Interface User Guide 19.4   ip igmp version ..................... 500   19.5   ip igmp query-interval .................. 501       19.6 ip igmp query-max-response-time ..............502 19.7   ip igmp robustness ..................503  ...
  • Page 13 Super Micro Intelligent Switch Command Line Interface User Guide 22.17   ip pim componentId ..................551   22.18   ip pim hello-holdtime ................... 552       22.19 ip pim dr-priority ..................553 22.20   ip pim override-interval ................554  ...
  • Page 14 Super Micro Intelligent Switch Command Line Interface User Guide 23.28   show ipv6 pim rp-static ................602   23.29   show ipv6 pim component ................603       23.30 show ipv6 pim thresholds ................604 23.31   show ipv6 pim mroute .................. 605  ...
  • Page 15 Super Micro Intelligent Switch Command Line Interface User Guide 26.8   area-default cost .................... 655   26.9   area- nssa ...................... 656       26.10 area-stub......................657 26.11   default-information originate always ............658   26.12   area - virtual-link ..................659  ...
  • Page 16 Super Micro Intelligent Switch Command Line Interface User Guide 27.8   neighbor - remote-as ..................713   27.9   neighbor - ebgp-multihop ................714       27.10 neighbor - next-hop-self ................715 27.11   neighbor - interval ..................716  ...
  • Page 17 Super Micro Intelligent Switch Command Line Interface User Guide 27.53   show ip bgp rfl info ..................765   27.54   show ip bgp confed info ................766       27.55 show ip bgp community ................767 27.56  ...
  • Page 18 Super Micro Intelligent Switch Command Line Interface User Guide 30.4   ipv6 poison reverse ..................816   30.5   ipv6 rip default-information originate ............817       30.6 ipv6 rip metric-offset ..................818 30.7   redistribute ....................819  ...
  • Page 19 Super Micro Intelligent Switch Command Line Interface User Guide 31.36   ipv6 ospf neighbor probing................867   31.37   ipv6 ospf neighbor-probe retransmit-limit ........... 868       31.38 ipv6 ospf neighbor-probe interval ..............869 31.39   debug ipv6 ospf .................... 870  ...
  • Page 20 Super Micro Intelligent Switch Command Line Interface User Guide 33.15   permit icmp ....................930   33.16   deny icmp ..................... 932       33.17 redirect icmp ....................934 33.18   ip access-group ..................... 937   33.19   mac access-group ..................938  ...
  • Page 21 Super Micro Intelligent Switch Command Line Interface User Guide Release : 1.1f 21 / 985...

  • Page 22: Introduction

    SMIS. For specific details about any of the Blade switches or the standalone switches, please refer to their corresponding user guides. 1.2 Scope The scope of this document is limited to the following Super Micro Intelligent Switch products:  SBM-GEM-X2C ...

  • Page 23: Document Conventions

    Super Micro Intelligent Switch Command Line Interface User Guide 1.3 Document Conventions  The syntax of the CLI command is given in Courier New 10 bold.  Elements in (< >) indicate the field required as input along with a CLI command, for example, ...

  • Page 24: Command Line Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 2 Command Line Interface This section describes the configuration of SMIS using the Command Line Interface. The Command Line Interface (CLI) can be used to configure the Intelligent Switch Solution from a console attached to the serial port of the switch or from a remote terminal using TELNET.

  • Page 25: Cli Command Modes

    Super Micro Intelligent Switch Command Line Interface User Guide CLI commands need not be fully typed. The abbreviated forms of CLI commands are also accepted by the SMIS CLI. For example, commands like "show ip global config" can be typed as "sh ip gl co".

  • Page 26: User Exec Mode

    Super Micro Intelligent Switch Command Line Interface User Guide Configuration mode. the privileged EXEC mode the end command is used. Slave Configuration This is the initial mode smis-boot> The reload to start SMIS in slave command is used to session.

  • Page 27: Config-Vlan Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 2.6 Config-VLAN Mode This mode is used to perform VLAN specific operations. To return to the global configuration mode the exit command is used. 2.7 Line Configuration Mode Line configuration commands modify the operations of a terminal line.

  • Page 28: Diffsrv Policy-Map Class Configuration Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 2.9.4 DiffSrv Policy-Map Class Configuration Mode The Policy-Map Class Configuration command defines a traffic classification for the policy to act on. The class-map-num that is specified in the policy map ties the characteristics for that class and its match criteria as configured by using the class-map global configuration command to the class map.
  • Page 29 Super Micro Intelligent Switch Command Line Interface User Guide The Global configuration mode command mac access-list extended <(1-65535)> is used to enter the ACL MAC Configuration mode and the prompt seen at this mode is SMIS(config-extmacl)#. To return to the global configuration mode the exit command is used.

  • Page 30: System Features

    Super Micro Intelligent Switch Command Line Interface User Guide 3 System Features SMIS offers a rich set of system features to a user, such as, login services, copying/writing facilities, duplex/negotiation support, and many other capabilities. Some features might have special hardware requirements and others might have special design considerations. The related command links provide overview descriptions of the features and includes specific information to consider when using these features.
  • Page 31 Super Micro Intelligent Switch Command Line Interface User Guide parameters and the no form of the command disables enable password parameters. enable This command turns on privileged commands. disable This command turns off privileged commands. logout This command exits from Privileged EXEC/ User EXEC mode to ISS Login Prompt in case of console session.

  • Page 32: Firmware Upgrade Command

    Super Micro Intelligent Switch Command Line Interface User Guide show running-config This command displays the current operating configuration in the system. This command is common for both Single Instance and Multiple Instance. alias This command replaces the given token by the given string and the no form of the command removes the alias created for the given string.

  • Page 33: Configuration File Management Commands

    Super Micro Intelligent Switch Command Line Interface User Guide address. ntp broadcast This command enables the SNTP broadcast client. This is used to enable SNTP client to accept SNTP traffic from any broadcast server. ntp enable This command enables SNTP.
  • Page 34 Super Micro Intelligent Switch Command Line Interface User Guide Command Description interface This command selects an interface to configure, which can be a physical interface or a port-channel interface or a VLAN interface or OOB (Out of Band) interface. The no form of the command is used to delete a VLAN / port- channel interface.
  • Page 35 Super Micro Intelligent Switch Command Line Interface User Guide speed of the interface to its default value. duplex This command configures the duplex operation and the no form of the command configures the duplex operation to the default value. monitor session...

  • Page 36: System Commands

    Super Micro Intelligent Switch Command Line Interface User Guide information. show flow-control This command displays the flow-control information. show transceiver This command displays the information about fiber optic transceiver modules. show meminfo This command displays the memory status and utilization.
  • Page 37 Super Micro Intelligent Switch Command Line Interface User Guide show debug-logging This command displays the debug logs stored in file. show debugging This command displays state of each debugging option. show system acknowledgement This command displays the acknowledgement text describing the open source components used on the switch software.

  • Page 38: Ip Address Dhcp

    Super Micro Intelligent Switch Command Line Interface User Guide 3.1 ip address dhcp This command configures the default management interface to get IP address through DHCP. The no form of this command configures the default management interface to use static IP address.

  • Page 39: Ip Address

    Super Micro Intelligent Switch Command Line Interface User Guide 3.2 ip address This command configures the IP address and subnet mask for the default interface. ip address [<ip-address> | <ip-address>/prefix-length] [<subnet-mask>] no ip address Syntax Description ip address - IP address subnet-mask - Subnet Mask prefix-length –...

  • Page 40: Ip Gateway

    Super Micro Intelligent Switch Command Line Interface User Guide 3.3 ip gateway This command configures the gateway IP address for the management interface. The no form of this command will remove the configure gateway IP. This command works only for the following blade switch models.

  • Page 41: Login Authentication

    Super Micro Intelligent Switch Command Line Interface User Guide 3.4 login authentication This command sets the authentication method for user logins and the no form of the command sets the authentication method for user logins to default values. login authentication { local | radius | tacacs}...

  • Page 42: Username

    Super Micro Intelligent Switch Command Line Interface User Guide 3.5 username This command creates a user and sets the enable password for that user with the privilege level. The no form of the command deletes a user and disables the enable password for that user.

  • Page 43: Listuser

    Super Micro Intelligent Switch Command Line Interface User Guide 3.6 listuser This command lists all valid users, along with their permissible mode. listuser Mode Privileged EXEC Mode The command lists the user, mode and groups. Related Command show users - Displays information about terminal lines Release : 1.1f...

  • Page 44: Show Users

    Super Micro Intelligent Switch Command Line Interface User Guide 3.7 show users This command displays information about terminal lines. show users Mode Privileged EXEC Mode Example SMIS# show users Line User Peer-Address 0 con root Local Peer Related Command listuser - Lists all valid users, along with their permissible mode Release : 1.1f...

  • Page 45: Show Privilege

    Super Micro Intelligent Switch Command Line Interface User Guide 3.8 show privilege This command shows current user privilege level. show privilege Mode Privileged EXEC Mode Example SMIS# show privilege Current privilege level is 15 Release : 1.1f 45 / 985...

  • Page 46: Enable Password

    Super Micro Intelligent Switch Command Line Interface User Guide 3.9 enable password This command modifies enable password parameters and the no form of the command disables enable password parameters. enable password [level (1-15)] <LINE 'enable' password> no enable password [level (1-15)]...

  • Page 47: Enable

    Super Micro Intelligent Switch Command Line Interface User Guide 3.10 enable This command turns on privileged commands. enable [Enable Level <0-15>] Syntax Description Enable Level - Level to enter the system Mode User EXEC Mode Level 0 is the most restricted level. User created with level 0 has access only to the...

  • Page 48: Disable

    Super Micro Intelligent Switch Command Line Interface User Guide 3.11 disable This command turns off privileged commands. disable privilege [Privilege level to go to <0-15>] Mode User EXEC Mode Example In User mode the user can monitor and display ISS parameters, but not change them.

  • Page 49: Logout

    Super Micro Intelligent Switch Command Line Interface User Guide 3.12 logout This command exits from Privileged EXEC/ User EXEC mode to ISS Login Prompt in case of console session. logout Mode User EXEC Mode In case of a telnet session this command terminates the session.

  • Page 50: Lock

    Super Micro Intelligent Switch Command Line Interface User Guide 3.13 lock This command locks the CLI console. It allows the user/system administrator to lock the console to prevent unauthorized users from gaining access to the CLI command shell. lock Mode...

  • Page 51: Ip Http Port

    Super Micro Intelligent Switch Command Line Interface User Guide 3.14 ip http port This command sets the HTTP port and the no form of the command resets the HTTP port. ip http port <port(1-65535)> no ip http port Mode Global Configuration Mode...

  • Page 52: Set Ip Http

    Super Micro Intelligent Switch Command Line Interface User Guide 3.15 set ip http This command enables/disables HTTP. set ip http {enable | disable} Syntax Description enable - Enables HTTP status in the system disable - Disables HTTP status in the system...

  • Page 53: Web Session-Timeout

    Super Micro Intelligent Switch Command Line Interface User Guide 3.16 web session-timeout This command configures the idle timeout value for web management sessions. The default value is 600 seconds. web session-timeout <timeoutvalue> Syntax Description timeoutvalue - Any integer number from 1 to 9999 seconds...

  • Page 54: Show Http Server Status

    Super Micro Intelligent Switch Command Line Interface User Guide 3.17 show http server status This command displays the http server status. show http server status Mode Privileged EXEC Mode Example SMIS# show http server status HTTP server status : enabled...

  • Page 55: Authorized-Manager Ip-Source

    Super Micro Intelligent Switch Command Line Interface User Guide 3.18 authorized-manager ip-source This command configures an IP authorized manager and the no form of the command removes manager from authorized managers list. authorized-manager ip-source <ip-address> [{<subnet-mask> | / <prefixlength(1-32)>}] [interface [<interface-type <0/a-b, 0/c, ...>] [<interfacetype <0/a-b, 0/c, ...>]] [vlan <a,b or a-b or a,b,c-d>]...

  • Page 56: Show Authorized-Managers

    Super Micro Intelligent Switch Command Line Interface User Guide 3.19 show authorized-managers This command displays the configured authorized managers. show authorized-managers [ip-source < ip-address >] Syntax Description ip-source - Specifies either the Network or Host address Mode Privileged EXEC Mode...

  • Page 57: Debug Nm

    Super Micro Intelligent Switch Command Line Interface User Guide 3.20 debug nm This command enables the display of debug messages for web module. The no form of this command disables the debug messages for web interface module. debug nm [{all | info | errors | mgmt | data}]...

  • Page 58: Configure Terminal

    Super Micro Intelligent Switch Command Line Interface User Guide 3.21 configure terminal This command enters the configuration mode. configure terminal Mode Privileged EXEC Mode Related Commands end - Exits from Configuration mode exit - Exits the current configuration mode to the next highest configuration mode Release : 1.1f...

  • Page 59: Exit

    Super Micro Intelligent Switch Command Line Interface User Guide 3.22 exit This command exits the current configuration mode to the next highest configuration mode in the CLI. exit Mode All modes The login name and password has to be reentered by the User to gain access to the CLI command shell.

  • Page 60: End

    Super Micro Intelligent Switch Command Line Interface User Guide 3.23 end This command exits from Configuration mode. Mode All modes This command can be executed from any mode but it reverts back to Privileged Exec mode Related Command exit - Exits the current configuration mode to the next highest configuration mode Release : 1.1f...

  • Page 61: Show Running-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 3.24 show running-config This command displays the current operating configuration in the system. This command is common for both Single Instance and Multiple Instance. show running-config [{ syslog | dhcp | dvmrp | qos | stp | la | pnac | igs | | vlan <vlan-id(1-4069)>...
  • Page 62 Super Micro Intelligent Switch Command Line Interface User Guide radius - RADIUS Module rmon - RMON Module rm - RM Module mbsm - MBSM Module ospf3 - OSPFv3 Module igmp - IGMP Module pimv6 - PIMv6 Module igmp-proxy - IGMP Proxy Module...

  • Page 63: Alias

    Super Micro Intelligent Switch Command Line Interface User Guide 3.25 alias This command replaces the given token by the given string and the no form of the command removes the alias created for the given string. alias <replacement string> <token to be replaced>...

  • Page 64: Help

    Super Micro Intelligent Switch Command Line Interface User Guide 3.26 help This command displays help for a particular command. help [ command ] Syntax Description Command - The privileged command Mode All modes "?" can be used as an alternative for the word "help". When "help" or "?" is typed in the specific mode all commands present in that mode as well as all general commands will be listed.

  • Page 65: Show History

    Super Micro Intelligent Switch Command Line Interface User Guide 3.27 show history This command displays command list history. show history Mode Privileged EXEC Mode Example SMIS# show history 1 show ip int 2 show debug-logging 3 show users 4 show line...

  • Page 66: Clear Screen

    Super Micro Intelligent Switch Command Line Interface User Guide 3.28 clear screen This command clears the screen. clear screen Mode All Modes Release : 1.1f 66 / 985...

  • Page 67: Exec-Timeout

    Super Micro Intelligent Switch Command Line Interface User Guide 3.29 exec-timeout This command sets EXEC timeout (in seconds) for line disconnection and the no form of the command clears EXEC timeout for line disconnection. exec-timeout <integer (1-18000)> no exec-timeout Mode...

  • Page 68: Run Script

    Super Micro Intelligent Switch Command Line Interface User Guide 3.30 run script This command runs CLI commands from the specified script file. run script <script file> [<output file>] Syntax Description script file - The script file to be executed output file - The output file...

  • Page 69: Show Aliases

    Super Micro Intelligent Switch Command Line Interface User Guide 3.31 show aliases This command displays the aliases. show aliases Mode Privileged EXEC Mode Example SMIS# show aliases show -> sh previlege -> pr The show aliases command displays the alias commands and associated CLI...

  • Page 70: Show Line

    Super Micro Intelligent Switch Command Line Interface User Guide 3.32 show line This command displays TTY line information. show line {console | vty <line>} Syntax Description Console - Console Vty - Virtual terminal line Mode Privileged EXEC Mode Example SMIS# show line console Current Session Timeout (in secs) = 1800 The command-line history buffer stores CLI commands that are previously entered.

  • Page 71: Line

    Super Micro Intelligent Switch Command Line Interface User Guide 3.33 line This command configures a console/virtual terminal line. line {console | vty} Syntax Description Console - Console Vty - Virtual terminal line Mode Global Configuration Mode Related Commands end - Exits from Configuration mode...

  • Page 72: Cli

    Super Micro Intelligent Switch Command Line Interface User Guide 3.34 cli pagination This command enables the paginated display. When switch displays large texts on CLI, it breaks the output as multiple pages for better view. This is enabled by default.

  • Page 73: Firmware Upgrade

    Super Micro Intelligent Switch Command Line Interface User Guide 3.35 firmware upgrade This command performs an image download operation using TFTP from a remote location. firmware upgrade { tftp://ip-address/filename usb:filename } { flash:filename | flash:fallback } Syntax Description tftp://ipaddress/ filename - Source URL alias for a network (tftp) file system flash:normal –...

  • Page 74: Ntp Key

    Super Micro Intelligent Switch Command Line Interface User Guide 3.36 ntp key This command is used to add a key to a trusted key list. This command takes key text along with key identifier. The no form of this command removes the configured key referred by the given key identifier.

  • Page 75: Ntp Broadcast

    Super Micro Intelligent Switch Command Line Interface User Guide 3.37 ntp broadcast This command enables the switch to accept NTP broadcast messages sent by NTP broadcast servers. This command also enables the authentication for the received NTP broadcast messages if authentication option is given.

  • Page 76: Ntp Server

    Super Micro Intelligent Switch Command Line Interface User Guide 3.38 ntp server This command configures the SNTP server information. The no form of this command removes the given NTP server configuration. ntp server <ip-address> [key(1-65535)] [interval(6-17)] [prefer] no ntp server <ip_address>...

  • Page 77: Ntp Enable

    Super Micro Intelligent Switch Command Line Interface User Guide 3.39 ntp enable This command enables the NTP ntp enable Mode Global Configuration Mode Example SMIS(config)# ntp enable Related Command ntp broadcast - enables NTP broadcast with authentication ntp disable – Disables NTP Release : 1.1f...

  • Page 78: Ntp Disable

    Super Micro Intelligent Switch Command Line Interface User Guide 3.40 ntp disable This command disables the NTP ntp disable Mode Global Configuration Mode Example SMIS(config)# ntp disable Related Command ntp broadcast - enables NTP broadcast with authentication ntp enable – Enables NTP Release : 1.1f...

  • Page 79: Tz Offset

    Super Micro Intelligent Switch Command Line Interface User Guide 3.41 tz offset This command configures the time zone offset with respect to coordinated universal time (UTC). tz offset <HH>:<MM> Syntax Description HH – Hour difference from UTC. MM – Minutes difference from UTC.

  • Page 80: Show Ntp

    Super Micro Intelligent Switch Command Line Interface User Guide 3.42 show ntp This command displays ntp configuration details. show ntp Syntax Description Mode Global Configuration Mode Example SMIS(config)# show ntp Related Command ntp server - Configures SNTP server IP address ntp broadcast –...

  • Page 81: Clock Set

    Super Micro Intelligent Switch Command Line Interface User Guide 3.43 clock set This command manages the system clock. clock set hh:mm:ss day month year Mode Privileged EXEC Mode Example SMIS# clock set 18:04:10 18 Oct 2005 The date is configured in the Switch in the format,...

  • Page 82: Show Clock

    Super Micro Intelligent Switch Command Line Interface User Guide 3.44 show clock This command displays the system date and time. show clock Mode Privileged EXEC Mode Example SMIS# show clock Tue Oct 18 18:04:11 2005 Related Command clock set - Manages the system clock Release : 1.1f...

  • Page 83: Write

    Super Micro Intelligent Switch Command Line Interface User Guide 3.45 write This command writes the running-config to a flash file, startup-configuration file or to a remote site. write { flash:filename | startup-config | tftp://ip-address/filename | usb:filename } Syntax Description flash:filename – File name to be written in to flash memory startup-config - Startup Configuration.

  • Page 84: Set Startup-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 3.46 set startup-config This command configures the default restoration file. set startup-config <filename> Mode Global Configuration Mode Defaults iss.conf Example SMIS(config)# set startup-config /home/iss/restore.conf The file path mentioned in the <filename> must exist.

  • Page 85: Copy

    Super Micro Intelligent Switch Command Line Interface User Guide 3.47 copy This command copies the given configuration file as startup configuration file. copy { tftp://ip-address/filename startup-config | flash: filename startupconfig | usb:filename startup-config } Syntax Description tftp://ipaddress/ filename startup-config - File in remote location to be copied flash: filename startup-config - File in flash to be copied usb:filename –...

  • Page 86: Copy Startup-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 3.48 copy startup-config This command takes a backup of the initial configuration in flash or at a remote location. copy startup-config {flash: filename | tftp://ip-address/filename usb:filename } Syntax Description flash: filename - Flash or remote site...

  • Page 87: Copy-File

    Super Micro Intelligent Switch Command Line Interface User Guide 3.49 copy-file This command copies a file from a source remote site /flash / usb to a destination remote site/flash/usb. copy { tftp://ip-address/filename | flash: filename | usb:filename}{ tftp://ipaddress/filename | flash: filename | usb:filename}...

  • Page 88: Erase

    Super Micro Intelligent Switch Command Line Interface User Guide 3.50 erase This command deletes the given file. erase {startup-config | flash:filename | usb:filename} Syntax Description startup-config - Startup Configuration file flash:filename - Local system flash file name usb:filename – File name in external usb memory...

  • Page 89: List Fies

    Super Micro Intelligent Switch Command Line Interface User Guide 3.51 list fies This command lists all the configuration and log files stored in the flash memory. If “usb:” option given it lists the files stored in the external USB memory.

  • Page 90: Show File

    Super Micro Intelligent Switch Command Line Interface User Guide 3.52 show file This command displays the file contents. This can be used to display the files in flash. show file <filename> Syntax Description <filename> - File name Mode Privileged EXEC Mode Example smis #show file iss.conf...

  • Page 91: Show Startup-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 3.53 show startup-config This command displays the startup configuration file contents. show startup-config Syntax Description Mode Privileged EXEC Mode Example smis #show startup-config Release : 1.1f 91 / 985...

  • Page 92: Show Stored-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 3.54 show stored-config This command displays the given configuration file contents. show stored-config <filename> Syntax Description <filename> - configuration file name Mode Privileged EXEC Mode Example smis #show stored-config iss.conf Release : 1.1f...

  • Page 93: Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 3.55 interface This command selects an interface to configure, which can be a physical interface or a port- channel interface or a VLAN interface or loopback interface. The no form of this command is used to delete a VLAN / port-channel or loopback interface.

  • Page 94: Interface Range

    Super Micro Intelligent Switch Command Line Interface User Guide 3.56 interface range This command selects multiple interfaces to configure, which can be a physical interfaces or port- channel interfaces or a VLAN interfaces or loopback interfaces. The no form of this command is used to delete multiple VLAN / port-channel or loopback interfaces.

  • Page 95: Description

    Super Micro Intelligent Switch Command Line Interface User Guide 3.57 description This command configures the description string to port interfaces. description <string> Syntax <string> - Any alphanumeric string up to 64 characters length Mode Interface Configuration Mode Example SMIS(config-if)# description strg_lnk1 Related Commands show interface description - Displays the interface description strings.

  • Page 96: Switchport

    Super Micro Intelligent Switch Command Line Interface User Guide 3.58 switchport This command configures the port as switch port. The no form of the command configures the port as router port. switchport no switchport Mode Interface Configuration Mode Defaults switchport...

  • Page 97: Ip Address

    Super Micro Intelligent Switch Command Line Interface User Guide 3.59 ip address This command sets the IP address of an interface. The no form of the command resets the IP Address for the given Interface. ip address <ip-address> <subnet-mask> [secondary] no ip address [<ip_addr>]...

  • Page 98: Ip Address Dynamic

    Super Micro Intelligent Switch Command Line Interface User Guide 3.60 ip address dynamic This command configures the current VLAN/OOB interface to dynamically acquire an IP address from the RARP/DHCP Server. The no form of the command resets the IP Address for the Interface.

  • Page 99: Mtu Frame Size

    Super Micro Intelligent Switch Command Line Interface User Guide 3.61 mtu frame size This command configures the maximum transmission unit frame size for the interface. The no form of this command removes the configured MTU value and resets it to the default value 1500.

  • Page 100: System Mtu Frame Size

    Super Micro Intelligent Switch Command Line Interface User Guide 3.62 system mtu frame size This command configures the maximum transmission unit frame size for all the interfaces in the system. The no form of this command removes the configured MTU value on all the interfaces and resets it to the default value 1500.

  • Page 101: Flowcontrol

    Super Micro Intelligent Switch Command Line Interface User Guide 3.63 flowcontrol This command is used to set the send or receive flow-control value for an interface. If flow control send is on for a device, and if it detects any congestion at its end, then it will notify the link partner or the remote device of the congestion by sending a pause frame.

  • Page 102: Shutdown - Physical/Vlan/Port-Channel Interface

    Super Micro Intelligent Switch Command Line Interface User Guide shutdown - physical/VLAN/port-channel 3.64 Interface This command disables a physical interface/VLAN interface/port-channel interface. The no form of the command enables a physical interface/VLAN interface/port-channel interface. shutdown no shutdown Mode Interface Configuration Mode for physical interface / port-channel/OOB Interface...

  • Page 103: Negotiation

    Super Micro Intelligent Switch Command Line Interface User Guide 3.65 negotiation This command enables auto-negotiation on the interface and the no form of the command disables auto negotiation on the interface. negotiation no negotiation Mode Interface Configuration Mode Example SMIS(config-if)# negotiation...

  • Page 104: Speed

    Super Micro Intelligent Switch Command Line Interface User Guide 3.66 speed This command sets the speed of the interface and the no form of the command sets the speed of the interface to its default value. speed { 10 | 100 | 1000 | 10000 | auto }...

  • Page 105: Duplex

    Super Micro Intelligent Switch Command Line Interface User Guide 3.67 duplex This command configures the duplex operation and the no form of the command configures the duplex operation to the default value. duplex { full | half } no duplex...

  • Page 106: Energy Efficient Ethernet

    Super Micro Intelligent Switch Command Line Interface User Guide 3.68 Energy Efficient Ethernet IEEE 802.3 defines the Ethernet standard and subsequent power requirements based on cable connections operating at 100 meters. Enabling power saving mode can reduce power used for cable lengths of 60 meters or less, with more significant reduction for cables of 20 meters or less, and continue to ensure signal integrity.

  • Page 107: Monitor Session

    Super Micro Intelligent Switch Command Line Interface User Guide 3.69 monitor session This command enables port-mirroring in the switch and the no form of the command disables port mirroring in the switch. monitor session [session_number 1-1] { destination interface <interface-type> <interface-id> | source interface <interface-type>...

  • Page 108: Hol Blocking Prevention

    Super Micro Intelligent Switch Command Line Interface User Guide 3.70 hol blocking prevention This command enables the Head-Of-Line blocking prevention on the interface and the no form of the command disables the same. hol blocking prevention no hol blocking prevention...

  • Page 109: Storm-Control

    Super Micro Intelligent Switch Command Line Interface User Guide 3.71 storm-control This command sets the storm control rate for broadcast, multicast and DLF packets and the no form of the command sets storm control rate for broadcast, multicast and DLF packets to the default value.

  • Page 110: Rate-Limit

    Super Micro Intelligent Switch Command Line Interface User Guide 3.72 rate-limit This command configures the egress rate limiting and burst size for the physical interfaces. The given rate and burst size values are adjusted to the closest possible value supported by the hardware.

  • Page 111: Snmp Trap Link-Status

    Super Micro Intelligent Switch Command Line Interface User Guide 3.73 snmp trap link-status This command enables trap generation on either the physical interface or the port-channel interface. The no form of this command disables trap generation on the respective interface.

  • Page 112: Reset Interface Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 3.74 reset interface statistics This command resets the interface counters to zero for the given interface. If no interface given, it resets the counters for all the interfaces. reset interfaces [ <interface-type> <interface-id> ] statistics...

  • Page 113: Reset Interface Cpu Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 3.75 reset interface cpu statistics This command resets the CPU counters to zero for the given interface. If no interface given, it resets the CPU counters for all the interfaces. reset interfaces [ <interface-type> <interface-id> ] cpu statistics...

  • Page 114: Show Ip Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 3.76 show ip interface This command displays the IP interface configuration. show ip interface [Vlan <vlan-id(1-4069)>] [<interface-type> <interface-id>] [loopback <loopback-id(1-100)>] Syntax Description Vlan - VLAN Identifier any nymber between 1 to 4069 interface-type - Interface type, can either be a gigabit Ethernet or extreme Ethernet (10Gig) or qx Ethernet (40Gig) interface.

  • Page 115: Show Interfaces

    Super Micro Intelligent Switch Command Line Interface User Guide 3.77 show interfaces This command displays the interface status and configuration. show interfaces [{ [<interface-type> <interface-id>] [{ description | stormcontrol | flowcontrol | status }] | vlan <vlan-id(1-4069)> | port- channel <port-channel-id (1-65535)>}]...
  • Page 116 Super Micro Intelligent Switch Command Line Interface User Guide Unknown Protocol : 5963 Transmission Counters Octets : 741775 Unicast Packets : 0 Non Unicast Packets : 5985 Discarded Packets : 0 Error Packets : 0 SMIS# show interfaces description Interface Status Protocol Description...
  • Page 117 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands storm-control - Sets storm control rate for broadcast, multicast and DLF packets interface - Configures an interface which can be a physical interface or a port-channel interface or a vlan interface...

  • Page 118: Show Interfaces - Counters

    Super Micro Intelligent Switch Command Line Interface User Guide 3.78 show interfaces - counters This command displays the interface statistics for each port. show interfaces [{ <interface-type> <interface-id>] counters Syntax Description interface-type - Can be gigabit Ethernet (gi) or extreme Ethernet (ex)

  • Page 119: Show Interfaces Loopback

    Super Micro Intelligent Switch Command Line Interface User Guide 3.79 show interfaces loopback This command displays the loopback interface status and configuration. show interfaces loopback <1-100> Syntax Description loopback - Loopback interface ID Mode Privileged EXEC Mode Example SMIS# show interfaces loopback 10...

  • Page 120: Show Interfaces Cpu Counters

    Super Micro Intelligent Switch Command Line Interface User Guide 3.80 show interfaces cpu counters This command displays the statistics of CPU traffic. show interfaces [ <interface-type> <interface-id> ] cpu counters Syntax Description interface-type - Can be gigabit Ethernet (gi) or extreme Ethernet (ex)

  • Page 121: Show Interface Mtu

    Super Micro Intelligent Switch Command Line Interface User Guide 3.81 show interface mtu This command shows the Maximum Transmission Unit (MTU) of ports in the switch. show interface mtu [{ Vlan <vlan-id (1-4069)> | port-channel <port- channel-id (1-65535)> | <interface-type> <interface-id> }]...

  • Page 122: Show Conf

    Super Micro Intelligent Switch Command Line Interface User Guide 3.82 show conf This command shows the interface specific running configuration details show conf Mode Interface Configuration Mode Example SMIS(config-if)# show conf Related Command show running-config – Displays the running configuration Release : 1.1f...

  • Page 123: Show Port-Monitoring

    Super Micro Intelligent Switch Command Line Interface User Guide 3.83 show port-monitoring This command displays port-monitoring information. show port-monitoring Mode Privileged EXEC Mode Example SMIS# show port-monitoring Port Monitoring is enabled Monitor Port : Gi0/2 Port Ingress-Monitoring Egress-Monitoring Gi0/1 Disabled Disabled...

  • Page 124: Show Flow-Control

    Super Micro Intelligent Switch Command Line Interface User Guide 3.84 show flow-control This command displays the flow-control information. show flow-control [ interface <interface-type> <interface-id>] Syntax Description interface-type - Can be gigabit Ethernet (gi) or extreme Ethernet (ex) or qx-ethernet (qx)

  • Page 125: Show Transceiver

    Super Micro Intelligent Switch Command Line Interface User Guide 3.85 show transceiver This command displays the information about fiber optic transceiver modules. This command is supported only on the following switch models SSE-X24S SSE-X24SR SSE-X3348S SSE-X3348SR SSE-X3348T SSE-X3348TR show transceiver [interface <interface-type> <interface-id>] Syntax Description interface-type - Interface type, e.g: ex.

  • Page 126: Show Meminfo

    Super Micro Intelligent Switch Command Line Interface User Guide 3.86 show meminfo This command displays the memory status and utilization on the switch. show meminfo Mode Privileged EXEC Mode Example SMIS# show meminfo Release : 1.1f 126 / 985...

  • Page 127: Device Name

    Super Micro Intelligent Switch Command Line Interface User Guide 3.87 device name This command configures the switch name string. The default device name is SMIS. device name <devname> Syntax Description <devname] - Any string up to 15 characters length. Mode...

  • Page 128: System Location

    Super Micro Intelligent Switch Command Line Interface User Guide 3.88 system location This command configures the switch location information string. The default device name is Supermicro. system location <location name> Syntax Description <location name] - Any string up to 255 characters length.

  • Page 129: System Contact

    Super Micro Intelligent Switch Command Line Interface User Guide 3.89 system contact This command configures the switch contact information. The default contact information is http://www.supermicro.com/support. system contact <contact name> Syntax Description <contact name] - Any string up to 255 characters length.

  • Page 130: Set Boot-Up

    Super Micro Intelligent Switch Command Line Interface User Guide 3.90 set boot-up This command configures the next bootup firmware image selection. The default bootup image selection is normal image. User can use this command to boot the switch from fallback image on next reboot.

  • Page 131: Reload

    Super Micro Intelligent Switch Command Line Interface User Guide 3.91 reload This command restarts the switch. reload [ <switch-id] | all] [force] Syntax Description <switch-id] - In stacking, the required particular switch can be restarted by specifying switch id. all – Use this option to restart all switches in stacking.

  • Page 132: Reset-To-Factory-Defaults

    Super Micro Intelligent Switch Command Line Interface User Guide 3.92 reset-to-factory-defaults This command clears all the configurations on the switch and resets the switch to factory defaults configurations. This command will reboot the switch. reset-to-factory-defaults [ switch <switch-id] | all] Syntax Description <switch-id] - In stacking, the required particular switch can be reset to factory defaults by...

  • Page 133: Mac-Address-Table Aging-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 3.93 mac-address-table aging-time This command sets the maximum age of a dynamically learnt entry in the MAC address table. The no form of the command sets the maximum age of an entry in the MAC address table to its default value.

  • Page 134: Copy Logs

    Super Micro Intelligent Switch Command Line Interface User Guide 3.94 copy debug-logging This command writes the debug logs to a remote site or to external USB memory. copy debug-logging { tftp://ip-address/filename | usb:filename } Syntax Description tftp - Copies a log file to a TFTP server...

  • Page 135: Debug-Logging

    Super Micro Intelligent Switch Command Line Interface User Guide 3.95 debug-logging This command configures where debug logs are to be displayed and the no form of the command displays debug logs in the console. debug-logging { console | file }...

  • Page 136: No Startup-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 3.96 no startup-config This command makes no configuration file will be loaded in next reboots of the switch. no startup-config Mode Global Configuration Mode Example SMIS(config)# no startup-config Related Commands set startup-config <file name> - Set the file which will be restored on next reboot of the switch.

  • Page 137: Show System Information

    Super Micro Intelligent Switch Command Line Interface User Guide 3.97 show system information This command displays system information. show system information Mode Privileged EXEC Mode Example SMIS# show system information Switch Name : SMIS Switch Base MAC Address : 00:30:48:90:00:e2 Default IP Address : 10.0.0.1...

  • Page 138: Show Version

    Super Micro Intelligent Switch Command Line Interface User Guide 3.98 show version This command displays hardware and firmware versions. In stacking mode, this command displays the version numbers for all the switches connected in the stack. show version Mode Privileged EXEC Mode...

  • Page 139: Show Debug-Logging

    Super Micro Intelligent Switch Command Line Interface User Guide 3.99 show debug-logging This command displays the debug logs stored in file. show debug-logging Mode Privileged EXEC Mode Example SMIS(config)# debug-logging file SMIS(config)# exit SMIS# debug spanning-tree events SMIS# show debug-logging AST: MSG: Timer Expiry Event processed...

  • Page 140: Show Debugging

    Super Micro Intelligent Switch Command Line Interface User Guide 3.100 show debugging This command displays state of each debugging option. show debugging Mode Privileged EXEC Mode Example SMIS# show debugging Spanning Tree : Spanning tree timers related debugging is on...

  • Page 141: Show System Acknowledgement

    Super Micro Intelligent Switch Command Line Interface User Guide 3.101 show system acknowledgement This command displays the acknowledgement text for the open source components used on the switch software. show system acknowledgement Mode Privileged EXEC Mode Example SMIS# show system acknowledgement Release : 1.1f...

  • Page 142: Show System Environment

    Super Micro Intelligent Switch Command Line Interface User Guide 3.102 show system environment This command displays the temperature, fan status and power supply status information. This command is supported only on the following switch models SSE-X24S SSE-X24SR SSE-X3348S SSE-X3348SR SSE-X3348T...

  • Page 143: Show Tech-Support

    Super Micro Intelligent Switch Command Line Interface User Guide 3.103 show tech-support This command displays various information that are useful for troubleshooting. show tech-support Syntax Description Mode Privileged EXEC Mode Example SMIS# show tech-support Release : 1.1f 143 / 985...

  • Page 144: Stacking

    Super Micro Intelligent Switch Command Line Interface User Guide 4 Stacking Stacking is supported on only the following Super Micro Intelligent units: SBM-GEM-X2C SBM-GEM-X2C+ SSE-G24-TG4 SSE-G48-TG4 Stacking is not supported on the 10G Ethernet switches: SBM-XEM-X10SM SSE-X24S SSE-X24SR SSE-3348S SSE-3348SR Switch stacking is created by connecting switches in a daisy chain.

  • Page 145: Enabling Stacking

    “long” cables. Enabling Stacking Super Micro switches by default act as stand alone switches. This standalone default facilitates using 10G Ethernet ports as Extreme Ethernet ports for uplinks. When stacking is enabled the stacking ports are dedicated for stacking purpose.
  • Page 146 Super Micro Intelligent Switch Command Line Interface User Guide restoring; the switch will rename the configuration file by adding a suffix _stack and will not restore this file when the switch reboots with stacking disabled. Release : 1.1f 146 / 985...
  • Page 147 Super Micro Intelligent Switch Command Line Interface User Guide Adding Stacking Members Connect the stacked switches using stacking cables. For better redundancy, connect the switches as a daisy chain as shown in the diagram below. This chain connectivity helps to maintain stacking in the case of a single link or switch failure.
  • Page 148 Super Micro Intelligent Switch Command Line Interface User Guide Removing a stacked switch To remove a switch from stacking follow the below recommended procedure: 1. Disconnect stacking cables. 2. Reboot the removed switch as a stand-alone switch. 3. Execute “no stack” command.

  • Page 149: Stack

    Super Micro Intelligent Switch Command Line Interface User Guide 4.1 Stack This command enables stacking and helps configuring stacking ports, priority and switch identifier. stack { priority {PM | BM | PS} } {switchId <NodeId (1-16)>} {ports <xg1,xg2,..>} no stack Syntax Description Priority –...

  • Page 150: Show Stack Brief

    Super Micro Intelligent Switch Command Line Interface User Guide 4.2 Show stack brief This command displays the following stacking information: Switch Id Stack Ports Switch Priority Switch State Also Switch ID and Status for all connected stack peer switches. show stack brief...

  • Page 151: Show Stack Details

    Super Micro Intelligent Switch Command Line Interface User Guide 4.3 Show stack details This command displays the stacking details. show stack details Syntax Description Mode Privileged EXEC Mode Defaults Stacking is disabled. Example SMIS# show stack details Related Commands stack – Configures switch identifier, priority and stacking ports.

  • Page 152: Show Stack Counters

    Super Micro Intelligent Switch Command Line Interface User Guide 4.4 Show stack counters This command shows the port counter statistics for stacking ports. show stack counters Syntax Description Mode Privileged EXEC Mode Defaults Stacking is disabled. Example SMIS# show stack counters Related Commands stack –...

  • Page 153: Show Stack Switchid

    Super Micro Intelligent Switch Command Line Interface User Guide 4.5 Show stack switchid This command displays the details of particular switch stacking member. show stack switched <id> Syntax Description switch identifier id – Mode Privileged EXEC Mode Defaults Stacking is disabled.

  • Page 154: Show Stack Link Status

    Super Micro Intelligent Switch Command Line Interface User Guide 4.6 Show stack link status This command displays the stack interface link status. show stack link status Syntax Description Mode Privileged EXEC Mode Defaults Stacking is disabled. Example SMIS# show stack link status Related Commands stack –...

  • Page 155: Syslog

    Super Micro Intelligent Switch Command Line Interface User Guide 5 Syslog Syslog is a protocol used for capturing log information for devices on a network. The syslog protocol provides a transport to allow a machine to send event notification messages across IP networks to event message collectors, also known as syslog servers.
  • Page 156 Super Micro Intelligent Switch Command Line Interface User Guide Release : 1.1f 156 / 985...

  • Page 157: Logging Enable

    Super Micro Intelligent Switch Command Line Interface User Guide 5.1 logging enable This command enables the syslog feature. Syslog feature is enabled by default. logging enable Mode Global Configuration Mode Defaults enable Example SMIS(config)# logging enable Related Commands show logging - Displays Logging status and configuration information Release : 1.1f...

  • Page 158: Logging Disable

    Super Micro Intelligent Switch Command Line Interface User Guide 5.2 logging disable This command disables the syslog feature. Syslog feature is enabled by default. logging disable Mode Global Configuration Mode Defaults enable Example SMIS(config)# logging disable Related Commands show logging - Displays Logging status and configuration information Release : 1.1f...

  • Page 159: Logging Ip

    Super Micro Intelligent Switch Command Line Interface User Guide 5.3 logging ip This command enables Syslog server and configures the Syslog Server IP address. The no form of the command disables Syslog server and re-sets the configured Syslog server IP address logging <ip-address>...

  • Page 160: Logging Buffered

    Super Micro Intelligent Switch Command Line Interface User Guide 5.4 logging buffered This command enables logging to syslog buffers and configures the number of buffers to be used to store syslog messages. The no form of the command resets the number of buffers to its default value 50.

  • Page 161: Logging Console

    Super Micro Intelligent Switch Command Line Interface User Guide 5.5 logging console This command enables the display of syslog messages in to console terminal. The no form of the command disables the console logging. logging console no logging console Syntax Description...

  • Page 162: Logging Facility

    Super Micro Intelligent Switch Command Line Interface User Guide 5.6 logging facility This command configures the syslog facility sent on syslog messages. The no form of this command configure the syslog facility to the default value local0. logging facility {local0 | local1 | local2 | local3 | local4 | local5 | local6 | local7| user} no logging { <ip-address>...

  • Page 163: Logging Trap

    Super Micro Intelligent Switch Command Line Interface User Guide 5.7 logging trap This command configures the syslog trap level. The no form of this command resets the syslog trap level to its default value critical. logging trap [{ <level (0-7)> | alerts | critical | debugging |...

  • Page 164: Logging File

    Super Micro Intelligent Switch Command Line Interface User Guide 5.8 logging file This command enables logging of syslog messages in to a file. The no form of the command disables file logging. The log file is stored in ASCII text format.

  • Page 165: Cmdbuffs

    Super Micro Intelligent Switch Command Line Interface User Guide 5.9 cmdbuffs This command configures the number of syslog buffers for a particular user. cmdbuffs <user name> <no.of buffers (1-200)> Syntax Description user name - User Name no.of buffers - Number of log buffers to be allocated in the system...

  • Page 166: Service Timestamps

    Super Micro Intelligent Switch Command Line Interface User Guide 5.10 service timestamps This command enables timestamp option for logged messages and the no form of the command disables timestamp option for logged messages. service timestamps no service timestamps Mode Global Configuration Mode...

  • Page 167: Clear Log Buffer

    Super Micro Intelligent Switch Command Line Interface User Guide 5.11 clear log buffer This command clears the system syslog buffers. clear log buffer Mode Global Configuration Mode Example SMIS(config)# clear log buffer Related Commands cmdbuffs - Configures the number of Syslog buffers for a particular user...

  • Page 168: Clear Log File

    Super Micro Intelligent Switch Command Line Interface User Guide 5.12 clear log file This command clears all the syslog messages from the syslog file. clear log file Mode Global Configuration Mode Example SMIS(config)# clear log file Related Commands cmdbuffs - Configures the number of Syslog buffers for a particular user...

  • Page 169: Show Logging

    Super Micro Intelligent Switch Command Line Interface User Guide 5.13 show logging This command displays logging status and configuration information. show logging Mode Privileged EXEC Mode Example SMIS# show logging System Log Information ---------------------- Syslog logging : enabled Console logging : enabled...

  • Page 170: Show Logging File

    Super Micro Intelligent Switch Command Line Interface User Guide 5.14 show logging file This command displays syslog messages from syslog file. show logging file Mode Privileged EXEC Mode Example SMIS# show logging file LogFile(4 Entries) <134> Nov 17 17:01:59 2012:CLI-6:User logged out <134>...

  • Page 171: Ssh

    Super Micro Intelligent Switch Command Line Interface User Guide 6 SSH SSH is a protocol for secure remote login and other secure network services over an insecure network. It consists of three major components:  The Transport Layer Protocol provides server authentication, confidentiality, and integrity.

  • Page 172: Ip Ssh

    Super Micro Intelligent Switch Command Line Interface User Guide 6.1 ip ssh This command enables SSH server on the device and also configures the various parameters associated with SSH server. The no form of the command disables SSH server on the device and also re-sets the various parameters associated with SSH server.

  • Page 173: Debug Ssh

    Super Micro Intelligent Switch Command Line Interface User Guide 6.2 debug ssh This command sets the given trace levels for SSH and the no form of the command re-sets the given SSH trace level. debug ssh ([all] [shut] [mgmt] [data] [ctrl] [dump] [resource]...

  • Page 174: Show Ip Ssh

    Super Micro Intelligent Switch Command Line Interface User Guide 6.3 show ip ssh This command displays SSH server information. show ip ssh Mode Privileged EXEC Mode Example SMIS# show ip ssh Version : 2 Cipher Algorithm : 3DES-CBC Authentication : HMAC-SHA1...

  • Page 175: Ssl

    Super Micro Intelligent Switch Command Line Interface User Guide 7 SSL SSL (Secure Sockets Layer), is a protocol developed for transmitting private documents through the Internet. SSL works by using a private key to encrypt data that is transferred over the SSL connection.

  • Page 176: Ip Http Secure

    Super Micro Intelligent Switch Command Line Interface User Guide 7.1 ip http secure This command enables SSL server on the device and also configures ciphersuites and crypto keys. The no form of the command disables SSL server on the device and also disables ciphersuites and crypto key configuration.

  • Page 177: Ssl Gen Cert-Req Algo Rsa Sn

    Super Micro Intelligent Switch Command Line Interface User Guide 7.2 ssl gen cert-req algo rsa sn This command creates a certificate request using RSA key pair and subjectName. ssl gen cert-req algo rsa sn <SubjectName> Syntax Description SubjectName - Identification of the switch (or) the switch's IP address...

  • Page 178: Ssl Server-Cert

    Super Micro Intelligent Switch Command Line Interface User Guide 7.3 ssl server-cert This command configures the server cert, input in PEM format. It generates a certificate request, which can be submitted to a CA (Certificate Authority) to obtain the SSL certificate for the device.

  • Page 179: Debug Ssl

    Super Micro Intelligent Switch Command Line Interface User Guide 7.4 debug ssl This command sets the given debug levels for SSL and the no form of the command re-sets the given SSL debug level. debug ssl ([all] [shut] [mgmt] [data] [ctrl] [dump] [resource]...

  • Page 180: Show Ssl Server-Cert

    Super Micro Intelligent Switch Command Line Interface User Guide 7.5 show ssl server-cert This command displays SSL server certificate. show ssl server-cert Mode Privileged EXEC Mode Example SMIS# show ssl server-cert Certificate: Data: Version: 1 (0x0) Serial Number: 1 (0x1)
  • Page 181 Super Micro Intelligent Switch Command Line Interface User Guide 13:0f:9c:7c:d6:d2:f6:2b:e4:6f:25:4e:86:08:5a:e2:c9:87: 65:cf:98:6c:99:86:a5:55:66:23:b5:b0:f4:56:e6:35:5e:53: 31:00:bc:9f:00:62:34:d1:15:c0:a4:7e:d9:27:c3:d2:d7:01: 13:18:ee:de:f8:52:c8:90:1c:8b:57:15:50:56:8c:b6:7b:4d: 77:e8:23:41:82:dc:9c:47:66:fb:9a:ba:7f:73:a1:d0:88:93: 7b:c3:4b:c8:a5:ec:db:4a:36:19:02:c9:f7:e6:d1:c7:38:d3: 13:f3 SSL server certificate must have been created. Related Commands ip http secure - Enables SSL server on the device and also configures ciphersuites and...

  • Page 182: Show Ip Http Secure Server Status

    Super Micro Intelligent Switch Command Line Interface User Guide 7.6 show ip http secure server status This command displays SSL status and configuration information. show ip http secure server status Mode Privileged EXEC Mode Example SMIS# show ip http secure server status...

  • Page 183: Rmon

    Super Micro Intelligent Switch Command Line Interface User Guide 8 RMON RMON (Remote Monitoring) is a standard monitoring specification5 that enables various network monitors and console systems to exchange network-monitoring data. The RMON specification defines a set of statistics and functions that can be exchanged between RMONcompliant console managers and network probes.

  • Page 184: Set Rmon

    Super Micro Intelligent Switch Command Line Interface User Guide 8.1 set rmon This command is used to enable or disable the RMON feature. set rmon {enable | disable} Syntax Description enable - Enables the RMON feature in the system disable - Disables the RMON feature in the system...

  • Page 185: Rmon Event

    Super Micro Intelligent Switch Command Line Interface User Guide 8.2 rmon event This command adds an event to the RMON event table. The added event is associated with an RMON event number. The no form of the command deletes an event from the RMON event table.

  • Page 186: Rmon Alarm

    Super Micro Intelligent Switch Command Line Interface User Guide 8.3 rmon alarm This command sets an alarm on a MIB object. The Alarm group periodically takes statistical samples from variables in the probe and compares them to thresholds that have been configured.
  • Page 187 Super Micro Intelligent Switch Command Line Interface User Guide In SMIS, we cannot monitor all the mib objects through RMON. This will be applicable only to the Ethernet interfaces Related Commands rmon collection stats - Enables RMON statistic collection on the interface...

  • Page 188: Rmon Collection History

    Super Micro Intelligent Switch Command Line Interface User Guide 8.4 rmon collection history This command enables the collection of MIB history group of statistics on the interfaces. The no form of this command removes the specified history group of statistics collection from the interfaces.

  • Page 189: Rmon Collection Stats

    Super Micro Intelligent Switch Command Line Interface User Guide 8.5 rmon collection stats This command enables the collection of RMON statistics on the interfaces. The no form of this command disables the RMON statistics collection on the interfaces. rmon collection stats <index (1-65535)> [owner <ownername (127)>] no rmon collection stats <index (1-65535)>...

  • Page 190: Show Rmon

    Super Micro Intelligent Switch Command Line Interface User Guide 8.6 show rmon This command displays the RMON statistics, alarms, events, and history configured on the interface. show rmon [statistics [<stats-index (1-65535)>]] [alarms] [events] [history [history-index (1-65535)] [overview]] Syntax Description Statistics - The configured stats index value...
  • Page 191 Super Micro Intelligent Switch Command Line Interface User Guide Monitors ifEntry.1.1 every 3000 second(s) Requested # of time intervals, ie buckets, is 3, Granted # of time intervals, ie buckets, is 3, Sample 1 began measuring at 0 Received 0 octets, 0 packets,...
  • Page 192 Super Micro Intelligent Switch Command Line Interface User Guide Falling threshold is 14, assigned to event 2 On startup enable rising or falling alarm SMIS# show rmon statistics 2 alarms events history 2 RMON is enabled Collection 2 on Gi0/2 is active, and owned by fsoft, Monitors ifEntry.1.2 which has...
  • Page 193 Super Micro Intelligent Switch Command Line Interface User Guide 0 CRC alignment errors and 0 collisions, # of dropped packet events is 0 Network utilization is estimated at 0 Sample 2 began measuring at 0 Received 0 octets, 0 packets,...

  • Page 194: Stp

    Super Micro Intelligent Switch Command Line Interface User Guide 9 STP STP (Spanning-Tree Protocol) is a link management protocol that provides path redundancy while preventing undesirable loops in the network that are created by multiple active paths between stations. To establish path redundancy, STP creates a tree that spans all of the switches in an extended network, forcing redundant paths into a standby, or blocked, state.
  • Page 195 Super Micro Intelligent Switch Command Line Interface User Guide spanning-tree pathcost method spanning-tree mst configuration name revision instance spanning-tree auto-edge spanning-tree - Properties of an interface spanning-tree restricted-role spanning-tree restricted-tcn spanning-tree mst- Properties of an interface for MSTP spanning-tree mst hello-time...

  • Page 196: Spanning-Tree Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 9.1 spanning-tree mode This command sets the spanning tree operating mode. spanning-tree mode {mst|rst} Syntax Description mst - MSTP configuration rst - RSTP configuration Mode Global Configuration Mode Defaults Example SMIS(config)#spanning-tree mode rst ...

  • Page 197: Spanning-Tree

    Super Micro Intelligent Switch Command Line Interface User Guide 9.2 spanning-tree This command enables the spanning tree operation and the no form of the command disables the spanning tree operation. spanning-tree no spanning-tree Mode Global Configuration Mode Defaults Spanning tree enabled is MSTP...

  • Page 198: Spanning-Tree Compatibility

    Super Micro Intelligent Switch Command Line Interface User Guide 9.3 spanning-tree compatibility This command sets the compatibility version for the spanning tree protocol. The no form of the command sets the compatibility version for spanning tree protocol to its default value.

  • Page 199: Spanning-Tree Timers

    Super Micro Intelligent Switch Command Line Interface User Guide 9.4 spanning-tree timers This command sets the spanning tree Timers and the no form of the command sets the spanning tree timers to the default values. spanning-tree {forward-time <seconds(4-30)> | hello-time <seconds(1-2)>...
  • Page 200 Super Micro Intelligent Switch Command Line Interface User Guide show spanning-tree bridge - Displays spanning tree configuration of the bridge forward time show spanning-tree bridge hello-time - Displays spanning tree configuration of the bridge hello-time show spanning-tree bridge max-age - Displays spanning tree configuration of the bridge...

  • Page 201: Spanning-Tree Transmit Hold-Count

    Super Micro Intelligent Switch Command Line Interface User Guide 9.5 spanning-tree transmit hold-count This command sets the transmit hold-count value and the no form of the command sets the transmit holdcount to default value. Transmit hold count value is a counter used to limit the maximum transmission rate of the switch.

  • Page 202: Spanning-Tree Mst Max-Hops

    Super Micro Intelligent Switch Command Line Interface User Guide 9.6 spanning-tree mst max-hops This command sets the maximum number of hops permitted in the MST and the no form of the command sets the maximum number of hops permitted in the MST to the default value.

  • Page 203: Spanning-Tree Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 9.7 spanning-tree priority This command sets the Bridge Priority for the spanning tree only in steps of 4096 and the no form of the command sets the Bridge Priority to the default value.

  • Page 204: Spanning-Tree Pathcost Method

    Super Micro Intelligent Switch Command Line Interface User Guide 9.8 spanning-tree pathcost method This command sets the method to calculate the port path cost and the no form of the command sets the method to calculate the port path cost to its default.

  • Page 205: Spanning-Tree Mst Configuration

    Super Micro Intelligent Switch Command Line Interface User Guide 9.9 spanning-tree mst configuration This command helps to enter MST configuration submode spanning-tree mst configuration Mode Global Configuration Mode Example SMIS(config)#spanning-tree mst configuration In the MST mode the switch supports up to 16 instances. This MST configuration submode is used to make instance-specific and MST region configurations only.

  • Page 206: Name

    Super Micro Intelligent Switch Command Line Interface User Guide 9.10 name This command sets the configuration name for the MST region and the no form of the command deletes the configuration name. name <string(optional max Length)> no name Mode MSTP configuration Mode...

  • Page 207: Revision

    Super Micro Intelligent Switch Command Line Interface User Guide 9.11 revision This command sets the configuration revision number for the MST region and the no form of the command deletes the configuration revision number. revision <value(0-65535)> no revision Mode MSTP configuration Mode...

  • Page 208: Instance

    Super Micro Intelligent Switch Command Line Interface User Guide 9.12 instance This command maps VLANs to an MST instance and the no form of the command deletes the instance un-maps specific VLANs from the MST instance. instance <instance-id(1-64)> vlan <vlan-range>...

  • Page 209: Spanning-Tree Auto-Edge

    Super Micro Intelligent Switch Command Line Interface User Guide 9.13 spanning-tree auto-edge This command enables automatic detection of bridge attached on an interface and the no form of the command disables automatic detection of bridge attached on an interface. spanning-tree auto-edge...

  • Page 210: Spanning-Tree - Properties Of An Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 9.14 spanning-tree - Properties of an interface This command sets the spanning tree properties of an interface and the no form of the command sets the spanning tree properties of an interface to default value.

  • Page 211: Spanning-Tree Restricted-Role

    Super Micro Intelligent Switch Command Line Interface User Guide 9.15 spanning-tree restricted-role This command enables the root-guard / restricted role feature (prevents the specific port from becoming the root port) on the port. The no form of the command disables the root-guard / restricted role feature on the port.

  • Page 212: Spanning-Tree Restricted-Tcn

    Super Micro Intelligent Switch Command Line Interface User Guide 9.16 spanning-tree restricted-tcn This command enables the topology change guard / restricted TCN feature (prevents the Topology change caused by that port ) on the port. The no form of the command disables the topology change guard/ restricted TCN feature on the port.

  • Page 213: Spanning-Tree Mst- Properties Of An Interface For Mstp

    Super Micro Intelligent Switch Command Line Interface User Guide 9.17 spanning-tree mst- Properties of an interface for MSTP This command sets the spanning tree properties of an interface for MSTP and the no form of the command sets the spanning tree properties of an interface to default value.

  • Page 214: Spanning-Tree Mst Hello-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 9.18 spanning-tree mst hello-time This command sets the port based hello timer value and the no form of the command sets the port based hello timer value to its default. spanning-tree mst hello-time<value(1-10)>...

  • Page 215: Clear Spanning-Tree Counters

    Super Micro Intelligent Switch Command Line Interface User Guide 9.19 clear spanning-tree counters This command resets all bridge and port level statistics counters. clear spanning-tree counters Mode Global Configuration Mode Example SMIS(config)# clear spanning-tree counters Valid interfaces include physical ports, VLANs, and port channels...

  • Page 216: Spanning-Tree Pathcost Dynamic

    Super Micro Intelligent Switch Command Line Interface User Guide 9.20 spanning-tree pathcost dynamic This command enables dynamic pathcost calculation and the no form of the command disables dynamic pathcost calculation. spanning-tree pathcost dynamic no spanning-tree pathcost dynamic Mode Global Configuration Mode...

  • Page 217: Clear Spanning-Tree Detected Protocols

    Super Micro Intelligent Switch Command Line Interface User Guide 9.21 clear spanning-tree detected protocols This command restarts the protocol migration process on all the interfaces and forces renegotiation with the neighboring switches. clear spanning-tree detected protocols {interface <interface-type> <interfaceid> }...

  • Page 218: Debug Spanning-Tree

    Super Micro Intelligent Switch Command Line Interface User Guide 9.22 debug spanning-tree This command provides spanning tree debugging support and the no form of the command disables debugging. debug spanning-tree { global | { all | errors |init-shut | management |...
  • Page 219 Super Micro Intelligent Switch Command Line Interface User Guide bridge-detection - Bridge detection messages redundancy - Redundancy related messages sem-variables - State-machine variables debug messages Mode Privileged EXEC Mode Defaults Debugging is Disabled Example SMIS# debug spanning-tree all Related Command...

  • Page 220: Show Spanning-Tree - Summary, Blockedports, Pathcost

    Super Micro Intelligent Switch Command Line Interface User Guide 9.23 show spanning-tree - Summary, Blockedports, Pathcost This command displays spanning tree information. show spanning-tree [{ summary | blockedports | pathcost method }] Syntax Description summary - Summary of port states...
  • Page 221 Super Micro Intelligent Switch Command Line Interface User Guide ---- ---- ----- ---- ---- ------ Gi0/1 Disabled Discarding 200000 128 SharedLan Gi0/2 Designated Forwarding 200000 128 SharedLan Gi0/3 Designated Forwarding 200000 128 SharedLan Gi0/4 Designated Forwarding 200000 128 SharedLan Gi0/5 Designated Forwarding 200000 128 SharedLan...
  • Page 222 Super Micro Intelligent Switch Command Line Interface User Guide S-VLAN Component: MST00 is executing the mstp compatible Multiple Spanning Tree Protocol Bridge Id Priority 32768 Address 00:01:02:03:04:01 Max age is 20 sec, forward delay is 15 sec Name Role State Cost Prio Type...
  • Page 223 Super Micro Intelligent Switch Command Line Interface User Guide Spanning Tree port pathcost method is Long Spanning tree enabled protocol is MSTP MST00 Port Roles and States Port-Index Port-Role Port-State Port-Status ---------- --------- ---------- ----------- 7 Designated Forwarding Enabled 8 Root Forwarding Enabled...

  • Page 224: Show Spanning-Tree - Detail

    Super Micro Intelligent Switch Command Line Interface User Guide 9.24 show spanning-tree - Detail This command displays detailed spanning tree information. show spanning-tree detail [active] Syntax Description active - Displays the Bridge and details of the active (active ports are those ports that are...
  • Page 225 Super Micro Intelligent Switch Command Line Interface User Guide Multiple Instance: SMIS# show spanning-tree detail switch default Switch default MST00 is executing the mstp compatible Multiple Spanning Tree Protocol Bridge Identifier has Priority 32768, Address 00:51:02:03:04:05 Configured Max age 20 sec, Forward delay 15 sec...
  • Page 226 Super Micro Intelligent Switch Command Line Interface User Guide spanning-tree - Enables the spanning tree operation spanning-tree provider – Enables the Spanning tree operation spanning-tree compatibility- Sets the compatibility version for the spanning tree protocol spanning-tree timers - Sets the spanning tree Timers...

  • Page 227: Show Spanning-Tree - Active

    Super Micro Intelligent Switch Command Line Interface User Guide 9.25 show spanning-tree - Active This command displays spanning tree information of active ports. show spanning-tree active [detail] Syntax Description detail - Displays in detail about the port and bridge. This includes designated Bridge details, designated port details, timer values, root bridge, etc.
  • Page 228 Super Micro Intelligent Switch Command Line Interface User Guide Port 0 [0] This bridge is the root Max age 20 Sec, forward delay 15 Sec MST00 MST00 is executing the mstp compatible Multiple Spanning Tree Protocol Bridge Id Priority 32768...

  • Page 229: Show Spanning-Tree Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 9.26 show spanning-tree interface This command displays Spanning-tree port configuration. show spanning-tree interface <interface-type> <interface-id> [{ cost | priority | portfast | rootcost | restricted-role | restricted-tcn | state | stats | detail }]...
  • Page 230 Super Micro Intelligent Switch Command Line Interface User Guide SMIS# show spanning-tree interface gigabitethernet 0/1 rootcost Root Cost is 2000000 SMIS# show spanning-tree interface gigabitethernet 0/1 state Forwarding SMIS# show spanning-tree interface gigabitethernet 0/1 stats Statistics for Port Gi0/1 Number of Transitions to forwarding State : 1...
  • Page 231 Super Micro Intelligent Switch Command Line Interface User Guide Multiple Instance: SMIS# show spanning-tree interface gigabitethernet 0/1 Switch - default Role State Cost Prio Type ---- ----- ---- ---- ---- Root Forwarding 2000000 128 SharedLan SMIS# show spanning-tree interface gigabitethernet 0/1 cost...
  • Page 232 Super Micro Intelligent Switch Command Line Interface User Guide Number of Invalid BPDU Count Transmitted : 0 Port Protocol Migration Count : 1 SMIS# show spanning-tree interface gigabitethernet 0/1 detail Switch – default Port 1 [Gi0/1] is Root , Forwarding Port PathCost 2000000, Port Priority 128, Port Identifier 128.1...

  • Page 233: Show Spanning-Tree Root

    Super Micro Intelligent Switch Command Line Interface User Guide 9.27 show spanning-tree root This command displays Spanning-tree root information. show spanning-tree root [{ address | cost | forward-time | hello-time | id | max-age | port | priority | detail }]...
  • Page 234 Super Micro Intelligent Switch Command Line Interface User Guide SMIS# show spanning-tree root id Root Bridge Id is 80:00:00:01:02:03:04:11 SMIS# show spanning-tree root hello-time Hello Time is 2 sec SMIS# show spanning-tree root id Root Bridge Id is 80:00:00:01:02:03:04:11 SMIS# show spanning-tree root max-age...
  • Page 235 Super Micro Intelligent Switch Command Line Interface User Guide MST00 00:00:00:01:02:03:04:04 200000 20 15 Gi0/2 Related Commands spanning-tree timers - Sets the spanning tree Timers spanning-tree priority - Sets the Bridge Priority for the spanning tree only in steps of...

  • Page 236: Show Spanning-Tree Bridge

    Super Micro Intelligent Switch Command Line Interface User Guide 9.28 show spanning-tree bridge This command displays the spanning-tree configuration of the bridge. show spanning-tree bridge [{ address | forward-time | hello-time | id | maxage | protocol | priority | detail }]...
  • Page 237 Super Micro Intelligent Switch Command Line Interface User Guide Bridge Hello Time is 2 sec SMIS# show spanning-tree bridge id Bridge ID is 80:00:00:01:02:03:04:21 SMIS# show spanning-tree bridge max-age Bridge Max Age is 20 sec SMIS# show spanning-tree bridge protocol...
  • Page 238 Super Micro Intelligent Switch Command Line Interface User Guide spanning-tree timers - Sets the spanning tree Timers spanning-tree mode - Sets the spanning tree operating mode show spanning-tree - Detail - Displays detailed spanning tree information show spanning-tree - Active - Displays spanning tree information of active ports Release : 1.1f...

  • Page 239: Show Spanning-Tree Mst - Cist Or Specified Mst Instance

    Super Micro Intelligent Switch Command Line Interface User Guide 9.29 show spanning-tree mst - CIST or specified mst Instance This command displays multiple spanning tree information for the CIST (Common Internal Spanning Tree) Instance or specified MST Instance. show spanning-tree mst [<instance-id(1-64)>] [detail]...
  • Page 240 Super Micro Intelligent Switch Command Line Interface User Guide Designated root address 00:01:02:03:04:11 priority 32768 cost 0 Designated bridge address 00:01:02:03:04:11 priority 32768 port id 128.1 Multiple Instance: SMIS# show spanning-tree mst 1 Switch – default ## MST01 Vlans mapped: 2...

  • Page 241: Show Spanning-Tree Mst Configuration

    Super Micro Intelligent Switch Command Line Interface User Guide 9.30 show spanning-tree mst configuration This command displays multiple spanning tree instance configuration. show spanning-tree mst configuration Syntax Description Mode Privileged EXEC Mode Example Single Instance: SMIS# show spanning-tree mst configuration...
  • Page 242 Super Micro Intelligent Switch Command Line Interface User Guide ------------------------------------------------------- Related Commands name - Sets Configuration name revision - Sets the configuration revision number instance - Maps VLANs to an MST instance Release : 1.1f 242 / 985...

  • Page 243: Show Spanning-Tree Mst - Port Specific Configuration

    Super Micro Intelligent Switch Command Line Interface User Guide 9.31 show spanning-tree mst - Port Specific Configuration This command displays multiple spanning tree port specific configuration. show spanning-tree mst [<instance-id(1-64)>] interface <interface-type> <interface-id> [{ stats | hello-time | detail }]...
  • Page 244 Super Micro Intelligent Switch Command Line Interface User Guide Port info port id 128.1 priority 128 cost 2000000 Designated root address 00:01:02:03:04:11 priority 32768 cost 0 Designated bridge address 00:01:02:03:04:11 priority 32768 port id 128.1 Related Commands instance - Maps VLANS to an MST instance...

  • Page 245: Pnac

    Super Micro Intelligent Switch Command Line Interface User Guide 10 PNAC PNAC (Port Based Network Access Control) is a portable implementation of the IEEE Std 802.1x PNAC. It can be used in both LAN Switches and Wireless LAN Access Points for providing security services.

  • Page 246: Dot1X System-Auth-Control

    Super Micro Intelligent Switch Command Line Interface User Guide 10.1 dot1x system-auth-control This command enables dot1x in the switch and the no form of this command disables dot1x in the switch. dot1x system-auth-control no dot1x system-auth-control Mode Global Configuration Mode...

  • Page 247: Aaa Authentication Dot1X Default

    Super Micro Intelligent Switch Command Line Interface User Guide 10.2 aaa authentication dot1x default This command enables the dot1x local authentication or RADIUS server based remote authentication method for all ports. aaa authentication dot1x default { group radius | local}...

  • Page 248: Dot1X Local-Database

    Super Micro Intelligent Switch Command Line Interface User Guide 10.3 dot1x local-database This command configures the dot1x authentication server database with user name and password and the no form of the command deletes an entry from the dot1x authentication server database.
  • Page 249 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands aaa authentication dot1x default - Enables the dot1x local authentication show dot1x - Displays dot1x local database information Release : 1.1f 249 / 985...

  • Page 250: Set Nas-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 10.4 set nas-id This command sets the dot1x network access server id. set nas-id <identifier> Syntax Description identifier - It is a string length of 16 that specifies dot1x network access server ID...

  • Page 251: Dot1X Default

    Super Micro Intelligent Switch Command Line Interface User Guide 10.5 dot1x default This command configures dot1x with default values for this port. dot1x default Mode Interface Configuration Mode Defaults Per-interface 802.1X protocol enable state - Enabled (force-authorized) Periodic reauthentication - Disabled...

  • Page 252: Dot1X Max-Req

    Super Micro Intelligent Switch Command Line Interface User Guide 10.6 dot1x max-req This command sets the maximum number of EAP (Extensible Authentication Protocol) retries to the client before restarting authentication process and the no form of the command sets the maximum number of EAP retries to the client to default value.

  • Page 253: Dot1X Max-Start

    Super Micro Intelligent Switch Command Line Interface User Guide 10.7 dot1x max-start This command sets the maximum number of EAPOL retries to the authenticator and the no form of the command sets the maximum number of EAPOL retries to the authenticator to default value.

  • Page 254: Dot1X Reauthentication

    Super Micro Intelligent Switch Command Line Interface User Guide 10.8 dot1x reauthentication This command enables periodic re-authentication from authenticator to client and the no form of the command disables periodic re-authentication from authenticator to client. dot1x reauthentication no dot1x reauthentication...

  • Page 255: Dot1X Timeout

    Super Micro Intelligent Switch Command Line Interface User Guide 10.9 dot1x timeout This command sets the dot1x timers and the no form of the command sets the dot1x timers to the default values. dot1x timeout {quiet-period <value (0-65535)> | {reauth-period | servertimeout | supp-timeout | tx-period | start-period | held-period | auth-period }<value (1-65535)>}...
  • Page 256 Super Micro Intelligent Switch Command Line Interface User Guide start-period - 30 seconds held-period - 60 seconds auth-period - 30 seconds Example SMIS(config-if)# dot1x timeout quiet-period 30 SMIS(config-if)# dot1x timeout supp-timeout 25 Only one timer can be configured using this command, that is, the user can configure either the quiet-period or tx-period, but not both.

  • Page 257: Dot1X Port-Control

    Super Micro Intelligent Switch Command Line Interface User Guide 10.10 dot1x port-control This command configures the authenticator port control parameter and the no form of the command sets the authenticator port control state to force authorized. dot1x port-control {auto|force-authorized|force-unauthorized} no dot1x port-control...

  • Page 258: Dot1X Access-Control

    Super Micro Intelligent Switch Command Line Interface User Guide 10.11 dot1x access-control This command configures the supplicant access control and the no form of the command sets the access control to inactive. dot1x access-control {active | inactive} no dot1x access-control...

  • Page 259: Dot1X Control-Direction

    Super Micro Intelligent Switch Command Line Interface User Guide 10.12 dot1x control-direction This command configures port control direction and the no form of the command sets the authenticator port control direction to both. dot1x control-direction {in | both} no dot1x control-direction...

  • Page 260: Dot1X Re-Authenticate

    Super Micro Intelligent Switch Command Line Interface User Guide 10.13 dot1x re-authenticate This command initiates re-authentication of all dot1x-enabled ports or the specified dot1x-enabled port. dot1x re-authenticate [interface <interface-type><interface-id>] Syntax Description Interface - Port number of the interface to re-authenticate...

  • Page 261: Shutdown Dot1X

    Super Micro Intelligent Switch Command Line Interface User Guide 10.14 shutdown dot1x This command shuts down dot1x capability and the no form of the command starts and enables dot1x capability. shutdown dot1x no shutdown dot1x Mode Global Configuration Mode Example SMIS(config)# shutdown dot1x When shutdown, all resources acquired by dot1x Module are released to the system.

  • Page 262: Debug Dot1X

    Super Micro Intelligent Switch Command Line Interface User Guide 10.15 debug dot1x This command enables debugging of dot1x module and the no form of the command disables debugging of dot1x module. debug dot1x {all | errors | events | packets | state-machine |...

  • Page 263: Show Dot1X

    Super Micro Intelligent Switch Command Line Interface User Guide 10.16 show dot1x This command displays dot1x information. show dot1x [{ interface <interface-type> <interface-id> | statistics interface <interface-type> <interface-id> | supplicant-statistics interface <interfacetype> <interface-id>|local-database | mac-info [address <aa.aa.aa.aa.aa.aa>] | mac-statistics [address <aa.aa.aa.aa.aa.aa>] | all }]...
  • Page 264 Super Micro Intelligent Switch Command Line Interface User Guide Protocol : 4 Timeout : 0 seconds Ports : Gi0/1, Gi0/2, Gi0/3, Gi0/4, Gi0/5, Gi0/6, Gi0/7, Gi0/8, Gi0/9, Gi0/10, Gi0/11, Gi0/12, Gi0/13, Gi0/14, Gi0/15, Gi0/16, Gi0/17, Gi0/18, Gi0/19, Gi0/20, Gi0/21, Gi0/22, Gi0/23, Gi0/24...
  • Page 265 Super Micro Intelligent Switch Command Line Interface User Guide Port Control = Force Authorized QuietPeriod = 60 Seconds Re-authentication = Disabled ReAuthPeriod = 3600 Seconds ServerTimeout = 30 Seconds SuppTimeout = 30 Seconds Tx Period = 30 Seconds If access-control for only Gi0/1 is made active then display will...
  • Page 266 Super Micro Intelligent Switch Command Line Interface User Guide ControlDirection = BOTH MaxReq = 2 Port Control = Force Authorized QuietPeriod = 60 Seconds Re-authentication = Disabled ReAuthPeriod = 3600 Seconds ServerTimeout = 30 Seconds SuppTimeout = 30 Seconds Tx Period = 30 Seconds...
  • Page 267 Super Micro Intelligent Switch Command Line Interface User Guide RxLenErr = 0 RxTotal = 0 RxVersion = 0 LastRxSrcMac = 00:00:00:00:00:00 If an interface is not specified, global parameters and a summary appear. Expressions are case sensitive. If address is not specified for mac-info and mac-statistics, then this command displays the MAC sessions and MAC statistics of all the supplicant MAC addresses.

  • Page 268: Radius

    Super Micro Intelligent Switch Command Line Interface User Guide 11 RADIUS RADIUS (Remote Authentication Dial-In User Service), widely used in network environments, is a client/server protocol and software that enables remote access servers to communicate with a central server to authenticate dial-in users and authorize their access to the requested system or service.

  • Page 269: Radius-Server Host

    Super Micro Intelligent Switch Command Line Interface User Guide 11.1 radius-server host This command configures the RADIUS client with the parameters (host, timeout, key, retransmit) and the no form of the command deletes RADIUS server configuration. radius-server host <ip-address> [timeout <1-120>] [retransmit <1-254>] key <secret-key-string>...

  • Page 270: Debug Radius

    Super Micro Intelligent Switch Command Line Interface User Guide 11.2 debug radius This command enables RADIUS debugging options and the no form of the command disables RADIUS debugging options. debug radius {all | errors | events | packets | responses | timers}...

  • Page 271: Show Radius Server

    Super Micro Intelligent Switch Command Line Interface User Guide 11.3 show radius server This command displays RADIUS server configuration. show radius server Mode Privileged EXEC Mode Example SMIS# show radius server Radius Server Host Information ------------------------------ Index : 1 Server address : 10.0.0.1...

  • Page 272: Show Radius Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 11.4 show radius statistics This command displays RADIUS Server Statistics. show radius statistics Mode Privileged EXEC Mode Example SMIS# show radius statistics Radius Server Statistics ------------------------- Index : 1 Radius Server Address : 10.0.0.1...

  • Page 273: Tacacs

    Super Micro Intelligent Switch Command Line Interface User Guide 12 TACACS TACACS (Terminal Access Controller Access Control System), widely used in network environments, is a client/server protocol that enables remote access servers to communicate with a central server to authenticate dial-in users and authorize their access to the requested system or service.

  • Page 274: Tacacs-Server Host

    Super Micro Intelligent Switch Command Line Interface User Guide 12.1 tacacs-server host This command configures the TACACS server with the parameters (host, timeout, key). The no form of the command deletes server entry from the TACACS server table. tacacs-server host <ip-address> [single-connection] [port <TCP port>] [timeout <time out in seconds>] [key <secret key>]...

  • Page 275: Tacacs Use-Server Address

    Super Micro Intelligent Switch Command Line Interface User Guide 12.2 tacacs use-server address This command selects a server from the list of servers maintained in the TACACS client and makes the TACACS client to use the specified server. The no form of the command disables the configured TACACS active server.

  • Page 276: Tacacs-Server Retransmit

    Super Micro Intelligent Switch Command Line Interface User Guide 12.3 tacacs-server retransmit This command specifies the number of times the client searches the active server from the list of servers maintained in the TACACS client, when active server is not configured. The no form of the command sets the default retries.

  • Page 277: Debug Tacacs

    Super Micro Intelligent Switch Command Line Interface User Guide 12.4 debug tacacs This command sets the debug trace level for TACACS client module. The no form of the command disables the debug trace level for TACACS client module. debug tacacs { all | info | errors | dumptx | dumprx }...

  • Page 278: Show Tacacs

    Super Micro Intelligent Switch Command Line Interface User Guide 12.5 show tacacs This command displays the statistical log information and server for TACACS+ client. show tacacs Mode Privileged EXEC Mode Example SMIS# show tacacs Server : 1 Address : 10.0.0.5...
  • Page 279 Super Micro Intelligent Switch Command Line Interface User Guide Author. Pass Add rcvd. : 0 Author. Pass Repl rcvd : 0 Author. Fails rcvd. : 0 Author. Errors rcvd. : 0 Author Follows rcvd. : 0 Author. Sess. timeouts : 0 Acct.

  • Page 280: Link Aggregation (La)

    Super Micro Intelligent Switch Command Line Interface User Guide 13 Link Aggregation (LA) Link Aggregation (LA) is a method of combining multiple parallel physical connections into a single logical connection(trunk), thus allowing increased bandwidth for a particular network path beyond what a single connection could sustain. By taking multiple LAN connections and treating them as a unified, aggregated link, practical benefits in many applications can be achieved.

  • Page 281: Set Port-Channel

    Super Micro Intelligent Switch Command Line Interface User Guide 13.1 set port-channel This command enables/disables link aggregation in the switch. set port-channel { enable | disable } Syntax Description enable - Enables link aggregation in the switch disable - Disables link aggregation in the switch...

  • Page 282: Lacp System-Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 13.2 lacp system-priority This command sets the LACP priority for the system and the no form of the command sets the LACP priority for the system to the default value. System Priority represents a 2-octet value indicating the priority value associated with the system involved in link aggregation.

  • Page 283: Port-Channel Load-Balance

    Super Micro Intelligent Switch Command Line Interface User Guide 13.3 port-channel load-balance This command sets the load balancing policy and the no form of the command sets the load balancing policy to the default value. port-channel load-balance {src-mac | dest-mac | src-dest-mac| src-ip | dest-ip | src-dest-ip | vlan-id} [ <port-channel-index(1-65535)>]...
  • Page 284 Super Micro Intelligent Switch Command Line Interface User Guide Related Command show etherchannel - Displays etherchannel load balance information Release : 1.1f 284 / 985...

  • Page 285: Lacp Port-Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 13.4 lacp port-priority This command sets the LACP port priority and the no form of the command sets the LACP port priority to the default value. Port priority determines whether the link is an active link or a standby...

  • Page 286: Channel-Group

    Super Micro Intelligent Switch Command Line Interface User Guide 13.5 channel-group This command configures an Etherchannel and the no form of the command removes an interface from the Etherchannel. channel-group <channel-group-number(1-65535)> mode {active | passive | no channel-group Syntax Description...

  • Page 287: Lacp Wait-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 13.6 lacp wait-time This command sets the LACP wait-time and the no form of the command sets the LACP wait-time to the default value. lacp wait-time <0-10> no lacp wait-time Mode...

  • Page 288: Lacp Timeout

    Super Micro Intelligent Switch Command Line Interface User Guide 13.7 lacp timeout This command sets the LACP timeout period and the no form of the command sets the LACP timeout period to the default value. lacp timeout {long | short }...

  • Page 289: Show Etherchannel

    Super Micro Intelligent Switch Command Line Interface User Guide 13.8 show etherchannel This command displays etherchannel information. show etherchannel [[channel-group-number] { detail | load-balance | port | port-channel | summary | protocol}] Syntax Description channel-groupnumber - Number of the channel group. Valid numbers range from maximum...
  • Page 290 Super Micro Intelligent Switch Command Line Interface User Guide --------------------- Group: 1 ---------- Protocol :LACP Ports in the Group ------------------ Port : Gi0/1 ------------- Port State = Up in Bundle Channel Group : 1 Mode : Active Pseudo port-channel = Po1...
  • Page 291 Super Micro Intelligent Switch Command Line Interface User Guide Number of Ports = 2 HotStandBy port = null Port state = Port-channel Ag-Inuse Protocol = LACP MAC selection = Dynamic SMIS# show etherchannel 1 port Channel Group Listing --------------------- Group: 1...
  • Page 292 Super Micro Intelligent Switch Command Line Interface User Guide Pseudo port-channel = Po1 LACP port-priority = 128 LACP Wait-time = 2 secs LACP Activity : Active LACP Timeout : Long Aggregation State : Aggregation, Sync, Collecting, Distributing, LACP Port Admin Oper Port Port...
  • Page 293 Super Micro Intelligent Switch Command Line Interface User Guide Number of channel-groups in use: 1 Number of aggregators: 1 Group Port-channel Protocol Ports ---------------------------------------------------------- 1 Po1(P) LACP Gi0/1(P),Gi0/2(P) SMIS# show etherchannel 1 protocol Channel Group Listing --------------------- Group : 1...

  • Page 294: Show Interfaces

    Super Micro Intelligent Switch Command Line Interface User Guide 13.9 show interfaces This command displays interface specific port-channel information. show interfaces [<interface-type> <interface-id> ] etherchannel Syntax Description Etherchannel - Interface EtherChannel information Mode Privileged EXEC Mode Example SMIS# show interfaces gigabitethernet 0/1 etherchannel...
  • Page 295 Super Micro Intelligent Switch Command Line Interface User Guide Channel Group : 2 Mode : Active Pseudo port-channel = Po2 LACP port-priority = 128 LACP Wait-time = 2 secs LACP Activity : Passive LACP Timeout : Long Aggregation State : Aggregation, Sync, Collecting, Distributing,...
  • Page 296 Super Micro Intelligent Switch Command Line Interface User Guide ------------------- Number of Ports = 2 HotStandBy port = null Port state = Port-channel Ag-Inuse Protocol = LACP MAC selection = Dynamic Expressions are case sensitive. The port-channel range is 1 to 64.

  • Page 297: Show Lacp

    Super Micro Intelligent Switch Command Line Interface User Guide 13.10 show lacp This command displays port-channel traffic/neighbor information. show lacp [<port-channel(1-65535)>] { counters | neighbor [detail] } Syntax Description port-channel - Number of the channel group counters - Traffic information...
  • Page 298 Super Micro Intelligent Switch Command Line Interface User Guide LACP Partner Port State : 0x3c Port State Flags Decode ------------------------ Activity : Passive LACP Timeout : Long Aggregation State : Aggregation, Sync, Collecting, Distributing Port Gi0/2 ---------- Partner System ID : 00:01:02:03:04:21...

  • Page 299: Debug La

    Super Micro Intelligent Switch Command Line Interface User Guide 13.11 debug la This command enables the display of link aggregation debug messages. The no form of this command disables the display of link aggregation debug messages. debug la [{all | [init-shut] [mgmt] [data] [ctrl] [pkt-dump] [resource] [all-fail] [buf] [sel] [pdu <iftype>...

  • Page 300: Igmp Snooping

    Super Micro Intelligent Switch Command Line Interface User Guide 14 IGMP Snooping IGMP (Internet Group Multicast Protocol), is the protocol a host uses to inform a router when it joins (or leaves) an Internet multicast group. IGMP is only used on a local network; a router must use another multicast routing protocol to inform other routers of group membership.
  • Page 301 Super Micro Intelligent Switch Command Line Interface User Guide ip igmp snooping report-forward ip igmp snooping version ip igmp snooping fast-leave ip igmp snooping querier ip igmp snooping query-interval ip igmp snooping mrouter ip igmp snooping send-query ip igmp snooping clear counters...

  • Page 302: Ip Igmp Snooping

    Super Micro Intelligent Switch Command Line Interface User Guide 14.1 ip igmp snooping This command enables IGMP snooping in the switch/a specific VLAN and the no form of the command disables IGMP snooping in the switch/a specific VLAN. ip igmp snooping...

  • Page 303: Ip Igmp Snooping Proxy-Reporting

    Super Micro Intelligent Switch Command Line Interface User Guide 14.2 ip igmp snooping proxy-reporting This command enables proxy reporting in the IGMP snooping switch and the no form of the command disables proxy reporting in the IGMP snooping switch. ip igmp snooping proxy-reporting...

  • Page 304: Snooping Multicast-Forwarding-Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 14.3 snooping multicast-forwarding-mode This command specifies the snooping multicast forwarding mode (IP based or MAC based). snooping multicast-forwarding-mode {ip | mac} Syntax Description ip - IP Address based mac - MAC Address based...

  • Page 305: Ip Igmp Snooping Mrouter-Time-Out

    Super Micro Intelligent Switch Command Line Interface User Guide 14.4 ip igmp snooping mrouter-time-out This command sets the IGMP snooping router port purge time-out after which the port gets deleted if no IGMP router control packets are received. The no form of the command sets the IGMP snooping router port purge time-out to default value.

  • Page 306: Ip Igmp Snooping Port-Purge-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 14.5 ip igmp snooping port-purge-interval This command sets the IGMP snooping port purge time interval after which the port gets deleted if no IGMP reports are received. The no form of the command sets the IGMP snooping port purge time to default value.

  • Page 307: Ip Igmp Snooping Report-Suppression Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 14.6 ip igmp snooping report-suppression interval This command sets the IGMP snooping report-suppression time interval for which the IGMPv2 report messages for the same group will not get forwarded onto the router ports. The no form of the command sets the IGMP snooping report-suppression interval time to the default value.

  • Page 308: Ip Igmp Snooping Retry-Count

    Super Micro Intelligent Switch Command Line Interface User Guide 14.7 ip igmp snooping retry-count This command sets the maximum number of group specific queries sent on a port on reception of a IGMPv2 leave message. The no form of the command sets the number of group specific queries sent on a port on reception of leave message to default value.

  • Page 309: Ip Igmp Snooping Group-Query-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 14.8 ip igmp snooping group-query-interval This command sets the time interval after which the switch sends a group specific query on a port. The no form of the commands sets the group specific query interval time to default value.

  • Page 310: Ip Igmp Snooping Report-Forward

    Super Micro Intelligent Switch Command Line Interface User Guide 14.9 ip igmp snooping report-forward This command specifies if IGMP reports must be forwarded on all ports or router ports of a VLAN and the no form of the command sets IGMP report-forwarding status to default value.

  • Page 311: Ip Igmp Snooping Version

    Super Micro Intelligent Switch Command Line Interface User Guide 14.10 ip igmp snooping version This command sets the operating version of the IGMP snooping switch for a specific VLAN. ip igmp snooping version { v1 |v2 | v3} Syntax Description...

  • Page 312: Ip Igmp Snooping Fast-Leave

    Super Micro Intelligent Switch Command Line Interface User Guide 14.11 ip igmp snooping fast-leave This command enables fast leave processing for a specific VLAN and the no form of the command disables fast leave processing for a specific VLAN. ip igmp snooping fast-leave...

  • Page 313: Ip Igmp Snooping Querier

    Super Micro Intelligent Switch Command Line Interface User Guide 14.12 ip igmp snooping querier This commands configures the IGMP snooping switch as a querier for a specific VLAN. The no form of the command configures the IGMP snooping switch as non-querier for a specific VLAN.

  • Page 314: Ip Igmp Snooping Query-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 14.13 ip igmp snooping query-interval This command sets the time period with which the general queries are sent by the IGMP snooping switch when configured as querier on a VLAN. The no form of the command sets the IGMP querier interval to default value.

  • Page 315: Ip Igmp Snooping Mrouter

    Super Micro Intelligent Switch Command Line Interface User Guide 14.14 ip igmp snooping mrouter This command configures statically the router ports for a VLAN and the no form of the command deletes the statically configured router ports for a VLAN.

  • Page 316: Ip Igmp Snooping Send-Query

    Super Micro Intelligent Switch Command Line Interface User Guide 14.15 ip igmp snooping send-query This command configures IGMP snooping senq-query function. When send-query is enabled, switch sends IGMP query messages on all the ports when spanning tree topology changes. ip igmp snooping send-query { enable | disable }...

  • Page 317: Ip Igmp Snooping Clear Counters

    Super Micro Intelligent Switch Command Line Interface User Guide 14.16 ip igmp snooping clear counters This command clears the IGMP snooping statistics. If any VLAN idenfier is provided it clears the IGMP snooping statistics for the given VLAN. ip igmp snooping clear counters [Vlan <vlan-id>] Syntax <vlan-id>...

  • Page 318: Shutdown Snooping

    Super Micro Intelligent Switch Command Line Interface User Guide 14.17 shutdown snooping This command shuts down snooping in the switch and the no form of the command starts and enables snooping in the switch. shutdown snooping no shutdown snooping Mode...

  • Page 319: Debug Ip Igmp Snooping

    Super Micro Intelligent Switch Command Line Interface User Guide 14.18 debug ip igmp snooping This command specifies the debug levels for IGMP snooping module and the no form of the command resets debug options for IGMP snooping module. debug ip igmp snooping {[init][resources][tmr][src][grp][qry]...

  • Page 320: Show Ip Igmp Snooping Mrouter

    Super Micro Intelligent Switch Command Line Interface User Guide 14.19 show ip igmp snooping mrouter This command displays the router ports for all VLANs or a specific VLAN. show ip igmp snooping mrouter [Vlan <vlan index>] Syntax Description Vlan - Vlan ID value...

  • Page 321: Show Ip Igmp Snooping Globals

    Super Micro Intelligent Switch Command Line Interface User Guide 14.20 show ip igmp snooping globals This command displays the IGMP snooping information for all VLANs or a specific VLAN. show ip igmp snooping globals Syntax Mode Privileged EXEC Mode Example...
  • Page 322 Super Micro Intelligent Switch Command Line Interface User Guide Router port purge interval is 125 seconds Port purge interval is 260 seconds Report forward interval is 5 seconds Group specific query interval is 2 seconds Reports are forwarded on router ports...
  • Page 323 Super Micro Intelligent Switch Command Line Interface User Guide Group specific query interval is 2 seconds Reports are forwarded on router ports Group specific query retry count is 2 Related Commands ip igmp snooping - Enables IGMP snooping in the switch/a specific VLAN...

  • Page 324: Show Ip Igmp Snooping

    Super Micro Intelligent Switch Command Line Interface User Guide 14.21 show ip igmp snooping This command displays IGMP snooping information for all VLANs or a specific VLAN. show ip igmp snooping [Vlan <vlan id>] Syntax Description vlan - VLAN ID...
  • Page 325 Super Micro Intelligent Switch Command Line Interface User Guide Switch cust2 Snooping VLAN Configuration for the VLAN 1 IGMP Snooping enabled IGMP configured version is V2 IGMP Operating version is V2 Fast leave is disabled Snooping switch is acting as Non-Querier...

  • Page 326: Show Ip Igmp Snooping Groups

    Super Micro Intelligent Switch Command Line Interface User Guide 14.22 show ip igmp snooping groups This command displays IGMP group information for all VLANs or a specific VLAN or a specific VLAN and group address. show ip igmp snooping groups [Vlan <vlan id> [Group <Address>]]...
  • Page 327 Super Micro Intelligent Switch Command Line Interface User Guide /* MAC based */ SMIS# show ip igmp snooping groups IGMP Snooping Group information ------------------------------- VLAN ID:2 Group Address: 227.1.1.1 Filter Mode EXCLUDE Exclude sources: None Receiver Ports: Gi0/2, Gi0/3, Gi0/4, Gi0/5...
  • Page 328 Super Micro Intelligent Switch Command Line Interface User Guide Gi0/10 Related Command ip igmp snooping - Enables IGMP snooping in the switch/a specific VLAN Release : 1.1f 328 / 985...

  • Page 329: Show Ip Igmp Snooping Forwarding-Database

    Super Micro Intelligent Switch Command Line Interface User Guide 14.23 show ip igmp snooping forwarding- database This command displays the multicast forwarding entries for all VLANs or a specific VLAN. show ip igmp snooping forwarding-database [Vlan <vlan id>] Syntax Description...
  • Page 330 Super Micro Intelligent Switch Command Line Interface User Guide Switch cust2 Vlan MAC-Address Ports ---- ----------------- ----- 2 01:00:5e:02:02:02 Gi0/9, Gi0/10 IGS must be enabled in the switch prior to the execution of this command. Related Command ip igmp snooping - Enables IGMP snooping in the switch/a specific VLAN Release : 1.1f...

  • Page 331: Show Ip Igmp Snooping Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 14.24 show ip igmp snooping statistics This command displays IGMP snooping statistics for all VLANs or a specific VLAN. show ip igmp snooping statistics [Vlan <vlan id>] Syntax Description Vlan - VLAN index...
  • Page 332 Super Micro Intelligent Switch Command Line Interface User Guide Snooping Statistics for VLAN 1 General queries received : 0 Group specific queries received : 0 Group and source specific queries received : 0 ASM reports received : 20 SSM reports received : 0...
  • Page 333 Super Micro Intelligent Switch Command Line Interface User Guide Packets dropped : 0 Switch cust2 Snooping Statistics for VLAN 1 General queries received : 0 Group specific queries received : 0 Group and source specific queries received : 0 ASM reports received : 0...
  • Page 334 Super Micro Intelligent Switch Command Line Interface User Guide SSM reports transmitted : 0 Leaves transmitted : 0 Packets dropped : 0 Related Command ip igmp snooping - Enables IGMP snooping in the switch/a specific VLAN Release : 1.1f 334 / 985...

  • Page 335: Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15 VLAN VLANs (Virtual LANs) can be viewed as a group of devices on different physical LAN segments which can communicate with each other as if they were all on the same physical LAN segment, i.e.
  • Page 336 Super Micro Intelligent Switch Command Line Interface User Guide switchport mode set garp timer vlan restricted group restricted vlan map-priority shutdown garp debug vlan debug garp show vlan show vlan device info show vlan device capabilities show vlan traffic-classes show garp timer...

  • Page 337: Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.1 vlan This command configures a VLAN in the switch and is also used to enter into the config-VLAN mode. The no form of the command deletes a VLAN from the switch.

  • Page 338: Protocol-Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.2 protocol-vlan This command enables Protocol-VLAN based classification on all the ports. The no form of the command disables Protocol-VLAN based classification on all ports. protocol-vlan no protocol-vlan Mode Global Configuration Mode...

  • Page 339: Map Protocol

    Super Micro Intelligent Switch Command Line Interface User Guide 15.3 map protocol This command configures the group ID for a specific encapsulation and protocol value combination. This command adds a protocol to a protocol group for protocol based VLAN learning. The no form of the command removes the protocol from the entire group.

  • Page 340: Set Gvrp

    Super Micro Intelligent Switch Command Line Interface User Guide 15.4 set gvrp This command enables or disables GVRP on a global basis. set gvrp { enable | disable } Syntax Description enable - Enables GVRP in the switch disable - Disables GVRP in the switch...

  • Page 341: Set Port Gvrp

    Super Micro Intelligent Switch Command Line Interface User Guide 15.5 set port gvrp This command enables or disables GVRP on the interface. set port gvrp <interface-type> <interface-id> { enable | disable } Syntax Description interface-type - Interface type interface-id - Interface Id...

  • Page 342: Set Gmrp

    Super Micro Intelligent Switch Command Line Interface User Guide 15.6 set gmrp This command enables or disables GMRP globally on the device. set gmrp { enable | disable } Syntax Description enable - Enables GMRP on the device disable - Disables GMRP on the device...

  • Page 343: Set Port Gmrp

    Super Micro Intelligent Switch Command Line Interface User Guide 15.7 set port gmrp This command enables or disables GMRP on the port. set port gmrp <interface-type> <interface-id> { enable | disable } Syntax Description interface-type - Interface type interface-id - Interface ID...

  • Page 344: Mac-Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.8 mac-vlan This command configures the VLAN-MAC address mapping. The no form of this command is used to delete the specific vlan mac mapping entry. mac-vlan <aa:aa:aa:aa:aa:aa> vlan <vlan-id(1-4069)> no mac-vlan <aa:aa:aa:aa:aa:aa>...

  • Page 345: Mac-Address-Table Static Unicast

    Super Micro Intelligent Switch Command Line Interface User Guide 15.9 mac-address-table static unicast This command configures a static unicast MAC address in the forwarding database. The no form of the command deletes a configured static Unicast MAC address from the forwarding database.
  • Page 346 Super Micro Intelligent Switch Command Line Interface User Guide VLAN must have been configured and member ports must have been configured for the specified VLAN. Related Commands show mac-address-table static unicast - Displays the statically configured unicast address from the MAC address table Release : 1.1f...

  • Page 347: Mac-Address-Table Static Multicast

    Super Micro Intelligent Switch Command Line Interface User Guide 15.10 mac-address-table static multicast This command configures a static multicast MAC address in the forwarding database. mac-address-table static multicast <aa:aa:aa:aa:aa:aa> vlan <vlan-id(1- 4069)> [recv-port <interface-type> <interface-id>] interface ([<interface-type> <0/ab, 0/c, ...>] [<interface-type> <0/a-b, 0/c, ...>] [port-channel <a,b,c-d>]]) [forbidden-ports ([<interface-type>...
  • Page 348 Super Micro Intelligent Switch Command Line Interface User Guide SMIS(config)# mac-address-table static multicast 01:02:03:04:05:06 vlan 2 interface gigabitethernet 0/1 VLAN must have been configured and member ports must have been configured for the specified VLAN. Related Command show mac-address-table static multicast - Displays the statically configured multicast entries Release : 1.1f...

  • Page 349: Mac-Address-Table Aging-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 15.11 mac-address-table aging-time This command sets the maximum age of a dynamically learnt entry in the MAC address table. The no form of the command sets the maximum age of an entry in the MAC address table to its default value.

  • Page 350: Wildcard Mac-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 15.12 wildcard mac-address This command adds wildcard or broadcast MAC address to layer 2 MAC table with the given interfaces. The no form of this command removes the wildcard MAC addresses from layer 2 MAC table.

  • Page 351: Ports

    Super Micro Intelligent Switch Command Line Interface User Guide 15.13 ports This command configures a static VLAN entry with the required member ports, untagged ports and forbidden ports. ports <ports-list> {tagged | untagged | forbidden} no ports [<ports-list>] {tagged | untagged | forbidden} Syntax Description <ports-list>...

  • Page 352: Name

    Super Micro Intelligent Switch Command Line Interface User Guide 15.14 name This command configures name to static VLANs. The no form of this command removes the configured name from static VLANs. name <string(32)> no name Syntax Description <string> - Alphanumerical string up to 32 characters long...

  • Page 353: Switchport Pvid

    Super Micro Intelligent Switch Command Line Interface User Guide 15.15 switchport pvid This command configures the PVID (VLAN Identifier) that would be assigned to untagged/priority- tagged frames. The no form of this command sets the PVID to the default value.

  • Page 354: Switchport Access Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.16 switchport access vlan This command configures the access vlan for the port. The no form of this command resets the access vlan to the default management vlan 1. switchport access vlan <vlan-id(1-4069)>...

  • Page 355: Switchport Trunk Native Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.17 switchport trunk native vlan This command configures the trunk native vlan for the port. The no form of this command resets the trunk native vlan to the default management vlan 1.

  • Page 356: Switchport Trunk Allowed Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.18 switchport trunk allowed vlan This command configures the allowed vlans for trunk ports. By default, all the VLANs configured on a switch are allowed on the trunk interfaces. User can limit the allowed vlans on the trunk ports using this command.

  • Page 357: Switchport Acceptable-Frame-Type

    Super Micro Intelligent Switch Command Line Interface User Guide 15.19 switchport acceptable-frame-type This command configures the acceptable frame type for the port. The no form of this command sets the default value of acceptable frame type - “all” where all frames will be accepted.

  • Page 358: Switchport Ingress-Filter

    Super Micro Intelligent Switch Command Line Interface User Guide 15.20 switchport ingress-filter This command enables ingress filtering on the port. The no form of this command disables ingress filtering on the port. switchport ingress-filter no switchport ingress-filter Mode Interface Configuration Mode...

  • Page 359: Port Protocol-Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.21 port protocol-vlan This command enables port protocol based VLANs. The no form of the command disables port Protocol based VLANs. port protocol-vlan no port protocol-vlan Mode Interface Configuration Mode Defaults...

  • Page 360: Switchport Map Protocols-Group

    Super Micro Intelligent Switch Command Line Interface User Guide 15.22 switchport map protocols-group This command maps the protocol group configured to a particular VLAN identifier for the specified interface. The no form of the command un-maps the VLAN identifier to group Id mapping.

  • Page 361: Switchport Priority Default

    Super Micro Intelligent Switch Command Line Interface User Guide 15.23 switchport priority default This command sets the default user priority for the port. The no form of the command sets the default user priority for the port to the default value.

  • Page 362: Switchport Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 15.24 switchport mode This command configures the VLAN port mode. The no form of the command configures the default VLAN port mode switchport mode { access | trunk | hybrid }...

  • Page 363: Set Garp Timer

    Super Micro Intelligent Switch Command Line Interface User Guide 15.25 set garp timer This command configures the GARP join time, leave time, and leave all time in milli-seconds. set garp timer {join | leave | leaveall} <time in milli seconds>...

  • Page 364: Vlan Restricted

    Super Micro Intelligent Switch Command Line Interface User Guide 15.26 vlan restricted This command enables/disables restricted VLAN registration on the port. vlan restricted {enable | disable} Syntax Description enable - Enables restricted VLAN registration disable - Disables restricted VLAN registration...

  • Page 365: Group Restricted

    Super Micro Intelligent Switch Command Line Interface User Guide 15.27 group restricted This command enables or disables restricted group registration on a port. group restricted {enable | disable } Syntax Description enable - Enables restricted group registration Disable - Disables restricted group registration...

  • Page 366: Vlan Map-Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 15.28 vlan map-priority This command maps a priority to a traffic class on the specified port. The frame received on the interface with the configured priority will be processed in the configured traffic class..

  • Page 367: Shutdown Garp

    Super Micro Intelligent Switch Command Line Interface User Guide 15.29 shutdown garp This command shuts down the GARP Module. The no form of the command starts and enables the GARP Module. shutdown garp no shutdown garp Mode Global Configuration Mode...

  • Page 368: Debug Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.30 debug vlan This command enables module-wise debug traces, which can be any of the following: Forwarding or Priority . debug vlan { global | [{fwd | priority | | redundancy} [initshut]...

  • Page 369: Debug Garp

    Super Micro Intelligent Switch Command Line Interface User Guide 15.31 debug garp This command enables module-wise debug traces, which can be GARP, GVRP or GMRP. debug garp { global | [{protocol | gmrp | gvrp | redundancy} [initshut] [mgmt] [data] [ctpl] [dump] [os] [failall] [buffer] [all]] }...

  • Page 370: Show Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.32 show vlan This command displays the VLAN information in the database. show vlan [brief | id <vlan-id(1-4069)> | summary] Syntax Description brief - Information about all the VLANs in brief...
  • Page 371 Super Micro Intelligent Switch Command Line Interface User Guide SMIS# show vlan Switch - default Vlan database ------------- Vlan ID : 1 Member Ports : Gi0/49 Untagged Ports : Gi0/49 Forbidden Ports : None Name : Status : Permanent ----------------------------------------------------...
  • Page 372 Super Micro Intelligent Switch Command Line Interface User Guide If the optional parameter is not specified then this command displays the VLAN information of all the available interfaces. Related Commands shutdown vlan - Shuts down VLAN switching. The no form of the command starts and...

  • Page 373: Show Vlan Device Info

    Super Micro Intelligent Switch Command Line Interface User Guide 15.33 show vlan device info This command displays the VLAN related global status variables. show vlan device info Syntax Description Mode Privileged EXEC Mode Example Single Instance: SMIS# show vlan device info...
  • Page 374 Super Micro Intelligent Switch Command Line Interface User Guide Multiple Instance: SMIS# show vlan device info Switch default Vlan device configurations -------------------------- Vlan Status : Enabled Vlan Oper status : Enabled Gvrp status : Enabled Gmrp status : Disabled Gvrp Oper status : Enabled...
  • Page 375 Super Micro Intelligent Switch Command Line Interface User Guide set gmrp - Enables or disables GMRP on a global basis set port gmrp - Enables or disables GMRP on the interface set vlan traffic-classes - Enables or disables traffic classes...

  • Page 376: Show Vlan Device Capabilities

    Super Micro Intelligent Switch Command Line Interface User Guide 15.34 show vlan device capabilities This command displays VLAN capabilities of the device. show vlan device capabilities Syntax Description Mode Privileged EXEC Mode Example Single Instance: SMIS# show vlan device capabilities...
  • Page 377 Super Micro Intelligent Switch Command Line Interface User Guide -------------------------- Extended filtering services Traffic classes Static Entry Individual port IVL capable SVL capable Hybrid capable Configurable Pvid Tagging Release : 1.1f 377 / 985...

  • Page 378: Show Vlan Traffic-Classes

    Super Micro Intelligent Switch Command Line Interface User Guide 15.35 show vlan traffic-classes This command displays the VLAN traffic classes mapping. show vlan traffic-classes Syntax Description Mode Privileged EXEC Mode Example SMIS# show vlan traffic-classes Related Commands vlan - Configures a VLAN in the switch and is used to enter into the VLAN mode...

  • Page 379: Show Garp Timer

    Super Micro Intelligent Switch Command Line Interface User Guide 15.36 show garp timer This command displays the GARP timer information of the available interfaces. show garp timer [{ port <interface-type> <interface-id>}] Syntax Description Port - Interface type and ID of the port...
  • Page 380 Super Micro Intelligent Switch Command Line Interface User Guide Gi0/5 200 600 10000 Gi0/6 200 600 10000 The timer information is the same for GVRP and GMRP. Related Commands ports - Configures a static VLAN entry with the required member ports, untagged ports and...

  • Page 381: Show Vlan Port Config

    Super Micro Intelligent Switch Command Line Interface User Guide 15.37 show vlan port config This command displays the VLAN related parameters specific for ports.. show vlan port config [{port <interface-type> <interface-id> }] Syntax Description Port - Interface type and ID of the port...
  • Page 382 Super Micro Intelligent Switch Command Line Interface User Guide Port Ingress Filtering : Enabled Port Mode : Hybrid Port Gvrp Status : Enabled Port Gmrp Status : Enabled Port Gvrp Failed Registrations : 0 Gvrp last pdu origin : 01:02:03:04:05:06...
  • Page 383 Super Micro Intelligent Switch Command Line Interface User Guide Default Priority : 0 ------------------------------------------------------- Switch - cust1 Vlan Port configuration table ------------------------------- Port Gi0/1 Port Vlan ID : 20 Port Acceptable Frame Type : Admit All Port Ingress Filtering : Disabled...
  • Page 384 Super Micro Intelligent Switch Command Line Interface User Guide Mac Based Support : Disabled Port-and-Protocol Based Support : Enabled Default Priority : 0 ------------------------------------------------------- If executed without the optional parameter this command displays the port information of all the available ports.

  • Page 385: Show Vlan Protocols-Group

    Super Micro Intelligent Switch Command Line Interface User Guide 15.38 show vlan protocols-group This command displays the protocol group database. show vlan protocols-group Syntax Description Mode Privileged EXEC Mode Example Single Instance: SMIS# show vlan protocols-group Protocol Group Table --------------------...
  • Page 386 Super Micro Intelligent Switch Command Line Interface User Guide show protocol-vlan - Displays the entries in the protocol-VLAN database switchport map protocols-group - Maps the protocol group configured to a particular VLAN identifier for the specified interface Release : 1.1f...

  • Page 387: Show Protocol-Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.39 show protocol-vlan This command displays the entries in protocol-VLAN database. show protocol-vlan Syntax Description Mode Privileged EXEC Mode Example Single Instance: SMIS# show protocol-vlan Port Protocol Table -------------------------------------- Port Group Vlan ID...

  • Page 388: Show Mac-Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 15.40 show mac-vlan This command displays the entries in the MAC-VLAN database. show mac-vlan Syntax Description Mode Privileged EXEC Mode Example SMIS# show mac-vlan Mac Address Vlan ID ----------------- ------- 00:25:90:13:6a:15...

  • Page 389: Show Mac-Address-Table

    Super Micro Intelligent Switch Command Line Interface User Guide 15.41 show mac-address-table This command displays the static and dynamic unicast and multicast MAC address table. show mac-address-table [vlan <vlan-id(1-4069)>] [address <aa:aa:aa:aa:aa:aa>] [{interface <interface-type> <interface-id> }] Syntax Description vlan - VLAN ID...
  • Page 390 Super Micro Intelligent Switch Command Line Interface User Guide forwarding database mac-address-table static multicast - Configures a static multicast MAC address in the forwarding database Release : 1.1f 390 / 985...

  • Page 391: Show Mac-Address-Table Count

    Super Micro Intelligent Switch Command Line Interface User Guide 15.42 show mac-address-table count This command displays the number of MAC addresses present on all the VLANs or on the specified VLAN. show mac-address-table count [vlan <vlan-id(1-4069)>] Syntax Description vlan - VLAN ID...
  • Page 392 Super Micro Intelligent Switch Command Line Interface User Guide Static Unicast Address Count : 0 Static Multicast Address Count : 0 ---------------------------------------- Mac Entries for Vlan 20: -------------------------- Dynamic Unicast Address Count : 0 Dynamic Multicast Address Count : 0...

  • Page 393: Show Mac-Address-Table Static Unicast

    Super Micro Intelligent Switch Command Line Interface User Guide 15.43 show mac-address-table static unicast This command displays the statically configured unicast addresses from the MAC address table. show mac-address-table static unicast [vlan <vlan-id(1-4069)>] [address <aa:aa:aa:aa:aa:aa>] [{interface <interface-type> <interface-id> }] Syntax Description...
  • Page 394 Super Micro Intelligent Switch Command Line Interface User Guide mac-address-table static unicast - Configures a static unicast MAC address in the forwarding database show mac-address-table dynamic unicast - Displays the dynamic MAC address table for the specified address or for all the addresses Release : 1.1f...

  • Page 395: Show Mac-Address-Table Static Multicast

    Super Micro Intelligent Switch Command Line Interface User Guide 15.44 show mac-address-table static multicast This command displays the statically configured multicast entries. show mac-address-table static multicast [vlan <vlan-id(1-4069)>] [address <aa:aa:aa:aa:aa:aa>] [{interface <interface-type> <interface- id>] Syntax Description vlan - VLAN Id...
  • Page 396 Super Micro Intelligent Switch Command Line Interface User Guide Member Ports : Gi0/3 Status : Permanent ------------------------------------------------ Total Mac Addresses displayed: 1 Related Commands vlan - Configures a VLAN in the switch and is also used to enter in to the config-VLAN mode...

  • Page 397: Show Mac-Address-Table Dynamic Unicast

    Super Micro Intelligent Switch Command Line Interface User Guide 15.45 show mac-address-table dynamic unicast This command displays the dynamically learnt unicast entries from the MAC address table. show mac-address-table dynamic unicast [vlan <vlan-id(1-4069)>] [address <aa:aa:aa:aa:aa:aa>] [{interface <interface-type> <interface- id> }]...
  • Page 398 Super Micro Intelligent Switch Command Line Interface User Guide If executed without the optional parameters this command displays the MAC address table of all the available interfaces Related Commands vlan - Configures a VLAN in the switch and is also used to enter in to the config-VLAN mode...

  • Page 399: Show Mac-Address-Table Dynamic Multicast

    Super Micro Intelligent Switch Command Line Interface User Guide 15.46 show mac-address-table dynamic multicast This command displays the dynamically learnt multicast MAC address. show mac-address-table dynamic multicast [vlan <vlan-id(1-4069)>] [address <aa:aa:aa:aa:aa:aa>] [{interface <interface-type> <interface- id> }] Syntax Description vlan - VLAN Id...
  • Page 400 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands vlan - Configures a VLAN in the switch and is also used to enter into the config-VLAN mode ports - Configures a static VLAN entry with the required member ports, untagged ports and...

  • Page 401: Show Mac-Address-Table Aging-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 15.47 show mac-address-table aging-time This command displays the MAC address-table ageing time. show mac-address-table aging-time Syntax Description Mode Privileged EXEC Mode Example Single Instance: SMIS# show mac-address-table aging-time Mac Address Aging Time: 300...

  • Page 402: Show Wildcard

    Super Micro Intelligent Switch Command Line Interface User Guide 15.48 show wildcard This command displays the wildcard MAC address entries from MAC table. show wildcard {mac-address <mac_addr> | broadcast} Syntax Description <mac_addr> - MAC address Mode Privileged EXEC Mode Example...

  • Page 403: Dhcp

    Super Micro Intelligent Switch Command Line Interface User Guide 16 DHCP DHCP (Dynamic Host Configuration Protocol) allows dynamic configuration of a host computer. When a DHCP client is turned on, it initially does not have an IP address assigned to it. It issues a broadcast message to any DCHP servers which are on the network.
  • Page 404 Super Micro Intelligent Switch Command Line Interface User Guide DHCP Server service dhcp-server ip dhcp pool ip dhcp next-server ip dhcp bootfile ip dhcp ip dhcp option network excluded-address domain-name dns-server netbios-name-server netbios-node-type default-router option lease utilization threshold host hardware-type...
  • Page 405 Super Micro Intelligent Switch Command Line Interface User Guide Release : 1.1f 405 / 985...

  • Page 406: Dhcp Client

    Super Micro Intelligent Switch Command Line Interface User Guide 16.1 DHCP Client 16.1.1 release This command immediately releases the DHCP lease on the interface specified. release dhcp [{ vlan <short (1-4069)> | <iftype> <ifnum> }] Syntax Description vlan - VLAN Identifier...
  • Page 407 Super Micro Intelligent Switch Command Line Interface User Guide Release : 1.1f 407 / 985...

  • Page 408: Renew

    Super Micro Intelligent Switch Command Line Interface User Guide 16.1.2 renew This command immediately renews the DHCP lease for the interface specified. renew dhcp [{ vlan <short (1-4069)> | <iftype> <ifnum> }] Syntax Description vlan-id - VLAN Identifier iftype - Interface type, can either be a gi, ex or qx ethernet interfaces...

  • Page 409: Debug Ip Dhcp Client

    Super Micro Intelligent Switch Command Line Interface User Guide 16.1.3 debug ip dhcp client This command sets the debug level for tracing the DHCP client module. The no form of the command disables the debug level for the DHCP client.

  • Page 410: Show Ip Dhcp Client Stats

    Super Micro Intelligent Switch Command Line Interface User Guide 16.1.4 show ip dhcp client stats This command displays the DHCP client statistics. show ip dhcp client stats Mode Privileged EXEC Mode Example SMIS# show ip dhcp client stats Dhcp Client Statistics...

  • Page 411: Dhcp Relay

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2 DHCP Relay 16.2.1 service dhcp-relay This command enables the DHCP Relay agent in the switch. The no form of the command disables the DHCP relay agent. service dhcp-relay no service dhcp-relay...

  • Page 412: Ip Dhcp Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.2 ip dhcp server This command set the IP address of the DHCP server. The Relay Agent will now start forwarding the packets from the client to a specific DHCP server. The no form of the command deletes the DHCP server IP address.

  • Page 413: Ip Dhcp Relay Information Option

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.3 ip dhcp relay information option This command enables the Relay Agent to perform any processing related to relay agent Information Options. When this option is enabled, the agent will insert and remove DHCP relay information in forwarded DHCP request messages to the DHCP server.

  • Page 414: Ip Dhcp Relay Circuit-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.4 ip dhcp relay circuit-id This command configures circuit identifier value to be used by the relay agent on the sub option 1 of the relay information option 82 to DHCP servers. The no form of this command clears the circuit identifier configuration.

  • Page 415: Ip Dhcp Relay Remote-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.5 ip dhcp relay remote-id This command configures remote identifier string to be used by the relay agent on the sub option 1 of the relay information option 82 to DHCP servers. The no form of this command clears the remote identifier configuration.

  • Page 416: Debug Ip Dhcp Relay

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.6 debug ip dhcp relay This command enables the debug level for tracing the DHCP Relay Module. The no form of the command disables the debug level for tracing the DHCP relay Module.

  • Page 417: Show Ip Dhcp Relay Information

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.7 show ip dhcp relay information This command displays the DHCP Relay Information. show ip dhcp relay information [vlan <integer (1-4069)>] [<iftype> <ifnum>] Syntax Description Vlan - VLAN ID iftype - Interface type, can either be a gi, ex or qx ethernet interfaces...

  • Page 418: Show Dhcp Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.2.8 show dhcp server This command displays the DHCP server information. show dhcp server Mode Privileged EXEC Mode Example SMIS# show dhcp server DHCP server: 40.0.0.4 Related Commands service dhcp-relay - Enables the DHCP relay agent in the switch...

  • Page 419: Dhcp Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3 DHCP Server 16.3.1 service dhcp-server This command enables the DHCP server. The no form of this command disables the DHCP server. service dhcp-server no service dhcp-server Mode Global Configuration Mode...

  • Page 420: Ip Dhcp Pool

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.2 ip dhcp pool This command creates a DHCP server address pool and places the user in the DHCP pool configuration mode. The no form of the command deletes the DHCP server address pool.
  • Page 421 Super Micro Intelligent Switch Command Line Interface User Guide option - Sets the pool specific DHCP server option lease - Sets the lease period host hardware-type - Specifies the hardware address of a Dynamic Host Configuration Protocol (DHCP) client show ip dhcp server information - Displays the DHCP server information show ip dhcp server pools - Displays the DHCP server pools Release : 1.1f...

  • Page 422: Ip Dhcp Next-Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.3 ip dhcp next-server This command sets the next boot server in the DHCP server configuration parameters. The no form of this command deletes the next boot server from the DHCP server configuration parameters.

  • Page 423: Ip Dhcp Bootfile

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.4 ip dhcp bootfile This command sets the boot file name in the DHCP server configuration parameters. The no form of this command deletes the boot file name from the DHCP server configuration parameters.

  • Page 424: Ip Dhcp

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.5 ip dhcp This command sets the DHCP server parameters such as enabling ICMP echo mechanism or offer-reuse timeout. The no form of this command is used to set the DHCP server parameters like disabling ICMP echo mechanism or server offer-reuse to its default value or removing a bind entry from the server binding table.

  • Page 425: Ip Dhcp Option

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.6 ip dhcp option This command sets the DHCP server options. ip dhcp option <code (1-2147483647)> { ascii <string> | hex <Hex String> | ip <address> } no ip dhcp option <code (1-2147483647)>...
  • Page 426 Super Micro Intelligent Switch Command Line Interface User Guide show ip dhcp server pools - Displays the DHCP server pools option- Sets the pool specific DHCP server option Release : 1.1f 426 / 985...

  • Page 427: Network

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.7 network This command sets the network IP address and mask in DHCP server configuration parameters. The no form of the command deletes the network IP address and mask from DHCP server configuration.

  • Page 428: Excluded-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.8 excluded-address This command creates an excluded pool to prevent DHCP Server from assigning certain addresses. The no form of the command deletes the excluded pool. excluded-address <low-address> <high-address> no excluded-address <low-address> [<high-address>]...

  • Page 429: Domain-Name

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.9 domain-name This command sets the domain name in the DHCP server configuration parameters. The no form of the command deletes the domain name from the DHCP server configuration parameters. domain-name <domain (63)>...

  • Page 430: Dns-Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.10 dns-server This command is used to specify the IP address of a DNS server that is available to a DHCP client. The no form of the command deletes the DNS server from the DHCP server configuration parameters.

  • Page 431: Netbios-Name-Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.11 netbios-name-server This command sets the NetBIOS (WINS) name servers in the DHCP server configuration parameters. The no form of the command deletes the NetBIOS name server from the DHCP configuration parameters.

  • Page 432: Netbios-Node-Type

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.12 netbios-node-type This command is used to set the NetBios node type in the DHCP server configuration parameters. The no form of this command is used to delete the NetBios node type from the DHCP server configuration parameters.

  • Page 433: Default-Router

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.13 default-router This command sets the default router in the DHCP server configuration parameters. The no form of the command deletes the default router from the DHCP server configuration parameters. default-router <ip address>...

  • Page 434: Option

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.14 option This command sets the pool specific DHCP server option. The no form of the command deletes the pool specific DHCP server option. option <code (1-2147483647)> { ascii <string> | hex <Hex String> | ip <address>...
  • Page 435 Super Micro Intelligent Switch Command Line Interface User Guide Network pool must be configured prior to the execution of this command. Only then the configured option will be visible to the user in the show command output. If the network pool is deleted, then the option configured for that network pool will also get deleted.

  • Page 436: Lease

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.15 lease This command configures the duration of the lease for an IP address that is assigned from ISS Dynamic Host Configuration Protocol (DHCP) Server to a DHCP client. The no form of this command restores the default value of 3600 seconds.

  • Page 437: Utilization Threshold

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.16 utilization threshold This command sets the pool utilization threshold value in percentage. If the pool utilization reaches this threshold level, a syslog event and an SNMP trap message will be generated. The no form of this command sets pool utilization threshold to its default value.

  • Page 438: Host Hardware-Type

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.17 host hardware-type This command specifies the hardware address of a Dynamic Host Configuration Protocol (DHCP) client and host specific DHCP options. The no form of the command deletes the host option.

  • Page 439: Debug Ip Dhcp Server

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.18 debug ip dhcp server This command enables the debug level for tracing the DHCP server Module. The no form of this command disables the debug level for tracing the DHCP server Module.

  • Page 440: Show Ip Dhcp Server Information

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.19 show ip dhcp server information This command displays the DHCP server information. show ip dhcp server information Mode Privileged EXEC Mode Example SMIS# show ip dhcp server information DHCP server status : Enable...

  • Page 441: Show Ip Dhcp Server Pools

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.20 show ip dhcp server pools This command displays the DHCP server pools. show ip dhcp server pools Mode Privileged EXEC Mode Example SMIS# show ip dhcp server pools Pool Id : 1 ------------------------------------------- Subnet : 12.0.0.0...

  • Page 442: Show Ip Dhcp Server Binding

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.21 show ip dhcp server binding This command displays the DHCP server binding information. show ip dhcp server binding Mode Privileged EXEC Mode Example SMIS# show ip dhcp server binding Ip Hw Hw Alloc Expire Binding...

  • Page 443: Show Ip Dhcp Server Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 16.3.22 show ip dhcp server statistics This command displays the DHCP server statistics. show ip dhcp server statistics Mode Privileged EXEC Mode Example SMIS# show ip dhcp server statistics Address pools : 2...

  • Page 444: Snmpv3

    Super Micro Intelligent Switch Command Line Interface User Guide 17 SNMPv3 SNMP (Simple Network Management Protocol) is the most widely-used network management protocol on TCP/IP-based networks. SNMPv3 is designed mainly to overcome the security shortcomings of SNMPv1/v2. USM (User based Security Mode ) and VACM (View based Access Control Model) are the main features added as part of the SNMPv3 specification.
  • Page 445 Super Micro Intelligent Switch Command Line Interface User Guide disable snmpagent enable snmpsubagent disable snmpsubagent show snmp agentx information show snmp agentx statistics show snmp show snmp community show snmp group show snmp group access show snmp engineID show snmp viewtree...

  • Page 446: Snmp Community Index

    Super Micro Intelligent Switch Command Line Interface User Guide 17.1 snmp community index This command configures the SNMP community details. The no form of this command removes the SNMP community details. snmp community index <CommunityIndex> name <CommunityName> security <SecurityName> [context <ContextName | none>] [{volatile | nonvolatile}] [transporttag <TransportTagIdentifier | none>]...
  • Page 447 Super Micro Intelligent Switch Command Line Interface User Guide show snmp - Displays the status information of SNMP communications show snmp community - Displays the configured SNMP community details Release : 1.1f 447 / 985...

  • Page 448: Snmp Group

    Super Micro Intelligent Switch Command Line Interface User Guide 17.2 snmp group This command configures SNMP group details. The no form of the command removes the SNMP group details. snmp group <GroupName> user <UserName> security-mode {v1 | v2c | v3 } [{volatile | nonvolatile}] no snmp group <GroupName>...

  • Page 449: Snmp Access

    Super Micro Intelligent Switch Command Line Interface User Guide 17.3 snmp access This command configures the SNMP group access details. The no form of the command removes the SNMP group access details. snmp access <GroupName> {v1 | v2c | v3 {auth | noauth | priv}} [read <ReadView | none>] [write <WriteView | none>] [notify <NotifyView |...
  • Page 450 Super Micro Intelligent Switch Command Line Interface User Guide SMIS(config)# snmp access myv2group v2 read v2readview write v2writeview notify v2notifyview nonvolatile To configure an SNMP access along with the group, a group must have already been created using the snmp group command.

  • Page 451: Snmp Engineid

    Super Micro Intelligent Switch Command Line Interface User Guide 17.4 snmp engineid This command configures the engine identifier. The no form of the command removes the configured engine identifier. snmp engineid <EngineIdentifier> no snmp engineid Syntax Description EngineIdentifier - Engine Id...

  • Page 452: Snmp View

    Super Micro Intelligent Switch Command Line Interface User Guide 17.5 snmp view This command configures the SNMP view. The no form of the command removes the SNMP view. snmp view <ViewName> <OIDTree> [mask <OIDMask>] {included | excluded} [{volatile | nonvolatile}] no snmp view <ViewName>...

  • Page 453: Snmp Targetaddr

    Super Micro Intelligent Switch Command Line Interface User Guide 17.6 snmp targetaddr This command configures the SNMP target address. The no form of the command removes the configured SNMP target address. snmp targetaddr <TargetAddressName> param <ParamName> {<IPAddress> | <IP6Address>} [timeout <TimeoutValue(1-1500)] [retries <RetryCount(1- 3)] [taglist <TagIdentifier | none>] [{volatile | nonvolatile}]...
  • Page 454 Super Micro Intelligent Switch Command Line Interface User Guide show snmp targetaddr - Displays the configured SNMP target Addresses snmp targetparams - Configures the SNMP target parameters show snmp targetparam - Displays the configured SNMP Target Address Params Release : 1.1f...

  • Page 455: Snmp Targetparams

    Super Micro Intelligent Switch Command Line Interface User Guide 17.7 snmp targetparams This command configures the SNMP target parameters. The no form of the command removes the SNMP target Params snmp targetparams <ParamName> user <UserName> security-mode {v1 | v2c | v3 {auth | noauth | priv}} message-processing {v1 | v2c | v3} [{volatile | nonvolatile}] no snmp targetparams <ParamName>...
  • Page 456 Super Micro Intelligent Switch Command Line Interface User Guide Storage Type - Non-volatile Example SMIS(config)# snmp targetparams param1 user user1 securitymode v3 noauth message-processing v3 User information must have been configured prior to the configuration of SNMP target parameters Related Commands...

  • Page 457: Snmp User

    Super Micro Intelligent Switch Command Line Interface User Guide 17.8 snmp user This command configures the SNMP user details. The no form of the command removes the SNMP user details. snmp user <UserName> [auth {md5 | sha} <passwd> [priv DES <passwd>]] [{volatile | nonvolatile}] no snmp user <UserName>...

  • Page 458: Snmp Notify

    Super Micro Intelligent Switch Command Line Interface User Guide 17.9 snmp notify This command configures the SNMP notification details. The no form of this command removes the SNMP notification details. snmp notify <NotifyName> tag <TagName> type {Trap | Inform} [{volatile | nonvolatile}] no snmp notify <NotifyName>...

  • Page 459: Snmp-Server Enable Traps Snmp Authentication

    Super Micro Intelligent Switch Command Line Interface User Guide 17.10 snmp-server enable traps snmp authentication This command enables generation of authentication traps for SNMPv1 and SNMPv2c. The no form of the command disables generation of authentication traps for SNMPv1 and SNMPv2c.

  • Page 460: Snmp-Server Trap Udp-Port

    Super Micro Intelligent Switch Command Line Interface User Guide 17.11 snmp-server trap udp-port This command configures UDP port number to be used to send SNMP traps. The no form of this command resets the UDP port number to the default value 162.

  • Page 461: Enable Snmpagent

    Super Micro Intelligent Switch Command Line Interface User Guide 17.12 enable snmpagent This command enables the SNMP agent on the switch. SNMP agent feature is enabled by default. enable snmpagent Mode Global Configuration Mode Defaults Enabled Example SMIS(config)# enable snmpagent...

  • Page 462: Disable Snmpagent

    Super Micro Intelligent Switch Command Line Interface User Guide 17.13 disable snmpagent This command disables the SNMP agent on the switch. SNMP agent feature is enabled by default. disable snmpagent Mode Global Configuration Mode Defaults SNMP feature is enabled. Example...

  • Page 463: Enable Snmpsubagent

    Super Micro Intelligent Switch Command Line Interface User Guide 17.14 enable snmpsubagent This command enables the SNMP sub agent on the switch. Switch can either operate as a SNMP agent or sub agent. Hence to enable SNMP sub agent the SNMP agent feature need to be disabled.

  • Page 464: Disable Snmpsubagent

    Super Micro Intelligent Switch Command Line Interface User Guide 17.15 disable snmpsubagent This command disables the SNMP sub agent on the switch. SNMP sub agent feature is disabled by default. disable snmpsubagent Mode Global Configuration Mode Defaults SNMP sub agent feature is disabled.

  • Page 465: Show Snmp Agentx Information

    Super Micro Intelligent Switch Command Line Interface User Guide 17.16 show snmp agentx information This command displays the information about SNMP sub agent configuraiton. show snmp agentx information Mode Privileged EXEC Mode Example SMIS# show snmp agentx information Agentx Subagent is enabled...

  • Page 466: Show Snmp Agentx Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 17.17 show snmp agentx statistics This command displays the SNMP sub agent related counters. show snmp agentx statistics Mode Privileged EXEC Mode Example SMIS# show snmp agentx statistics Tx Statistics Transmitted Packets...

  • Page 467: Show Snmp

    Super Micro Intelligent Switch Command Line Interface User Guide 17.18 show snmp This command displays the status information of SNMP communications. show snmp Mode Privileged EXEC Mode Example SMIS# show snmp 0 SNMP Packets Input 0 Bad SNMP Version errors...

  • Page 468: Show Snmp Community

    Super Micro Intelligent Switch Command Line Interface User Guide 17.19 show snmp community This command displays the configured SNMP community details. show snmp community Mode Privileged EXEC Mode Example SMIS# show snmp community Community Index: NETMAN Community Name: NETMAN Security Name: none...

  • Page 469: Show Snmp Group

    Super Micro Intelligent Switch Command Line Interface User Guide 17.20 show snmp group This command displays the configured SNMP groups. show snmp group Mode Privileged EXEC Mode Example SMIS# show snmp group Security Model : v1 Security Name : none...
  • Page 470 Super Micro Intelligent Switch Command Line Interface User Guide Storage Type : Non-volatile Row Status : Active ------------------------------ Related Commands snmp group - Configures the SNMP group details snmp user - Configures the SNMP user details Release : 1.1f 470 / 985...

  • Page 471: Show Snmp Group Access

    Super Micro Intelligent Switch Command Line Interface User Guide 17.21 show snmp group access This command displays the configured SNMP group access details. show snmp group access Mode Privileged EXEC Mode Example SMIS# show snmp group access Group Name : iso...
  • Page 472 Super Micro Intelligent Switch Command Line Interface User Guide ------------------------------ Group Name : initial Read View : iso Write View : iso Notify View : iso Storage Type : Non-volatile Row Status : Active ------------------------------ Related Commands snmp access - Configures the SNMP group access details snmp view - Configures the SNMP view Release : 1.1f...

  • Page 473: Show Snmp Engineid

    Super Micro Intelligent Switch Command Line Interface User Guide 17.22 show snmp engineID This command displays the Engine Identifier. show snmp engineID Mode Privileged EXEC Mode Example SMIS# show snmp engineID EngineId: 80.00.08.1c.04.46.53 Related Command snmp engineid - Configures the engine identifier Release : 1.1f...

  • Page 474: Show Snmp Viewtree

    Super Micro Intelligent Switch Command Line Interface User Guide 17.23 show snmp viewtree This command displays the configured SNMP Tree views. show snmp viewtree Mode Privileged EXEC Mode Example SMIS# show snmp viewtree View Name: iso Subtree OID: 1 Subtree Mask:...

  • Page 475: Show Snmp Targetaddr

    Super Micro Intelligent Switch Command Line Interface User Guide 17.24 show snmp targetaddr This command displays the configured SNMP target Addresses. show snmp targetaddr Mode Privileged EXEC Mode Example SMIS# show snmp targetaddr Target Address Name: issmanager IP Address: 10.0.0.10...

  • Page 476: Show Snmp Targetparam

    Super Micro Intelligent Switch Command Line Interface User Guide 17.25 show snmp targetparam This command displays the configured SNMP Target Address Params. show snmp targetparam Mode Privileged EXEC Mode Example SMIS# show snmp targetparam Target Parameter Name : internet Message Processing Model : v2c...

  • Page 477: Show Snmp User

    Super Micro Intelligent Switch Command Line Interface User Guide 17.26 show snmp user This command displays the configured SNMP users. show snmp user Mode Privileged EXEC Mode Example SMIS# show snmp user Engine ID: 80.00.08.1c.04.46.53 User: initial Authentication Protocol: none...

  • Page 478: Show Snmp Notif

    Super Micro Intelligent Switch Command Line Interface User Guide 17.27 show snmp notif This command displays the configured SNMP Notification types. show snmp notif Mode Privileged EXEC Mode Example SMIS# show snmp notif Notify Name: iss Notify Tag: iss Notify Type: trap...

  • Page 479: Show Snmp Inform Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 17.28 show snmp inform statistics This command displays the inform message statistics. show snmp inform statistics Mode Privileged EXEC Mode Example SMIS# show snmp inform statistics Target Address Name : issmanager IP Address : 10.0.0.10...

  • Page 480: Show Snmp-Server Traps

    Super Micro Intelligent Switch Command Line Interface User Guide 17.29 show snmp-server traps This command displays the SNMP trap information. show snmp-server traps Mode Privileged EXEC Mode Example SMIS# show snmp-server traps SNMP Trap Listen Port is 162 Currently enabled traps:...

  • Page 481: Debug Ip Snmp

    Super Micro Intelligent Switch Command Line Interface User Guide 17.30 debug ip snmp This command enables the display of SNMP module debug messages on the console. The no form of this command disables the SNMP debug messages display. debug ip snmp...
  • Page 482 Super Micro Intelligent Switch Command Line Interface User Guide 18 IP IP (Internet Protocol) is an identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods.

  • Page 483: Show Ip Information

    Super Micro Intelligent Switch Command Line Interface User Guide 18.1 show ip information This command displays IP configuration information. show ip information Mode Privileged EXEC Mode Example SMIS# show ip information Global IP Configuration: ------------------------ IP routing is enabled Default TTL is 64...

  • Page 484: Ping

    Super Micro Intelligent Switch Command Line Interface User Guide 18.2 ping This command sends echo messages. ping [ip] destination-address [size packet_size (0-2080)] [count packet_count (1-10)] [timeout time_out (1-100)] Syntax Description ip - IP address of the node to be pinged...

  • Page 485: Ip Route

    Super Micro Intelligent Switch Command Line Interface User Guide 18.3 ip route This command adds a static route and the no form of the command deletes a static route. ip route <prefix> <mask> {<next-hop> | Vlan <vlan-id (1-4069)> | <interface-type> <interface-id> | null0 } [<distance (1-255)>] [ private ] no ip route <prefix>...

  • Page 486: Ip Routing

    Super Micro Intelligent Switch Command Line Interface User Guide 18.4 ip routing This command enables IP routing and the no form of the command disables IP routing. ip routing no ip routing Mode Global Configuration Mode Defaults Enabled Example SMIS(config)# ip routing A static route is appropriate when SMIS cannot dynamically build a route to the destination.

  • Page 487: Ip Default-Ttl

    Super Micro Intelligent Switch Command Line Interface User Guide 18.5 ip default-ttl This command sets the Time-To-Live (TTL) value and the no form of the command sets the TTL to the default value. ip default-ttl <value (1-255)> no ip default-ttl...

  • Page 488: Arp Timeout

    Super Micro Intelligent Switch Command Line Interface User Guide 18.6 arp timeout This command sets the ARP (Address Resolution Protocol) cache timeout and the no form of the command sets the ARP cache timeout to its default value. arp timeout <seconds (30-86400)>...

  • Page 489: Arp - Ip Address

    Super Micro Intelligent Switch Command Line Interface User Guide 18.7 arp – ip address This command adds a static entry in the ARP cache and the no form of the command deletes a static entry from the ARP cache. arp <ip address> <hardware address> {Vlan <vlan-id(1-4069)> | Linuxvlan <interface-name>| Cpu0} [arpa]...

  • Page 490: Ip Arp Max-Retries

    Super Micro Intelligent Switch Command Line Interface User Guide 18.8 ip arp max-retries This command sets the maximum number of ARP request retries. The no form of the command sets the maximum number of ARP request retries to its default value.

  • Page 491: Show Ip Traffic

    Super Micro Intelligent Switch Command Line Interface User Guide 18.9 show ip traffic This command displays the IP protocol statistics. show ip traffic Mode Privileged EXEC Mode Example SMIS# show ip traffic IP Statistics: -------------- Rcvd: 0 total, 0 header error discards...

  • Page 492: Show Ip Route

    Super Micro Intelligent Switch Command Line Interface User Guide 18.10 show ip route This command displays the IP routing table. show ip route [ { <ip-address> [<mask>] | bgp | connected | ospf | rip | static | summary } ]...
  • Page 493 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands ip route – Adds a static route ip routing – Enables IP routing Release : 1.1f 493 / 985...

  • Page 494: Show Ip Arp

    Super Micro Intelligent Switch Command Line Interface User Guide 18.11 show ip arp This command displays IP ARP table. show ip arp [ { Vlan <vlan-id(1-4069)> | <ip-address> | <mac-address> | summary | information }] Syntax Description Vlan - VLAN ID...
  • Page 495 Super Micro Intelligent Switch Command Line Interface User Guide SMIS# show ip arp summary 3 IP ARP entries, with 0 of them incomplete SMIS# show ip arp information ARP Configurations: ------------------- Maximum number of ARP request retries is 10 ARP cache timeout is 7200 seconds Related Commands arp timeout –...

  • Page 496: Igmp

    Super Micro Intelligent Switch Command Line Interface User Guide 19 IGMP SMIS IGMP (Internet Group Management Protocol) is a portable implementation of the Internet Group Management Protocol Version 3. It implements the IGMP router functionalities required by the Multicast Routing Protocol.

  • Page 497: Set Ip Igmp

    Super Micro Intelligent Switch Command Line Interface User Guide 19.1 set ip igmp This command enables or disables IGMP. set ip igmp {enable|disable} Syntax Description enable - Enables IGMP disable - Disables IGMP Mode Global Configuration Mode Defaults disable Example...

  • Page 498: Set Ip Igmp

    Super Micro Intelligent Switch Command Line Interface User Guide 19.2 set ip igmp This command enables or disables IGMP on the interface. set ip igmp {enable|disable} Syntax Description enable - Enables IGMP disable - Disables IGMP Mode Interface Configuration Mode...

  • Page 499: Ip Igmp Immediate-Leave

    Super Micro Intelligent Switch Command Line Interface User Guide 19.3 ip igmp immediate-leave This command enables immediate leave processing on the interface and the no form of the command disables immediate-leave processing. ip igmp immediate-leave no ip igmp immediate-leave Mode...

  • Page 500: Ip Igmp Version

    Super Micro Intelligent Switch Command Line Interface User Guide 19.4 ip igmp version This command sets the IGMP version on the interface and the no form of the command sets the default IGMP version on the interface. ip igmp version { 1 | 2 | 3}...

  • Page 501: Ip Igmp Query-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 19.5 ip igmp query-interval This command sets the IGMP query interval for the interface and the no form of the command sets the query interval to the default value. ip igmp query-interval <value (1-65535) seconds>...

  • Page 502: Ip Igmp Query-Max-Response-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 19.6 ip igmp query-max-response-time This command sets the IGMP max query response value for the interface and the no form of the command sets the max query response to the default value.

  • Page 503: Ip Igmp Robustness

    Super Micro Intelligent Switch Command Line Interface User Guide 19.7 ip igmp robustness This command sets the IGMP robustness value for the interface and the no form of the command sets the robustness value to default value. ip igmp robustness <value(1-255)>...

  • Page 504: Ip Igmp Last-Member-Query-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 19.8 ip igmp last-member-query-interval This command sets the IGMP last member query interval for the interface and the no form of the command sets the last member query interval to the default value.

  • Page 505: Ip Igmp Static-Group

    Super Micro Intelligent Switch Command Line Interface User Guide 19.9 ip igmp static-group This command adds the static group membership on the interface and the no form of the command deletes the static group membership on the interface. ip igmp static-group <Group Address> [source <Source Address>] no ip igmp static-group <Group Address>...

  • Page 506: No Ip Igmp Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 19.10 no ip igmp interface This command deletes the IGMP capable interface. no ip igmp interface Mode Interface Configuration Mode Example SMIS(config-if)# no ip igmp interface Related Commands show ip igmp interface - Displays the interface configuration of IGMP Release : 1.1f...

  • Page 507: Debug Ip Igmp

    Super Micro Intelligent Switch Command Line Interface User Guide 19.11 debug ip igmp This command enables the IGMP trace and the no form of the command disables the IGMP trace. debug ip igmp { [i/o][grp][qry][tmr][mgmt] | [all] } no debug ip igmp { [i/o][grp][qry][tmr][mgmt] | [all] }...

  • Page 508: Show Ip Igmp Global-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 19.12 show ip igmp global-config This command displays the global configuration of IGMP. show ip igmp global-config Mode Privileged EXEC Mode Example SMIS# show ip igmp global-config IGMP is globally enabled...

  • Page 509: Show Ip Igmp Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 19.13 show ip igmp interface This command displays the interface configuration of IGMP. show ip igmp interface [Vlan <vlan-id> | <iftype> <ifnum>] Syntax Description Vlan - VLAN ID iftype - Interface type, can either be a gi, ex or qx ethernet interfaces...
  • Page 510 Super Micro Intelligent Switch Command Line Interface User Guide ip igmp version - Sets the IGMP version on the interface ip igmp query-interval - Sets the IGMP query interval for the interface ip igmp query-max-response-time - Sets the IGMP max query response value for the interface...

  • Page 511: Show Ip Igmp Groups

    Super Micro Intelligent Switch Command Line Interface User Guide 19.14 show ip igmp groups This command displays the IGMP groups information. show ip igmp groups Mode Privileged EXEC Mode Example SMIS# show ip igmp groups I - Include Mode E - Exclude Mode...

  • Page 512: Show Ip Igmp Sources

    Super Micro Intelligent Switch Command Line Interface User Guide 19.15 show ip igmp sources This command displays the IGMP source information. show ip igmp sources Mode Privileged EXEC Mode Example SMIS# show ip igmp sources I - Include Mode E - Exclude Mode...

  • Page 513: Show Ip Igmp Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 19.16 show ip igmp statistics This command displays the IGMP statistics information. show ip igmp statistics [Vlan <vlan-id> | <iftype> <ifnum>] Syntax Description Vlan - VLAN ID iftype - Interface type, can either be a gi, ex or qx ethernet interfaces...
  • Page 514 Super Micro Intelligent Switch Command Line Interface User Guide Number of Group and Source Specific queries transmitted 0 Number of v1/v2 reports transmitted 0 Number of v3 reports transmitted 0 Number of v2 leaves transmitted 0 Release : 1.1f 514 / 985...

  • Page 515: Rrd

    Super Micro Intelligent Switch Command Line Interface User Guide 20 RRD RRD (Route Redistribution) allows different routing protocols to exchange routing information. Using a routing protocol to advertise routes that are learnt by other means, such as, another routing protocol, static routes, or directly connected routes, is called redistribution. While running...

  • Page 516: As-Num

    Super Micro Intelligent Switch Command Line Interface User Guide 20.1 as-num This command sets the AS (Autonomous System) number for the router. as-num <value(1-65535)> Mode Global Configuration Mode Defaults Example iss (config)# as-num 5 The RRD Module must be enabled before any routing protocol module is configured.

  • Page 517: Router-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 20.2 router-id This command sets the router ID’s address for the router. router-id <addr> Mode Global Configuration Mode Example iss (config)# router-id 12.0.0.1 The router-id must be one of the IP addresses of the IP interfaces configured in the switch.

  • Page 518: Export Ospf

    Super Micro Intelligent Switch Command Line Interface User Guide 20.3 export ospf This command enables redistribution of OSPF (Open Shortest Path First) area / External routes to the protocol and the no form of the command disables redistribution of OSPF area / External routes to the protocol.

  • Page 519: Redistribute-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 20.4 redistribute-policy This command adds the permit/deny Redistribution Policy and the no form of the command removes the permit/deny Redistribution Policy redistribute-policy {permit|deny} <DestIp> <DestRange> {connected|static|rip|ospf|bgp} {rip|bgp|ospf|all} no redistribute-policy <DestIp> <DestRange>...
  • Page 520 Super Micro Intelligent Switch Command Line Interface User Guide protocol will be redistributed to other routing protocols, if permit is used and will not be redistributed to other routing protocols, if deny is used. Related Command show redistribute-policy – Displays route redistribution filters Release : 1.1f...

  • Page 521: Default Redistribute-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 20.5 default redistribute-policy This command sets the default behavior of RRD Control Table. default redistribute-policy {permit | deny} Syntax Description permit - Sets the default rule for all prefixes to 'permit'...

  • Page 522: Show Ip Protocols

    Super Micro Intelligent Switch Command Line Interface User Guide 20.6 show ip protocols This command displays information about the active routing protocol process. show ip protocols Mode Privileged EXEC Mode Example SMIS# show ip protocols Routing Protocol is rip RIP2 security level is Maximum...
  • Page 523 Super Micro Intelligent Switch Command Line Interface User Guide Authentication type is none Split Horizon with poissoned reverse is enabled Restrcts default route installation Restricts default route origination Routing Protocol is "ospf" Router ID 0.0.0.0 Number of areas in this router is 0 . 0 normal 0 stub 0 nssa...

  • Page 524: Show Redistribute-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 20.7 show redistribute-policy This command displays route redistribution filters. show redistribute-policy Mode Privileged EXEC Mode Example SMIS# show redistribute-policy Destination Range SrcProto DestProto Flag ----------- ----- -------- ----------- --- 0.0.0.0 255.255.255.255 none others Deny 10.0.0.0 255.0.0.0 rip all Allow...

  • Page 525: Show Redistribute Information

    Super Micro Intelligent Switch Command Line Interface User Guide 20.8 show redistribute information This command displays RTM (Route Table Manager) RRD status for registered protocols. show redistribute information Mode Privileged EXEC Mode Example SMIS# show redistribute information Router ID is 0.0.0.0...

  • Page 526: Dvmrp

    Super Micro Intelligent Switch Command Line Interface User Guide 21 DVMRP DVMRP (Distance Vector Multicast Routing Protocol) is an Internet Routing Protocol that provides efficient mechanism for connectionless message multicast to a group of hosts across an internetwork. Distance Vector Multicast Routing Protocol, an interior gateway protocol (IGP) suitable for use within an autonomous system but not between different autonomous systems.

  • Page 527: Set Ip Dvmrp

    Super Micro Intelligent Switch Command Line Interface User Guide 21.1 set ip dvmrp This command enables / disables DVMRP in the switch. set ip dvmrp { enable | disable } Syntax Description enable - Enables DVMRP in the switch disable - Disables DVMRP in the switch...

  • Page 528: Ip Dvmrp Prune-Life-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 21.2 ip dvmrp prune-life-time This command sets the prune life time value. The no form of the command sets the prune life time to the default value (50 seconds). ip dvmrp prune-life-time <time(1-7200secs)>...

  • Page 529: Set Ip Dvmrp - Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 21.3 set ip dvmrp - interface This command enables/disables DVMRP on the interface. set ip dvmrp { enable | disable } Syntax Description enable - Enables DVMRP on the interface disable - Disables DVMRP on the interface...

  • Page 530: Debug Ip Dvmrp

    Super Micro Intelligent Switch Command Line Interface User Guide 21.4 debug ip dvmrp This command enables debugging support for DVMRP. The no form of the command disables debugging support for DVMRP. debug ip dvmrp {[neighbor][group][join-prune][i/o][mrt][mdh][mgmt] | all } no debug ip dvmrp { [neighbor][group][join-prune][i/o][mrt][mdh][mgmt]...

  • Page 531: Show Ip Dvmrp

    Super Micro Intelligent Switch Command Line Interface User Guide 21.5 show ip dvmrp This command displays the DVMRP details. show ip dvmrp { routes [ vlan <vlan-id(1-4069)> ] | mroutes | nexthop | neighbor | info | prune } Syntax Description...
  • Page 532 Super Micro Intelligent Switch Command Line Interface User Guide SMIS# show ip dvmrp nexthop Dvmrp NextHop Information --------------------------- SrcAddress/Mask : 2.0.0.0/255.0.0.0 NextHopIndex : 160 (vlan1), IfType : Branch, DF: True Dependent Nbrs :10.0.0.1 SMIS# show ip dvmrp neighbor Neighbour Information...

  • Page 533: Pim

    Super Micro Intelligent Switch Command Line Interface User Guide 22 PIM PIM (Protocol Independent Multicast) is a multicast routing architecture that allows the addition of IP multicast routing on existing IP networks. Multicast IP Routing protocols are used to distribute data to multiple recipients.
  • Page 534 Super Micro Intelligent Switch Command Line Interface User Guide ip pim message-interval ip pim bsr-candidate ip pim componentId ip pim hello-holdtime ip pim dr-priority ip pim override-interval ip pim lan-delay set ip pim lan-prune-delay no ip pim interface debug ip pim...

  • Page 535: Set Ip Pim

    Super Micro Intelligent Switch Command Line Interface User Guide 22.1 set ip pim This command enables or disables PIM globally. set ip pim { enable | disable } Syntax Description enable - Enables PIM disable - Disables PIM Mode Global Configuration Mode...

  • Page 536: Set Ip Pim Threshold

    Super Micro Intelligent Switch Command Line Interface User Guide 22.2 set ip pim threshold This command specifies the SPT group or source threshold when exceeded, switching to shortest path tree is initiated. To switch to SPT, the threshold MUST be configured.

  • Page 537: Set Ip Pim Spt-Switchperiod

    Super Micro Intelligent Switch Command Line Interface User Guide 22.3 set ip pim spt-switchperiod This command specifies the period (in seconds) over which the data rate is to be monitored for switching to shortest path tree. set ip pim spt-switchperiod <0-2147483647(in secs)>...

  • Page 538: Set Ip Pim Rp-Threshold

    Super Micro Intelligent Switch Command Line Interface User Guide 22.4 set ip pim rp-threshold This command specifies the threshold at which the RP (Rendezvous Point) initiates switching to source specific shortest path tree. set ip pim rp-threshold <0-2147483647(number of reg packets)>...

  • Page 539: Set Ip Pim Rp-Switchperiod

    Super Micro Intelligent Switch Command Line Interface User Guide 22.5 set ip pim rp-switchperiod This command specifies the period (in seconds) over which RP monitors register packets for switching to the source specific shortest path tree. set ip pim rp-switchperiod <0-2147483647(in secs)>...

  • Page 540: Set Ip Pim Regstop-Ratelimit-Period

    Super Micro Intelligent Switch Command Line Interface User Guide 22.6 set ip pim regstop-ratelimit-period This command specifies the period over which RP monitors the number of register packets after sending the register stop message. set ip pim regstop-ratelimit-period <0-2147483647(in secs)>...

  • Page 541: Set Ip Pim Pmbr

    Super Micro Intelligent Switch Command Line Interface User Guide 22.7 set ip pim pmbr This command enables or disables the PMBR (PIM Multicast Border Router) Status. set ip pim pmbr { enable | disable } Syntax Description enable - Enables the PMBR Status...

  • Page 542: Ip Pim Component

    Super Micro Intelligent Switch Command Line Interface User Guide 22.8 ip pim component This command configures the PIM component in the router and the no form of the command destroys the PIM component. ip pim component <ComponentId (1-255)> no ip pim component <ComponentId (2-255)>...

  • Page 543: Set Ip Pim Static-Rp

    Super Micro Intelligent Switch Command Line Interface User Guide 22.9 set ip pim static-rp This command enables or disables the Static RP configuration Status. This command specifies whether to use the configured static- RP. set ip pim static-rp { enable | disable }...

  • Page 544: Set Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 22.10 set mode This command sets the component mode to sparse or dense. set mode {sparse | dense} Syntax Description sparse - Sparse mode dense - Dense mode Mode PIM Component Mode...

  • Page 545: Rp-Candidate Rp-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 22.11 rp-candidate rp-address This command sets the address of the interface, which will be advertised as a Candidate-RP and the no form of the command disables the address of the interface, which will be advertised as a Candidate-RP.

  • Page 546: Rp-Candidate Holdtime

    Super Micro Intelligent Switch Command Line Interface User Guide 22.12 rp-candidate holdtime This command sets the holdtime of the component when it is a candidate RP in the local domain and the no form of the command sets the default holdtime (0) of the component.

  • Page 547: Rp-Static Rp-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 22.13 rp-static rp-address This command sets the address of the interface, which will be advertised as a Static-RP and the no form of the command disables the address of the interface, which will be advertised as a Static-RP.

  • Page 548: Ip Pim Query-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 22.14 ip pim query-interval This command sets the frequency at which PIM hello messages are transmitted on this interface and the no form of the command sets the default hello timer interval for this interface.

  • Page 549: Ip Pim Message-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 22.15 ip pim message-interval This command sets the frequency at which PIM Join/Prune messages are transmitted on this PIM interface and the no form of the command sets the default value for PIM Join/Prune message.

  • Page 550: Ip Pim Bsr-Candidate

    Super Micro Intelligent Switch Command Line Interface User Guide 22.16 ip pim bsr-candidate This command sets the preference value for the local interface as a candidate bootstrap router and the no form of the command sets the default preference value for the local interface as a candidate bootstrap router.

  • Page 551: Ip Pim Componentid

    Super Micro Intelligent Switch Command Line Interface User Guide 22.17 ip pim componentId This command adds the interface to the component. ip pim componentId <value(1-255)> Mode Interface Configuration Mode Defaults Example iss (config-if)# ip pim componentId 1 This command adds the current VLAN into the specified PIM component.

  • Page 552: Ip Pim Hello-Holdtime

    Super Micro Intelligent Switch Command Line Interface User Guide 22.18 ip pim hello-holdtime This command sets the holdtime for the hello message for that interface. The no form of the command sets the default holdtime (105) for the hello message for that interface.

  • Page 553: Ip Pim Dr-Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 22.19 ip pim dr-priority This command sets the designated router priority value configured for the router interface and the no form of the command sets the default designated router priority value (0) for the router interface.

  • Page 554: Ip Pim Override-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 22.20 ip pim override-interval This command sets the override interval configured for router interface and the no form of the command sets the default override interval (0) for router interface. ip pim override-interval <interval(0-65535)>...

  • Page 555: Ip Pim Lan-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 22.21 ip pim lan-delay This command sets the LanDelay configured for the router interface and the no form of the command sets the default LanDelay (0) for the router per interface.

  • Page 556: Set Ip Pim Lan-Prune-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 22.22 set ip pim lan-prune-delay This command sets the LanPruneDelay bit configured for the router interface to advertise the Lan delay. set ip pim lan-prune-delay { enable | disable } Syntax Description...

  • Page 557: No Ip Pim Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 22.23 no ip pim interface This command deletes an interface at PIM level. no ip pim interface Mode Interface Configuration Mode Example iss (config-if)# no ip pim interface This command is used to destroy the interface at PIM.

  • Page 558: Debug Ip Pim

    Super Micro Intelligent Switch Command Line Interface User Guide 22.24 debug ip pim This command enables PIM trace and the no form of the command disables PIM trace. debug ip pim {[nbr][grp][jp][ast][bsr][io][pmbr][mrt][mdh][mgmt] | [all]} no debug ip pim {[nbr][grp][jp][ast][bsr][io][pmbr][mrt][mdh][mgmt] |...

  • Page 559: Show Ip Pim Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 22.25 show ip pim interface This command displays the routers PIM interfaces. show ip pim interface [{ Vlan <vlan-id> | <iftype> <ifnum> | detail }] Syntax Description Vlan - VLAN ID...
  • Page 560 Super Micro Intelligent Switch Command Line Interface User Guide Sparse PIM DR: 10.0.0.1 PIM DR Priority: 5 PIM Neighbour Count: 0 PIM Hello/Query Interval: 45 PIM Message Interval: 67 PIM Override Interval: 56 PIM Lan Delay: 66 PIM Lan-Prune-Delay: Disabled...

  • Page 561: Show Ip Pim Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 22.26 show ip pim neighbor This command displays the router's PIM neighbors’ information. show ip pim neighbor [ Vlan <vlan-id> | <iftype> <ifnum>] Syntax Description Vlan - VLAN ID iftype - Interface type, can either be a gi, ex or qx ethernet interfaces...
  • Page 562 Super Micro Intelligent Switch Command Line Interface User Guide Release : 1.1f 562 / 985...

  • Page 563: Show Ip Pim Rp-Candidate

    Super Micro Intelligent Switch Command Line Interface User Guide 22.27 show ip pim rp-candidate This command displays the candidate RP information. show ip pim rp-candidate [ComponentId <1-255>] Syntax Description ComponentId - Component ID Mode Privileged EXEC Mode Example SMIS# show ip pim rp-candidate 2 CompId GroupAddress Group Mask RPAddress/Priority 2 224.1.0.0 255.255.0.0 20.0.0.1/192...

  • Page 564: Show Ip Pim Rp-Set

    Super Micro Intelligent Switch Command Line Interface User Guide 22.28 show ip pim rp-set This command displays the RP-set information. show ip pim rp-set [rp-address] Syntax Description rp-address - Indicates the IP address of the Rendezvous Point (RP) for the listed PIM Sparse group.

  • Page 565: Show Ip Pim Bsr

    Super Micro Intelligent Switch Command Line Interface User Guide 22.29 show ip pim bsr This command displays the BSR information. show ip pim bsr [Component-Id (1-255)] Syntax Description Component-Id - Component ID Mode Privileged EXEC Mode Example SMIS# show ip pim bsr 1...

  • Page 566: Show Ip Pim Rp-Static

    Super Micro Intelligent Switch Command Line Interface User Guide 22.30 show ip pim rp-static This command displays the static RP information. show ip pim rp-static [ComponentId <1-255>] Syntax Description ComponentId - Component ID Mode Privileged EXEC Mode Example SMIS# show ip pim rp-static 2...

  • Page 567: Show Ip Pim Component

    Super Micro Intelligent Switch Command Line Interface User Guide 22.31 show ip pim component This command displays the component information. show ip pim component [ComponentId <1-255>] Syntax Description ComponentId - Component ID Mode Privileged EXEC Mode Example SMIS# show ip pim component 1...

  • Page 568: Show Ip Pim Thresholds

    Super Micro Intelligent Switch Command Line Interface User Guide 22.32 show ip pim thresholds This command displays threshold configured for SPT, RP thresholds, and rate limit values for both SM (Sparse mode show ip pim thresholds Mode Privileged EXEC Mode...

  • Page 569: Show Ip Pim Mroute

    Super Micro Intelligent Switch Command Line Interface User Guide 22.33 show ip pim mroute This command displays the PIM multicast information. show ip pim mroute [ {compid(1-255) | group-address | source-address } summary] Syntax Description compid - Component ID group-address - Indicates the PIM multicast group address using the listed RP...
  • Page 570 Super Micro Intelligent Switch Command Line Interface User Guide --------------------------- Route Flags S: SPT Bit W: Wild Card Bit R: RPT Bit Timers : Uptime/Expires Interface State : Interface, State/Mode PIM Multicast Routing Table For Component 1 (*, 224,1,0.0) , 00:04:35/--- , RP : 12.0.0.1...

  • Page 571: Pimv6

    Super Micro Intelligent Switch Command Line Interface User Guide 23 PIMv6 PIMv6 is a portable software implementation of the PIM (Sparse Mode and Dense Mode) specification, for IPv6 networks. PIMv6 provides support for inter-domain routing between domains using PIMv6-SM or PIMv6-DM. It also avoids the performance problems of earlier multicast routing protocols.
  • Page 572 Super Micro Intelligent Switch Command Line Interface User Guide show ipv6 pim interface show ipv6 pim neighbor show ipv6 pim rp-candidate show ipv6 pim rp-set show ipv6 pim bsr show ipv6 pim rp-static show ipv6 pim component show ipv6 pim thresholds show ipv6 pim mroute Release : 1.1f...

  • Page 573: Set Ipv6 Pim

    Super Micro Intelligent Switch Command Line Interface User Guide 23.1 set ipv6 pim This command enables or disables PIMv6 globally. set ipv6 pim { enable | disable } Syntax Description enable - Enables PIMv6 disable - Disables PIMv6 Mode Global Configuration Mode...

  • Page 574: Set Ip Pim Threshold

    Super Micro Intelligent Switch Command Line Interface User Guide 23.2 set ip pim threshold This command configures the (Shortest Path Tree) SPT group or source threshold, when exceeded, switching to shortest path tree is initiated. To switch to SPT, the threshold MUST be configured.

  • Page 575: Set Ip Pim Spt-Switchperiod

    Super Micro Intelligent Switch Command Line Interface User Guide 23.3 set ip pim spt-switchperiod This command configures the period (in seconds) over which the data rate is to be monitored for switching to shortest path tree. set ip pim spt-switchperiod <0-2147483647(in secs)>...

  • Page 576: Set Ip Pim Rp-Threshold

    Super Micro Intelligent Switch Command Line Interface User Guide 23.4 set ip pim rp-threshold This command sets the threshold at which RP (Rendezvous Point) initiates switching to source specific shortest path tree. set ip pim rp-threshold <0-2147483647(number of reg packets)>...

  • Page 577: Set Ip Pim Rp-Switchperiod

    Super Micro Intelligent Switch Command Line Interface User Guide 23.5 set ip pim rp-switchperiod This command sets the period (in seconds) over which RP monitors register packets for switching to the source specific shortest path tree. set ip pim rp-switchperiod <0-2147483647(in secs)>...

  • Page 578: Set Ip Pim Regstop-Ratelimit-Period

    Super Micro Intelligent Switch Command Line Interface User Guide 23.6 set ip pim regstop-ratelimit-period This command sets the period over which RP monitors the number of register packets after sending the register stop message. set ip pim regstop-ratelimit-period <0-2147483647(in secs)>...

  • Page 579: Set Ip Pim Pmbr

    Super Micro Intelligent Switch Command Line Interface User Guide 23.7 set ip pim pmbr This command enables or disables the PMBR (PIM Multicast Border Router) Status. set ip pim pmbr { enable | disable } Syntax Description enable - Enables the PMBR Status...

  • Page 580: Set Ip Pim Static-Rp

    Super Micro Intelligent Switch Command Line Interface User Guide 23.8 set ip pim static-rp This command enables or disables the Static RP configuration Status. This command specifies whether to use the configured static- RP. set ip pim static-rp { enable | disable }...

  • Page 581: Ip Pim Component

    Super Micro Intelligent Switch Command Line Interface User Guide 23.9 ip pim component This command configures the PIMv6 component in the router and the no form of the command destroys the PIMv6 component. ip pim component <ComponentId (1-255)> no ip pim component <ComponentId (2-255)>...

  • Page 582: Ipv6 Pim Rp-Candidate Rp-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 23.10 ipv6 pim rp-candidate rp-address This command sets the address of the interface, which will be advertised as a Candidate-RP. The no form of the command disables the address of the interface, which will be advertised as a Candidate-RP.

  • Page 583: Ipv6 Pim Rp-Static Rp-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 23.11 ipv6 pim rp-static rp-address This command sets the address of the IPv6 interface, which will be advertised as a Static-RP. The no form of the command disables the address of the IPv6 interface, which will be advertised as a Static-RP.

  • Page 584: Ipv6 Pim Query-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 23.12 ipv6 pim query-interval This command sets the frequency at which PIMv6 hello messages are transmitted on the interface. The no form of the command sets the default hello timer interval for the interface.

  • Page 585: Ipv6 Pim Message-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 23.13 ipv6 pim message-interval This command sets the frequency at which the PIMv6 Join/Prune messages are transmitted on the PIMv6 interface. The no form of the command sets the default value for the PIMv6 Join/Prune messages.

  • Page 586: Ipv6 Pim Bsr-Candidate

    Super Micro Intelligent Switch Command Line Interface User Guide 23.14 ipv6 pim bsr-candidate This command sets the preference value for the local PIMv6 interface as a candidate bootstrap router. The no form of the command sets the default preference value for the local PIMv6 interface as a candidate bootstrap router.

  • Page 587: Ipv6 Pim Componentid

    Super Micro Intelligent Switch Command Line Interface User Guide 23.15 ipv6 pim componentId This command adds the interface to the component. ipv6 pim componentId <value(1-255)> Mode Interface Configuration Mode Defaults Example iss (config-if)# ipv6 pim componentId 1 This command adds the current VLAN into the specified PIMv6 component.

  • Page 588: Ipv6 Pim Hello-Holdtime

    Super Micro Intelligent Switch Command Line Interface User Guide 23.16 ipv6 pim hello-holdtime This command sets the holdtime for the hello message for the PIMv6 interface. The no form of the command sets the default holdtime for the hello message for the interface.

  • Page 589: Ipv6 Pim Dr-Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 23.17 ipv6 pim dr-priority This command sets the designated router priority value configured for the PIMv6 router interface. The no form of the command sets the default designated router priority value for the PIMv6 router interface.

  • Page 590: Ipv6 Pim Override-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 23.18 ipv6 pim override-interval This command sets the override interval configured for the PIMv6 router interface. The no form of the command sets the default override interval for the PIMv6 router interface.

  • Page 591: Ipv6 Pim Lan-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 23.19 ipv6 pim lan-delay This command sets the LanDelay configured for the PIMv6 router interface. The no form of the command sets the default LanDelay for the PIMv6 router per interface.

  • Page 592: Set Ipv6 Pim Lan-Prune-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 23.20 set ipv6 pim lan-prune-delay This command sets the LanPruneDelay bit configured for the PIMv6 router interface to advertise the Lan delay. The command specifies whether to use LAN prune delay or not.

  • Page 593: No Ipv6 Pim Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 23.21 no ipv6 pim interface This command deletes the IPv6 PIM Interface, that is, this command is used to destroy the interface at PIMv6. no ipv6 pim interface Mode Interface Configuration Mode...

  • Page 594: Debug Ipv6 Pim

    Super Micro Intelligent Switch Command Line Interface User Guide 23.22 debug ipv6 pim This command enables PIMv6 trace and the no form of the command disables PIMv6 trace. debug ipv6 pim {[nbr][grp][jp][ast][bsr][io][pmbr][mrt][mdh][mgmt] | [all]} no debug ipv6 pim {[nbr][grp][jp][ast][bsr][io][pmbr][mrt][mdh][mgmt] |...

  • Page 595: Show Ipv6 Pim Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 23.23 show ipv6 pim interface This command displays the PIMv6 interfaces of the router. It shows the list of Interface addresses, the mode of the interface, Designated Router on that interface, Hello Interval, Join/Prune Interval of the interface.
  • Page 596 Super Micro Intelligent Switch Command Line Interface User Guide PIM : Enabled PIMv6 : Enabled PIM version : 2, mode Sparse PIM DR : fe80::2:a00:1 PIM DR Priority : 1 PIM Neighbour Count : 0 PIM Hello/Query Interval : 150...

  • Page 597: Show Ipv6 Pim Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 23.24 show ipv6 pim neighbor This command displays the PIMv6 neighbor(s) information of the router. It displays the Neighbor Address, the interface used to reach the PIMv6 Neighbor, the Up time (the time since this neighbor became the neighbor of the local router), Expiry Time (the minimum time remaining before this PIMv6 neighbor will be aged out), Lan delay and Override interval.
  • Page 598 Super Micro Intelligent Switch Command Line Interface User Guide ipv6 pim query-interval – Sets the frequency at which PIMv6 hello messages are transmitted on the interface ipv6 pim message-interval – Sets the frequency at which PIMv6 Join/Prune messages are transmitted on the PIMv6 interface ipv6 pim bsr-candidate –...

  • Page 599: Show Ipv6 Pim Rp-Candidate

    Super Micro Intelligent Switch Command Line Interface User Guide 23.25 show ipv6 pim rp-candidate This command displays the PIMv6 RP-candidate information. It displays the Group addresses, the Group Mask and the RP address that indicates the IP address of the Rendezvous Point (RP) for the listed PIM Sparse group.

  • Page 600: Show Ipv6 Pim Rp-Set

    Super Micro Intelligent Switch Command Line Interface User Guide 23.26 show ipv6 pim rp-set This command displays the PIMv6 RP-set information. It displays details of the Group Prefix, RP address, Hold time and Expiry Time. show ipv6 pim rp-set [rp-address]...

  • Page 601: Show Ipv6 Pim Bsr

    Super Micro Intelligent Switch Command Line Interface User Guide 23.27 show ipv6 pim bsr This command displays the PIMv6 BSR information. show ipv6 pim bsr [Component-Id (1-255)] Syntax Description Component-Id - Component ID Mode Privileged EXEC Mode Example SMIS# show ipv6 pim bsr 1...

  • Page 602: Show Ipv6 Pim Rp-Static

    Super Micro Intelligent Switch Command Line Interface User Guide 23.28 show ipv6 pim rp-static This command displays the static RP information. show ipv6 pim rp-static [ComponentId <1-255>] Syntax Description ComponentId - Component ID Mode Privileged EXEC Mode Example SMIS# show ipv6 pim rp-static...

  • Page 603: Show Ipv6 Pim Component

    Super Micro Intelligent Switch Command Line Interface User Guide 23.29 show ipv6 pim component This command displays the component information. show ipv6 pim component [ComponentId <1-255>] Syntax Description ComponentId - Component ID Mode Privileged EXEC Mode Example SMIS# show ipv6 pim component 1...

  • Page 604: Show Ipv6 Pim Thresholds

    Super Micro Intelligent Switch Command Line Interface User Guide 23.30 show ipv6 pim thresholds This command displays threshold configured for SPT, RP thresholds, and rate limit values for both SM and DM. show ipv6 pim thresholds Mode Privileged EXEC Mode...

  • Page 605: Show Ipv6 Pim Mroute

    Super Micro Intelligent Switch Command Line Interface User Guide 23.31 show ipv6 pim mroute This command displays the IPv6 PIM mroute information. show ipv6 pim mroute [ {compid(1-255) | group <group-address> | source <source-address> } summary ] Syntax Description compid - Component ID...
  • Page 606 Super Micro Intelligent Switch Command Line Interface User Guide PIM Multicast Routing Table For Component 1 (*, ff02::e001:0) ,00:02:49/---3401:510a::3401:51a) ,Route Flags : WR SMIS# show ipv6 pim mroute source ca8d:5102::ca8d:5102 summary IP Multicast Routing Table -------------------------- Route Flags S: SPT Bit W: Wild Card Bit R: RPT Bit...

  • Page 607: Vrrp

    Super Micro Intelligent Switch Command Line Interface User Guide 24 VRRP VRRP (Virtual Router Redundancy Protocol) is an election protocol that dynamically assigns responsibility for one or more virtual router(s) to the VRRP routers(s) on a LAN, allowing several routers on a multi-access link to utilize the same virtual IP address. A VRRP router is configured to run the VRRP protocol in conjunction with one or more other routers attached to a LAN.

  • Page 608: Router Vrrp

    Super Micro Intelligent Switch Command Line Interface User Guide 24.1 router vrrp This command enables VRRP in the router and is used to enter the VRRP Configuration Mode The no form of the command disables VRRP in the router. router vrrp...

  • Page 609: Interface Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 24.2 interface vlan This command selects an interface to configure. The no form of the command deletes the virtual router entries on the given Interface. interface [{ vlan <integer (1-4069)> | <iftype> <ifnum> }] no interface [{ vlan <integer (1-4069)>...

  • Page 610: Vrrp - Ip Address

    Super Micro Intelligent Switch Command Line Interface User Guide 24.3 vrrp - ip address This command sets the Associated IP addresses for the virtual router. The no form of the command deletes the Associated IP addresses for the virtual router.

  • Page 611: Vrrp - Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 24.4 vrrp - priority This command sets the priority for the virtual router. The no form of the command sets the priority for the virtual router to default value. vrrp <vrid(1-255)> priority <priority(1-254)>...

  • Page 612: Vrrp - Preempt

    Super Micro Intelligent Switch Command Line Interface User Guide 24.5 vrrp - preempt This command enables the pre-emption of state change from either Backup to Master or vice versa based on the election process. The no form of the command disables the preempt mode vrrp <vrid(1-255)>...

  • Page 613: Vrrp - Text-Authentication

    Super Micro Intelligent Switch Command Line Interface User Guide 24.6 vrrp - text-authentication This command sets the authentication type for the virtual router to simple password. The no form of the command sets the authentication type for the virtual router to none.

  • Page 614: Vrrp - Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 24.7 vrrp - interval This command sets the advertisement timer for a virtual router. The no form of the command sets the advertisement timer for a virtual router to default value.

  • Page 615: Show Vrrp

    Super Micro Intelligent Switch Command Line Interface User Guide 24.8 show vrrp This command displays the VRRP status information. show vrrp [interface [{ vlan <VlanId(1-4069)> | <interface-type> <interface-id> }] <VrId(1-255)>] [{brief|detail |statistics}] Syntax Description VrId – Any valid VRID number between 1 to 255...
  • Page 616 Super Micro Intelligent Switch Command Line Interface User Guide Master router is 12.0.0.1 Associated IpAddresses : ---------------------- 12.0.0.1 Advertise time is 1 secs Current priority is 255 Configured priority is 255, may preempt Related Commands router vrrp – Enables VRRP in the router interface –...

  • Page 617: Show Vrrp Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 24.9 show vrrp interface This command displays the VRRP status information for the given interface. show vrrp interface [{ vlan <VlanId(1-4069)> | <interface-type> <interface-id> }] [{brief|detail |statistics}] Syntax Description interface vlan - VRRP information on the given VLAN ID andVRID...
  • Page 618 Super Micro Intelligent Switch Command Line Interface User Guide Associated IpAddresses : ---------------------- 12.0.0.1 Advertise time is 1 secs Current priority is 255 Configured priority is 255, may preempt SMIS# show vrrp interface vlan 2 brief P indicates configured to preempt...
  • Page 619 Super Micro Intelligent Switch Command Line Interface User Guide Zero Priority Packets Received : 0 Zero Priority Packets Sent : 0 Invalid Type Packets Received : 0 Address List Errors : 0 Invalid Authentication Type : 0 Authentication Type Mismatch : 0...

  • Page 620: Debug Vrrp

    Super Micro Intelligent Switch Command Line Interface User Guide 24.10 debug vrrp This command enables the display of link aggregation debug messages. The no form of this command disables the display of link aggregation debug messages. debug vrrp {all | all-pkt-dump | state-machine | resource | ip-pkt-dump...

  • Page 621: Rip

    Super Micro Intelligent Switch Command Line Interface User Guide 25 RIP RIP (Routing Information Protocol) is a widely-used protocol for managing router information within a self-contained network such as a corporate local area network or an interconnected group of such LANs. RIP is classified by the Internet Engineering Task Force (IETF) as one of several internal gateway protocols (Interior Gateway Protocol).
  • Page 622 Super Micro Intelligent Switch Command Line Interface User Guide ip rip summary-address ip rip default route install ip rip send version ip rip receive version ip rip authentication mode timers basic ip split-horizon debug ip rip show ip rip Release : 1.1f...

  • Page 623: Router Rip

    Super Micro Intelligent Switch Command Line Interface User Guide 25.1 router rip This command enters the router configuration mode and the no form of the command disables RIP on all the interfaces. router rip no router rip Mode Global Configuration Mode...

  • Page 624: Ip Rip Security

    Super Micro Intelligent Switch Command Line Interface User Guide 25.2 ip rip security This command accepts/ignores RIP1 packets when authentication is in use and the no form of the command sets the security level to its default value. ip rip security { minimum | maximum }...

  • Page 625: Ip Rip Retransmission

    Super Micro Intelligent Switch Command Line Interface User Guide 25.3 ip rip retransmission This command configures the timeout interval and number of retries to retransmit the update request packet or an unacknowledged update response packet and the no form of the command sets the retransmission timeout interval or the number of retransmission retries to its default value.

  • Page 626: Network

    Super Micro Intelligent Switch Command Line Interface User Guide 25.4 network This command enables RIP on an IP network and the no form of the command disables RIP on an IP network. network <ip-address> no network <ip-address> Syntax Description ip-address - IP address for the entry...

  • Page 627: Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 25.5 neighbor This command adds a neighbor router and the no form of the command deletes a neighbor router. neighbor <ip address> no neighbor <ip address> Syntax Description ip-address - IP address of the neighbor router...

  • Page 628: Passive-Interface Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 25.6 passive-interface vlan This command suppresses routing updates on an interface. The no form of the command does not suppress routing updates from an interface. passive-interface vlan <vlan-id(1-4069)> no passive-interface vlan <vlan-id(1-4069)>...

  • Page 629: Output-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 25.7 output-delay This command enables interpacket delay for RIP updates and the no form of the command disables interpacket delay for RIP updates. output-delay no output-delay Mode Router Configuration Mode Example SMIS(config-router)# output-delay Configuring this command will help prevent the routing table from losing information.

  • Page 630: Redistribute

    Super Micro Intelligent Switch Command Line Interface User Guide 25.8 redistribute This command enables redistribution of corresponding protocol routes into RIP and the no form of the command disables redistribution of corresponding protocol routes into RIP. redistribute { all | bgp | connected | ospf | static }...

  • Page 631: Default-Metric

    Super Micro Intelligent Switch Command Line Interface User Guide 25.9 default-metric This command sets the metric to be used for redistributed routes and the no form of the command sets the metric used with redistributed routes to its default value.

  • Page 632: Route-Tag

    Super Micro Intelligent Switch Command Line Interface User Guide 25.10 route-tag This command sets the route tag to be used for redistributed routes and the no form of the command sets the route tag to its default value 0. route-tag <tag-value>...

  • Page 633: Auto-Summary

    Super Micro Intelligent Switch Command Line Interface User Guide 25.11 auto-summary This command enables/disables auto summarization of routes in RIP. auto-summary {enable | disable} Syntax Description enable - Enables auto summarization feature in RIP disable - Disables auto summarization feature in RIP...

  • Page 634: Ip Rip Default Route Originate

    Super Micro Intelligent Switch Command Line Interface User Guide 25.12 ip rip default route originate This command sets the metric to be used for default route propagated over the interface. The no form of the command disables origination of default route over the interface.

  • Page 635: Ip Rip Summary-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 25.13 ip rip summary-address This command sets route aggregation over an interface for all subnet routes that falls under the specified IP address and mask. The no form of the command disables route aggregation with the specified IP address and mask.

  • Page 636: Ip Rip Default Route Install

    Super Micro Intelligent Switch Command Line Interface User Guide 25.14 ip rip default route install This command installs the default route received in updates to the RIP database. The no form of the command does not install default route received in updates to the rip database.

  • Page 637: Ip Rip Send Version

    Super Micro Intelligent Switch Command Line Interface User Guide 25.15 ip rip send version This command sets the IP RIP version number for transmitting advertisements and the no form of the command sets IP RIP send version number to its default value.

  • Page 638: Ip Rip Receive Version

    Super Micro Intelligent Switch Command Line Interface User Guide 25.16 ip rip receive version This command sets IP RIP version number for receiving advertisements and the no form of the command sets IP RIP receive version number to its default value.

  • Page 639: Ip Rip Authentication Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 25.17 ip rip authentication mode This command configures authentication mode and key. The no form of the command disables authentication. ip rip authentication mode { text | md5 } key-chain <key-chain-name (16)>...

  • Page 640: Timers Basic

    Super Micro Intelligent Switch Command Line Interface User Guide 25.18 timers basic This command sets update, route age and garbage collection timers. The no form of the command sets update, route age and garbage collection timers to the default values.

  • Page 641: Ip Split-Horizon

    Super Micro Intelligent Switch Command Line Interface User Guide 25.19 ip split-horizon This command sets the split horizon status and the no form of the command disables the split horizon status. ip split-horizon [poisson] no ip split-horizon Syntax Description poisson - Split horizon with poisson reverse is enabled...

  • Page 642: Debug Ip Rip

    Super Micro Intelligent Switch Command Line Interface User Guide 25.20 debug ip rip This command sets the debug level for RIP module and the no form of the command resets the debug level for RIP module. debug ip rip { all | init | data | control | dump | os | mgmt | failure...

  • Page 643: Show Ip Rip

    Super Micro Intelligent Switch Command Line Interface User Guide 25.21 show ip rip This command displays IP RIP protocol database or statistics. show ip rip { database [ <ip-address> <ip-mask> ] | statistics } Syntax Description database - RIP protocol database for the specified IP address and IP mask of the RIP interface...
  • Page 644 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands router rip – Enables RIP on all the interfaces ip rip security – Accepts/ignores RIP1 packets when authentication is in use ip rip retransmission – Configures the timeout interval and number of retries to...

  • Page 645: Ospf

    Super Micro Intelligent Switch Command Line Interface User Guide 26 OSPF OSPF (Open Shortest Path First ) protocol, is an Interior Gateway Protocol used to distribute routing information within a single Autonomous System. Routers use link-state algorithms to send routing information to all nodes in an internetwork by calculating the shortest path to each node based on a topography of the Internet constructed by each node.
  • Page 646 Super Micro Intelligent Switch Command Line Interface User Guide area - range summary-address redistribute redist-config network set nssa asbr-default-route translator passive-interface vlan passive-interface default ip ospf demand-circuit ip ospf retransmit-interval ip ospf transmit-delay ip ospf priority ip ospf hello-interval ip ospf dead-interval...
  • Page 647 Super Micro Intelligent Switch Command Line Interface User Guide show ip ospf - database summary show ip ospf - database Release : 1.1f 647 / 985...

  • Page 648: Router Ospf

    Super Micro Intelligent Switch Command Line Interface User Guide 26.1 router ospf This command enables OSPF routing process and the no form of the command disables OSPF routing process. router ospf no router ospf Mode Global Configuration Mode Example SMIS(config)# router ospf The command no router ospf disables the OSPF Router Admin Status to terminate the OSPF process.

  • Page 649: Router-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 26.2 router-id This command sets the router-id for the OSPF process. router-id <router ip address> Syntax Description router ip address - Specifies the OSPF router ID as an IP address Mode...

  • Page 650: Area - Stability Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 26.3 area - Stability interval This command configures the Stability interval for NSSA and the no form of the command configures default Stability interval for NSSA. area <area-id> stability-interval <Interval-Value (0 - 0x7fffffff)>...

  • Page 651: Area - Translation-Role

    Super Micro Intelligent Switch Command Line Interface User Guide 26.4 area - translation-role This command configures the translation role for the NSSA and the no form of the command configures the default translation role for the NSSA. area <area-id> translation-role { always | candidate } no area <area-id>...

  • Page 652: Compatible Rfc1583

    Super Micro Intelligent Switch Command Line Interface User Guide 26.5 compatible rfc1583 This command sets OSPF compatibility list compatible with RFC 1583 and the no form of the command disables RFC 1583 compatibility. compatible rfc1583 no compatible rfc1583 Mode Router Configuration Mode...

  • Page 653: Abr-Type

    Super Micro Intelligent Switch Command Line Interface User Guide 26.6 abr-type This command sets the Alternative ABR Type. abr-type { standard | cisco | ibm } Syntax Description standard - Standard ABR type as defined in RFC 2328 cisco - CISCO ABR type as defined in RFC 3509...

  • Page 654: Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 26.7 neighbor This command specifies a neighbor router and its priority. The no form of the command removes the neighbor/Set default value for the Neighbor Priority. neighbor <neighbor-id> [priority <priority value (0-255)>] no neighbor <neighbor-id>...

  • Page 655: Area-Default Cost

    Super Micro Intelligent Switch Command Line Interface User Guide 26.8 area-default cost This command specifies a cost for the default summary route sent into a stub or NSSA and the no form of the command removes the assigned default route cost.

  • Page 656: Area- Nssa

    Super Micro Intelligent Switch Command Line Interface User Guide 26.9 area- nssa This command configures an area as a NSSA and other parameters related to that area. area <area-id> nssa [{ no-summary | default-information-originate [metric <value>] [metric-type <Type(1-3)>] [tos <tos value (0-30)>] }] Syntax Description area-id - Area associated with the OSPF address range.

  • Page 657: Area-Stub

    Super Micro Intelligent Switch Command Line Interface User Guide 26.10 area-stub This command specifies an area as a stub area and other parameters related to that area and the no form of the command removes an area or converts stub/nssa to normal area.

  • Page 658: Default-Information Originate Always

    Super Micro Intelligent Switch Command Line Interface User Guide 26.11 default-information originate always This command enables generation of a default external route into an OSPF routing domain and other parameters related to that area. The no form of the command disables generation of a default external route into an OSPF routing domain.

  • Page 659: Area - Virtual-Link

    Super Micro Intelligent Switch Command Line Interface User Guide 26.12 area - virtual-link This command defines an OSPF virtual link and its related parameters. The no form of removes an OSPF virtual link. area <area-id> virtual-link <router-id> [authentication {message-digest | null}] [hello-interval <value (1-65535)>] [retransmit-interval <value (0- 3600)>] [transmit-delay <value (0-3600)>] [dead-interval <value>]...
  • Page 660 Super Micro Intelligent Switch Command Line Interface User Guide retransmit-interval - 5 transmit-delay - 1 dead-interval - 40 Example SMIS(config-router)# area 10.0.0.1 virtual-link 20.0.0.1 authentication message-digest hello-interval 100 retransmitinterval 100 transmit-delay 50 dead-interval 200 authenticationkey asdf In OSPF, all areas must be connected to a backbone area. If the connection to the backbone is...

  • Page 661: Asbr Router

    Super Micro Intelligent Switch Command Line Interface User Guide 26.13 ASBR Router This command specifies this router as ASBR. The no form of the command disables this router as ASBR. ASBR Router no ASBR Router Mode Router Configuration Mode Example...

  • Page 662: Area - Range

    Super Micro Intelligent Switch Command Line Interface User Guide 26.14 area - range This command consolidates and summarizes routes at an area boundary. The no form of the command deletes the Summary Address. area <AreaId> range <Network> <Mask> {summary | Type7} [{advertise | notadvertise}] [tag <value>]...
  • Page 663 Super Micro Intelligent Switch Command Line Interface User Guide For example, a summary-LSA for the destination 128.185.0.0 with a mask of 0xffff0000 actually is describing a single route to the collection of destinations 128.185.0.0 - 128.185.255.255 This command is used only with Area Border Routers (ABRs). It is used to consolidate or summarize routes for an area.

  • Page 664: Summary-Address

    Super Micro Intelligent Switch Command Line Interface User Guide 26.15 summary-address This command creates aggregate addresses for OSPF and the no form of the command deletes the External Summary Address. summary-address <Network> <Mask> <AreaId> [{allowAll | denyAll | advertise | not-advertise}] [Translation {enabled | disabled}] no summary-address <Network>...
  • Page 665 Super Micro Intelligent Switch Command Line Interface User Guide SMIS(config-router)# summary-address 10.0.0.6 255.0.0.0 10.0.0.0 allowAll Translation enabled When translation {enabled | disabled} is set to enabled, the NSSA border router's futOspfAreaNssaTranslatorRole has been set to always. When this object is set to disabled, a candidate NSSA Border router does not perform translation.

  • Page 666: Redistribute

    Super Micro Intelligent Switch Command Line Interface User Guide 26.16 redistribute This command configures the protocol from which the routes have to be redistributed into OSPF and the no form of the command disables redistribution of routes from the given protocol into OSPF.

  • Page 667: Redist-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 26.17 redist-config This command configures the information to be applied to routes learnt from RTM and the no form of the command deletes the information applied to routes learnt from RTM.
  • Page 668 Super Micro Intelligent Switch Command Line Interface User Guide redistribute – Configures the protocol from which the routes have to be redistributed into OSPF Release : 1.1f 668 / 985...

  • Page 669: Network

    Super Micro Intelligent Switch Command Line Interface User Guide 26.18 network This command defines the interfaces on which OSPF runs and the area ID for those interfaces. The no form of the command disables OSPF routing for interfaces defined and to remove the area ID of that interface.

  • Page 670: Set Nssa Asbr-Default-Route Translator

    Super Micro Intelligent Switch Command Line Interface User Guide 26.19 set nssa asbr-default-route translator This command enables/disables setting of P bit in the default Type-7 LSA generated by NSSA internal ASBR. set nssa asbr-default-route translator { enable | disable }...

  • Page 671: Passive-Interface Vlan

    Super Micro Intelligent Switch Command Line Interface User Guide 26.20 passive-interface vlan This command suppresses routing updates on an interface and the no form of the command enables routing updates on an interface. passive-interface vlan <vlan-id(1-4069)>} no passive-interface vlan <vlan-id(1-4069)>...

  • Page 672: Passive-Interface Default

    Super Micro Intelligent Switch Command Line Interface User Guide 26.21 passive-interface default This command suppresses routing updates on all interfaces and the no form of the command enables routing updates on all interfaces. passive-interface default no passive-interface default Mode Router Configuration Mode...

  • Page 673: Ip Ospf Demand-Circuit

    Super Micro Intelligent Switch Command Line Interface User Guide 26.22 ip ospf demand-circuit This command configures OSPF to treat the interface as an OSPF demand circuit and the no form of the command removes the demand circuit designation from the interface.

  • Page 674: Ip Ospf Retransmit-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 26.23 ip ospf retransmit-interval This command specifies the time between link-state advertisement (LSA) retransmissions for adjacencies belonging to the interface and the no form of the command uses the default time between link-state advertisement (LSA) retransmissions for adjacencies belonging to the interface.

  • Page 675: Ip Ospf Transmit-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 26.24 ip ospf transmit-delay This command sets the estimated time it takes to transmit a link state update packet on the interface and the no form of the command sets the default estimated time it takes to transmit a link state update packet on the interface.

  • Page 676: Ip Ospf Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 26.25 ip ospf priority This command sets the router priority and the no form of the command sets default value for router priority. ip ospf priority <value (0 - 255)> no ip ospf priority...

  • Page 677: Ip Ospf Hello-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 26.26 ip ospf hello-interval This command specifies the interval between hello packets sent on the interface and the no form of the command sets default value for, interval between hello packets sent on the interface.

  • Page 678: Ip Ospf Dead-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 26.27 ip ospf dead-interval This command sets the interval at which hello packets must not be seen before neighbors declare the router down and the no form of the command sets default value for the interval at which hello packets must not be seen before neighbors declare the router down.

  • Page 679: Ip Ospf Cost

    Super Micro Intelligent Switch Command Line Interface User Guide 26.28 ip ospf cost This command explicitly specifies the cost of sending a packet on an interface and the no form of the command resets the path cost to the default value.

  • Page 680: Ip Ospf Network

    Super Micro Intelligent Switch Command Line Interface User Guide 26.29 ip ospf network This command configures the OSPF network type to a type other than the default for a given media and the no form of the command sets the OSPF network type to the default type.

  • Page 681: Ip Ospf Authentication-Key

    Super Micro Intelligent Switch Command Line Interface User Guide 26.30 ip ospf authentication-key This command specifies a password to be used by neighboring routers that are using the OSPF simple password authentication. The no form of the command removes a previously assigned OSPF password.

  • Page 682: Ip Ospf Authentication

    Super Micro Intelligent Switch Command Line Interface User Guide 26.31 ip ospf authentication This command specifies the authentication type for an interface and the no form of the command removes the authentication type for an interface and set it to NULL authentication.

  • Page 683: Ip Ospf Message-Digest-Key

    Super Micro Intelligent Switch Command Line Interface User Guide 26.32 ip ospf message-digest-key This command enables OSPF MD5 authentication and the no form of the command removes an old MD5 key. ip ospf message-digest-key <Key-ID (0-255)> md5 <md5-Key (16)> no ip ospf message-digest-key <Key-ID (0-255)>...

  • Page 684: Debug Ip Ospf

    Super Micro Intelligent Switch Command Line Interface User Guide 26.33 debug ip ospf This command sets the OSPF debug level. and the no form of the command removes an old MD5 key. debug ip ospf { pkt { hp | ddp | lrq | lsu | lsa } | module {...

  • Page 685: Show Ip Ospf Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 26.34 show ip ospf interface This command displays OSPF interface information. show ip ospf interface [ { vlan <integer(1-4069)> | <iftype> <ifnum> }] Syntax Description vlan - LSA retransmissions for adjacencies belonging to the VLAN interface...
  • Page 686 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands passive-interface vlan – Suppresses routing updates on an interface passive-interface default – Suppresses routing updates on all interfaces ip ospf demand-circuit – Configures OSPF to treat the interface as an OSPF demand circuit ip ospf hello-interval –...

  • Page 687: Show Ip Ospf Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 26.35 show ip ospf neighbor This command displays OSPF neighbor information list. show ip ospf neighbor [vlan <vlan-id (1-4069)> | <iftype> <ifnum>] [Neighbor ID] [detail] Syntax Description vlan - LSA retransmissions for adjacencies belonging to the VLAN interface...

  • Page 688: Show Ip Ospf Request-List

    Super Micro Intelligent Switch Command Line Interface User Guide 26.36 show ip ospf request-list This command displays OSPF Link state request list information. show ip ospf request-list [<neighbor-id>] [vlan <vlan-id (1-4069)> | <iftype> <ifnum>] Syntax Description neighbor-id - Neighbor router ID...

  • Page 689: Show Ip Ospf Retransmission-List

    Super Micro Intelligent Switch Command Line Interface User Guide 26.37 show ip ospf retransmission-list This command displays OSPF Link state retransmission list information. show ip ospf retransmission-list [<neighbor-id>] [vlan <vlan-id (1- 4069)> | <iftype> <ifnum> ] Syntax Description neighbor-id - Neighbor router ID...

  • Page 690: Show Ip Ospf Virtual-Links

    Super Micro Intelligent Switch Command Line Interface User Guide 26.38 show ip ospf virtual-links This command displays OSPF Virtual link information. show ip ospf virtual-links Mode Privileged EXEC Mode Example SMIS# show ip ospf virtual-links Virtual Link to router 10.0.0.1, Interface State is DOWN Transit Area 33.0.0.12...

  • Page 691: Show Ip Ospf Border-Routers

    Super Micro Intelligent Switch Command Line Interface User Guide 26.39 show ip ospf border-routers This command displays OSPF Border and Boundary Router Information. show ip ospf border-routers Mode Privileged EXEC Mode Example SMIS# show ip ospf border-routers OSPF Process Border Router Information Destination TOS Type NextHop Cost Rt.Type Area...

  • Page 692: Show Ip Ospf - Summary Address

    Super Micro Intelligent Switch Command Line Interface User Guide 26.40 show ip ospf - summary address This command displays OSPF summary-address redistribution Information. show ip ospf {area-range | summary-address} Syntax Description area-range - Area associated with the OSPF address range. It is specified as an IP address...

  • Page 693: Show Ip Ospf Info

    Super Micro Intelligent Switch Command Line Interface User Guide 26.41 show ip ospf info This command displays general information about the OSPF routing process. show ip ospf info Mode Privileged EXEC Mode Example SMIS# show ip ospf info OSPF Router ID 10.0.0.1...

  • Page 694: Show Ip Ospf Route

    Super Micro Intelligent Switch Command Line Interface User Guide 26.42 show ip ospf route This command displays routes learnt by OSPF process. show ip ospf route Mode Privileged EXEC Mode Example SMIS# show ip ospf route OSPF Process Routing Table Dest/Mask TOS NextHop/Interface Cost Rt.Type Area...

  • Page 695: Show Ip Ospf - Database Summary

    Super Micro Intelligent Switch Command Line Interface User Guide 26.43 show ip ospf - database summary This command displays OSPF LSA Database summary. show ip ospf [area-id] database [{database-summary | self-originate | advrouter <ip-address>}] Syntax Description area-id - Area associated with the OSPF address range. It is specified as an IP address.
  • Page 696 Super Micro Intelligent Switch Command Line Interface User Guide SMIS# show ip ospf database database-summary OSPF Router with ID (10.0.0.1) Area 0.0.0.0 database summary -------------------------------- LSA Type Count Maxage -------- ----- ------ Router 0 0 Network 0 0 Summary Net 0 0...
  • Page 697 Super Micro Intelligent Switch Command Line Interface User Guide Opaque Area 0 0 Opaque AS 0 0 Total 3 0 SMIS# show ip ospf database self-originate OSPF Router with ID (10.0.0.1) Router Link States (Area 33.0.0.12) --------------------------------------- Link ID ADV Router Age Seq# Checksum Link count ------- ---------- --- ---- -------- ---------- 10.0.0.1 10.0.0.1 0 0x80000004 0x9d0e 48...

  • Page 698: Show Ip Ospf - Database

    Super Micro Intelligent Switch Command Line Interface User Guide 26.44 show ip ospf - database This command displays OSPF Database summary for the LSA type. show ip ospf [area-id] database { asbr-summary | external | network | nssaexternal | opaque-area | opaque-as | opaque-link | router | summary } [linkstate- id] [{adv-router <ip-address>...
  • Page 699 Super Micro Intelligent Switch Command Line Interface User Guide Options : (No ToS Capability, DC) LS Type : Summary Links(Network) Link State ID : 10.0.0.0 Advertising Router : 10.0.0.1 LS Seq Number : 0x80000002 Checksum : 0xae77 Length : 28 SMIS# show ip ospf database network OSPF Router with ID (20.0.0.2)

  • Page 700: Bgp

    Super Micro Intelligent Switch Command Line Interface User Guide 27 BGP The BGP (Border Gateway Protocol) is an interautonomous system routing protocol. An autonomous system is a network or group of networks under a common administration and with common routing policies. BGP is a protocol for exchanging routing information between gateway hosts (each with its own router) in a network of autonomous systems and is used between Internet service providers (ISP).
  • Page 701 Super Micro Intelligent Switch Command Line Interface User Guide default-metric bgp med bgp local-preference bgp update-filter aggregate-address index bgp cluster-id bgp client-to-client reflection neighbor - route-reflector-client bgp comm-route bgp comm-peer bgp comm-filter bgp comm-policy bgp ecomm-route bgp ecomm-peer bgp ecomm-filter...
  • Page 702 Super Micro Intelligent Switch Command Line Interface User Guide show ip bgp filters show ip bgp aggregate show ip bgp med show ip bgp dampening show ip bgp local-pref show ip bgp timers show ip bgp info show ip bgp rfl info...

  • Page 703: Router Bgp

    Super Micro Intelligent Switch Command Line Interface User Guide 27.1 router bgp This command sets the AS number of the BGP Speaker. The no form of the command brings the BGP Speaker Global Admin status DOWN and resets the AS number of the BGP Speaker.
  • Page 704 Super Micro Intelligent Switch Command Line Interface User Guide (standard/extended) to peer bgp nonbgproute-advt – Controls the advertisement of Non-BGP routes no ip bgp overlap-policy – Resets the Overlap route policy to default redistribute – Configures the protocol from which the routes have to be redistributed into bgp always-compare-med –...
  • Page 705 Super Micro Intelligent Switch Command Line Interface User Guide show ip bgp community - routes– Displays routes that belong to specified BGP communities show ip bgp extcommunity - routes – Displays routes that belong to specified BGP extended-communities show ip bgp summary – Displays the status of all BGP4 connections show ip bgp filters –...

  • Page 706: Ip Bgp Dampening

    Super Micro Intelligent Switch Command Line Interface User Guide 27.2 ip bgp dampening This command Configures the Dampening Parameters and the no form of the command resets the Dampening Parameters to default. ip bgp dampening [<HalfLife-Time> [<Reuse Value> [<Suppress Value>...
  • Page 707 Super Micro Intelligent Switch Command Line Interface User Guide Example SMIS(config)# ip bgp dampening 100 -s 1 15 BGP Speaker Local AS number must be configured. BGP Administrative status must be DOWN (use Shutdown Command). Related Commands router bgp – Sets the AS number of the BGP Speaker show ip bgp dampening –...

  • Page 708: Ip Bgp Overlap-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 27.3 ip bgp overlap-policy This command configures the Overlap Route policy for the BGP Speaker. The no form of the command. Resets the Overlap route policy to default. By default, both less and more specific routes are installed.

  • Page 709: Ip Bgp Synchronization

    Super Micro Intelligent Switch Command Line Interface User Guide 27.4 ip bgp synchronization This command enables synchronization between BGP and IGP and the no form of the command disables synchronization between BGP and IGP. ip bgp synchronization no ip bgp synchronization...

  • Page 710: Clear Ip Bgp - Flap-Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 27.5 clear ip bgp - Flap-Statistics This command clears the flap-statistics counters for all paths from the neighbor at the IP address. clear ip bgp <ip-address> flap-statistics Syntax Description ip-address - IP Address of the peer...

  • Page 711: Bgp Router-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 27.6 bgp router-id This command configures the BGP Identifier of the BGP Speaker and the no form of the command resets the BGP Identifier of the BGP Speaker to default value.

  • Page 712: Bgp Default Local-Preference

    Super Micro Intelligent Switch Command Line Interface User Guide 27.7 bgp default local-preference This command configures the Default Local Preference value and the no form of the command resets the Default Local Preference to its default value. bgp default local-preference <Local Pref Value>...

  • Page 713: Neighbor - Remote-As

    Super Micro Intelligent Switch Command Line Interface User Guide 27.8 neighbor - remote-as This command creates a Peer and initiates the connection to the peer and the no form of the command disables the peer session and deletes the peer information.

  • Page 714: Neighbor - Ebgp-Multihop

    Super Micro Intelligent Switch Command Line Interface User Guide 27.9 neighbor - ebgp-multihop This command enables BGP to establish connection with external peers that are not directly connected and the no form of the command resets the peer EBGP-Multihop status to default. By default, EBGP Multihop is disabled.

  • Page 715: Neighbor - Next-Hop-Self

    Super Micro Intelligent Switch Command Line Interface User Guide 27.10 neighbor - next-hop-self This command enables BGP to send itself as the next hop for advertised routes and the no form of the command resets the peer nexthop-self status to default. By default, Self Next Hop is disabled.

  • Page 716: Neighbor - Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 27.11 neighbor - interval This command configures neighbor interval and the no form of the command resets neighbor interval. neighbor <ip-address> {advertisement-interval <seconds> | as- originationinterval <seconds> | connect-retry-interval <seconds>} no neighbor <ip-address> {advertisement-interval | as-origination-...

  • Page 717: Neighbor - Timers

    Super Micro Intelligent Switch Command Line Interface User Guide 27.12 neighbor - timers This command configures neighbor KeepAlive Time and Hold Time Intervals and the no form of the command resets neighbor KeepAlive Time and Hold Time Intervals. neighbor <ip-address> timers {keepalive <seconds> | holdtime <seconds>} no neighbor <ip-address>...

  • Page 718: Neighbor - Shutdown

    Super Micro Intelligent Switch Command Line Interface User Guide 27.13 neighbor - shutdown This command disables the Peer session and the no form of the command enables the Peer session. neighbor <ip-address> shutdown no neighbor <ip-address> shutdown Syntax Description ip-address - Peer ip address...

  • Page 719: Neighbor - Send-Community

    Super Micro Intelligent Switch Command Line Interface User Guide 27.14 neighbor - send-community This command enables advertisement of community attributes to (standard/extended) peer and the no form of the command disables advertisement of community attributes to standard/extended) peer. neighbor <ip-address> send-community {both | standard | extended} no neighbor <ip-address>...

  • Page 720: Bgp Nonbgproute-Advt

    Super Micro Intelligent Switch Command Line Interface User Guide 27.15 bgp nonbgproute-advt This command controls the advertisement of Non-BGP routes either to the external peer or both to internal and external peer and the no form of the command resets the Non BGP routes advt policy to default.

  • Page 721: Redistribute

    Super Micro Intelligent Switch Command Line Interface User Guide 27.16 redistribute This command configures the protocol from which the routes have to be redistributed into BGP and the no form of the command disables the redistribution of routes from the given protocol into BGP.

  • Page 722: Bgp Always-Compare-Med

    Super Micro Intelligent Switch Command Line Interface User Guide 27.17 bgp always-compare-med This command enables the comparison of med for routes received from different autonomous system and the no form of the command Disables the comparison of med for routes received from different autonomous system.

  • Page 723: Default-Metric

    Super Micro Intelligent Switch Command Line Interface User Guide 27.18 default-metric This command configures the Default IGP Metric value and the no form of the command resets the Default IGP Metric value. default-metric <Default Metric Value> no default-metric Mode Router Configuration Mode...

  • Page 724: Bgp Med

    Super Micro Intelligent Switch Command Line Interface User Guide 27.19 bgp med This command configures an entry in MED Table and the no form of the command deletes the entry from MED Table. bgp med <1-100> remote-as <0-65535> <ip-address> <ip_mask>...
  • Page 725 Super Micro Intelligent Switch Command Line Interface User Guide router bgp – Sets the AS number of the BGP Speaker show ip bgp med – Displays the contents of MED table Release : 1.1f 725 / 985...

  • Page 726: Bgp Local-Preference

    Super Micro Intelligent Switch Command Line Interface User Guide 27.20 bgp local-preference This command configures an entry in the Local Preference Table and the no form of the command deletes the entry from Local Preference Table. bgp local-preference <1-100> remote-as <0-65535> <ip-address> <ip_mask>...
  • Page 727 Super Micro Intelligent Switch Command Line Interface User Guide override BGP Speaker Local AS number must be configured. Related Commands router bgp – Sets the AS number of the BGP Speaker show ip bgp local-pref – Displays the contents of local preference table Release : 1.1f...

  • Page 728: Bgp Update-Filter

    Super Micro Intelligent Switch Command Line Interface User Guide 27.21 bgp update-filter This command configures an entry in Update Filter Table and the no form of the command deletes the entry from Update Filter Table. bgp update-filter <1-100> <permit|deny> remote-as <0-65535> <ip- address>...
  • Page 729 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands router bgp – Sets the AS number of the BGP Speaker show ip bgp filters – Displays the contents of filter table Release : 1.1f 729 / 985...

  • Page 730: Aggregate-Address Index

    Super Micro Intelligent Switch Command Line Interface User Guide 27.22 aggregate-address index This command configures an entry in Aggregate Table and the no form of the command deletes the entry from Aggregate Table. aggregate-address index <1-100> <ip-address> <ip_mask> [summary-only] no aggregate-address index <1-100>...

  • Page 731: Bgp Cluster-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 27.23 bgp cluster-id This command configures the Cluster ID for Route Reflector and the no form of the command resets the Cluster ID for Route Reflector. bgp cluster-id <cluster id value(ip_address)>...

  • Page 732: Bgp Client-To-Client Reflection

    Super Micro Intelligent Switch Command Line Interface User Guide 27.24 bgp client-to-client reflection This command configures the Route Reflector to support route reflection to Client Peers and the no form of the command configures the Route Reflector not to reflect routes to Client Peers.

  • Page 733: Neighbor - Route-Reflector-Client

    Super Micro Intelligent Switch Command Line Interface User Guide 27.25 neighbor - route-reflector-client This command configures the Peer as Client of the Route Reflector and the no form of the command resets the Peer as conventional BGP Peer. neighbor <ip-address> route-reflector-client no neighbor <ip-address>...

  • Page 734: Bgp Comm-Route

    Super Micro Intelligent Switch Command Line Interface User Guide 27.26 bgp comm-route This command configures an entry in additive or delete community table and the no form of the command removes the entry from additive or delete community table. bgp comm-route {additive|delete} <ip-address> <ip_mask> comm-value <4294967041-4294967043,65536-4294901759>...

  • Page 735: Bgp Comm-Peer

    Super Micro Intelligent Switch Command Line Interface User Guide 27.27 bgp comm-peer This command enables/disables advertisement of community attributes to peer and the no form of the command disables advertisement of community attributes to peer. bgp comm-peer <ip-address> <permit|deny> no bgp comm-peer <ip-address>...

  • Page 736: Bgp Comm-Filter

    Super Micro Intelligent Switch Command Line Interface User Guide 27.28 bgp comm-filter This command allows/filters the community attribute while receiving or advertising. The no form of the command removes the filter policy for the community attribute. bgp comm-filter <comm-value(4294967041-4294967043,65536-4294901759)> <permit|deny> <in|out>...

  • Page 737: Bgp Comm-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 27.29 bgp comm-policy This command configures the community attribute advertisement policy for specific destination. The no form of the command removes the community attribute advertisement policy for specific destination. bgp comm-policy <ip-address> <ip_mask> <set-add|set-none|modify>...

  • Page 738: Bgp Ecomm-Route

    Super Micro Intelligent Switch Command Line Interface User Guide 27.30 bgp ecomm-route This command configures an entry in additive or delete ext community table. The no form of the command removes the entry from additive or delete ext community table.

  • Page 739: Bgp Ecomm-Peer

    Super Micro Intelligent Switch Command Line Interface User Guide 27.31 bgp ecomm-peer This command enables/disables advertisement of ext community attributes to peer. The no form of the command disables advertisement of ext community attributes to peer. bgp ecomm-peer <ip-address> <permit|deny>...

  • Page 740: Bgp Ecomm-Filter

    Super Micro Intelligent Switch Command Line Interface User Guide 27.32 bgp ecomm-filter This command allows/filters the ext community attribute while receiving or advertising. The no form of the command removes the filter policy for the ext community attribute. bgp ecomm-filter <ecomm-value(xx:xx:..:xx)> <permit|deny> <in|out>...

  • Page 741: Bgp Ecomm-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 27.33 bgp ecomm-policy This command configures the extended community attribute advertisement policy for specific destination. The no form of the command removes the extended community attribute advertisement policy for specific destination.

  • Page 742: Bgp Confederation Identifier

    Super Micro Intelligent Switch Command Line Interface User Guide 27.34 bgp confederation identifier This command specifies the BGP confederation identifier. The no form of the command removes the BGP confederation identifier. bgp confederation identifier <AS no(1-65535)> no bgp confederation identifier...

  • Page 743: Bgp Confederation Peers

    Super Micro Intelligent Switch Command Line Interface User Guide 27.35 bgp confederation peers This command configures the ASs that belongs to the confederation. The no form of the command removes the ASs from the confederation. bgp confederation peers <AS no(1-65535)>...

  • Page 744: Bgp Bestpath Med Confed

    Super Micro Intelligent Switch Command Line Interface User Guide 27.36 bgp bestpath med confed This command enables MED comparison among paths learnt from confed peers. The no form of the command disables MED comparison among paths learnt from confed peers.

  • Page 745: Neighbor - Password

    Super Micro Intelligent Switch Command Line Interface User Guide 27.37 neighbor - password This command configures the password for TCP-MD5 authentication with peer. The no form of the command resets the TCP-MD5 password set for the peer. neighbor <ip-address> password <password-string>...

  • Page 746: Clear Ip Bgp

    Super Micro Intelligent Switch Command Line Interface User Guide 27.38 clear ip bgp This command resets the bgp connection dynamically for inbound and outbound route policy. clear ip bgp {* | <ip-address>} [soft {in|out}] Syntax Description * - All BGP peers...

  • Page 747: Shutdown Ip Bgp

    Super Micro Intelligent Switch Command Line Interface User Guide 27.39 shutdown ip bgp This command sets the BGP Speaker Global Admin status DOWN and the no form of the command sets the BGP Speaker Global Admin status UP. shutdown ip bgp...

  • Page 748: Debug Ip Bgp

    Super Micro Intelligent Switch Command Line Interface User Guide 27.40 debug ip bgp This command configures the Trace levels. The no form of the command resets the Trace levels. debug ip bgp {peer | update | fdb | keep | in | out | damp | events |...

  • Page 749: Show Bgp-Version

    Super Micro Intelligent Switch Command Line Interface User Guide 27.41 show bgp-version This command displays the BGP Version information. show bgp-version Mode Privileged EXEC Mode Example SMIS# show bgp-version show output Future BGP Version : 4 BGP Speaker Local AS number must be configured.

  • Page 750: Show Ip Bgp

    Super Micro Intelligent Switch Command Line Interface User Guide 27.42 show ip bgp This command displays the BGP related information. show ip bgp {[neighbor [<peer-addr>]] | rib} Syntax Description neighbor - IP address of the neighbor rib - BGP local RIB (Routing Information Base)
  • Page 751 Super Micro Intelligent Switch Command Line Interface User Guide neighbor - remote-as – Creates a Peer and initiates the connection to the peer clear ip bgp – Resets the BGP connection dynamically for inbound and outbound route policy Release : 1.1f...

  • Page 752: Show Ip Bgp Community - Routes

    Super Micro Intelligent Switch Command Line Interface User Guide 27.43 show ip bgp community - routes This command displays routes that belong to specified BGP communities. show ip bgp community community-number(4294967041-4294967043,65536- 4294901759) [exact] Syntax Description community-number - BGP Community attribute...
  • Page 753 Super Micro Intelligent Switch Command Line Interface User Guide router bgp – Sets the AS number of the BGP Speaker bgp comm-policy – Configures the community attribute advertisement policy for specific destination bgp comm-filter – Allows/filters the community attribute while receiving or advertising bgp comm-peer –...

  • Page 754: Show Ip Bgp Extcommunity - Routes

    Super Micro Intelligent Switch Command Line Interface User Guide 27.44 show ip bgp extcommunity - routes This command displays routes that belong to specified BGP extended-communities. show ip bgp extcommunity <value(xx:xx:xx:xx:xx:xx:xx:xx)> [exact] Syntax Description exact - Displays the routes that has the same specified extended communities...
  • Page 755 Super Micro Intelligent Switch Command Line Interface User Guide bgp ecomm-filter – Allows/filters the extended community attribute while receiving or advertising bgp ecomm-policy – Configures the extended community attribute advertisement policy for specific destination Release : 1.1f 755 / 985...

  • Page 756: Show Ip Bgp Summary

    Super Micro Intelligent Switch Command Line Interface User Guide 27.45 show ip bgp summary This command displays the status of all BGP4 connections. show ip bgp summary Mode Privileged EXEC Mode Example SMIS# show ip bgp summary BGP router identifier is 10.0.0.1, local AS number 100...

  • Page 757: Show Ip Bgp Filters

    Super Micro Intelligent Switch Command Line Interface User Guide 27.46 show ip bgp filters This command displays the contents of filter table. show ip bgp filters Mode Privileged EXEC Mode Example SMIS# show ip bgp filters Index Admin Remote-AS PrefixLen Inter-AS Direction Action...

  • Page 758: Show Ip Bgp Aggregate

    Super Micro Intelligent Switch Command Line Interface User Guide 27.47 show ip bgp aggregate This command displays the contents of aggregate table. show ip bgp aggregate Mode Privileged EXEC Mode Example SMIS# show ip bgp aggregate Index AdminStatus Prefix PrefixLen Advertise ----- ----------- ------ --------- --------- 1 up 10.0.0.0 8 all...

  • Page 759: Show Ip Bgp Med

    Super Micro Intelligent Switch Command Line Interface User Guide 27.48 show ip bgp med This command displays the contents of MED table. show ip bgp med Mode Privileged EXEC Mode Example SMIS# show ip bgp med Index Admin Remote Prefix Prefix Inter Direction Value Preference...

  • Page 760: Show Ip Bgp Dampening

    Super Micro Intelligent Switch Command Line Interface User Guide 27.49 show ip bgp dampening This command displays the contents of dampening table. show ip bgp dampening Mode Privileged EXEC Mode Example SMIS# show ip bgp dampening Half Life Time is 900...

  • Page 761: Show Ip Bgp Local-Pref

    Super Micro Intelligent Switch Command Line Interface User Guide 27.50 show ip bgp local-pref This command displays the contents of local preference table. show ip bgp local-pref Mode Privileged EXEC Mode Example SMIS# show ip bgp local-pref Index Admin Remote Prefix Prefix Inter Direction Value Preference...

  • Page 762: Show Ip Bgp Timers

    Super Micro Intelligent Switch Command Line Interface User Guide 27.51 show ip bgp timers This command displays the value of BGP timers. show ip bgp timers Mode Privileged EXEC Mode Example SMIS# show ip bgp timers Peer Timers Peer Address Holdtime KeepAliveTime ConnectRetry ASOrig RouteAdvt ---- ------- -------- ------------- ------------ ------ --------- 10.0.0.2 500 100 400 350 300...

  • Page 763: Show Ip Bgp Info

    Super Micro Intelligent Switch Command Line Interface User Guide 27.52 show ip bgp info This command displays the general info about BGP protocol. show ip bgp info Mode Privileged EXEC Mode Example SMIS# show ip bgp info Routing Protocol is "bgp 100"...
  • Page 764 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands router bgp – Sets the AS number of the BGP Speaker ip bgp overlap-policy – Configures the Overlap Route policy for the BGP Speaker ip bgp synchronization – Enables synchronization between BGP and IGP bgp default local-preference –...

  • Page 765: Show Ip Bgp Rfl Info

    Super Micro Intelligent Switch Command Line Interface User Guide 27.53 show ip bgp rfl info This command displays information about RFL feature. show ip bgp rfl info Mode Privileged EXEC Mode Example SMIS# show ip bgp rfl info Cluster id is 10.0.0.1...

  • Page 766: Show Ip Bgp Confed Info

    Super Micro Intelligent Switch Command Line Interface User Guide 27.54 show ip bgp confed info This command displays info about confederation feature. show ip bgp confed info Mode Privileged EXEC Mode Example SMIS# show ip bgp confed info Confederation Identifier is 1000...

  • Page 767: Show Ip Bgp Community

    Super Micro Intelligent Switch Command Line Interface User Guide 27.55 show ip bgp community This command displays the contents of community tables. show ip bgp community {route|peer|policy|filter} Syntax Description route - Entry in additive or delete community table peer - Advertisement of community attributes to peer...
  • Page 768 Super Micro Intelligent Switch Command Line Interface User Guide 80000 deny Outgoing Filter Table CommValue FilterStatus --------- ------------- 75000 accept 85000 deny SMIS# show ip bgp community policy Community Policy Table Prefix PrefixLen SendStatus ------ --------- ----------- 20.0.0.0 8 set-add 30.0.0.0 8 set-none...

  • Page 769: Show Ip Bgp Extcommunity

    Super Micro Intelligent Switch Command Line Interface User Guide 27.56 show ip bgp extcommunity This command displays the contents of ext-community tables. show ip bgp extcommunity {route|peer|policy|filter} Syntax Description route - Entry in additive or delete ext community table peer - Advertisement of ext community attributes to peer...
  • Page 770 Super Micro Intelligent Switch Command Line Interface User Guide 1:1:22:33:44:55:34:77 deny 1:1:22:33:44:55:66:77 accept Outgoing Filter Table EcommValue FilterStatus ---------- ------------- 1:1:22:33:44:55:99:77 accept 1:1:44:33:77:66:99:56 deny SMIS# show ip bgp extcommunity policy Community Policy Table Prefix PrefixLen SendStatus ------ --------- ----------- 20.0.0.0 8 set-add 30.0.0.0 8 set-none...

  • Page 771: Show Ip Bgp Dampened-Paths

    Super Micro Intelligent Switch Command Line Interface User Guide 27.57 show ip bgp dampened-paths This command displays the dampened routes. show ip bgp dampened-paths Mode Privileged EXEC Mode Example SMIS# show ip bgp dampened-paths Status codes: s suppressed, d damped,* valid...

  • Page 772: Show Ip Bgp Flap-Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 27.58 show ip bgp flap-statistics This command displays the statistics of flapped routes. show ip bgp flap-statistics [<ip-address><Mask>] Syntax Description ip-address - IP Address of the Route Mask - Subnet Mask...

  • Page 773: Ipv6

    Super Micro Intelligent Switch Command Line Interface User Guide 28 IPv6 IPv6 is a new version of IP which is designed to be an evolutionary step from IPv4. It can be installed as a normal software upgrade in Internet devices and is interoperable with the current IPv4.
  • Page 774 Super Micro Intelligent Switch Command Line Interface User Guide ipv6 nd other-config flag ipv6 hop-limit ipv6 nd ra-lifetime ipv6 nd dad attempts ipv6 nd reachable-time ipv6 nd retrans-time ipv6 nd ra-interval ipv6 nd prefix show ipv6 interface show ipv6 route...

  • Page 775: Ipv6 Enable

    Super Micro Intelligent Switch Command Line Interface User Guide 28.1 ipv6 enable This command enables IPv6 processing on an interface that has not been configured with an explicit IPv6 address. The no form of the command disables IPv6 processing on the interface that has not been configured with an explicit IPv6 address.

  • Page 776: Ipv6 Unicast-Routing

    Super Micro Intelligent Switch Command Line Interface User Guide 28.2 ipv6 unicast-routing This command enables unicast routing. The no form of the command disables unicast routing. ipv6 unicast-routing no ipv6 unicast-routing Mode Global Configuration Mode Defaults Enabled Example SMIS(config)# ipv6 unicast-routing Release : 1.1f...

  • Page 777: Ipv6 - Address

    Super Micro Intelligent Switch Command Line Interface User Guide 28.3 ipv6 - address This command configures IPv6 address on the interface. The no form of the command deletes the configured IPv6 address. ipv6 address <prefix> <prefix Len> [{unicast | anycast | eui64}] no ipv6 address <prefix>...

  • Page 778: Ipv6 - Link Local Address

    Super Micro Intelligent Switch Command Line Interface User Guide 28.4 ipv6 - link local address This command configures the IPv6 link-local address on the interface. The no form of the command deletes the configured IPv6 link-local address. ipv6 address <prefix> link-local no ipv6 address <prefix>...

  • Page 779: Ipv6 - Static Routes

    Super Micro Intelligent Switch Command Line Interface User Guide 28.5 ipv6 - static routes This command configures static routes. The no form of the command deletes the configured static routes. ipv6 route <prefix> <prefix len> ([<NextHop>] {[vlan <id]}) [<administrative distance>] [unicast] no ipv6 route <prefix>...

  • Page 780: Ipv6 - Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 28.6 ipv6 - neighbor This command configures a static entry in the IPv6 neighbor cache table. The no form of the command removes the static entry from the IPv6 neighbor cache table.

  • Page 781: Ipv6 Nd Suppress-Ra

    Super Micro Intelligent Switch Command Line Interface User Guide 28.7 ipv6 nd suppress-ra This command suppresses IPv6 router advertisement. The no form of the command enables IPv6 router advertisement. ipv6 nd suppress-ra no ipv6 nd suppress-ra Mode Interface Configuration Mode...

  • Page 782: Ipv6 Nd Managed-Config Flag

    Super Micro Intelligent Switch Command Line Interface User Guide 28.8 ipv6 nd managed-config flag This command sets the 'Managed config flag' which allows the host to use DHCP for address configuration. The no form of the command resets the 'Managed config flag' which in turn does not allow the host to use DHCP for address configuration.

  • Page 783: Ipv6 Nd Other-Config Flag

    Super Micro Intelligent Switch Command Line Interface User Guide 28.9 ipv6 nd other-config flag This command sets the 'other config flag' which allows the host to use DHCP for other stateful configuration. The no form of the command resets the 'other config flag' which in turn does not allow the host to use DHCP for other stateful configuration.

  • Page 784: Ipv6 Hop-Limit

    Super Micro Intelligent Switch Command Line Interface User Guide 28.10 ipv6 hop-limit This command configures the maximum hoplimit for all IPv6 packets originating from the interface. The no form of the command resets the hoplimit to default value for all IPv6 packets originating from the interface ipv6 hop-limit <HopLimit (1-255)>...

  • Page 785: Ipv6 Nd Ra-Lifetime

    Super Micro Intelligent Switch Command Line Interface User Guide 28.11 ipv6 nd ra-lifetime This command sets the IPv6 Router Advertisement lifetime. ipv6 nd ra-lifetime <LifeTime (0-9000)> Mode Interface Configuration Mode Defaults 1800 seconds Example SMIS(config-if)# ipv6 nd ra-lifetime 100 The ND RA lifetime value must be greater than or equal to the RA interval.

  • Page 786: Ipv6 Nd Dad Attempts

    Super Micro Intelligent Switch Command Line Interface User Guide 28.12 ipv6 nd dad attempts This command sets the number of duplicate address detection (dad) attempts. The no form of the command resets the duplicate address detection attempts to its default value.

  • Page 787: Ipv6 Nd Reachable-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 28.13 ipv6 nd reachable-time This command sets the advertised reachability time. The no form of the command resets the advertised reachability time to default value. ipv6 nd reachable-time <Reachable Time (1-3600)>...

  • Page 788: Ipv6 Nd Retrans-Time

    Super Micro Intelligent Switch Command Line Interface User Guide 28.14 ipv6 nd retrans-time This command sets the advertised retransmit time. The no form of the command resets the advertised retransmit time to its default value 1. ipv6 nd retrans-time <Retrans Time (1-3600)>...

  • Page 789: Ipv6 Nd Ra-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 28.15 ipv6 nd ra-interval This command sets the IPv6 Router Advertisement interval. The no form of the command resets the IPv6 Router Advertisement interval to its default value. ipv6 nd ra-interval <interval (4-1800)>...

  • Page 790: Ipv6 Nd Prefix

    Super Micro Intelligent Switch Command Line Interface User Guide 28.16 ipv6 nd prefix This command configures the prefix to be advertised in IPv6 Router Advertisement. The no form of the command removes the prefix from the IPv6 Router Advertisement. ipv6 nd prefix {<prefix addr> <prefixlen> | default} [{{<valid lifetime>...
  • Page 791 Super Micro Intelligent Switch Command Line Interface User Guide show ipv6 interface – Displays the IPv6 interfaces Release : 1.1f 791 / 985...

  • Page 792: Ping Ipv6

    Super Micro Intelligent Switch Command Line Interface User Guide 28.17 ping ipv6 This command sends IPv6 echo messages. ping ipv6 <prefix> [data <hex_str>] [repeat <count>] [size <value>] [anycast] [source {vlan <id> | <source_prefix>}] [timeout <value (1- 100)>] Syntax Description prefix - IPv6 Destination Prefix...

  • Page 793: Debug Ipv6

    Super Micro Intelligent Switch Command Line Interface User Guide 28.18 debug ipv6 This command enables IPv6 Trace. The no form of the command disables IPv6 Trace. debug ipv6 {IP6|ICMP|UDP6|ND|PING6|Packet} no debug ipv6 Syntax Description IP6 - IP6 Trace ICMP - ICMP Trace...

  • Page 794: Traceroute

    Super Micro Intelligent Switch Command Line Interface User Guide 28.19 traceroute This command traces route to the destination. traceroute [ipv6 <prefix>] Syntax Description ipv6 - IPv6 Destination Prefix Mode Privileged EXEC Mode Example SMIS# traceroute ipv6 4444::1111 Release : 1.1f...

  • Page 795: Clear Ipv6 Neighbors

    Super Micro Intelligent Switch Command Line Interface User Guide 28.20 clear ipv6 neighbors This command removes all the entries in the IPv6 neighbor table. clear ipv6 neighbors Mode Privileged EXEC Mode Example SMIS# clear ipv6 neighbors Related Command show ipv6 neighbors – Displays the IPv6 Neighbour Cache Entries Release : 1.1f...

  • Page 796: Clear Ipv6 Traffic

    Super Micro Intelligent Switch Command Line Interface User Guide 28.21 clear ipv6 traffic This command removes all the entries in the IPv6 traffic table. clear ipv6 traffic Mode Privileged EXEC Mode Example SMIS# clear ipv6 traffic Related Command show ipv6 traffic – Displays the IPv6 ICMP and UDP statistics Release : 1.1f...

  • Page 797: Clear Ipv6 Route

    Super Micro Intelligent Switch Command Line Interface User Guide 28.22 clear ipv6 route This command removes all the entries in IPv6 route table. clear ipv6 route Mode Privileged EXEC Mode Example SMIS# clear ipv6 route Related Command show ipv6 route – Displays the IPv6 Routes Release : 1.1f...

  • Page 798: Show Ipv6 Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 28.23 show ipv6 interface This command displays the IPv6 interfaces. show ipv6 interface [{vlan <id>}[prefix]] Syntax Description vlan - VLAN Identifier prefix - Prefix information Mode Privileged EXEC Mode Example SMIS# show ipv6 interface vlan 1 prefix...
  • Page 799 Super Micro Intelligent Switch Command Line Interface User Guide ipv6 nd ra-interval – Sets the IPv6 Router Advertisement interval ipv6 nd prefix – Configures the prefix to be advertised in IPv6 Router Advertisement Release : 1.1f 799 / 985...

  • Page 800: Show Ipv6 Route

    Super Micro Intelligent Switch Command Line Interface User Guide 28.24 show ipv6 route This command displays the IPv6 Routes. show ipv6 route Mode Privileged EXEC Mode Example SMIS# show ipv6 route IPv6 Routing Table - 4 entries Codes : C - Connected, S - Static...

  • Page 801: Show Ipv6 Route Summary

    Super Micro Intelligent Switch Command Line Interface User Guide 28.25 show ipv6 route summary This command displays the summary of IPv6 Routes. show ipv6 route summary Mode Privileged EXEC Mode Example SMIS# show ipv6 route summary IPv6 Routing Table Summary - 4 entries...

  • Page 802: Show Ipv6 Neighbors

    Super Micro Intelligent Switch Command Line Interface User Guide 28.26 show ipv6 neighbors This command displays the IPv6 Neighbour Cache Entries. show ipv6 neighbors Mode Privileged EXEC Mode Example SMIS# show ipv6 neighbors IPv6 Address Age Link-layer Addr State Interface...

  • Page 803: Show Ipv6 Traffic

    Super Micro Intelligent Switch Command Line Interface User Guide 28.27 show ipv6 traffic This command displays the IPv6 ICMP and UDP statistics. show ipv6 traffic Mode Privileged EXEC Mode Example SMIS# show ipv6 traffic IPv6 Statistics *************** 0 Rcvd 0 HdrErrors 0 TooBigErrors...
  • Page 804 Super Micro Intelligent Switch Command Line Interface User Guide 0 UDPDgrams Release : 1.1f 804 / 985...

  • Page 805: Rrd6

    Super Micro Intelligent Switch Command Line Interface User Guide 29 RRD6 RRD6 (Route Redistribution) allows different routing protocols to exchange IPv6 routing information. The list of CLI commands for the configuration of RRD6 is as follows: export ospfv3 redistribute-policy default redistribute-policy...

  • Page 806: Export Ospfv3

    Super Micro Intelligent Switch Command Line Interface User Guide 29.1 export ospfv3 This command enables redistribution of OSPF area/External routes to the protocol. The no form of the command disables redistribution of OSPF area/External routes to the protocol. export ospfv3 {area-route|external-route} {rip}...

  • Page 807: Redistribute-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 29.2 redistribute-policy This command adds the IPv6 permit/deny Redistribution Policy. The no form of the command removes the IPv6 permit/deny Redistribution Policy. redistribute-policy {ipv6} {permit|deny} <DestIp> <DestRange> {static|local|rip|ospf} {rip|ospf|all} no redistribute-policy {ipv6} <DestIp> <DestRange>...

  • Page 808: Default Redistribute-Policy

    Super Micro Intelligent Switch Command Line Interface User Guide 29.3 default redistribute-policy This command sets the default behavior of the RRD6 Control Table. default redistribute-policy {ipv6} {permit | deny} Syntax Description ipv6 - IPv6 Protocol permit - Sets the default rule for all prefixes to 'permit'...

  • Page 809: Throt

    Super Micro Intelligent Switch Command Line Interface User Guide 29.4 throt This command configures the maximum number of routes processed for every iteration. throt <value> Mode Global Configuration Mode Defaults 1000 Example SMIS(config)# throt 100 Release : 1.1f 809 / 985...

  • Page 810: Show Redistribute-Policy Ipv6

    Super Micro Intelligent Switch Command Line Interface User Guide 29.5 show redistribute-policy ipv6 This command displays the route redistribution filters show redistribute-policy ipv6 Mode Privileged EXEC Mode Example SMIS# show redistribute-policy ipv6 Destination Range SrcProto DestProto Flag ----------- ----- -------- ----------- ----...

  • Page 811: Show Redistribute Information Ipv6

    Super Micro Intelligent Switch Command Line Interface User Guide 29.6 show redistribute information ipv6 This command displays the RTM6 RRD status for registered protocols. show redistribute information ipv6 Mode Privileged EXEC Mode Example SMIS# show redistribute information ipv6 Current State is enabled...

  • Page 812: Ripv6

    Super Micro Intelligent Switch Command Line Interface User Guide 30 RIPv6 IPv6 RIP functions the same and offers the same benefits as RIP in IPv4. RIP enhancements for IPv6, detailed in RFC 2080, include support for IPv6 addresses and prefixes, and the use of all- RIP-routers multicast group address as the destination address for RIP update messages.

  • Page 813: Ipv6 Router Rip

    Super Micro Intelligent Switch Command Line Interface User Guide 30.1 ipv6 router rip This command enables the router configuration mode and the no form of the command disables RIP6 on all the interfaces. ipv6 router rip no ipv6 router rip...

  • Page 814: Ipv6 Split-Horizon

    Super Micro Intelligent Switch Command Line Interface User Guide 30.2 ipv6 split-horizon This command enables the split horizon updates and the no form of the command disables the split horizon updates. ipv6 split-horizon no ipv6 split-horizon Mode Interface Configuration Mode...

  • Page 815: Ipv6 Rip Enable

    Super Micro Intelligent Switch Command Line Interface User Guide 30.3 ipv6 rip enable This command enables RIP Routing and the no form of the command disables the RIP Routing. ipv6 rip enable no ipv6 rip Mode Interface Configuration Mode Example...

  • Page 816: Ipv6 Poison Reverse

    Super Micro Intelligent Switch Command Line Interface User Guide 30.4 ipv6 poison reverse This command enables poison reverse. ipv6 poison reverse Mode Interface Configuration Mode Example SMIS(config-if)# ipv6 poison reverse The value poison reverse denotes that poison reverse algorithm must be applied in the response packets that are going out.

  • Page 817: Ipv6 Rip Default-Information Originate

    Super Micro Intelligent Switch Command Line Interface User Guide 30.5 ipv6 rip default-information originate This command configures handling of default route originate and the no form of the command disables handling of default route originate. ipv6 rip default-information originate no ipv6 rip default-information...

  • Page 818: Ipv6 Rip Metric-Offset

    Super Micro Intelligent Switch Command Line Interface User Guide 30.6 ipv6 rip metric-offset This command adjusts default metric increment. ipv6 rip metric-offset <integer (1-15)> Mode Interface Configuration Mode Example SMIS(config-if)# ipv6 rip metric-offset 6 The ipv6 rip metric-offset command is used in conjunction with the redistribute router configuration command to cause the current routing protocol to use the same metric value for all redistributed routes.

  • Page 819: Redistribute

    Super Micro Intelligent Switch Command Line Interface User Guide 30.7 redistribute This command enables redistribution of IPv6 prefix from another protocol into RIP6 and the no form of the command disables redistribution of IPv6 prefix from another protocol into RIP6.

  • Page 820: Distribute Prefix

    Super Micro Intelligent Switch Command Line Interface User Guide 30.8 distribute prefix This command enables Filter network in routing updates sent or received and the no form of the command disables Filter network in routing updates sent or received. distribute prefix <ip6_addr> {in | out} no distribute prefix <ip6_addr>...

  • Page 821: Debug Ipv6 Rip

    Super Micro Intelligent Switch Command Line Interface User Guide 30.9 debug ipv6 rip This command enables IPv6 RIP routing protocol debugging and the no form of the command disables IPv6 RIP routing protocol debugging. debug ipv6 rip { all | data | control }...

  • Page 822: Show Ipv6 Rip Database

    Super Micro Intelligent Switch Command Line Interface User Guide 30.10 show ipv6 rip database This command displays IPv6 Local RIB and routing protocol information. show ipv6 rip [ database ] Syntax Description database - IPv6 RIP protocol database Mode Privileged EXEC Mode...

  • Page 823: Show Ipv6 Rip Stats

    Super Micro Intelligent Switch Command Line Interface User Guide 30.11 show ipv6 rip stats This command displays all the interface statistics. show ipv6 rip stats Mode Privileged EXEC Mode Example SMIS# show ipv6 rip stats Interface vlan1 Rcvd : Messages 0 Requests 0 Responses 0...

  • Page 824: Show Ipv6 Rip Filter

    Super Micro Intelligent Switch Command Line Interface User Guide 30.12 show ipv6 rip filter This command displays peer and Advfilter table. show ipv6 rip filter Mode Privileged EXEC Mode Example SMIS# show ipv6 rip filter Filter Address FilterType ************** **********...

  • Page 825: Ospfv3

    Super Micro Intelligent Switch Command Line Interface User Guide 31 OSPFv3 Open Shortest Path First (OSPF) is a link-state, hierarchical Interior Gateway Protocol (IGP) routing algorithm. OSPFv3 is the modified form of OSPF to support version 6 of the Internet Protocol. The fundamental mechanisms of OSPF (flooding, DR election, area support, SPF calculations, etc.)
  • Page 826 Super Micro Intelligent Switch Command Line Interface User Guide redist-config as-external lsdb-limit exit-overflow-interval demand-extensions reference-bandwidth ipv6 ospf area ipv6 ospf demand-circuit ipv6 ospf retransmit-interval ipv6 ospf transmit-delay ipv6 ospf priority ipv6 ospf hello-interval ipv6 ospf dead-interval ipv6 ospf poll-interval ipv6 ospf metric...
  • Page 827 Super Micro Intelligent Switch Command Line Interface User Guide show ipv6 ospf - LSA Database show ipv6 ospf route show ipv6 ospf areas show ipv6 ospf host show ipv6 ospf redist-config Release : 1.1f 827 / 985...

  • Page 828: Ipv6 Router Ospf

    Super Micro Intelligent Switch Command Line Interface User Guide 31.1 ipv6 router ospf This command enables the OSPFv3 routing protocol. The no form of the command disables the OSPFv3 routing protocol. ipv6 router ospf no ipv6 router ospf Mode Global Configuration Mode...

  • Page 829: Router-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 31.2 router-id This command sets a fixed router ID. router-id <IPv4-Address> Syntax Description IPv4-Address - A 32-bit integer that uniquely identifies the router in the autonomous system. Mode Router Configuration Mode Defaults IPv4-Address - 0.0.0.0...

  • Page 830: Area - Stub/Nssa

    Super Micro Intelligent Switch Command Line Interface User Guide 31.3 area - stub/nssa This command defines an area as a stub area or an NSSA (Not So Stubby Area). area <area-id> {{ stub | nssa } [no-summary]} Syntax Description area-id - A 32-bit integer...

  • Page 831: Area - Stability-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.4 area - stability-interval This command configures the stability interval (in seconds) for the NSSA. The no form of the command sets the default value of the stability interval for the NSSA.

  • Page 832: Area - Translation-Role

    Super Micro Intelligent Switch Command Line Interface User Guide 31.5 area - translation-role This command configures the translation role for NSSA. The no form of the command configures the default translation role for the NSSA. area <area-id> translation-role { always | candidate } no area <area-id>...

  • Page 833: Timers Spf

    Super Micro Intelligent Switch Command Line Interface User Guide 31.6 timers spf This command configures the delay time and the hold time between two consecutive SPF calculations. The no form of the command sets the default values for spf-delay and spf-holdtime.

  • Page 834: Abr-Type

    Super Micro Intelligent Switch Command Line Interface User Guide 31.7 abr-type This command sets the ABR (Area Border Router) type. The no form of the command sets the default ABR type. abr-type { standard | cisco | ibm } no abr-type...

  • Page 835: Area - Default-Metric Value

    Super Micro Intelligent Switch Command Line Interface User Guide 31.8 area - default-metric value This command sets the default metric value for an area of type NSS/stub only. area <area-id> default-metric <metric> area-id - A 32 bit integer Syntax Description...

  • Page 836: Area - Default-Metric Type

    Super Micro Intelligent Switch Command Line Interface User Guide 31.9 area - default-metric type This command sets the default metric-type for an area type of NSS/stub only. area <area-id> default-metric type <metricType(1-3)> Syntax Description area-id - A 32 bit integer...

  • Page 837: Area - Virtual-Link

    Super Micro Intelligent Switch Command Line Interface User Guide 31.10 area - virtual-link This command sets the Virtual Link between areas. In OSPFv3, all areas must be connected to a backbone area. If there is a break in backbone continuity, or the backbone is purposefully partitioned, a virtual link can be established.
  • Page 838 Super Micro Intelligent Switch Command Line Interface User Guide 50 retransmit-interval 6 transmit-delay 6 dead-interval 100 Virtual links cannot be configured through stub areas. hello-interval and dead-interval values must be the same for all routers on a specific network. Related Commands show ipv6 ospf interface –...

  • Page 839: Asbr Router

    Super Micro Intelligent Switch Command Line Interface User Guide 31.11 ASBR Router This command configures the router as an ASBR. The no form of the command disables the ASBR status of the router. ASBR Router no ASBR Router Mode Router Configuration Mode...

  • Page 840: Area - Range

    Super Micro Intelligent Switch Command Line Interface User Guide 31.12 area - range This command creates the Internal Aggregation Address Range. The Internal Address Range is of two types Type-3 Aggregation Type 7 Translation Aggregation area <Area-ID> range <IPv6-Prefix> <Prefix-Length> [{ advertise | notadvertise }] {summary | Type7} [tag <tag-value>]...
  • Page 841 Super Micro Intelligent Switch Command Line Interface User Guide This is not used by the OSPFv3 protocol alone. It can be used to communicate information between AS boundary routers. Related Command show ipv6 ospf - area-range / summary-prefix – Displays either the list of all area address ranges information or all external summary address configuration information Release : 1.1f...

  • Page 842: Area - External Summary Address

    Super Micro Intelligent Switch Command Line Interface User Guide 31.13 area - external summary address This command enables route aggregation/filtering while importing routes in the OSPFv3 domain. The command configures Type-5 and Type-7 Address Range specifying whether Type-5/Type-7 LSAs are generated or not for the configured range for the particular area.
  • Page 843 Super Micro Intelligent Switch Command Line Interface User Guide Example SMIS(config-router)# area 0.0.0.0 summary-prefix 3ffe:5000::481d::5 80 allowall Translation enabled The Value allowAll/denyall is not valid for areaId other than 0.0.0.0. Related Command show ipv6 ospf - area-range / summary-prefix – Displays either the list of all area address ranges information or all external summary address configuration information Release : 1.1f...

  • Page 844: Redistribute

    Super Micro Intelligent Switch Command Line Interface User Guide 31.14 redistribute This command configures the protocol from which the routes have to be redistributed into OSPFv3. The no form of the command disables the redistribution of routes from the given protocol into OSPFv3.

  • Page 845: Passive-Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 31.15 passive-interface This command sets the global default passive interface status. All the interfaces created after executing this command become passive interfaces. The no form of the command resets the global default passive interface status. All the interfaces created after executing this command become non-passive interfaces.

  • Page 846: Host - Metric/Area-Id

    Super Micro Intelligent Switch Command Line Interface User Guide 31.16 host - metric/area-id This command configures a host entry with metric and/or area-id. The no form of the command deletes a host entry. host <IPv6-Address> {metric <cost>} [area-id {<AreaID>}] no host <IPv6-Address>...

  • Page 847: No Area

    Super Micro Intelligent Switch Command Line Interface User Guide 31.17 no area This command deletes an area and does any one of the following based on the optional parameter. coverts stub/nss area to normal area deletes virtual link deletes stub cost delete area-range or summary-prefix.
  • Page 848 Super Micro Intelligent Switch Command Line Interface User Guide Release : 1.1f 848 / 985...

  • Page 849: Nssaasbrdfrttrans

    Super Micro Intelligent Switch Command Line Interface User Guide 31.18 nssaAsbrDfRtTrans This command enables setting of P bit in the default Type-7 LSA generated by an NSSA internal ASBR. The no form of the command disables setting of P bit in the default Type-7 LSA generated by an NSSA internal ASBR.

  • Page 850: Redist-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 31.19 redist-config This command configures the information to be applied to routes learnt from RTM. The no form of the command deletes the information applied to routes learnt from RTM. redist-config <IPv6-Prefix> <Prefix-Length> [metric-value <metric>] [metrictype {asExttype1 | asExttype2}] [tag <tag-value>]...

  • Page 851: As-External Lsdb-Limit

    Super Micro Intelligent Switch Command Line Interface User Guide 31.20 as-external lsdb-limit This command sets the maximum number of non-default AS-external-LSA entries that can be stored in the link-state database. If the value is -1, then there is no limit.

  • Page 852: Exit-Overflow-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.21 exit-overflow-interval This command sets the number of seconds after which a router will attempt to leave the Overflow State. exit-overflow-interval <interval> Mode Router Configuration Mode Defaults interval - 0 Example...

  • Page 853: Demand-Extensions

    Super Micro Intelligent Switch Command Line Interface User Guide 31.22 demand-extensions This command enables routing support for demand routing. The no form of the command disables routing support for demand routing. demand-extensions no demand-extensions Mode Router Configuration Mode Defaults Enabled...

  • Page 854: Reference-Bandwidth

    Super Micro Intelligent Switch Command Line Interface User Guide 31.23 reference-bandwidth This command sets the reference bandwidth in kilobits per second for calculating the default interface metrics. reference-bandwidth <ref-bw> Mode Router Configuration Mode Defaults ref-bw - 100,000 KBPS Example SMIS(config-router)# reference-bandwidth 1000000 Related Command show ipv6 ospf - General Information –...

  • Page 855: Ipv6 Ospf Area

    Super Micro Intelligent Switch Command Line Interface User Guide 31.24 ipv6 ospf area This command enables OSPFv3 for IPv6 on an interface. The no form of the command disables OSPFv3 routing protocol on the interface. ipv6 ospf area <IPv4-Address> no ipv6 ospf...

  • Page 856: Ipv6 Ospf Demand-Circuit

    Super Micro Intelligent Switch Command Line Interface User Guide 31.25 ipv6 ospf demand-circuit This command configures OSPFv3 to treat the interface as an OSPFv3 demand circuit. It indicates whether Demand OSPFv3 procedures (hello suppression to FULL neighbors and setting the DoNotAge flag on propagated LSAs) must be performed on the configured interface.

  • Page 857: Ipv6 Ospf Retransmit-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.26 ipv6 ospf retransmit-interval This command sets the time between LSA retransmissions for adjacencies belonging to interface. The no form of the command sets the default retransmit interval for an interface.

  • Page 858: Ipv6 Ospf Transmit-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 31.27 ipv6 ospf transmit-delay This command sets the estimated time taken to transmit LS update packet over a particular interface. The no form of the command sets the default transmit delay for an interface.

  • Page 859: Ipv6 Ospf Priority

    Super Micro Intelligent Switch Command Line Interface User Guide 31.28 ipv6 ospf priority This command sets the router priority, which helps to determine the Designated Router for this network. The no form of the command sets the default router priority for an interface.

  • Page 860: Ipv6 Ospf Hello-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.29 ipv6 ospf hello-interval This command specifies the time interval between the OSPFv3 hello packets on a particular interface (the length of time, in seconds, between the Hello packets that the router sends on the interface).

  • Page 861: Ipv6 Ospf Dead-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.30 ipv6 ospf dead-interval This command configures the router dead interval. It is configured in seconds and indicates the time period for which the router waits for hello packet from the neighbor before declaring this neighbor down.

  • Page 862: Ipv6 Ospf Poll-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.31 ipv6 ospf poll-interval This command configures the larger time interval, in seconds, between the Hello packets sent to an inactive non-broadcast multi-access neighbor. The no form of the command sets the default poll interval for an interface.

  • Page 863: Ipv6 Ospf Metric

    Super Micro Intelligent Switch Command Line Interface User Guide 31.32 ipv6 ospf metric This command explicitly specifies the metric value for sending a packet on an interface. The no form of the command sets the default value for the interface metric.

  • Page 864: Ipv6 Ospf Network

    Super Micro Intelligent Switch Command Line Interface User Guide 31.33 ipv6 ospf network This command sets the network type for an interface. The no form of the command sets the default value for the network type. ipv6 ospf network { broadcast | non-broadcast | point-to-multipoint |...

  • Page 865: Ipv6 Ospf Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 31.34 ipv6 ospf neighbor This command configures a neighbor on non-broadcast networks and sets the priority value for the neighbor if specified. The no form of the command deletes a configured neighbor or sets the default priority value (if the priority option is specified).

  • Page 866: Ipv6 Ospf Passive-Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 31.35 ipv6 ospf passive-interface This command configures an OSPFv3 interface to be Passive. The execution of the command results in suppressing OSPFv3 protocol packets traffic on this interface. The no form of the command configures an OSPFv3 interface to be non-passive.

  • Page 867: Ipv6 Ospf Neighbor Probing

    Super Micro Intelligent Switch Command Line Interface User Guide 31.36 ipv6 ospf neighbor probing This command enables neighbor probing on demand-circuit enabled interface. The no form of the command disables neighbor probing on demand-circuit enabled interface. ipv6 ospf neighbor probing...

  • Page 868: Ipv6 Ospf Neighbor-Probe Retransmit-Limit

    Super Micro Intelligent Switch Command Line Interface User Guide 31.37 ipv6 ospf neighbor-probe retransmit-limit This command sets the number of consecutive LSA retransmissions before the neighbor is deemed inactive. The no form of the command sets the default neighbor probe retransmission limit.

  • Page 869: Ipv6 Ospf Neighbor-Probe Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 31.38 ipv6 ospf neighbor-probe interval This command sets the number of seconds, that indicates how often neighbor will be probed. The no form of the command sets the default neighbor probe interval.

  • Page 870: Debug Ipv6 Ospf

    Super Micro Intelligent Switch Command Line Interface User Guide 31.39 debug ipv6 ospf This command sets the trace levels. The no form of the command resets the trace levels. debug ipv6 ospf [pkt ( [{high | low | hex}] [hp] [ddp] [lrq] [lsu]...
  • Page 871 Super Micro Intelligent Switch Command Line Interface User Guide ism - Interface State Machine Trace nsm - Neighbor State Machine Trace rt_calc - Routing Table Calculation Trace interface - Interface Trace config - Configuration Trace Mode Privileged EXEC Mode Defaults Debugging is disabled by default.

  • Page 872: Show Ipv6 Ospf Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 31.40 show ipv6 ospf interface This command displays the OSPFv3-related interface information. show ipv6 ospf interface [ vlan <vlan-id(1-4069)> ] Syntax Description Vlan - VLAN Identifier Mode User/Privileged EXEC Mode Example...
  • Page 873 Super Micro Intelligent Switch Command Line Interface User Guide ipv6 ospf priority – Sets the router priority, which helps to determine the Designated Router for this network ipv6 ospf hello-interval – Specifies the time interval between the OSPFv3 hello packets on a particular interface ipv6 ospf dead-interval –...

  • Page 874: Show Ipv6 Ospf Neighbor

    Super Micro Intelligent Switch Command Line Interface User Guide 31.41 show ipv6 ospf neighbor This command displays OSPFv3 neighbor information. show ipv6 ospf neighbor [ <Neighbor-RouterID> ] Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf neighbor ID Pri State Dead Address Time 11.0.0.4 1 FULL/PTOP 31 fe80::211:22ff:fe33:4434...

  • Page 875: Show Ipv6 Ospf - Request/Retrans-List

    Super Micro Intelligent Switch Command Line Interface User Guide 31.42 show ipv6 ospf - request/retrans-list This command displays the list of all link state advertisements (LSAs) in request-list or in retransmissionlist. show ipv6 ospf { request-list | retrans-list } [ <Neighbor-RouterID> ]...

  • Page 876: Show Ipv6 Ospf Virtual-Links

    Super Micro Intelligent Switch Command Line Interface User Guide 31.43 show ipv6 ospf virtual-links This command displays the parameters and the current state of OSPFv3 virtual links. show ipv6 ospf virtual-links Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf virtual-links Interface State: PointToPoint, Neighbor State: FULL Transit Area: 2.2.2.2, Virtual Neighbor: 11.0.0.7...

  • Page 877: Show Ipv6 Ospf Border-Routers

    Super Micro Intelligent Switch Command Line Interface User Guide 31.44 show ipv6 ospf border-routers This command displays the internal OSPFv3 routing table entries to an ABR/ASBR. show ipv6 ospf border-routers Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf border-routers...

  • Page 878: Show Ipv6 Ospf - Area-Range / Summary-Prefix

    Super Micro Intelligent Switch Command Line Interface User Guide 31.45 show ipv6 ospf - area-range / summary- prefix This command displays either the list of all area address ranges information or all external summary address configuration information. show ipv6 ospf { area-range | summary-prefix }...
  • Page 879 Super Micro Intelligent Switch Command Line Interface User Guide area - external summary address – Enables route aggregation/filtering while importing routes in the OSPFv3 domain no area – Deletes an area Release : 1.1f 879 / 985...

  • Page 880: Show Ipv6 Ospf - General Information

    Super Micro Intelligent Switch Command Line Interface User Guide 31.46 show ipv6 ospf - General Information This command displays general information about OSPFv3 routing process. show ipv6 ospf info Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf info Router Id: 11.0.0.1 ABR Type: Standard ABR...
  • Page 881 Super Micro Intelligent Switch Command Line Interface User Guide ASBR Router – Configures the router as an ASBR passive-interface – Sets the global default passive interface status nssaAsbrDfRtTrans – Enables setting of P bit in the default Type-7 LSA generated by an NSSA internal ASBR as-external lsdb-limit –...

  • Page 882: Show Ipv6 Ospf - Lsa Database

    Super Micro Intelligent Switch Command Line Interface User Guide 31.47 show ipv6 ospf - LSA Database This command displays the LSA information. show ipv6 ospf [area <AreaID>] database [{router|network|as- external|interprefix| inter-router|intra-prefix|link|nssa}] [{detail|HEX}] Syntax Description Area - A 32-bit integer database - Displays the number of each type of LSA for each area in the database...
  • Page 883 Super Micro Intelligent Switch Command Line Interface User Guide Link State Id: 0.0.0.1 Adv Rtr Id: 11.0.0.1 Sequence: 0x80000002 Checksum: 0x323f Length: 60 Router Priority: 1 Options: 0x33 Prefix: fe80::211:22ff:fe33:4411 #Prefixes; 1 Prefix Length (Bytes): 12 Prefix Options: 0x00 Prefix: 3ffe::100:0:0:0...

  • Page 884: Show Ipv6 Ospf Route

    Super Micro Intelligent Switch Command Line Interface User Guide 31.48 show ipv6 ospf route This command displays routes learned by the OSPFv3 process show ipv6 ospf route Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf route Dest/ NextHop/ Cost Rt.Type Area Prefix-Length IfIndex 3ffe::10:0:0:0 fe80::290:69ff: 30 interArea 0.0.0.0...

  • Page 885: Show Ipv6 Ospf Areas

    Super Micro Intelligent Switch Command Line Interface User Guide 31.49 show ipv6 ospf areas This command displays the Area Table. show ipv6 ospf areas Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf areas OSPFv3 AREA CONFIGURATION INFORMATION AreaId: 0.0.0.0 Area Type: NORMAL AREA...

  • Page 886: Show Ipv6 Ospf Host

    Super Micro Intelligent Switch Command Line Interface User Guide 31.50 show ipv6 ospf host This command displays the Host Table information. show ipv6 ospf host Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf host OSPFv3 HOST CONFIGURATION Information Address AreaId StubMetric 3ffe::80:0:1 0.0.0.0 30...

  • Page 887: Show Ipv6 Ospf Redist-Config

    Super Micro Intelligent Switch Command Line Interface User Guide 31.51 show ipv6 ospf redist-config This command displays the configuration information to be applied to the routes learnt from the RTM. show ipv6 ospf redist-config Mode User/Privileged EXEC Mode Example SMIS# show ipv6 ospf redist-config...

  • Page 888: Diffserv (Differentiated Services)

    Super Micro Intelligent Switch Command Line Interface User Guide 32 DiffServ (Differentiated Services) DiffServ (Differentiated Services) is an architecture for providing different types or levels of service for network traffic. One key characteristic of Diffserv is that flows are aggregated in the network, so that core routers only need to distinguish a comparably small number of aggregated flows, even if those flows contain thousands or millions of individual flows.
  • Page 889 Super Micro Intelligent Switch Command Line Interface User Guide show policy-map show class-map show cosq algorithm show cosq weights-bw Release : 1.1f 889 / 985...

  • Page 890: Set Qos

    Super Micro Intelligent Switch Command Line Interface User Guide 32.1 set qos This command enables differentiated services on the device. The disable option is used to disable the QoS feature on the device. set qos { enable | disable }...

  • Page 891: Class-Map

    Super Micro Intelligent Switch Command Line Interface User Guide 32.2 class-map This command creates a class map that is meant to be used for matching the packets to the class whose index is specified. This command is also used to enter the class-map configuration mode...

  • Page 892: Policy-Map

    Super Micro Intelligent Switch Command Line Interface User Guide 32.3 policy-map This command is used to enter the policy-map configuration mode In the policy-map configuration mode the user can create or modify a policy map. The no form of this command deletes an existing policy map and returns to the global configuration mode policy-map <policy-map-number(1-65535)>...

  • Page 893: Match

    Super Micro Intelligent Switch Command Line Interface User Guide 32.4 match This command specifies the fields in the incoming packets that are to be examined for the classification of the packets. The IP access group / MAC access group can be used as match criteria.

  • Page 894: Class

    Super Micro Intelligent Switch Command Line Interface User Guide 32.5 class This command defines a traffic classification for the policy to act. The class-map-number that is specified in the policy map ties the characteristics for that class to the class map and its match criteria, as configured by using the class-map global configuration command.

  • Page 895: Set Cos

    Super Micro Intelligent Switch Command Line Interface User Guide 32.6 set cos This command defines the in-profile action by setting a class of service (CoS), Differentiated Services Code Point (DSCP), or IP-precedence value in the packet. The no form of the command deletes the configured values.

  • Page 896: Police

    Super Micro Intelligent Switch Command Line Interface User Guide 32.7 police This command defines a policer for the classified traffic. This command also specifies the action to be taken if the specified rate is exceeded or if there is no match for the policy configured.

  • Page 897: Cosq Scheduling Algorithm

    Super Micro Intelligent Switch Command Line Interface User Guide 32.8 cosq scheduling algorithm This command sets the cosq scheduling algorithm. The no form of this command configures the scheduling algorithm to its default value strict. cosq scheduling algorithm { strict | rr | wrr | deficit }...

  • Page 898: Traffic Class

    Super Micro Intelligent Switch Command Line Interface User Guide 32.9 traffic class This command sets weight and bandwidth for traffic classes. The no form of this command removes the minimum and maximum bandwidth settings and resets the weight to the default value 1.

  • Page 899: Show Policy-Map

    Super Micro Intelligent Switch Command Line Interface User Guide 32.10 show policy-map This command displays the quality of service (QoS) policy maps, which defines the classification criteria for the incoming traffic. Policy maps can include polices that specify the bandwidth limitations and the action to take if the limits are exceeded.
  • Page 900 Super Micro Intelligent Switch Command Line Interface User Guide Related Commands policy-map - Used to enter the policy map configuration mode class - Defines a traffic classification for the policy to act set cos - Defines the in-profile action by setting a CoS, DSCP or IP-precedence value in the...

  • Page 901: Show Class-Map

    Super Micro Intelligent Switch Command Line Interface User Guide 32.11 show class-map This command displays quality of service (QoS) class maps, which defines the match criteria to classify traffic. show class-map [<class-map-num(1-65535)>] Syntax Description class-map-num - Displays the configured class map number...

  • Page 902: Show Cosq Algorithm

    Super Micro Intelligent Switch Command Line Interface User Guide 32.12 show cosq algorithm This command displays the CoSq algorithm used for the interface. show cosq algorithm [ interface <interface-type> <interface-id> ] Syntax Description interface-type - Interface Type interface-id - Interface ID...

  • Page 903: Show Cosq Weights-Bw

    Super Micro Intelligent Switch Command Line Interface User Guide 32.13 show cosq weights-bw This command displays the CoSq weights and the bandwidth for the interface. show cosq weights-bw [ interface <interface-type> <interface-id> ] Syntax Description interface-type - Interface Type interface-id - Interface ID...

  • Page 904: Acl (Access Control Lists)

    Super Micro Intelligent Switch Command Line Interface User Guide 33 ACL (Access Control Lists) ACLs (Access Control Lists) filter network traffic by controlling whether routed packets are forwarded or blocked at the router's interfaces. ACLs are used to block IP packets from being forwarded by a router.
  • Page 905 Super Micro Intelligent Switch Command Line Interface User Guide redirect tcp permit udp deny udp redirect udp permit icmp deny icmp redirect icmp ip access-group mac access-group permit deny redirect show access-lists Release : 1.1f 905 / 985...

  • Page 906: Ip Access-List

    Super Micro Intelligent Switch Command Line Interface User Guide 33.1 ip access-list This command creates IP ACLs and enters the IP Access-list configuration mode. Standard access lists create filters based on IP address and network mask only (L3 filters only).
  • Page 907 Super Micro Intelligent Switch Command Line Interface User Guide permit - standard mode - Specifies the packets to be forwarded depending upon the associated parameters deny - standard mode - Denies traffic if the conditions defined in the deny statement are...

  • Page 908: Mac Access-List Extended

    Super Micro Intelligent Switch Command Line Interface User Guide 33.2 mac access-list extended This command creates Layer 2 MAC ACLs, that is, this command creates a MAC access-list and returns the MAC-Access list configuration mode to the user. The no form of the command deletes the MAC access-list.

  • Page 909: Permit - Standard Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 33.3 permit - standard mode This command specifies the packets to be forwarded depending upon the associated parameters. Standard IP access lists use source addresses for matching operations. permit { any | host <src-ip-address> | < src-ip-address> <mask> } [{ any | host <dest-ip-address>...

  • Page 910: Deny - Standard Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 33.4 deny - standard mode This command denies traffic if the conditions defined in the deny statement are matched. deny{ any | host <src-ip-address> | <src-ip-address> <mask> } [ { any | host <dest-ip-address>...

  • Page 911: Redirect - Standard Mode

    Super Micro Intelligent Switch Command Line Interface User Guide 33.5 redirect - standard mode This command redirects traffic if the conditions defined in the redirect statement are matched. redirect <interface-type> <interface-id> { any | host <src-ip-address> | <src-ip-address> <mask> } [ { any | host <dest-ip-address>...

  • Page 912: Permit- Ip/Ospf/Pim/Protocol Type

    Super Micro Intelligent Switch Command Line Interface User Guide 33.6 permit- ip/ospf/pim/protocol type This command allows traffic for a particular protocol packet if the conditions defined in the permit statement is matched. permit { ip | ospf | pim | <protocol-type (1-255)>} { any | host <src- ipaddress>...
  • Page 913 Super Micro Intelligent Switch Command Line Interface User Guide Protocol type with the value 255 indicates that protocol can be anything and it will not be checked against the action to be performed. Related Commands ip access-list - Creates IP ACLs and enters the IP Access-list configuration mode...

  • Page 914: Deny - Ip/Ospf/Pim/Protocol Type

    Super Micro Intelligent Switch Command Line Interface User Guide 33.7 deny - ip/ospf/pim/protocol type This command denies traffic for a particular protocol packet if the conditions defined in the deny statement are matched. deny { ip | ospf | pim | <protocol-type (1-255)>} { any | host <src- ipaddress>...
  • Page 915 Super Micro Intelligent Switch Command Line Interface User Guide ip access-list - Creates IP ACLs and enters the IP Access-list configuration mode permit- ip/ospf/pim/protocol type - Allows traffic for a particular protocol packet if the conditions defined in the permit statement are matched...

  • Page 916: Redirect - Ip/Ospf/Pim/Protocol Type

    Super Micro Intelligent Switch Command Line Interface User Guide 33.8 redirect - ip/ospf/pim/protocol type This command redirects traffic for a particular protocol packet if the conditions defined in the redirect statement are matched. redirect <interface-type> <interface-id> { ip | ospf | pim | <protocol- type (1-255)>} { any | host <src-ip-address>...
  • Page 917 Super Micro Intelligent Switch Command Line Interface User Guide Example SMIS(config-ext-nacl)# redirect gi 0/1 ospf any host 10.0.0.1 tos Related Commands ip access-list - Creates IP ACLs and enters the IP Access-list configuration mode permit- ip/ospf/pim/protocol type - Allows traffic for a particular protocol packet if...

  • Page 918: Permit Tcp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.9 permit tcp This command specifies the TCP packets to be forwarded based on the associated parameters. permit tcp {any | host <src-ip-address> | <src-ip-address> <src-mask> }[{gt <port-number (1-65535)> | lt <port-number (1-65535)> |eq <port- number (1- 65535)>...
  • Page 919 Super Micro Intelligent Switch Command Line Interface User Guide - The priority of the filter is used to decide which filter rule is applicable when the packet matches with more than one filter rules. Higher value of ‘filter priority’ implies a higher priority.

  • Page 920: Deny Tcp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.10 deny tcp This command specifies the TCP packets to be rejected based on the associated parameters. deny tcp {any | host <src-ip-address> | <src-ip-address> <src-mask> }[{gt <port-number (1-65535)> | lt <port-number (1-65535)> |eq <port- number (1- 65535)>...
  • Page 921 Super Micro Intelligent Switch Command Line Interface User Guide Priority - The priority of the filter is used to decide which filter rule is applicable when the packet matches with more than one filter rules. Higher value of ‘filter priority’ implies a higher priority.

  • Page 922: Redirect Tcp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.11 redirect tcp This command specifies the TCP packets to be redirected based on the associated parameters. redirect <interface-type> <interface-id> tcp {any | host <src-ip- address> | <src-ip-address> <src-mask> } [{gt <port-number (0-65535)> | lt <port-number (1-65535)>...
  • Page 923 Super Micro Intelligent Switch Command Line Interface User Guide tos - Type of service. Can be max-reliability, max throughput, min-delay, normal or a range of values from 0 to 7, Differentiated Services Code Point (DSCP) values to match against incoming packets.

  • Page 924: Permit Udp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.12 permit udp This command specifies the UDP packets to be forwarded based on the associated parameters. permit udp { any | host <src-ip-address> | <src-ip-address> <src- mask>}[{gt <port-number (1-65535)> | lt <port-number (1-65535)>| eq <port-number (1- 65535)>...
  • Page 925 Super Micro Intelligent Switch Command Line Interface User Guide Example SMIS(config-ext-nacl)# permit udp any gt 65000 any dcsp 1 Related Commands ip access-list - Creates IP ACLs and enters the IP Access-list configuration mode show access-lists - Displays the access list configuration...

  • Page 926: Deny Udp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.13 deny udp This command specifies the UDP packets to be rejected based on the associated parameters. deny udp { any | host <src-ip-address> | <src-ip-address> <src- mask>}[{gt <port-number (1-65535)> | lt <port-number (1-65535)>| eq <port-number (1- 65535)>...
  • Page 927 Super Micro Intelligent Switch Command Line Interface User Guide Example SMIS(config-ext-nacl)# deny udp host 10.0.0.1 any eq 20 Related Commands ip access-list - Creates IP ACLs and enters the IP Access-list configuration mode show access-lists - Displays the access list configuration...

  • Page 928: Redirect Udp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.14 redirect udp This command specifies the UDP packets to be redirected based on the associated parameters. redirect <interface-type> <interface-id> udp { any | host <src-ip- address> | <src-ip-address> <src-mask>} [{gt <port-number (0-65535)> | lt <port-number (1-65535)>...
  • Page 929 Super Micro Intelligent Switch Command Line Interface User Guide Priority - The priority of the filter used to decide which filter rule is applicable when the packet matches with more than one filter rules. Higher value of 'filter priority' implies a higher priority.

  • Page 930: Permit Icmp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.15 permit icmp This command specifies the ICMP packets to be forwarded based on the IP address and the associated parameters. permit icmp {any |host <src-ip-address>|<src-ip-address> <mask>}{any | host <dest-ip-address> | <dest-ip-address> <mask> }[<message-type (0- 255)>] [<message-code (0-255)>] [ priority <value (1-255)>]...
  • Page 931 Super Micro Intelligent Switch Command Line Interface User Guide 11 Time exceeded 12 Parameter problem 13 Timestamp request 14 Timestamp reply 15 Information request 16 Information reply 17 Address mask request 18 Address mask reply 155 No ICMP type The ICMP code can be any of the following:...

  • Page 932: Deny Icmp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.16 deny icmp This command specifies the ICMP packets to be rejected based on the IP address and associated parameters. deny icmp {any |host <src-ip-address>|<src-ip-address> <mask>}{any | host <dest-ip-address> | <dest-ip-address> <mask> }[<message-type (0- 255)>] [<message-code (0-255)>] [ priority <value (1-255)>]...
  • Page 933 Super Micro Intelligent Switch Command Line Interface User Guide 8 Echo request 11 Time exceeded 12 Parameter problem 13 Timestamp request 14 Timestamp reply 15 Information request 16 Information reply 17 Address mask request 18 Address mask reply 155 No ICMP type...

  • Page 934: Redirect Icmp

    Super Micro Intelligent Switch Command Line Interface User Guide 33.17 redirect icmp This command specifies the ICMP packets to be redirected based on the IP address and associated parameters. redirect <interface-type> <interface-id> icmp {any |host <src-ip- address>|<src-ip-address> <mask>} {any | host <dest-ip-address> | <dest-ip-address>...
  • Page 935 Super Micro Intelligent Switch Command Line Interface User Guide The ICMP message type can be one of the following: Value ICMP type 0 Echo reply 3 Destination unreachable 4 Source quench 5 Redirect 8 Echo request 11 Time exceeded 12 Parameter problem...
  • Page 936 Super Micro Intelligent Switch Command Line Interface User Guide permit icmp - Specifies the ICMP packets to be forwarded based on the IP address and the associated parameters deny icmp - Specifies the ICMP packets to be denied based on the IP address and associated parameters Release : 1.1f...

  • Page 937: Ip Access-Group

    Super Micro Intelligent Switch Command Line Interface User Guide 33.18 ip access-group This command enables access control for the packets on the interface. It controls access to a Layer 2 or Layer 3 interface. The no form of this command removes all access groups or the specified access group from the interface.

  • Page 938: Mac Access-Group

    Super Micro Intelligent Switch Command Line Interface User Guide 33.19 mac access-group This command applies a MAC access control list (ACL) to a Layer 2 interface. The no form of this command can be used to remove the MAC ACLs from the interface.

  • Page 939: Permit

    Super Micro Intelligent Switch Command Line Interface User Guide 33.20 permit This command specifies the packets to be forwarded based on the MAC address and the associated parameters, that is, this command allows non-IP traffic to be forwarded if the conditions are matched.
  • Page 940 Super Micro Intelligent Switch Command Line Interface User Guide priority - The priority of the L2 filter is used to decide which filter rule is applicable when the packet matches with more than one filter rules. Higher value of 'filter priority' implies a higher...

  • Page 941: Deny

    Super Micro Intelligent Switch Command Line Interface User Guide 33.21 deny This command specifies the packets to be rejected based on the MAC address and the associated parameters. deny { any | host <mac_addr> } { any | host <mac_addr> } [ { aarp |...
  • Page 942 Super Micro Intelligent Switch Command Line Interface User Guide priority - The priority of the L2 filter is used to decide which filter rule is applicable when the packet matches with more than one filter rules. Higher value of 'filter priority' implies a higher priority.

  • Page 943: Redirect

    Super Micro Intelligent Switch Command Line Interface User Guide 33.22 redirect This command specifies the packets to be redirected based on the MAC address and the associated parameters. redirect <interface-type> <interface-id> { any | host <src-mac- address>}{ any | host <dest-mac-address> } [aarp | amber | dec-spanning...
  • Page 944 Super Micro Intelligent Switch Command Line Interface User Guide vines-echo - EtherType Virtual Integrated Network Service (VINES) Echo from Banyan Systems vines-ip - EtherType VINES IP xns-id - EtherType Xerox Network Systems (XNS) protocol suite encaptype - Encapsulation Type vlan - VLAN ID to be filtered priority - The priority of the L2 filter is used to decide which filter rule is applicable when the packet matches with more than one filter rules.

  • Page 945: Show Access-Lists

    Super Micro Intelligent Switch Command Line Interface User Guide 33.23 show access-lists This command displays the access lists configuration. show access-lists [[{ip | mac}] <access-list-number (1-32768)> ] Syntax Description ip - IP Access List mac - MAC Access List Mode...
  • Page 946 Super Micro Intelligent Switch Command Line Interface User Guide redirect tcp - Specifies the TCP packets to be redirected based on the associated parameters permit udp - Specifies the UDP packets to be forwarded based on the associated parameters deny udp - Specifies the UDP packets to be rejected based on the associated parameters...

  • Page 947: Loop Protection

    Super Micro Intelligent Switch Command Line Interface User Guide 34 Loop protection Loop protection feature helps to detect and prevent network loops caused by unmanaged network devices. This loop protection feature is independent of the spanning tree protocol. This can be used when the switches are connected to unmanaged devices where spanning tree cannot prevent network loops.

  • Page 948: Loop-Protect

    Super Micro Intelligent Switch Command Line Interface User Guide 34.1 loop-protect This command enables or disables the loop protection feature globally on the switch. To enable loop protection on ports, loop protect command need to be configured on the corresponding port interfaces also.

  • Page 949: Loop-Protect - Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 34.2 loop-protect - interface This command enables the loop protection feature on the port interface. The no form of this command disables the loop protection feature on the port interface. To use the loop protection feature on any ports, this feature need to be enabled globally also on the switch.

  • Page 950: Loop-Protect Disable-Period

    Super Micro Intelligent Switch Command Line Interface User Guide 34.3 loop-protect disable-period Switch disables (shuts down) the loop detected ports. This command configures the disable period for which the loop detected ports are kept down. By default disable period value is 0 which means the loop detected ports are kept down until user enables it manually.

  • Page 951: Loop-Protect Receive-Action

    Super Micro Intelligent Switch Command Line Interface User Guide 34.4 loop-protect receive-action When a loop is detected switch disables the port from which the loop protection packets originated. This command can be used to configure not to disable the port when loop is detected.

  • Page 952: Loop-Protect Transmit-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 34.5 loop-protect transmit-interval When loop protection feature is enabled, switch transmits Ethernet control frames periodically to detect the network loops. By default Ethernet control frames are sent every 5 seconds once.

  • Page 953: Show Loop-Protect

    Super Micro Intelligent Switch Command Line Interface User Guide 34.6 show loop-protect This command displays the loop protection configuration information. show loop-protect Mode Privileged/User EXEC Mode Example SMIS# show loop-protect Loop Protection : Enabled Transmit Interval : 5 seconds Receive action...

  • Page 954: Link Status Tracking

    Super Micro Intelligent Switch Command Line Interface User Guide 35 Link Status Tracking Link status tracking feature helps to control the link status of downstream interfaces based on the link status of upstream interfaces. The interfaces connected to servers and other end devices are called downstream interfaces.

  • Page 955: Link-Status-Tracking

    Super Micro Intelligent Switch Command Line Interface User Guide 35.1 link-status-tracking This command enables or disables the link status tracking feature. Link status tracking feature is disabled by default. link-status-tracking {enable | disable} Syntax Description enable – Enables the link status tracking feature disable –...

  • Page 956: Link-Status-Tracking Group

    Super Micro Intelligent Switch Command Line Interface User Guide 35.2 link-status-tracking group This command creates the link status tracking groups. The no form of this command removes the configured link status tracking groups. link-status-tracking group <short(1-1024)> no link-status-tracking group <short(1-1024)>...

  • Page 957: Link-Status-Tracking Group - Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 35.3 link-status-tracking group - interface This command adds the interfaces as either downstream or upstream interfaces to the link status tracking groups. The no form of this command removes the interfaces from the link status tracking groups.

  • Page 958: Show Link-Status-Tracking

    Super Micro Intelligent Switch Command Line Interface User Guide 35.4 show link-status-tracking This command displays the link status tracking configuration information. If the group number given it displays the information specific to the given groups. If group is not given, it displays the information for all the configured groups.
  • Page 959 Super Micro Intelligent Switch Command Line Interface User Guide link-status-tracking group – interface – adds or removes the interfaces in to link status tracking groups. Release : 1.1f 959 / 985...

  • Page 960: Lldp

    Super Micro Intelligent Switch Command Line Interface User Guide 36 LLDP Link layer discovery protocol (LLDP) helps to learn information about the other devices on the local network. LLDP enabled devices send out information about their identity and capabilities periodically. To share different information LLDP supports many types of TLVs.
  • Page 961 Super Micro Intelligent Switch Command Line Interface User Guide show lldp traffic Release : 1.1f 961 / 985...

  • Page 962: Set Lldp

    Super Micro Intelligent Switch Command Line Interface User Guide 36.1 set lldp This command enables or disables the LLDP feature. LLDP feature is disabled by default. set lldp {enable | disable} Syntax Description enable – Enables the LLDP feature disable – Disables the LLDP feature...

  • Page 963: Lldp Chassis-Id-Subtype

    Super Micro Intelligent Switch Command Line Interface User Guide 36.2 lldp chassis-id-subtype This command configures chassis identifier type. Chassis identifier can be any one of the following: Chassis Component - Chassis component string Interface Alias - Interface alias Port Component - Port component string...

  • Page 964: Lldp Holdtime-Multiplier

    Super Micro Intelligent Switch Command Line Interface User Guide 36.3 lldp holdtime-multiplier This command helps to configure the time to live of LLDP information. The LLDP devices hold the received LLDP information for the time advertised as time to live information.

  • Page 965: Lldp Notification Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 36.4 lldp notification interval This command configures the time interval on which LLDP traps are sent to SNMP managers when LLDP information is changed. The no form of this command resets the notification interval to its default value 5 seconds.

  • Page 966: Lldp Reinitialization-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 36.5 lldp reinitialization-delay This command configures time delay used to initialize LLDP on any interface. The no form of this command resets the time delay to its default value 2 seconds.

  • Page 967: Lldp Transmit-Interval

    Super Micro Intelligent Switch Command Line Interface User Guide 36.6 lldp transmit-interval This command configures the time interval on which LLDP update messages are sent. The no form of this command resets the transmit interval to its default value 30 seconds.

  • Page 968: Lldp Tx-Delay

    Super Micro Intelligent Switch Command Line Interface User Guide 36.7 lldp tx-delay This command configures the minimum time interval maintained between any two subsequent LLDP messages sent out. The no form of this command resets this transmit delay to its default value 2 seconds.

  • Page 969: Clear Lldp Counters

    Super Micro Intelligent Switch Command Line Interface User Guide 36.8 clear lldp counters This command resets the LLDP traffic counters. clear lldp counters Mode Global Configuration Mode Example SMIS(config)# clear lldp counters Related Commands show lldp traffic – Displays the LLDP traffic counters.

  • Page 970: Clear Lldp Table

    Super Micro Intelligent Switch Command Line Interface User Guide 36.9 clear lldp table This command resets all the LLDP neighbor information learned. clear lldp table Mode Global Configuration Mode Example SMIS(config)# clear lldp table Related Commands show lldp neighbors – Displays the LLDP neighbor information.

  • Page 971: Lldp Notification

    Super Micro Intelligent Switch Command Line Interface User Guide 36.10 lldp notification This command configures the lldp notification status and notification types on the interface. The no form of this command disables the notification on the interface. lldp notification [remote-table-chg][mis-configuration]...

  • Page 972: Lldp Port-Id-Subtype

    Super Micro Intelligent Switch Command Line Interface User Guide 36.11 lldp port-id-subtype This command configures port identifier type. LLDP port identifier can be any one of the following: Interface Alias - Interface alias Port Component - Port component string MAC Address - MAC address of the switch...

  • Page 973: Lldp Tlv-Select Basic-Tlv

    Super Micro Intelligent Switch Command Line Interface User Guide 36.12 lldp tlv-select basic-tlv This command configures basic tlv transmission on interface. It enables the transmission of given tlv on any interface. The no form of this command disables the transmission of given tlv on any interface.

  • Page 974: Lldp Tlv-Select Dot1Tlv

    Super Micro Intelligent Switch Command Line Interface User Guide 36.13 lldp tlv-select dot1tlv This command configures 802.1 VLAN tlv transmission on interface. It enables the transmission of given tlv on any interface. The no form of this command disables the transmission of given tlv on any interface.

  • Page 975: Lldp Tlv-Select Dot3Tlv

    Super Micro Intelligent Switch Command Line Interface User Guide 36.14 lldp tlv-select dot3tlv This command configures 802.3 standard tlv transmission on interface. It enables the transmission of given tlv on any interface. The no form of this command disables the transmission of given tlv on any interface.

  • Page 976: Lldp Transmit | Receive

    Super Micro Intelligent Switch Command Line Interface User Guide 36.15 lldp transmit | receive This command enables the transmit and receive of LLDP messages on any interface. The no form of this command disables the transmit and receive of LLDP messages on any interface.

  • Page 977: Debug Lldp

    Super Micro Intelligent Switch Command Line Interface User Guide 36.16 debug lldp This command enables the display of LLDP debug messages. The no form of this command disables the display of LLDP debug messages. debug lldp [{all | [init-shut] [mgmt] [data-path] [ctrl] [pkt-dump]...
  • Page 978 Super Micro Intelligent Switch Command Line Interface User Guide tlv port-id – displays port identifier TLV information tlv ttl – displays time to live TLV information tlv port-descr – displays port description TLV information tlv sys-name – displays system name TLV information tlv sys-descr –...

  • Page 979: Show Lldp

    Super Micro Intelligent Switch Command Line Interface User Guide 36.17 show lldp This command displays LLDP configuration information. show lldp Syntax Description Mode Privileged/User EXEC Mode Defaults Example SMIS# show lldp Related Commands show lldp errors – Displays the LLDP errors show lldp interface –...

  • Page 980: Show Lldp Errors

    Super Micro Intelligent Switch Command Line Interface User Guide 36.18 show lldp errors This command displays LLDP error counters. show lldp errors Syntax Description Mode Privileged/User EXEC Mode Defaults Example SMIS# show lldp errors Related Commands show lldp – Displays the LLDP information show lldp interface –...

  • Page 981: Show Lldp Interface

    Super Micro Intelligent Switch Command Line Interface User Guide 36.19 show lldp interface This command displays LLDP interface information. show lldp interface [<interface-type> <interface-id>] Syntax Description interface-type - Interface type, can either be a gi, ex or qx interface-id - Physical interface ID including slot and port number.

  • Page 982: Show Lldp Local

    Super Micro Intelligent Switch Command Line Interface User Guide 36.20 show lldp local This command displays LLDP interface configuration and TLV information. show lldp local {[<interface-type> <interface-id>] | [mgmt-addr]} Syntax Description interface-type - Interface type, can either be a gi, ex or qx interface-id - Physical interface ID including slot and port number.

  • Page 983: Show Lldp Neighbors

    Super Micro Intelligent Switch Command Line Interface User Guide 36.21 show lldp neighbors This command displays LLDP neighbor information. show lldp neighbors [chassis-id <string(255)> port-id <string(255)>] [<interface-type> <interface-id>][detail] Syntax Description chassis-id – chassis identifier port-id – port identifier interface-type - Interface type, can either be a gi, ex or qx interface-id - Physical interface ID including slot and port number.

  • Page 984: Show Lldp Statistics

    Super Micro Intelligent Switch Command Line Interface User Guide 36.22 show lldp statistics This command displays LLDP statistics. show lldp statistics Syntax Description Mode Privileged/User EXEC Mode Defaults Example SMIS# show lldp statistics Related Commands show lldp – Displays the LLDP information show lldp errors –...

  • Page 985: Show Lldp Traffic

    Super Micro Intelligent Switch Command Line Interface User Guide 36.23 show lldp traffic This command displays LLDP traffic counters. show lldp traffic [<iftype> <ifnum>] Syntax Description iftype - Interface type, can either be a gi, ex or qx ifnum - Physical interface ID including slot and port number.

This manual is also suitable for:

Sse-g24-tg4Sse-x24srSse-x3348sSse-x3348srSse-x3348tSse-x3348tr ... Show all

Table of Contents
