PANEL DESCRIPTION
➥ Number input: '7'
➥ Comment input: '7,' 'P,' 'R,' 'S,' 'p,' 'r' or 's'
➥ After pushing [F], push to turn the Hailer func-
tion ON or OFF. (p. 40)
➥ After pushing [F], push and hold for 1 sec. to
turn the RX speaker function ON or OFF. (p. 42)
➥ Number input: '8'
➥ Comment input: '8,' 'T,' 'U,' 'V,' 't,' 'u' or 'v'
➥ After pushing [F], push to turn the Automatic
foghorn function ON or OFF. (p. 42)
➥ Number input: '9'
➥ Comment input: '9,' 'W,' 'X,' 'Y,' 'w,' 'x' or 'y'
➥ After pushing [F], push to turn the Intercom
function ON or OFF. (p. 39)
➥ Number input: '0'
➥ Number input: Push and hold for 1 sec. to edit
➥ Comment input: '0' and symbols ('–' '/' '.')
➥ After pushing [F], push to activate an optional
Voice scrambler function. (p. 12)
• The optional Voice scrambler function cannot be used
on Channel 16 and 70.
➥ Push to enter the input channel comment, se-
lected item, etc.
➥ Push to clear the entered data.
4
'A' for simplex channel.

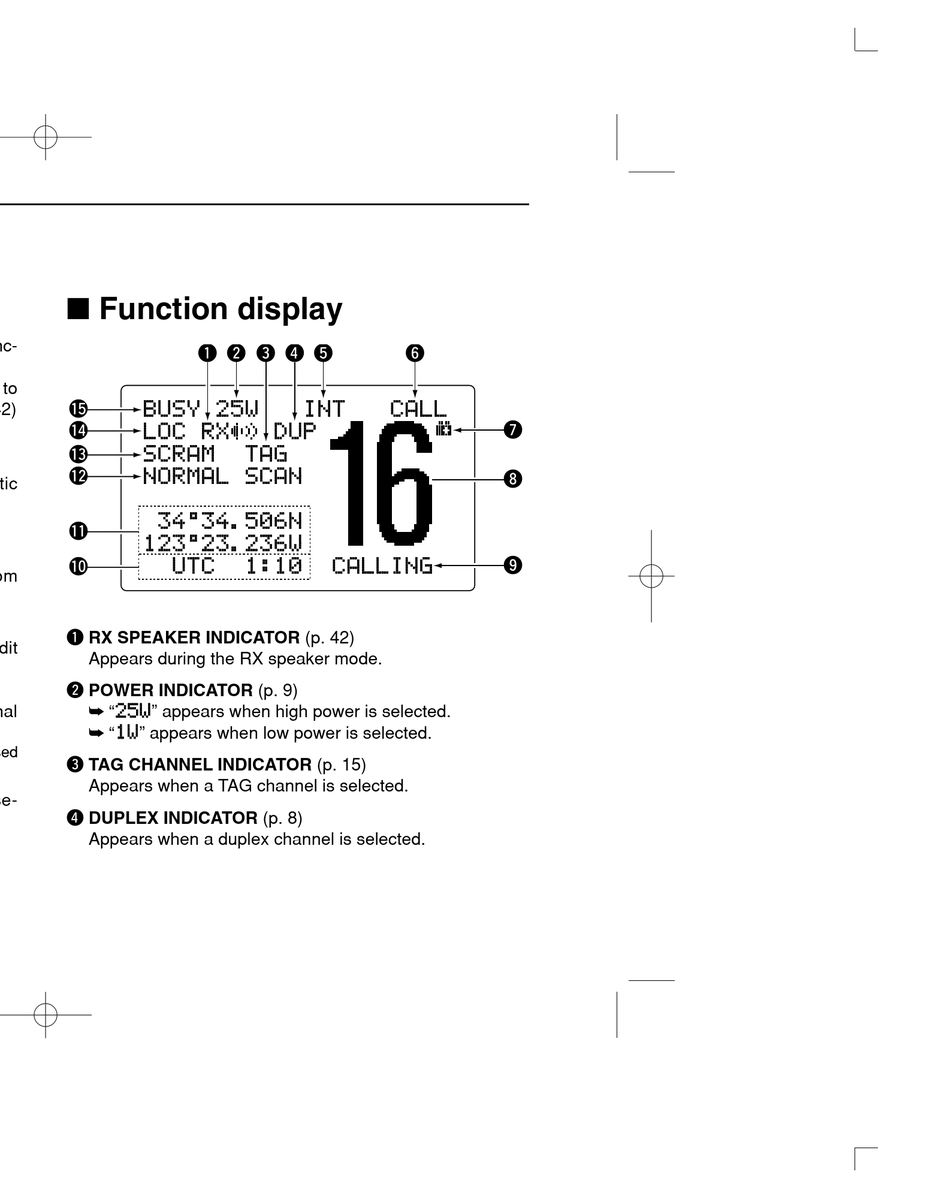

I Function display

q w e r t
!5
!4
!3
!2
!1
!0
q RX SPEAKER INDICATOR (p. 42)
Appears during the RX speaker mode.
w POWER INDICATOR (p. 9)
➥ "
" appears when high power is selected.
➥ "
" appears when low power is selected.
e TAG CHANNEL INDICATOR (p. 15)
Appears when a TAG channel is selected.
r DUPLEX INDICATOR (p. 8)
Appears when a duplex channel is selected.
y
u
i
o
