y DC POWER CONNECTOR
Connects the supplied DC power cable from this connector
to an external 13.8 V DC power source.
CAUTION: After connecting the DC power cable, cover
the connectors with a rubber vulcanising tape as shown
below, to prevent water seeping into the transceiver.
Rubber vulcanizing
tape

I Fuse replacement

One fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem, if possible, and replace the damaged
fuse with a new, rated one.
Fuse rating: 10 A
CONNECTIONS AND MAINTENANCE

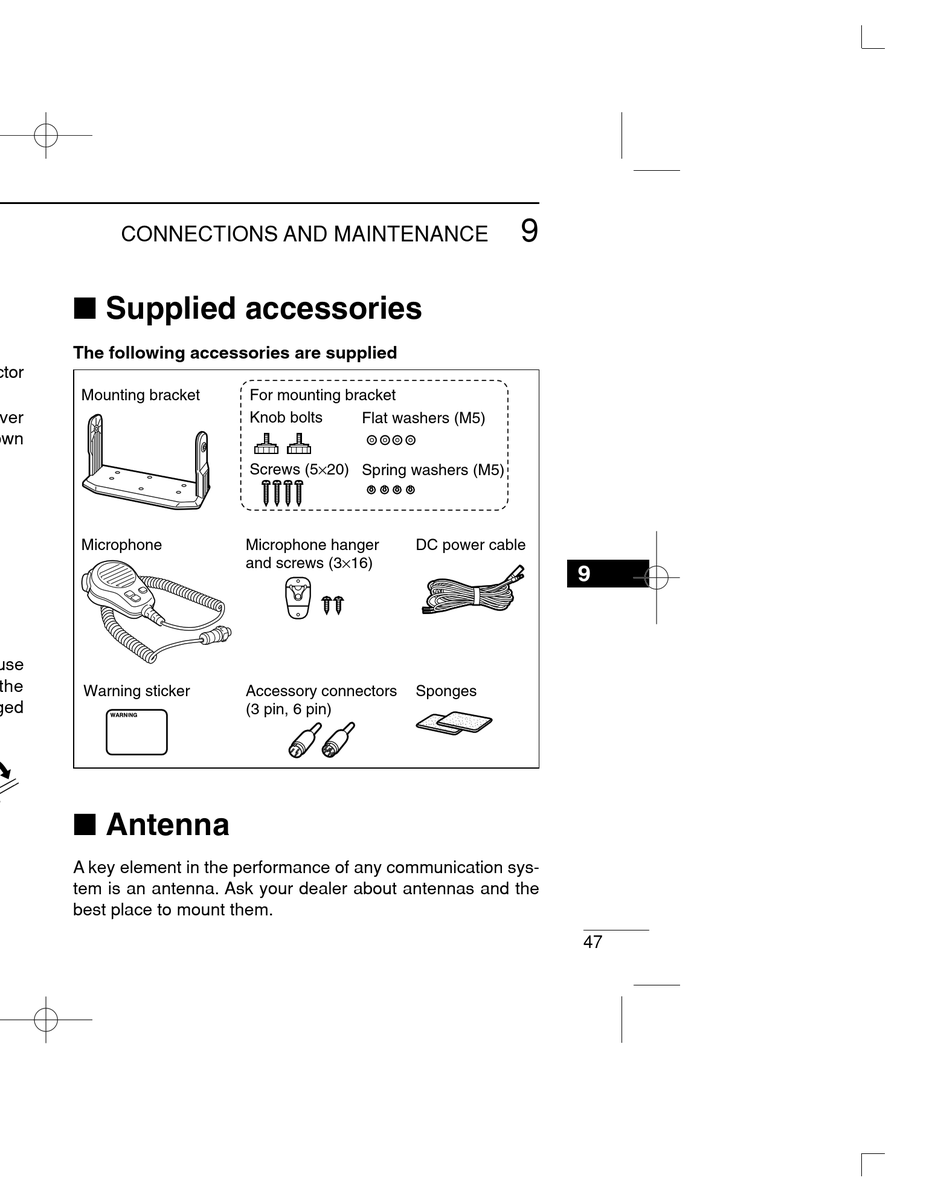

I Supplied accessories

The following accessories are supplied
Mounting bracket For mounting bracket
Knob bolts
Screws (5 20)
Microphone Microphone hanger
and screws (3 16)
Warning sticker Accessory connectors
(3 pin, 6 pin)

I Antenna

A key element in the performance of any communication sys-
tem is an antenna. Ask your dealer about antennas and the
best place to mount them.
9
Flat washers (M5)
Spring washers (M5)
DC power cable
9
Sponges
47
