PANEL DESCRIPTION

I Function display

q
TX
!3
TAG
USA
!2
INT
q TRANSMIT INDICATOR
Appears while transmitting. (p. 7)
w BUSY INDICATOR
Appears when receiving a signal or when the squelch level
is set to the "OFF" position. (p. 7)
e CALL CHANNEL INDICATOR
Appears when the call channel is selected. (p. 9)
r LOW POWER INDICATOR (p. 7)
Shows that low output power is selected.
t LOW BATTERY INDICATOR
Blinks when the battery voltage drops to approx. 6 V or
below. The attached Ni-Cd batteries require charging in this
case.
y LOCK INDICATOR (p. 6)
Appears while the lock function activated.
4
w e r t y
BUSY
CALL LOW BATT
u
SCAN
i
DUAL TRI
DUP
o
!0
!1

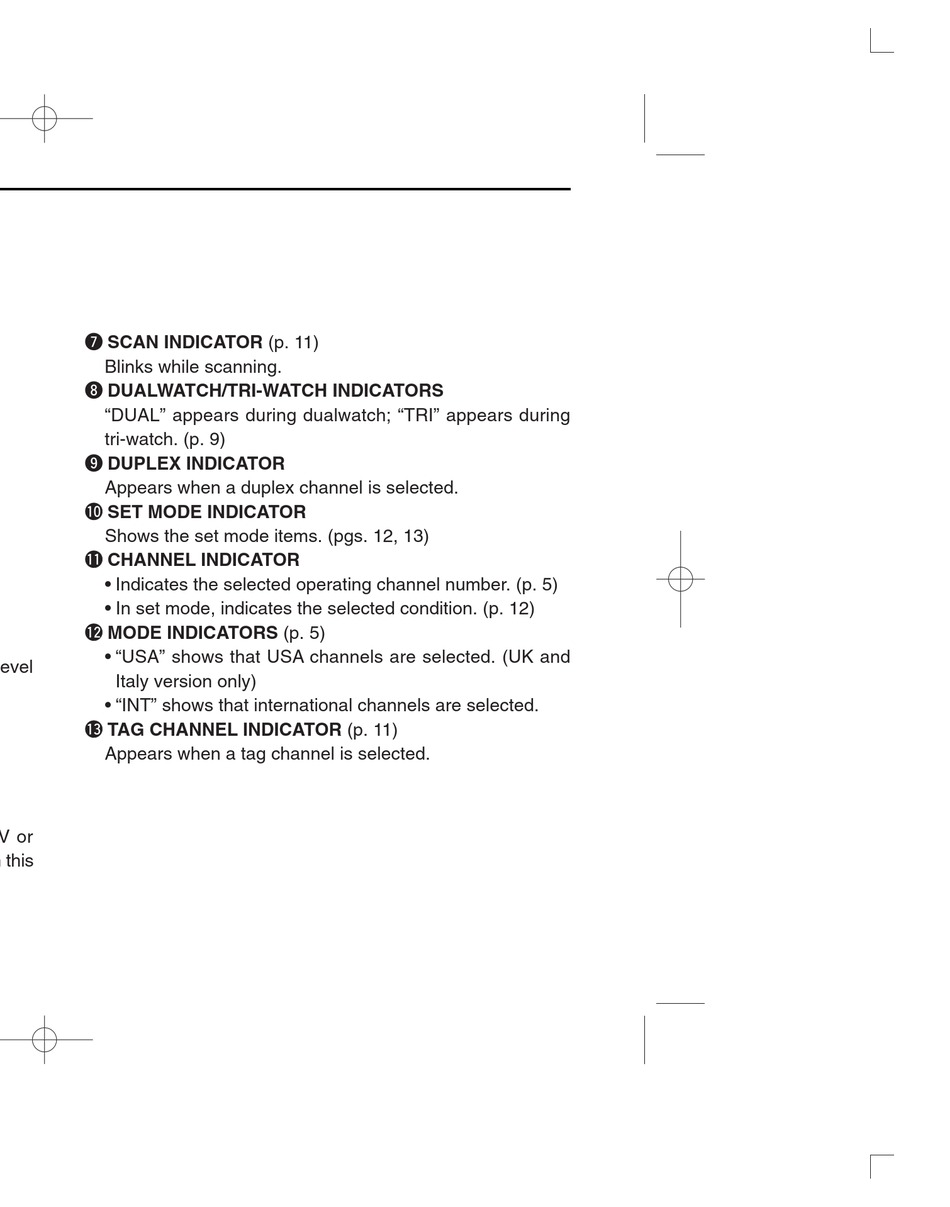

u SCAN INDICATOR (p. 11)
Blinks while scanning.
i DUALWATCH/TRI-WATCH INDICATORS
"DUAL" appears during dualwatch; "TRI" appears during
tri-watch. (p. 9)
o DUPLEX INDICATOR
Appears when a duplex channel is selected.
!0 SET MODE INDICATOR
Shows the set mode items. (pgs. 12, 13)
!1 CHANNEL INDICATOR
• Indicates the selected operating channel number. (p. 5)
• In set mode, indicates the selected condition. (p. 12)
!2 MODE INDICATORS (p. 5)
• "USA" shows that USA channels are selected. (UK and
Italy version only)
• "INT" shows that international channels are selected.
!3 TAG CHANNEL INDICATOR (p. 11)
Appears when a tag channel is selected.
