I Top and side panels

q PTT SWITCH [PTT]
Push and hold to transmit;
release to receive.
w VOLUME CONTROL
[OFF/VOL]
Turns power ON and ad-
justs the audio level.
e EXTERNAL SPEAKER
AND MICROPHONE
JACKS [SP/MIC]
Connect an optional
speaker-microphone or
headset, if desired. The in-
ternal microphone and
speaker will not function
when either is connected.
r ANTENNA CONNECTOR
Connects the supplied antenna.
e
w
q

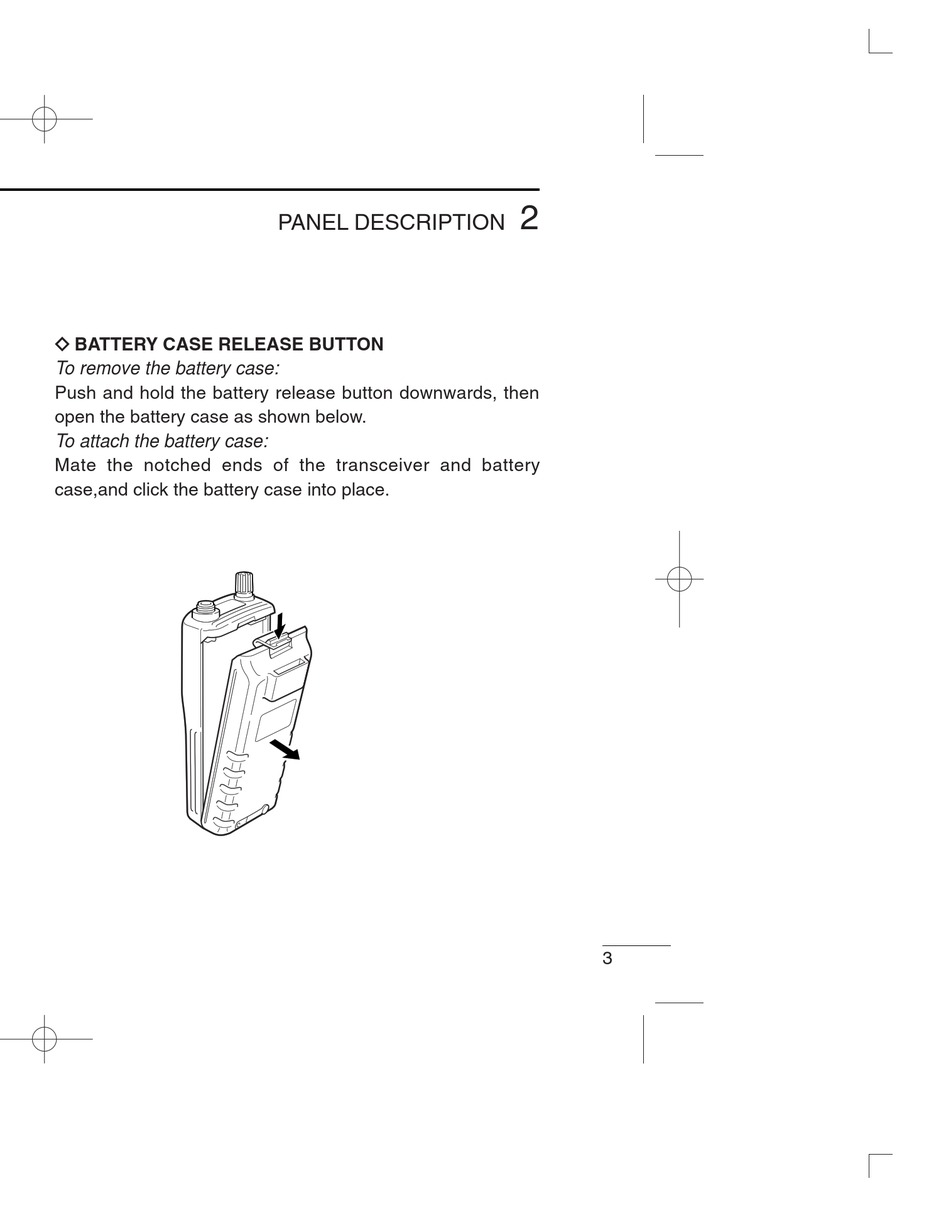

ï BATTERY CASE RELEASE BUTTON
To remove the battery case:
r
Push and hold the battery release button downwards, then
open the battery case as shown below.
To attach the battery case:
Mate the notched ends of the transceiver and battery
case,and click the battery case into place.
