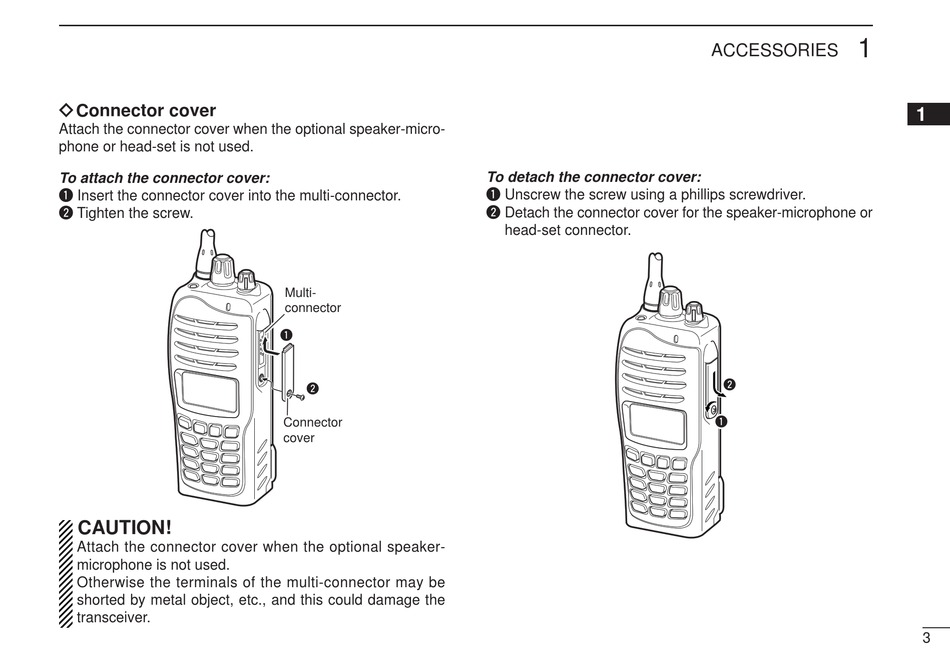

ï Connector cover
Attach the connector cover when the optional speaker-micro-
phone or head-set is not used.
To attach the connector cover:
q Insert the connector cover into the multi-connector.
w Tighten the screw.
CAUTION!
Attach the connector cover when the optional speaker-
microphone is not used.
Otherwise the terminals of the multi-connector may be
shorted by metal object, etc., and this could damage the
transceiver.
Multi-
connector
q
w
Connector
cover
To detach the connector cover:
q Unscrew the screw using a phillips screwdriver.
w Detach the connector cover for the speaker-microphone or
head-set connector.
