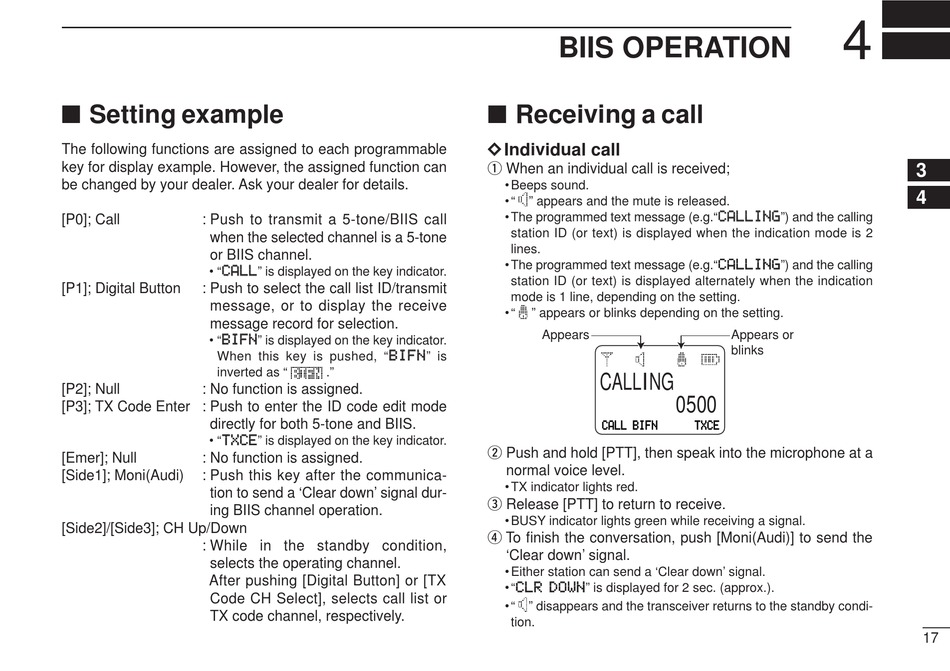

■ Setting example

The following functions are assigned to each programmable
key for display example. However, the assigned function can
be changed by your dealer. Ask your dealer for details.
[P0]; Call : Push to transmit a 5-tone/BIIS call
when the selected channel is a 5-tone
or BIIS channel.
• "C C A A L L L L " is displayed on the key indicator.
[P1]; Digital Button : Push to select the call list ID/transmit
message, or to display the receive
message record for selection.
• "B B I I F F N N " is displayed on the key indicator.
When this key is pushed, "B B I I F F N N " is
inverted as "
[P2]; Null : No function is assigned.
[P3]; TX Code Enter : Push to enter the ID code edit mode
directly for both 5-tone and BIIS.
• "T T X X C C E E " is displayed on the key indicator.
[Emer]; Null : No function is assigned.
[Side1]; Moni(Audi) : Push this key after the communica-
tion to send a 'Clear down' signal dur-
ing BIIS channel operation.
[Side2]/[Side3]; CH Up/Down
: While in the standby condition,
selects the operating channel.
After pushing [Digital Button] or [TX
Code CH Select], selects call list or
TX code channel, respectively.

■ Receiving a call

D D Individual call
q When an individual call is received;
• Beeps sound.
• "
• The programmed text message (e.g."C C A A L L L L I I N N G G ") and the calling
• The programmed text message (e.g."C C A A L L L L I I N N G G ") and the calling
• "
."
w Push and hold [PTT], then speak into the microphone at a
• TX indicator lights red.
e Release [PTT] to return to receive.
• BUSY indicator lights green while receiving a signal.
r To finish the conversation, push [Moni(Audi)] to send the
• Either station can send a 'Clear down' signal.
• "C C L L R R D D O O W W N N " is displayed for 2 sec. (approx.).
• "

BIIS OPERATION

" appears and the mute is released.
station ID (or text) is displayed when the indication mode is 2
lines.
station ID (or text) is displayed alternately when the indication
mode is 1 line, depending on the setting.
" appears or blinks depending on the setting.
Appears
CALLING
0500
CALL BIFN CALL BIFN TXC
normal voice level.
'Clear down' signal.
" disappears and the transceiver returns to the standby condi-
tion.
4
Appears or
blinks
TXCE TXCE
3
4
17
