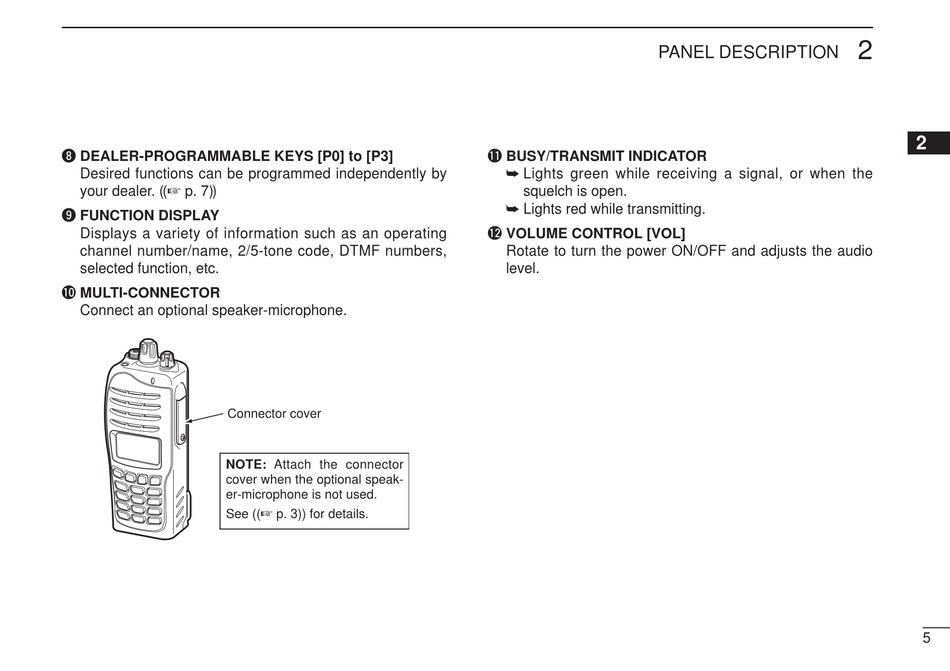

Icom IC-F3062T Instruction Manual page 9

i DEALER-PROGRAMMABLE KEYS [P0] to [P3]
Desired functions can be programmed independently by
your dealer. ((☞ p. 7))
o FUNCTION DISPLAY
Displays a variety of information such as an operating
channel number/name, 2/5-tone code, DTMF numbers,
selected function, etc.
!0 MULTI-CONNECTOR
Connect an optional speaker-microphone.
Connector cover
NOTE: Attach the connector
cover when the optional speak-
er-microphone is not used.
See ((☞ p. 3)) for details.
PANEL DESCRIPTION
!1 BUSY/TRANSMIT INDICATOR
➥ Lights green while receiving a signal, or when the
squelch is open.
➥ Lights red while transmitting.
!2 VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
