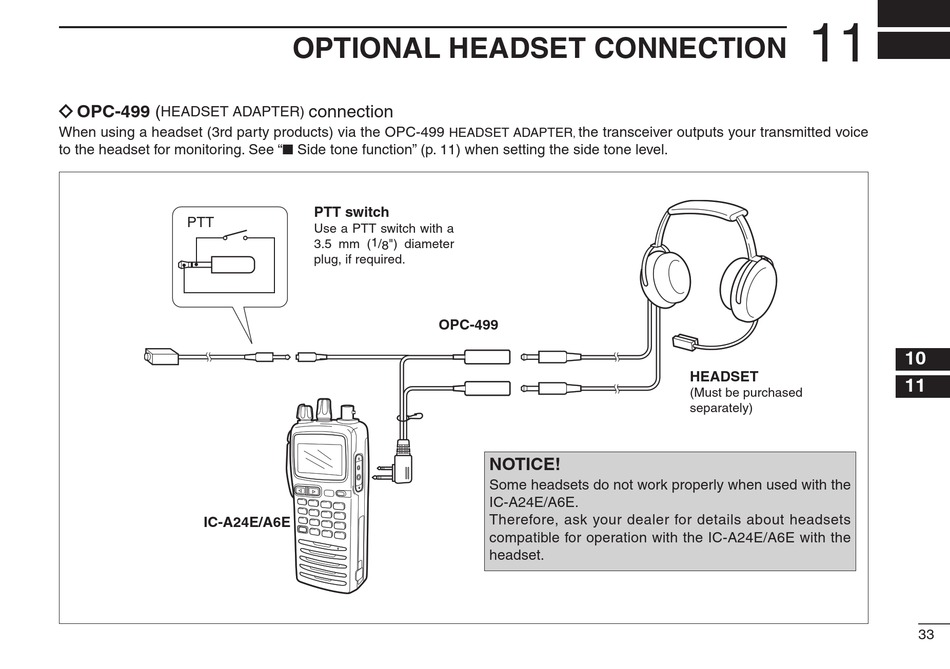

Optional Headset Connection - Icom IC-A24E Instruction Manual

OPC-499
ï (
HEADSET ADAPTER)
When using a headset (3rd party products) via the OPC-499
to the headset for monitoring. See "■ Side tone function" (p. 11) when setting the side tone level.
PTT
IC-A24E/A6E

OPTIONAL HEADSET CONNECTION

connection
HEADSET ADAPTER
PTT switch
Use a PTT switch with a
3.5 mm ( 1 / 8 ") diameter
plug, if required.
OPC-499
the transceiver outputs your transmitted voice
,
NOTICE!
Some headsets do not work properly when used with the
IC-A24E/A6E.
Therefore, ask your dealer for details about headsets
compatible for operation with the IC-A24E/A6E with the
headset.
11
HEADSET
(Must be purchased
separately)
