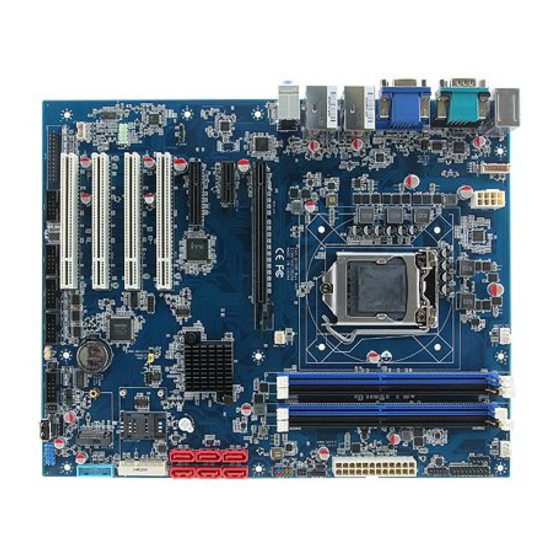

- Page 1 EAX-C236KP-B1 Intel® Core™ Processors with Intel® C236 ATX Motherboard User’s Manual Ed – 01 September 2022 Part No. E2047AKBX00R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EAX-C236KP-B1 User’s Manual...
-
Page 5: Table Of Contents
2.3.21 Miscellaneous setting connector (JFP1) ..................30 2.3.22 CPU fan connector (CPUFAN1) ....................30 2.3.23 System fan connector 1 (SYSFAN1) ..................... 31 2.3.24 System fan connector 2 (SYSFAN3) ..................... 31 2.3.25 PS/2 keyboard & mouse connector (JKBMS1) ................32 EAX-C236KP-B1 User’s Manual... - Page 6 NCT6106D H/W Monitor ......................52 3.6.2.8.1 Smart Fan Configuration ....................... 52 3.6.2.9 Serial Port Console Redirection .................... 53 3.6.2.9.1 Legacy Console Redirection Settings ................... 54 3.6.2.10 Intel TXT Configuration ......................55 3.6.2.11 Network Stack Configuration ....................55 6 EAX-C236KP-B1 User’s Manual...
- Page 7 4. Drivers Installation....................... 77 Install Chipset Driver ....................78 Install VGA Driver ....................79 Install SOL Driver ....................80 Install Audio Driver (For Realtek ALC888S HD Audio) ..........81 Install LAN Driver ....................82 Install RST Driver ....................84 EAX-C236KP-B1 User’s Manual...
- Page 8 EAX-C236KP-B1 User’s Manual 5. Mechanical Drawing ....................86 8 EAX-C236KP-B1 User’s Manual...
-
Page 9: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EAX-C236KP-B1 motherboard 2 x SATA cable 1 x I/O Shield ... -
Page 10: Document Amendment History
EAX-C236KP-B1 User’s Manual 1.3 Document Amendment History Revision Date Comment September 2022 Avalue Initial Release 10 EAX-C236KP-B1 User’s Manual... -
Page 11: Manual Objectives
User’s Manual 1.4 Manual Objectives This manual describes in details Avalue Technology EAX-C236KP-B1 Single Board. We have tried to include as much information as possible but we have not duplicated information that is provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding of this board. -
Page 12: System Specifications
2 x RJ-45 Dual stack for 4 x USB 3.0 connector 1 x DP HDMI 1 x HDMI 1 x VGA Onboard I/O COM 2~6: 1 x 2 x 5 pin, pitch 2.54mm BOX connector for COM2 support RS232 with Pin 9, 12 EAX-C236KP-B1 User’s Manual... - Page 13 1 x 1 x 4 pin, pitch 2.54mm connector for S/PDIF (JSPDIF1) 1 x 2 x 10 pin, pitch 2.54mm connector for Auxiliary panel (JAUXP1) 1 x 4 pin, pitch wafer 2.00mm connector for 6W x 2 Speaker (JSPK1) Display Graphic Chipset Intel® C236 chipset EAX-C236KP-B1 User’s Manual 13...
- Page 14 (Please consult product engineers for the production 12" x 9.6" (304.8mm x 243.84mm) feasibility if the size is larger than 410x360mm or smaller than 80x70mm) Weight 0.60 kg Note: Specifications are subject to change without notice. 14 EAX-C236KP-B1 User’s Manual...
-
Page 15: Architecture Overview-Block Diagram
User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EAX-C236KP-B1. EAX-C236KP-B1 User’s Manual 15... -
Page 16: Hardware Configuration
EAX-C236KP-B1 User’s Manual 2. Hardware Configuration 16 EAX-C236KP-B1 User’s Manual... -
Page 17: Product Overview
User’s Manual 2.1 Product Overview EAX-C236KP-B1 User’s Manual 17... -
Page 18: Jumper And Connector List
4 x 1 wafer, pitch 2.54mm SYSFAN1 function supported) 3 x 1 wafer, pitch 2.54mm SYSFAN3 System fan connector 2 JFP1 Miscellaneous setting connector 5 x 2 header, pitch 2.54 mm DIMM1/2/3/4 288-pin DDR4 DIMM socket AUDIO1 Audio connector 18 EAX-C236KP-B1 User’s Manual... - Page 19 VGA1 VGA connector NGFF1 M.2 2230 KeyA Slot support WiFi module 13 x 2 header, pitch 2.54mm LPT1 LPT connector JSIM1 SIM card slot S/PDIF connector JSPDIF1 SMBus connector 5 x 1 header, pitch 2.54mm JSMB1 EAX-C236KP-B1 User’s Manual 19...
-
Page 20: Setting Jumpers & Connectors
EAX-C236KP-B1 User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default 2.3.2 Serial port 2 pin9 signal select (JRI2) Ring* +12V * Default 20 EAX-C236KP-B1 User’s Manual... -
Page 21: At/Atx Power Mode Select (Jatatx1)
User’s Manual 2.3.3 AT/ATX Power Mode Select (JATATX1) * Default 2.3.4 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default EAX-C236KP-B1 User’s Manual 21... -
Page 22: Serial Port 2 Connector (Jcom2A)
EAX-C236KP-B1 User’s Manual 2.3.5 Serial port 2 connector (JCOM2A) Signal PIN PIN Signal NRXD NDCD# NDTR# NTXD NDSR# NCTS# NRTS# JNRI# 2.3.6 COM2 RS485/422 connector (JCOM2B) Signal PIN PIN Signal 485TX- 422RX- 485TX+ 422RX+ 22 EAX-C236KP-B1 User’s Manual... -
Page 23: Serial Port 3/4/5/6 Connector (Jcom3/4/5/6)
User’s Manual 2.3.7 Serial port 3/4/5/6 connector (JCOM3/4/5/6) Signal PIN PIN Signal NRXD NDCD# NDTR# NTXD NDSR# NCTS# NRTS# NRI# 2.3.8 General purpose I/O connector (JDIO1) Signal PIN PIN Signal SMB_CLK_9555 10 SMB_DATA_9555 EAX-C236KP-B1 User’s Manual 23... -
Page 24: Sgpio Connector (Jsgpio1)
EAX-C236KP-B1 User’s Manual 2.3.9 SGPIO connector (JSGPIO1) Signal PIN PIN Signal SGIO_LOAD SGIO_DATOUT0 SGIO_CLK SGIO_DATOUT1 2.3.10 ATX Power connector (ATXPWR1) Signal Signal +3.3V +12V +12V +V5SB ATX_PWRGD ATX_PSON# +3.3V -12V +3.3V +3.3V 24 EAX-C236KP-B1 User’s Manual... -
Page 25: Power Connector (Atx12V1)
User’s Manual 2.3.11 Power connector (ATX12V1) Signal PIN PIN Signal +12V +12V +12V +12V 2.3.12 SMBus connector (JSMB1) Signal SMB_CLK_MAIN SMB_DATA_MAIN SMB_ALERT#_MAIN +3.3V EAX-C236KP-B1 User’s Manual 25... -
Page 26: Usb Connector 1 (Jusb1)
EAX-C236KP-B1 User’s Manual 2.3.13 USB connector 1 (JUSB1) Signal PIN PIN Signal USB_R_DP14 USB_R_DP13 USB_R_DN14 USB_R_DN13 SS_USB_TXP_C_6 SS_USB_TXP_C_5 15 SS_USB_TXN_C_6 SS_USB_TXN_C_5 17 SS_USB_RXP_C_6 SS_USB_RXP_C_5 18 SS_USB_RXN_C_6 SS_USB_RXN_C_5 USBVCC_DE USBVCC_DE 2.3.14 USB connector 2 (JUSB2) Signal USBVCC56 USB_R_DN5 USB_R_DP5 26 EAX-C236KP-B1 User’s Manual... -
Page 27: Usb Connector 4 (Jusb4)
User’s Manual 2.3.15 USB connector 4 (JUSB4) Signal Signal USBVCC_BC USBVCC_BC USB_R_DN12 USB_R_DN11 USB_R_DP12 USB_R_DP11 2.3.16 Battery connector (JBAT1) Signal RTC_VBAT_1 EAX-C236KP-B1 User’s Manual 27... -
Page 28: Audio Connector (Jaudio1)
2.3.17.1 Signal Description –Audio connector (JAUDIO1) Signal Signal Description LINE2_JD AUDIO IN (LINE_RIN/LIN)sense pin MIC2_JD MIC IN (MIC_RIN/LIN) sense pin 2.3.18 LPC connector (JLPC1) Signal PIN PIN Signal LPC_AD0_R +3.3V LPC_AD1_R BUF_PLT_RST# LPC_AD2_R LPC_FRAME#_R LPC_AD3_R LPC_CLK LPC_SERIRQ_R 28 EAX-C236KP-B1 User’s Manual... -
Page 29: Spi Connector (Jspi1)
User’s Manual 2.3.19 SPI connector (JSPI1) Signal PIN PIN Signal +3.3V SSPI_CS0#_R SSPI_SCLK_R SSPI_SO_R SSPI_SI_R SSPI_HOLD#0 2.3.20 Speaker connector (JSPK1) Signal SPK_L+ SPK_L- SPK_R+ SPK_R- EAX-C236KP-B1 User’s Manual 29... -
Page 30: Miscellaneous Setting Connector (Jfp1)
EAX-C236KP-B1 User’s Manual 2.3.21 Miscellaneous setting connector (JFP1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED- PWE_LED- RSET_BTN# PWRBTN# 2.3.22 CPU fan connector (CPUFAN1) Signal +12V CPUFANIN CPUFANOUT 30 EAX-C236KP-B1 User’s Manual... -
Page 31: System Fan Connector 1 (Sysfan1)
User’s Manual 2.3.23 System fan connector 1 (SYSFAN1) Signal +12V SYSFANIN1 SYSFANOUT1 2.3.24 System fan connector 2 (SYSFAN3) Signal +12V SYS_FAN_IN_2 EAX-C236KP-B1 User’s Manual 31... -
Page 32: Ps/2 Keyboard & Mouse Connector (Jkbms1)
EAX-C236KP-B1 User’s Manual 2.3.25 PS/2 keyboard & mouse connector (JKBMS1) Signal MSCK MSDT KBDT KBCK 2.3.26 S/PDIF connector (JSPDIF1) Signal SPDIF_O 32 EAX-C236KP-B1 User’s Manual... -
Page 33: External Speaker Connector (Jbz1)
User’s Manual 2.3.27 External Speaker connector (JBZ1) Signal SIO_BEEP 2.3.28 LPT connector (LPT1) Signal PIN PIN Signal PT-STB- PT_AFD# PTD0 ERR# PTD1 PT_PAR_INIT# PTD2 PT_SLIN# PTD3 PTD4 PTD5 PTD6 PTD7 ACK# BUSY SLCT EAX-C236KP-B1 User’s Manual 33... -
Page 34: Auxiliary Panel Connector (Jauxp1)
EAX-C236KP-B1 User’s Manual 2.3.29 Auxiliary Panel connector (JAUXP1) Signal PIN PIN Signal SMB_CLK_MAIN CASEOPEN# ERROR_LED SMB_DATA_MAIN ERROR_LED# FRONT_LAN1_ACT 13 FRONT_LAN1_LINK100# 16 FRONT_LAN1_LINK1000# FRONT_LAN2_ACT 17 FRONT_LAN2_LINK100# 20 FRONT_LAN2_LINK1000# 34 EAX-C236KP-B1 User’s Manual... -
Page 35: Bios Setup
User’s Manual 3.BIOS Setup EAX-C236KP-B1 User’s Manual 35... -
Page 36: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 36 EAX-C236KP-B1 User’s Manual... -
Page 37: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. EAX-C236KP-B1 User’s Manual 37... -
Page 38: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 38 EAX-C236KP-B1 User’s Manual... -
Page 39: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. EAX-C236KP-B1 User’s Manual 39... -
Page 40: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 40 EAX-C236KP-B1 User’s Manual... -
Page 41: Intel Rc Acpi Settings
Enabled - OS Controlled ASPM, Disabled - BIOS Native ASPM Disabled Controlled ASPM Enabled 3.6.2.2 CPU Configuration Item Options Description When enabled, a VMM can utilize the additional Intel (VMX) Virtualization Disabled hardware capabilities provided by Vanderpool Technology Enabled[Default], Technology. EAX-C236KP-B1 User’s Manual 41... -
Page 42: Cpu - Power Management Control
Enable/Disable C1E. When enabled, CPU will Disabled, Enhanced C-states switch to minimum speed when all cores enter Enabled[Default] C-State. Disabled C-State Auto Demotion Configure C-State Auto Demotion. C1 and C3[Default] Disabled C-State Un-demotion Configure C-State Un-demotion. C1 and C3[Default] 42 EAX-C236KP-B1 User’s Manual... -
Page 43: View/Configure Turbo Options
Auto</b> (Auto: Enabled for Skylake; Disabled Auto[Default] for Kabylake) Disabled Enable or Disable Package C-State Demotion. 0: Package C-State Enabled Disable; 1: Enable; <b>2: Auto</b> (Auto: Un-demotion Auto[Default] Enabled for Skylake; Disabled for Kabylake) 3.6.2.2.1.1 View/Configure Turbo Options 3.6.2.3 CH-FW Configuration EAX-C236KP-B1 User’s Manual 43... -
Page 44: Oem Flags Settings
Enabled[Default] access MEBx Setup. Note: This option does not disable Manageability Features in FW. 3.6.2.3.1 OEM Flags Settings Item Option Description Disabled[Default], OEMFlag Bit 15: Unconfigure ME with resetting Unconfigure ME Enabled MEBx password to default. 44 EAX-C236KP-B1 User’s Manual... -
Page 45: Firmware Update Configuration
Enabled 3.6.2.4 Trusted Computing Item Options Description Enables or Disables BIOS support for security Disable, device. O.S. will not show Security Device. TCG Security Device Support Enable[Default] EFI protocol and INT1A interface will not be available. EAX-C236KP-B1 User’s Manual 45... -
Page 46: Acpi Settings
Enable/Disable system waked up by Ring Disabled Wake Up by Ring signal from S3(Sleep), S4(Hibernate) and Enabled[Default], S5(Soft Off) States. Enable/Disable USB Power delivery in S3 USB Standby Power Disabled (Sleep), S4 (Hibernate) and S5 (Soft Off) Delivery Enabled[Default], States. 46 EAX-C236KP-B1 User’s Manual... -
Page 47: S5 Rtc Wake Settings
+ Increase minute(s). 3.6.2.7 Super IO Configuration You can use this item to set up or change the Super IO configuration for serial ports. Please refer to 3.6.2.6.1~ 3.6.2.6.7 for more information. EAX-C236KP-B1 User’s Manual 47... -
Page 48: Serial Port 1 Configuration
Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). Parallel Port Configuration Set Parameters of Parallel Port (LPT/LPTE). 3.6.2.7.1 Serial Port 1 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 48 EAX-C236KP-B1 User’s Manual... -
Page 49: Serial Port 2 Configuration
3.6.2.7.2 Serial Port 2 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled RS232[Default] Set COM Port as RS232, RS422 or RS485 UART 232 422 485 RS422 mode. RS485 3.6.2.7.3 Serial Port 3 Configuration EAX-C236KP-B1 User’s Manual 49... -
Page 50: Serial Port 4 Configuration
Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.7.4 Serial Port 4 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.7.5 Serial Port 5 Configuration 50 EAX-C236KP-B1 User’s Manual... -
Page 51: Serial Port 6 Configuration
User’s Manual Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.7.6 Serial Port 6 Configuration Item Option Description Enabled[Default], Serial Port Enable or Disable Serial Port (COM). Disabled 3.6.2.7.7 Parallel Port Configuration EAX-C236KP-B1 User’s Manual 51... -
Page 52: Nct6106D H/W Monitor
Parallel Port Enable or Disable Parallel Port (LPT/LPTE). Disabled STD Printer Mode[Default] Device Mode SPP Mode Change the Printer Port mode. EPP-1.9 and SPP Mode EPP-1.7 and SPP Mode 3.6.2.8 NCT6106D H/W Monitor 3.6.2.8.1 Smart Fan Configuration 52 EAX-C236KP-B1 User’s Manual... -
Page 53: Serial Port Console Redirection
CPU Fan manual output duty: 0 to 255. Manual Smart Fan Mode Selection: Manual Mode (No SYSFAN1 Mode SmartFan IV[Default], Smart Fan), SmartFan IV™ Mode. 3.6.2.9 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled EAX-C236KP-B1 User’s Manual 53... -
Page 54: Legacy Console Redirection Settings
Console Redirection is disabled before booting Always to legacy OS. When Always Enable is selected, Redirect After POST Enable[Default], then Legacy BootLoader Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. 54 EAX-C236KP-B1 User’s Manual... -
Page 55: Intel Txt Configuration
User’s Manual 3.6.2.10 Intel TXT Configuration 3.6.2.11 Network Stack Configuration Item Options Description Disabled[Default] Network Stack Enable/Disable UEFI Network Stack. Enabled EAX-C236KP-B1 User’s Manual 55... -
Page 56: Csm Configuration
EAX-C236KP-B1 User’s Manual 3.6.2.12 CSM Configuration Item Options Description Disabled[Default] CSM Support Enable/Disable CSM Support. Enabled 3.6.2.13 USB Configuration The USB Configuration menu helps read USB information and configures USB settings. 56 EAX-C236KP-B1 User’s Manual... -
Page 57: Chipset
Floppy enumerates devices according to their media format. Optical drives are emulated as ‘CDROM’, Mass Storage Devices Forced FDD Hard Disk drives with no media will be emulated according CD-ROM to a drive type. 3.6.3 Chipset EAX-C236KP-B1 User’s Manual 57... -
Page 58: System Agent (Sa) Configuration
EAX-C236KP-B1 User’s Manual 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 3.6.3.1.1 Memory Configuration 58 EAX-C236KP-B1 User’s Manual... -
Page 59: Graphics Configuration
User’s Manual 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX/PEG/PCI Graphics device IGFX Primary Display should be Primary Display Or select SG for Switchable Gfx. PCIE 3.6.3.1.3 DMI/OPI Configuration EAX-C236KP-B1 User’s Manual 59... -
Page 60: Peg Port Configuration
Select PCI Express Max Transaction Layer Max TLP payload size 256 TLP[Default] Packet payload size. Enabled: PCIe ASPM will be programmed after Program PCIe ASPM after Disabled[Default] OpROM. Disabled: PCIe ASPM will be OpROM Enabled programmed before OpROM. 60 EAX-C236KP-B1 User’s Manual... -
Page 61: Peg Port Feature Configuration
PEG Port Feature Configuration Item Option Description Detect Non-Compliance Disabled[Default] Detect Non-Compliance PCI Express Device in Device Enabled 3.6.3.2 PCH-IO Configuration Item Option Description Disabled Enable or disable OnBoard PCH LAN PHY LAN PHY Controller Enabled[Default] Controller. EAX-C236KP-B1 User’s Manual 61... -
Page 62: Pci Express Configuration
PCIe x4 Slot (PCI-E Port 1) Control the PCI Express Root Port. Enabled[Default] Auto[Default] Set the ASPM Level: Force L0s – Force all links L0sL1 to L0s State AUTO – BIOS auto configure ASPM DISABLE – Disables ASPM. Disabled 62 EAX-C236KP-B1 User’s Manual... -
Page 63: Extra Options
Reseved Memory Reseved Memory Alignment (0 - 31 bits) Alignment Prefetchable Memory Prefetchable Memory Alignment (0 - 31 bits) Alignment 128 TLP Select PCI Express Max Transaction Layer Max TLP payload size 256 TLP[Default] Packet payload size. EAX-C236KP-B1 User’s Manual 63... -
Page 64: Mpcie/Msata Slot (Pci-E Port 5)
PCIe Speed Gen1 Configure PCIe Speed. Gen2 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports Detect Timeout before assuming there is no device and potentially disabling the port. 64 EAX-C236KP-B1 User’s Manual... -
Page 65: Extra Options
Prefetchable Memory Range for this Root Prefetchable Memory Bridge. Reseved Memory Alignment Reseved Memory Alignment (0 - 31 bits) Prefetchable Memory Alignment Prefetchable Memory Alignment (0 - 31 bits) 3.6.3.2.1.3 PCI-E to PCI Bridge (PCI-E Port 6) EAX-C236KP-B1 User’s Manual 65... -
Page 66: Pci-E X1 Slot (Pci-E Port 7)
PCIe Speed Configure PCIe Speed. Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports Detect Timeout before assuming there is no device and potentially disabling the port. 66 EAX-C236KP-B1 User’s Manual... -
Page 67: Extra Options
Reseved Memory Reseved Memory Alignment (0 - 31 bits) Alignment Prefetchable Memory Prefetchable Memory Alignment (0 - 31 bits) Alignment 128 TLP Select PCI Express Max Transaction Layer Max TLP payload size 256 TLP[Default] Packet payload size. EAX-C236KP-B1 User’s Manual 67... -
Page 68: Intel I211 Lan Chip (Pci-E Port 8)
Intel I211/I210 LAN Chip Disabled Control the PCI Express Root Port. (PCI-E Port 8) Enabled[Default] 3.6.3.2.1.6 NGFF1(M.2) Slot (PCI-E Port 9) Item Option Description NGFF1(M.2) Slot Disabled Control the PCI Express Root Port. (PCI-E Port 9) Enabled[Default] 68 EAX-C236KP-B1 User’s Manual... -
Page 69: Extra Options
POST time Prefetchable Memory Range for this Root Prefetchable Memory Bridge. Reseved Memory Reseved Memory Alignment (0 - 31 bits) Alignment Prefetchable Memory Prefetchable Memory Alignment (0 - 31 bits) Alignment EAX-C236KP-B1 User’s Manual 69... -
Page 70: Sata And Rst Configuration
Gen3 Disabled SATA Port Enable or Disable SATA Port. Enabled[Default], Hard Disk Identify the SATA port is connected to Solid SATA Device Type Drive[Default] State Drive or Hard Disk Drive. Solid State Drive 70 EAX-C236KP-B1 User’s Manual... -
Page 71: Hd Audio Configuration
Disabled = HDA will be unconditionally disabled HD Audio Enabled, Enabled = HDA will be unconditionally enabled Auto[Default] Auto = HDA will be enabled if present, disabled otherwise. 20 dB 26 dB[Default], Amplifier Gain Select Amplifier Gain(dB). 32 dB 36 dB EAX-C236KP-B1 User’s Manual 71... -
Page 72: Security
EAX-C236KP-B1 User’s Manual 3.6.4 Security Administrator Password Set setup Administrator Password User Password Set User Password 3.6.4.1 Secure Boot menu 72 EAX-C236KP-B1 User’s Manual... -
Page 73: Key Management
Image Execution policy Custom[Default] and manage Secure Boot Keys. 3.6.4.1.1 Key Management Item Option Description Provision Factory Enabled, Allow to provision factory default Secure Boot Defaults Disabled[Default] keys when System is in Setup Mode. EAX-C236KP-B1 User’s Manual 73... -
Page 74: Boot
Enables or disables boot with initialization of a Disabled[Default] Fast Boot minimal set of devices required to launch active Enabled boot option. Has no effect for BBS boot options. Boot Option #1 Set the system boot order. 74 EAX-C236KP-B1 User’s Manual... -
Page 75: Save And Exit
Reset the system after saving the changes. 3.6.6.2 Discard Changes and Reset Any changes made to BIOS settings during this session of the BIOS setup program are discarded. The setup program then exits and reboots the controller. EAX-C236KP-B1 User’s Manual 75... -
Page 76: Restore Defaults
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. 76 EAX-C236KP-B1 User’s Manual... -
Page 77: Drivers Installation
User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. EAX-C236KP-B1 User’s Manual 77... -
Page 78: Install Chipset Driver
All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Install. Step 4. Complete setup. Step1. Click Next. Step 2. Click Accept. 78 EAX-C236KP-B1 User’s Manual... -
Page 79: Install Vga Driver
Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Step 5. Click Finish to complete setup. Click Yes to accept license agreement. EAX-C236KP-B1 User’s Manual 79... -
Page 80: Install Sol Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next Step 4. Click Finish to complete the setup Step 1. Click Next to continue setup. Step 2. Click Next. 80 EAX-C236KP-B1 User’s Manual... -
Page 81: Install Audio Driver (For Realtek Alc888S Hd Audio)
All drivers can be found on the Avalue Official Website: http://www.avalue.com.tw. Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step1. Click Next to Install. Step 2. Select Finish to complete Installation. EAX-C236KP-B1 User’s Manual 81... -
Page 82: Install Lan Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Install Drivers and Step 4. Click Next. Software. Step 2. Click Next. Step 5. Click Install. 82 EAX-C236KP-B1 User’s Manual... - Page 83 User’s Manual Step 6. Click Install. Step 7. Click Finish to complete setup. EAX-C236KP-B1 User’s Manual 83...
-
Page 84: Install Rst Driver
Note: The installation procedures and screen shots in this section are based on Windows 10 operation system. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Next. 84 EAX-C236KP-B1 User’s Manual... - Page 85 User’s Manual Step 6. Click Finish to complete setup. EAX-C236KP-B1 User’s Manual 85...
- Page 86 EAX-C236KP-B1 User’s Manual 5. Mechanical Drawing 86 EAX-C236KP-B1 User’s Manual...
- Page 87 User’s Manual Unit: mm EAX-C236KP-B1 User’s Manual 87...
- Page 88 EAX-C236KP-B1 User’s Manual Unit: mm 88 EAX-C236KP-B1 User’s Manual...
