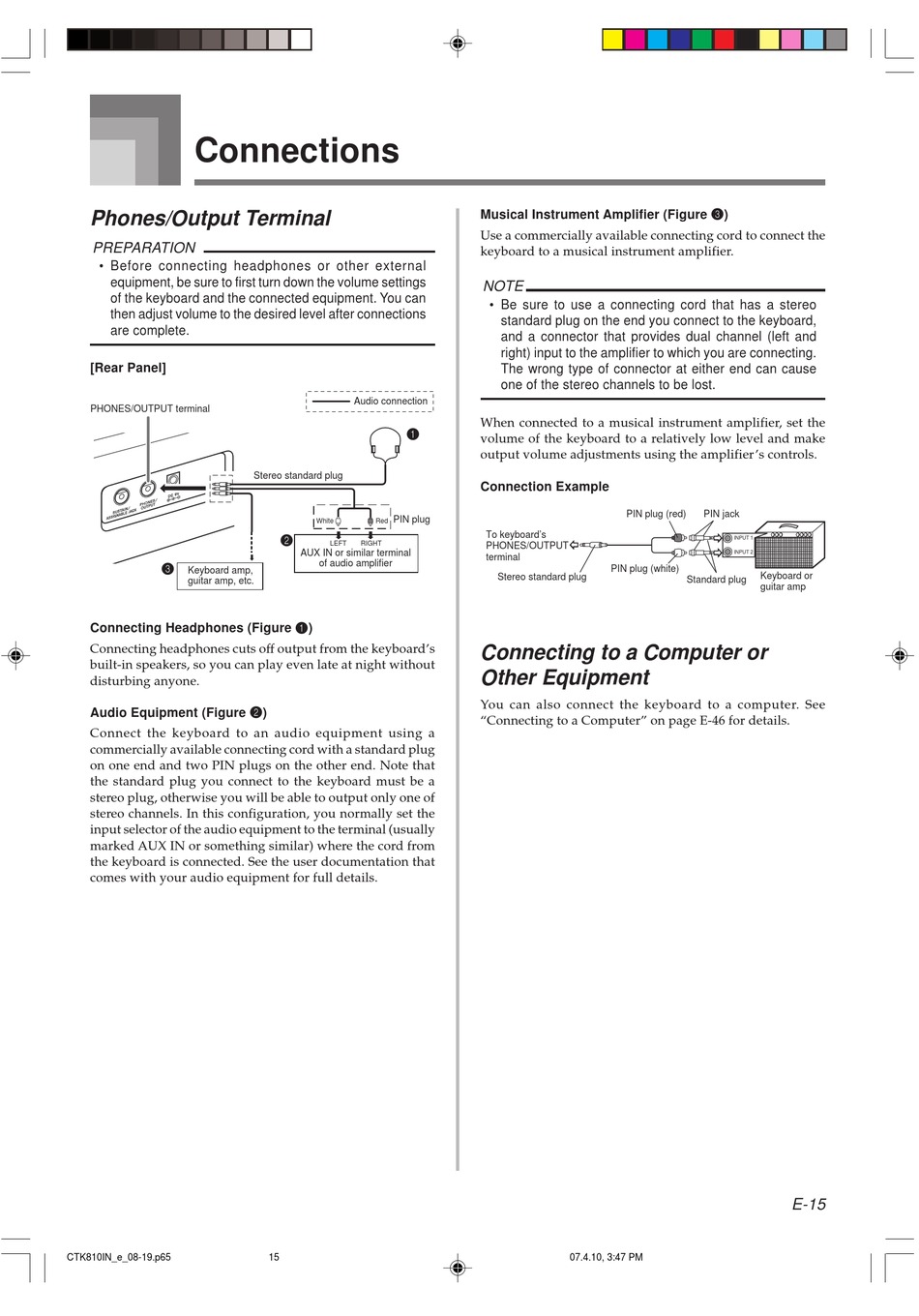

Connections

Phones/Output Terminal

PREPARATION
• Before connecting headphones or other external
equipment, be sure to first turn down the volume settings
of the keyboard and the connected equipment. You can
then adjust volume to the desired level after connections
are complete.
[Rear Panel]
PHONES/OUTPUT terminal
3
Keyboard amp,
guitar amp, etc.
Connecting Headphones (Figure 1 )
Connecting headphones cuts off output from the keyboard's
built-in speakers, so you can play even late at night without
disturbing anyone.
Audio Equipment (Figure 2 )
Connect the keyboard to an audio equipment using a
commercially available connecting cord with a standard plug
on one end and two PIN plugs on the other end. Note that
the standard plug you connect to the keyboard must be a
stereo plug, otherwise you will be able to output only one of
stereo channels. In this configuration, you normally set the
input selector of the audio equipment to the terminal (usually
marked AUX IN or something similar) where the cord from
the keyboard is connected. See the user documentation that
comes with your audio equipment for full details.
CTK810IN_e_08-19.p65
Audio connection
1
Stereo standard plug
PIN plug
White
Red
2
LEFT
RIGHT
AUX IN or similar terminal
of audio amplifier
15
Musical Instrument Amplifier (Figure 3 )
Use a commercially available connecting cord to connect the
keyboard to a musical instrument amplifier.
NOTE
• Be sure to use a connecting cord that has a stereo
standard plug on the end you connect to the keyboard,
and a connector that provides dual channel (left and
right) input to the amplifier to which you are connecting.
The wrong type of connector at either end can cause
one of the stereo channels to be lost.
When connected to a musical instrument amplifier, set the
volume of the keyboard to a relatively low level and make
output volume adjustments using the amplifier's controls.
Connection Example
PIN plug (red)
To keyboard's
PHONES/OUTPUT
terminal
PIN plug (white)
Stereo standard plug
Connecting to a Computer or
Other Equipment
You can also connect the keyboard to a computer. See
"Connecting to a Computer" on page E-46 for details.
07.4.10, 3:47 PM
PIN jack
INPUT 1
INPUT 2
Keyboard or
Standard plug
guitar amp
E-15
