DS7400XiV4-EXP | User Guide | 4.0 Understanding the Text and LED Keypads
4.0 Understanding the Text and
LED Keypads
DS7447E/DS7447V2 are alpha-numeric LCD keypads.
DS7445i/DS7445V2 are LED keypads; its LEDs (1 to
16) represent the first 16 zones of the system. Both
display information about control panel functions. A
built-in sounder is used to annunciate keystroke entries
and functions as an interior warning device.
The front of your keypad might look different than the
keypads shown below. The instructions in this
document still apply as the functions are the same.
Table 1: Keypad LEDs
LED Off
Armed All areas are disarmed.
(red)
Status Not ready to arm (if the Armed LED
(green) is on, all areas are armed).
Power The control panel has lost all
(green) power; no AC or battery.
Fire There are no fire alarms.
(red)
These status LEDs are present only on the LED Keypad:
Table 2: Status LEDs
LED Off
Perimeter Control panel is disarmed or is not
(yellow) perimeter armed.
Supervisory There are no supervisory alarms
(yellow) present.
Bell The bells do not have to be or are
Silenced not silenced.
(red)
Trouble There are no trouble conditions.
(yellow)
LEDs 1 to There are no zone alarms.
16 (red)
Volume Control
You can adjust the keypad sounder volume using the
[1] and [4] keys with the [*] key.
Hold the [*] key and press the [1] key to increase the
volume or the [4] key to decrease the volume.
Backlight Control (Text Keypad Only)
You can adjust the display backlight intensity using the
[3] and [6] keys with the [*] key.
Hold the [*] key and press the [3] key to increase the
brightness or the [6] key to decrease the brightness.
Bosch Security Systems | 6/05 | 4998154961B
(For other keypad operations, refer to Section 11.0 The
Master Keypad on page 31.)

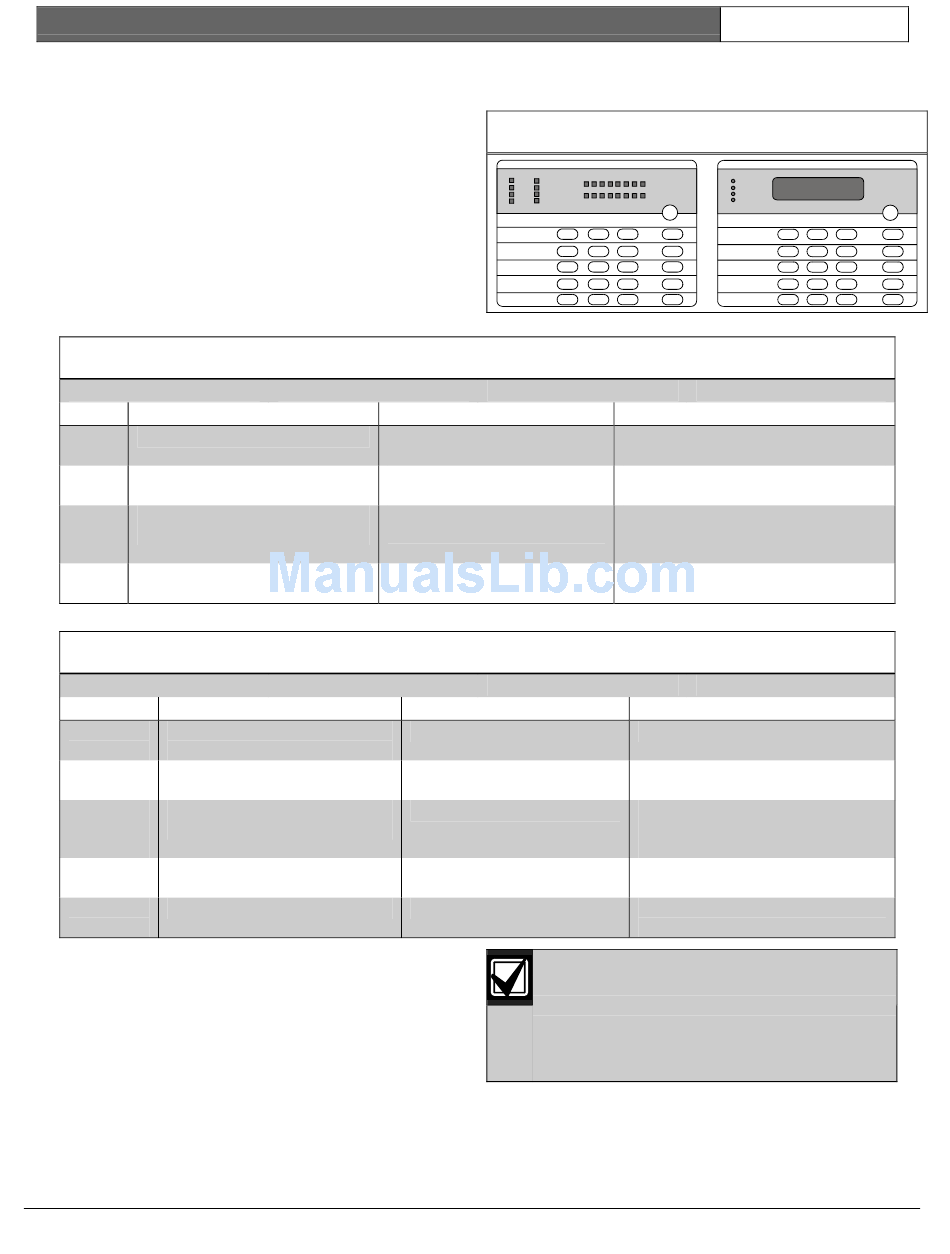

Figure 1: Text and LED Keypads
Armed
Perimeter
Status Supervisory
Power Bell Silenced
Fire Trouble
1
4
7
*
LED Keypad
Flashing
One or more areas are armed, or
an alarm occurred.
One or more zones are
bypassed.
Control panel problems exist.
Refer to Section 9.0 Error
Displays.
A fire zone is in alarm.
Flashing
This LED does not flash.
A supervisory condition exists.
This LED does not flash.
This LED does not flash.
A zone (1 to 16) is alarmed.
After adjusting the backlight and volume,
you must arm and disarm the system once
to store this information in the control panel.
If power is disconnected before the control
panel is armed, the backlight and volume
levels return to the default settings.
Armed
Status
1 2 3 4 5 6 7 8
Power
9 10 11 12 13 14 15 16 Fire
On
Off
2 3
Perimeter
5 6
Only
No
8 9
Entry
0 # Bypass
System
Reset
Text Keypad
On
All partitions are armed, and no alarms
occurred.
All areas are ready to arm.
Normal Operation. The control panel is
running on AC power with no problems.
A fire trouble condition exists.
On
The perimeter is armed.
This LED does not turn on steady.
There was a fire alarm and the bells
were silenced. To clear, enter the Fire
Reset command: [PIN][System Reset]
A trouble condition exists.
A zone (1 to 16) is not ready to arm,
or if a fire zone, a trouble exists.
EN | 5
TEST WEEKLY
On
Off
1 2 3
Perimeter
4 5 6
Only
No
7 8 9
Entry
*
0 # Bypass
System
Reset
