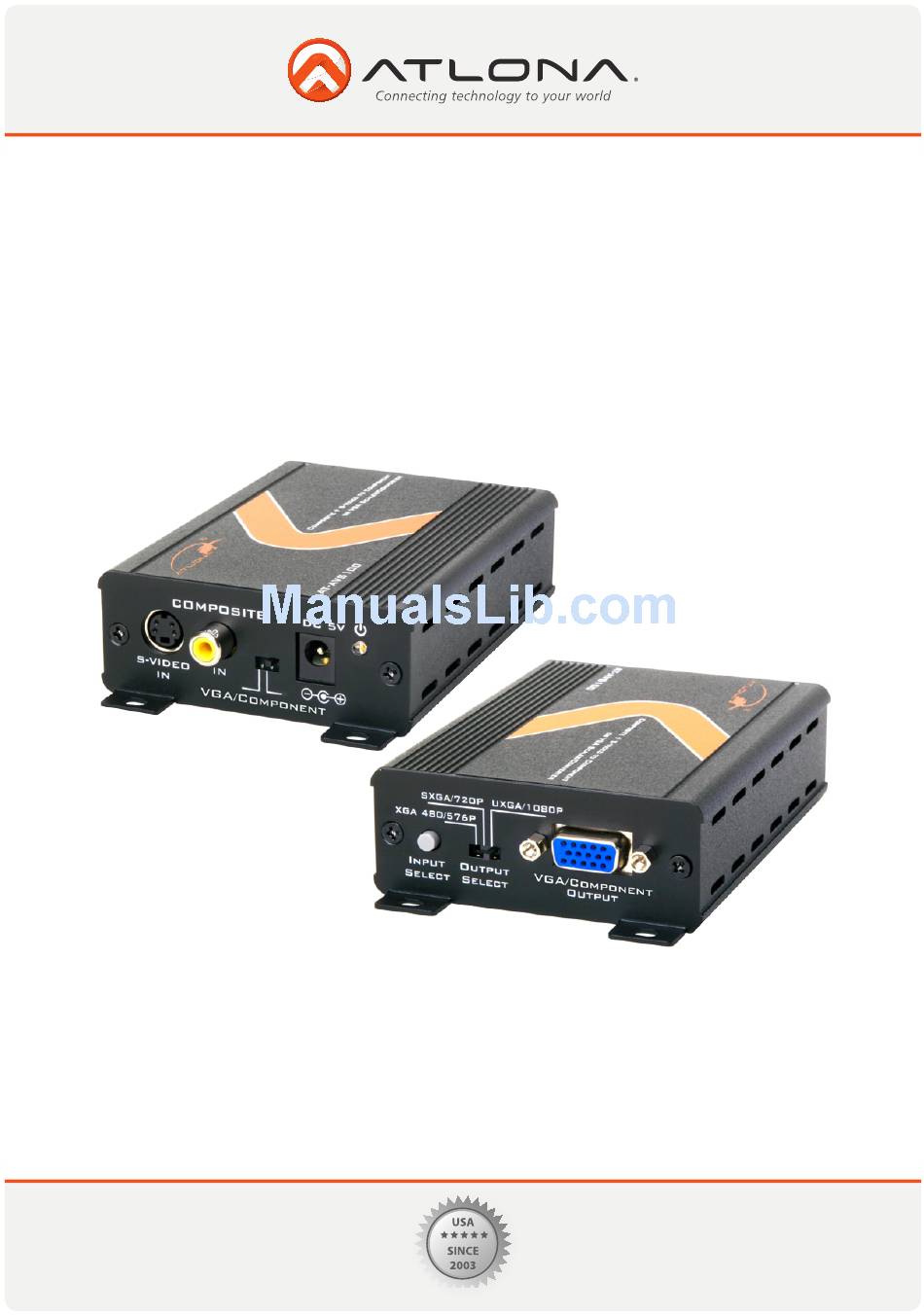

- Page 1 Composite or S-Video Scaler/Converter to Component or VGA AT-AVS100 User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Applications 5. Specifications 6. Panel Description 6.1. Left Panel 6.2. Right Panel 7. Connection Diagram 8. Safety Information 9. Warranty 10. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

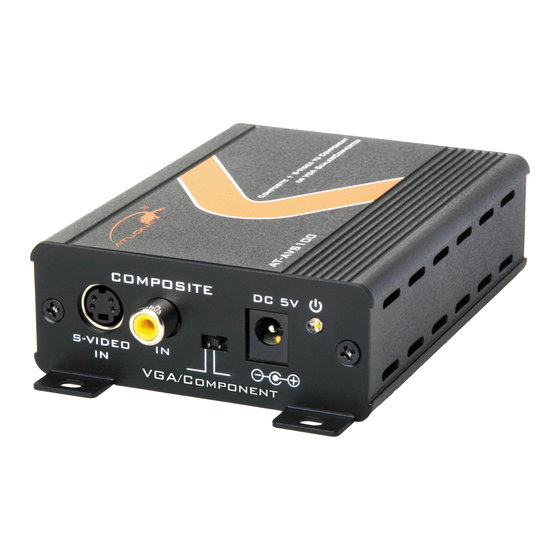

INTRODUCTION The Atlona AT-AVS100 allows composite video or S-video to be converted and scaled to either component video or VGA. The AVS100 is capable of scaling component video resolution from 480p to 1080p and VGA resolutions from 640x480 to 1600x1200. -
Page 4: Specifications
4. VGA/Component switch: This dip switch allows user to select a VGA or component video output. Simply slide the dip switch to left or right and the output mode will display your desire selection. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Right Panel
XGA/SXGA/UXGA or component video resolution 480p/576p/720p/1080p. Simply move the dip switch to the desired resolution. 3. VGA out:Connect VGA cable to aVGA display orVGA /component cable to a component video display. CONNECTION DIAGRAM PC Monitor TV with Component input Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Safety Information
It may also cause damage to your AT- AVS100. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 7: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 8: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
