Thermal Cut Outs - GE Profile PT925 Technical Service Manual

Strip Circuit
UNLOCKED
To remove the lock assembly:
1. Remove the main rear access panel. (See
.)
Access Panels
2. Remove the two T15 Torx screws from the front
of the oven that secure the lock assembly in
place.
3. Disconnect the motor and switch wiring
harnesses from the lock assembly.
Lock Assembly
Disconnect
4. Slide the lock assembly through the channel and
out through the back of the oven.
J16
5
4
3
2
1
J17-Pin9
Rear
Disconnect
– 39 –

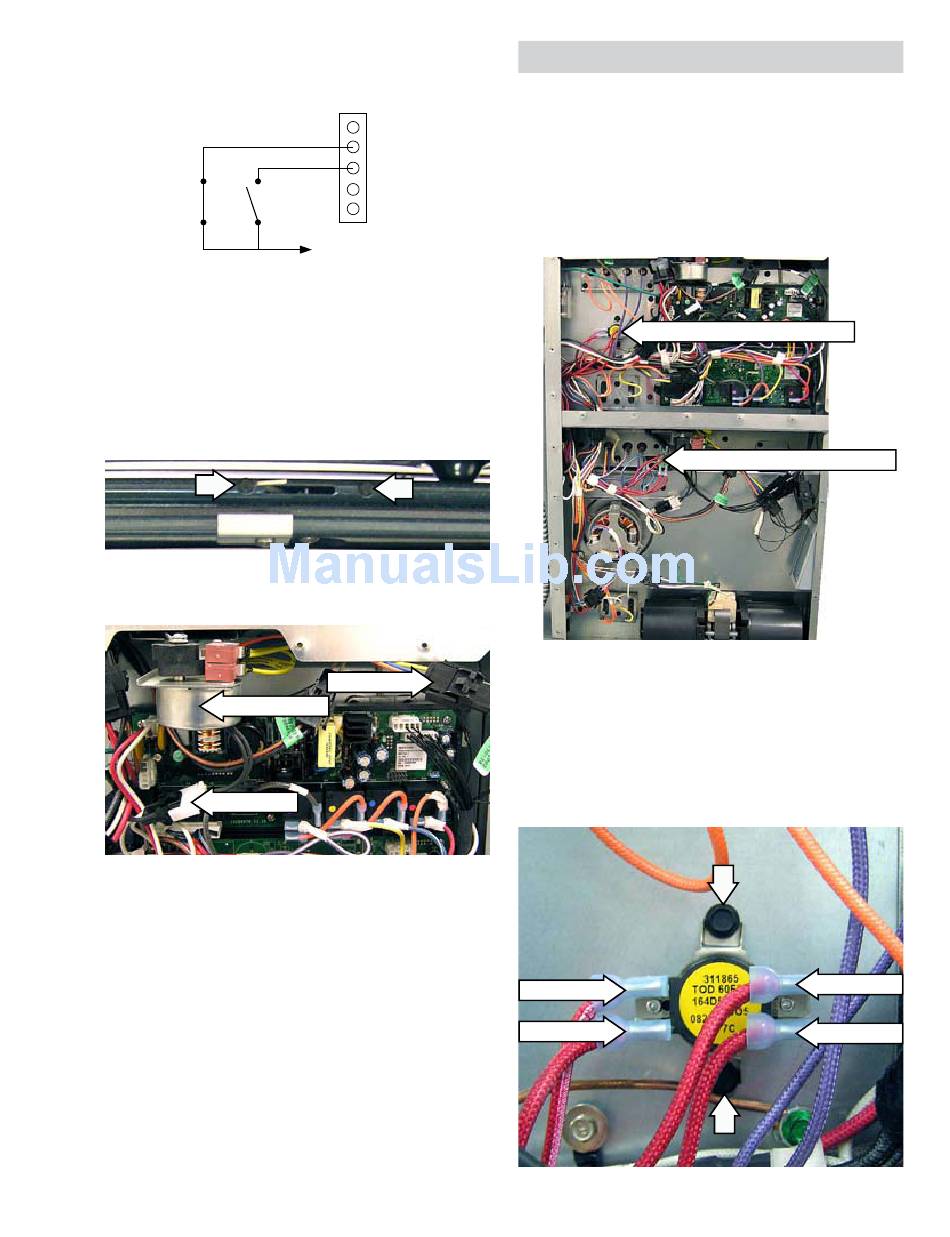

Thermal Cut Outs

When either of the 2 thermal cut outs are open, L2 is
cut off from the oven.
The thermal cut outs are rated at:
• Upper oven TCO = 177°C/350°F
• Lower oven TCO = 150°C/302°F
Upper Oven Thermal Cut Out
Lower Oven Thermal Cut Out
To remove the thermal cut outs:
1. Remove the main rear access panel. (See
.)
Access Panels
2. Disconnect the wires, and remove the two 1/4-
in. hex-head screws that attach the thermal
switch to the oven.
Disconnect
Disconnect
Rear
Disconnect
Disconnect
