Oven Components - GE Profile PT925 Technical Service Manual

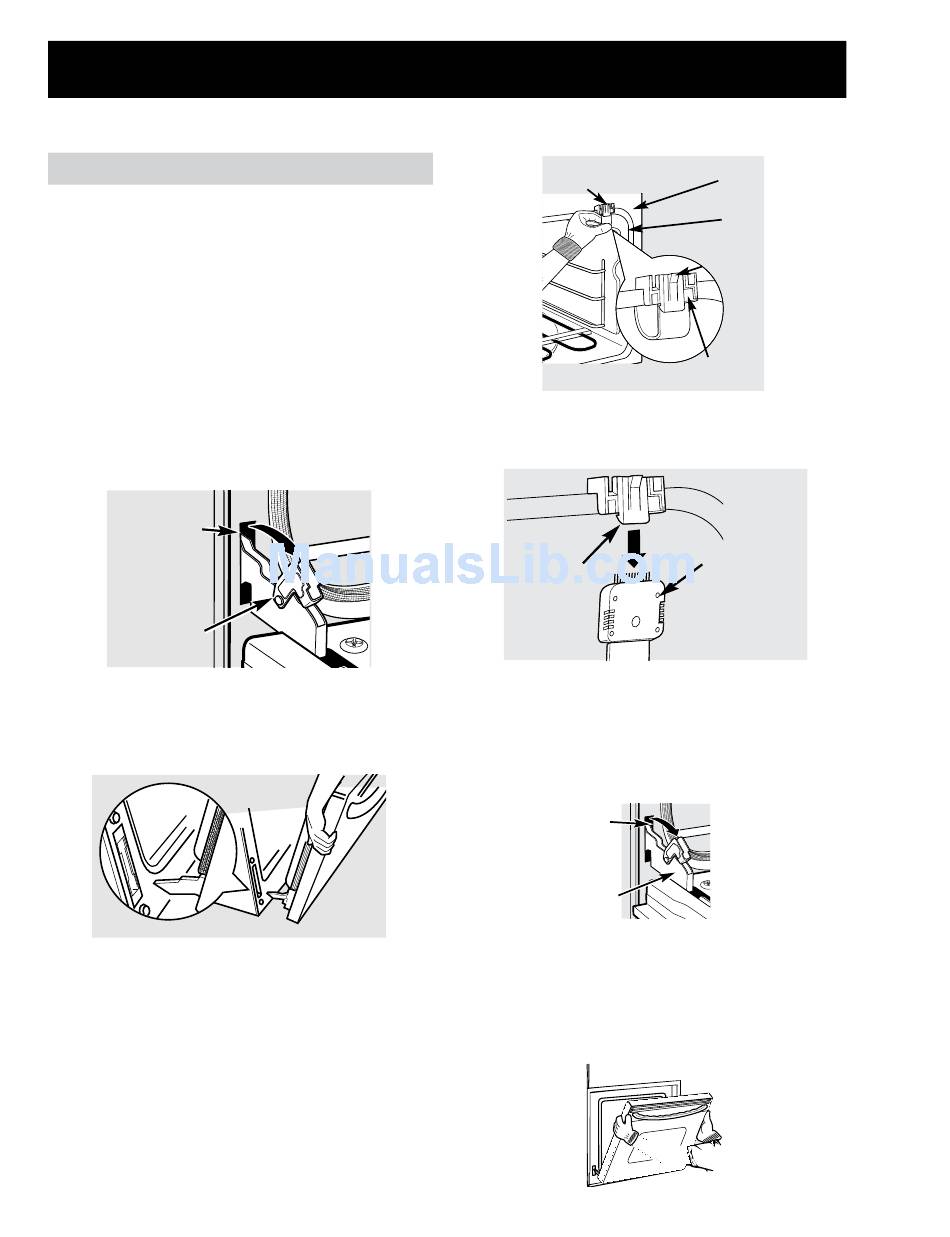

Door Assemblies
The upper door contains many of the electronics
and controls for the oven.
Caution: The doors are heavy. Use the correct lifting
procedure. Do not lift the doors by the handles.
To remove the lower door:
1. Open the door fully.
2. Push the hinge locks down toward the door
frame, to the unlocked position. (This may
require a flat-blade screwdriver to start the
hinge locks moving.)
Slot
Hinge
lock
3. Firmly grasp both sides of the door at the top.
4. Close the door to the door removal position.
5. Lift the door up and out until the hinge arm is
clear of the slot
To remove the upper door:
1. Fully open or remove the lower door.
2. Pull down on the ribbon cable until the snap
engages with the door frame.

Oven Components

3. Pull the tab forward to release the ribbon cable
assembly from the door.
Press tab
to release
ribbon
cable
4. Fully open the upper oven door.
5. Lift up on the hinge locks toward the oven frame
until they stop.
6. Close the door to 45 degrees. The hinge lock will
contact the oven frame.
– 28 –
Pull down
Upper
to access
Oven
Lower
Oven
Snap engages
with door
frame
Slider Assembly
Pull down to
disconnect
ribbon cable
assembly
Hinge Lock
(Unlocked Position)
Slot
Hinge
Lock
Removal Position
(Continued next page)
