Ltl Acorn Ltl-6630-4G User Manual

Low power consumption infrared scouting camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

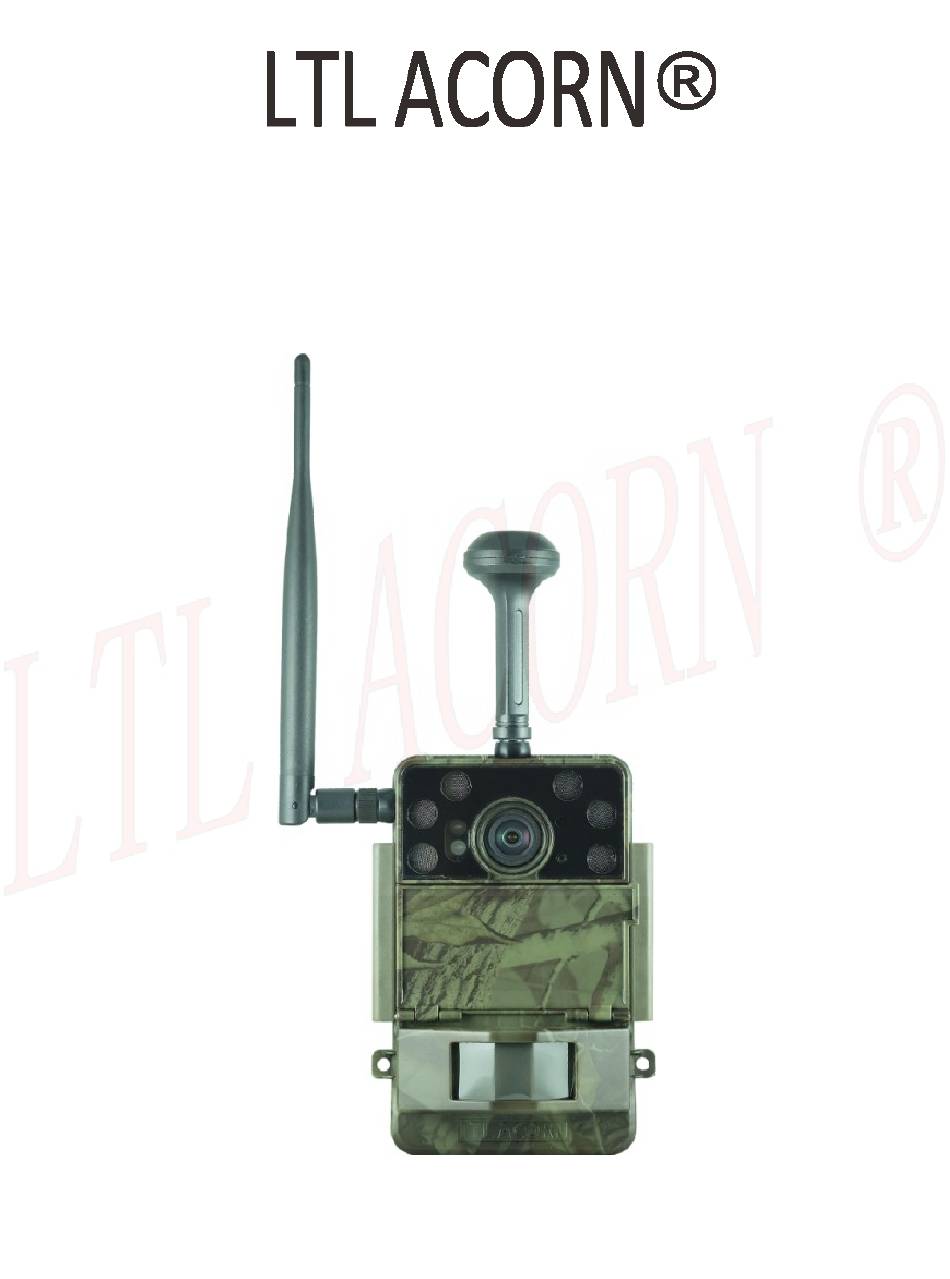

Low Power Consumption Infrared Scouting Camera
Ltl-6630-4G
LTE Cellular Mobile Communication Series
1080P HD Video
Less Than 0.8S Trigger Time in Actual Application
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ltl-6630-4G and is the answer not in the manual?

Questions and answers

Related Manuals for Ltl Acorn Ltl-6630-4G

Summary of Contents for Ltl Acorn Ltl-6630-4G

  • Page 1 Low Power Consumption Infrared Scouting Camera Ltl-6630-4G LTE Cellular Mobile Communication Series 1080P HD Video Less Than 0.8S Trigger Time in Actual Application USER’S MANUAL...

  • Page 2: Table Of Contents

    5.3 Set up SFTP Parameters on PC ............42 Ltl Acorn Camera Cloud System Settings ..........48 6.1 Set Parameters of Ltl Acorn Camera Cloud System on Camera ... 48 6.2 Set Parameters of Ltl Acorn Camera Cloud System on computer ..49 ..
  • Page 3 9.2 Use Camera Outdoors ................. 61 9.3 Introduction of 18650 Lithium Battery ........... 62 FIRMWARE UPGRADES ................63 Remote update program via Ltl Acorn Camera Cloud System....65 LIMITED WARRANTY ................69 Appendix I: TECHNICAL SPECIFICATION ..........70 Appendix II: PACKAGE CONTENTS ............73 Appendix III: Illustration of Battery Box Installation .......

  • Page 4: General Information

    The captured picture and Video can be directly uploaded to Ltl Acorn cloud system via 4G network with protocol http/https, users are able to log in the cloud system on...

  • Page 5: Features

     With 4G LTE wireless transmission module, the uploading speeds can be up to 50Mbps .  Send the captured file to E-mail, appointed FTP (SFTP) or Ltl Acorn Camera Cloud System via 4G wireless network.  Connecting with external environment data collection device with the...
  • Page 6  Burst shooting with 1 second interval.  Photo encryption function (need to upgrade software with encryption function), the photos captured are automatically encrypted and only can be viewed after decrypted by decryption software.  6 super bright 850nm or 940nm IR LED lights for great night vision. ...

  • Page 7: Application

    1.2 Application  Wildlife animal and plants observation  Security and surveillance 1.3 Illustration  Figure 1.1 shows the front view of the camera  Figure 1.2 shows the bottom view of the camera  Figure 1.3 shows the camera's battery compartment GPS Antenna Antenna Motion Indicator...
  • Page 8 Type -C socket SD card slot Power/Mode External DC switch Power in jack Figure 1.2 Bottom View of the Camera Camera interface: Type-C port, SD card slot, external DC power charging port. Power/mode switch (switch inward: OFF mode, switch outward ON mode: boot working mode, press TEST key to enter TEST test mode or ON auto record mode.

  • Page 9: Keypad

    1.4 Keypad Keypad Keypad Function Power mode OFF: power off. ON: automatic shooting. In the ON position, switch press the TEST key to enter the boot preview test mode. MENU key Enter/exit menu. The TEST (test) mode and ON (auto record) mode can be TEST key switched when the power switch is in the ON position.

  • Page 10: Getting Started

    Getting Started 2.1 Load Batteries The battery box on the back of the camera can load 6 18650 lithium batteries.  Please be aware that the battery polarity should correspond to the mark on the battery box.  Please follow the positive and negative mark on battery box to load 6x18650 lithium batteries.

  • Page 11: Insert Sim Card

    sure the SD card insertion direction is same with the sign aside the SD card slot. Insert SD card The camera does not come with internal memory. It will not work without a SD (Secure Digital) memory card or SDHC (High Capacity) card.
  • Page 12 working indicator light is flashing, it will enter the ON mode by default for automatic recording. Press the TEST button in ON mode, the camera screen will display and enter the preview test mode. In this mode, you can operate the camera by the buttons on camera operation panel, take photos and record videos as an ordinary digital camera.

  • Page 13: Connect The Environmental Data Acquisition Device And Necessary Settings

    area as needed.  Walk from one side to another side of the sensing area in front of the camera,try different distance and angle.  If the indicator light flashes red when moving, it indicates that the camera will record at your location. After doing this test, you can find the best shooting position when you install the camera.

  • Page 14: Gps Positioning And Ntp Update Time Of Camera

    In preview test mode, press left arrow key to enter wireless setting menu, set the send status as Ltl Acorn camera cloud system and set the cloud system parameters, then set the environment monitoring menu to 'ON'.

  • Page 15: Automatic Infrared Sensing Shooting

    is successful, the display will show prompt message automatically update the time of camera system. In the ON mode, the camera will activate the NTP time synchronization function of 4G wireless module at around 00:13 every day to update and correct the time of camera.

  • Page 16: Advanced Settings

    ADVANCED SETTINGS 3.1 Set up Parameters on Camera LTL ACORN hunting camera comes with default settings. Users can change the setting parameters as required. After installing 6 fully charged 18650 lithium batteries in the camera, turn the switch outwards to the ON position,...
  • Page 17 01 Photo, 02 Select the number of burst shooting Picture No. Photos, 03 Photos at per trigger. Set length of video as required, camera will start recording video as preset length after it is automatically triggered in ON mode and stop recording till preset length is reached.
  • Page 18 Select ON the camera or video will automatically mark the time stamp and the photo can show the camera ID, coordinates, temperature and moon phase. On, Off Notice: the temperature shown is the Time Stamp internal temperature of the camera, the camera will heat at work, it makes the difference between internal and external...
  • Page 19 Select On to assign an ID for the camera with digits and/ Serial No. Off, On alphabets, 0~9 and A~Z, the ID will be imprinted on photo with time stamp On. Select On, you can set the time period of automatic cycle shooting, and the camera will automatically take pictures/videos...

  • Page 20: Replay Mode

    SD card. Press the button 'Menu' to enter replay menu, you can delete photo and video, or directly send the current photo or video to mailbox, FTP/SFTP or Ltl Acorn Cloud System.

  • Page 21: Set Up 4G Parameters On Camera

    The photo taken by camera is in JPEG format, video in H.264 AVI format. Ltl-6630-4G saves files in folder DCIM\100IMA4E in the SD card, Picture would be named like IMAG0001.JPG and video like IMAG0001.MOV. You can retrieve the SD card from camera and connect with computer with a SD card reader, view the files on computer directly.
  • Page 22 Send immediately: camera will immediately send photo/video to the Send Time Immediately email, FTP/SFTP, Acorn Camera Cloud System after shooting. Default Off: cannot change camera setting by sending SMS command. 1 hour-24 hours: interval time to wake camera receive commands. For example, if you set the SMS remote control time as 1 hour, the 4G module in the camera will wake up and start receiving SMS...

  • Page 23: Set Up Camera On Pc

    (it would not return the camera parameters to default setting). 3.4 Set up Camera on PC Visit the website of LTL ACORN directly and download the software CameraSetup.exe. According to the link http://www.ltlacorn.cn (Download — >PC SETUP Download—> CameraSetup.exe), download and save it on the computer, run the CameraSetup.exe software.
  • Page 24 Below is the icon of the CameraSetup.exe software: Double click the CameraSetup.exe icon, you will see below page : Click to choose the camera model as request. Click to choose the software language of the interface.
  • Page 25 Click to enter camera setting interface: Set the camera as your requirements. Please refer to section 3.1 Set up Parameters on Camera for better operation. Click choose the save directory, SD card root directory is recommended (connect SD card to computer with SD card reader first).

  • Page 26: Sms Remote Control & Table Of Command Code

    Click and the below window will pop out: Then click to exit. A file named menu.dat has been created and saved in the selected directory, before inserting the SD card into camera, please copy the menu.dat file to the root directory of the SD card if you didn’t choose SD card to save the file before.
  • Page 27 sequence: a two-digit command code, an asterisk (*), a code value (a number or a combination of number and letter), and lastly a pound/hash sign (#).  Both capitalized and non-capitalized letters can be used in a same command.  Do NOT leave any spaces between any of the letters and symbols.
  • Page 28 Mode: Camera (0), Video (1), Camera+ 01*1# set to video mode Video (2) Image Size: 30MP(0)， 02*1# 14MP(1)，10MP(2)， 3MP(3) Video Size: 1080P (0), 03*1# 720P 720P (1), VGA (2) Picture Number: 01 Photo (0), 02 Photos 04*2# 3 photos (1), 03 Photos (2) Video Length: 1-60 indicates value of 05*59#...
  • Page 29 Recipient Phone 13*198888888 Phone Number: Number 2: Maximum 19888888888 48 types Recipient Email 1: 14*info1@ltlac Email Address: Maximum 48 types orn.cn# info1@ltlacorn.cn Recipient Email 2: 15*info2@ltlac Email Address: Maximum 48 types orn.cn# info2@ltlacorn.cn Remote Receiver Email (receive full size 16*info@ltlaco Email Address: picture of command rn.cn#...
  • Page 30 (E-mail, send it as the FTP/SFTP or Ltl Acorn send mode Camera Cloud preset. System). Note: Send command 60 and 61 by remote control number to control the camera to capture image and send to the mailbox, the sender email information and receiver email must be filled.

  • Page 31: View Local Mpno Name And Signal Strength On Tft Screen

    NO MDM: 4G module is not found or detected. Features and Working Condition of 4G Wireless Module Ltl-6630-4G camera can automatically take photo or video and back to E-mail, FTP/SFTP or Ltl Acorn Camera Cloud System when it works with 4G wireless...
  • Page 32 If you have the Timer on, please make sure the specified time of timer is in the period will send picture.  Make sure the 4G Send Options is E-mail, FTP/SFTP or Ltl Acorn Camera Cloud System.  The camera is stationary while working.

  • Page 33: E-Mail Uploading Function

    E-mail Uploading Function Ltl-6630-4G series cameras have a function of email uploading, which can send the files record by camera to the email set by the user. To use this function, please enter the test mode, correctly set the send email...

  • Page 34: Set Up E-Mail Parameters On Pc

    4.2 Set up E-mail Parameters on PC Double click the CameraSetup.exe icon to enter Setup homepage: Click to choose the camera model as request. Click to enter camera wireless setting interface:...
  • Page 36 Wireless parameter setting interface has two pages, click turn to next page, click to turn to the previous page. Select “Send Status” as “Email” in ” wireless Parameter Settings” window:...
  • Page 37 Set the network parameters of the SIM card operator (select the operator network parameters, or manually enter the URL, gateway, APN, port settings, etc. according to the prompt) Select the operator parameters as required. Set sender email parameters: Click to set the receiver E-mail, sending option, mobile number and E-mail for camera remote control, remote control interval, etc.
  • Page 38 Please click the close button in top right corner of the window to close the window. After copying the CFG.BIN file to the root directory of SD card on PC, retrieve the SD card with CFG.BIN copy file and insert into camera. After load 6 fully charged 18650 lithium batteries, turn the switch outwards to ON mode, close the camera unit to battery box and lock the buckles, press the TEST key when the working indicator light is flashing, the camera enters...

  • Page 39: Ftp/Sftp Uploading Function

    FTP/SFTP Uploading Function Ltl-6630-4G series cameras have a function of FTP or SFTP uploading, which can upload the files record by camera to the appointed FTP or SFTP server. To use this function, please enter the test mode, correctly set the...

  • Page 40: Set Up Ftp Parameters On Pc

    5.2 Set up FTP Parameters on PC After formatting the SD card on camera, retrieve the SD card and insert into PC. The SD card reader may be needed if your PC cannot read SD card directly. After double-click CameraSetup.exe software, the window appears below: Click to choose the camera model as request.
  • Page 42 Wireless parameter setting interface has two pages, click turn to next page, click to turn to the previous page. Select “Send Status” as “FTP” in ” wireless Parameter Settings” window:...
  • Page 43 Set the network parameters of the SIM card operator (select the operator network parameters, or manually enter the URL, gateway, APN, port settings, etc. according to the prompt) Select the operator parameters as required. Set up “Server”, “Port”, “User name” and “Password” in “FTP Settings” and the FTP directory for uploading.
  • Page 44 is recommended (connect SD card to computer with SD card reader first). After finishing setting, click , the below prompt window would be shown when generate the file successfully: Please click the close button in top right corner of the window to close the window.

  • Page 45: Set Up Sftp Parameters On Pc

    5.3 Set up SFTP Parameters on PC After double-click CameraSetup.exe software, the window appears below: Click to choose the camera model as request. Click to enter camera wireless setting interface:...
  • Page 47 Wireless parameter setting interface has two pages, click turn to next page, click to turn to the previous page. Select “Send Status” as “FTP” in ” wireless Parameter Settings” window:...
  • Page 48 Set the network parameters of the SIM card operator (select the operator network parameters, or manually enter the URL, gateway, APN, port settings, etc. according to the prompt) Select the operator parameters as required. Send SFTP with username and password: Set up Server, Port, User Name, Password and FTP directory for uploading in FTP Settings.
  • Page 49 limit, you can enter address starts with sftp: without two slashes //. If you enter the address which is too long to fill the last few letters, the module program will automatically identify and fill in. The SFTP server uses key to upload, please enter "PVT_KEY" to the password field, the module will use the key to upload.
  • Page 50 Please click the close button in top right corner of the window to close the window. After copying the CFG.BIN file to the root directory of SD card on PC, retrieve the SD card with CFG.BIN copy file and insert into camera. After load 6 fully charged 18650 lithium batteries, turn the switch outwards to ON mode, close the camera unit to battery box and lock the buckles, press the TEST key when the working indicator light is flashing, the camera enters...

  • Page 51: Ltl Acorn Camera Cloud System Settings

    "Ltl Acorn Camera Cloud System" menu, press key to confirm entry then you can set the parameters of Ltl Acorn Camera Cloud System. The related menu items of the Ltl Acorn Camera Cloud System are as below: Parameter Settings Descriptions Registered email: user’s login...

  • Page 52: Set Parameters Of Ltl Acorn Camera Cloud System On Computer

    Set Parameters of Ltl Acorn Camera Cloud System on computer Double click to open the CameraSetup.exe software to see below window: Click to choose the camera model as request. Click to enter camera wireless setting interface::...
  • Page 54 Wireless parameter setting interface has two pages, click turn to next page, click to turn to the previous page. In the Wireless Parameter Settings window, select “Send Status” as “Ltl...
  • Page 55 Acorn Camera Cloud System”: Set the network parameters of the SIM card operator (select the operator network parameters, or manually enter the URL, gateway, APN, port settings, etc. according to the prompt) Select the operator parameters as required. Set "Registered mail", "Login Password" and "SIM card phone number" in the "Ltl Camera Cloud System Parameters"...

  • Page 56: Ltl Acorn Camera Cloud System Remotely Modifies Camera Parameters

    Ltl Acorn Camera Cloud System remotely modifies camera parameters Set the send status as Ltl Acorn Camera Cloud System, log in Cloud System on computer or mobile APP, you can remotely modify camera parameters though the camera parameters setting function on the Ltl Acorn Camera Cloud System.
  • Page 57 When the camera uploads photos to the Ltl Acorn Camera Cloud System, the configuration file in the Ltl Acorn Camera Cloud System will be downloaded and updated to the camera.

  • Page 58: Ltl Acorn Camera Cloud System Introduction

    Click "Quick Registration", enter the account and password, click on the login button to login the Ltl Acorn Camera Cloud system. Click " Mobile LtlAcorn Cloud " to enter the download page of Ltl Acorn Camera Cloud System Mobile APP, download and install the mobile phone APP according to the prompts.
  • Page 59 Use help at the left setting menu in the page to open the instruction manual of the Ltl Acorn Camera Cloud System. Note: Please refer to the detailed operation instructions of Ltl Acorn Cloud System, Ltl Acorn Cloud System mobile APP and WeChat official account in the Use help of Ltl Acorn Camera Cloud System website.

  • Page 60: Ltl-6630-4G Series Products

    LTL-6630-4G Series Products Ltl-6630-4G series camera is the latest 4G LTE cellular mobile communication network transmission cameras with features of high-definition and with low-power PIR sensor we developed. It has the 4G wireless transmission module which with strong communication ability and fast information transmission.

  • Page 61: Important Information

    IMPORTANT INFORMATION 8.1 Power Supply Ltl-6630-4G series camera battery box can load with 6x18650 lithium batteries and connect with external power for charging by external power socket. It is recommended to use our company's LTL-SUN-5.5W or LTL-SUN (built-in lithium battery) solar charger to charge 6x18650 lithium batteries, which can greatly extend the working time of the camera.

  • Page 62: 850Nm And 940Nm Ir Led

    Therefore, the number of video clips decreases accordingly. 8.5 850nm and 940nm IR LED Ltl-6630-4G series cameras has 3 types of LED light for option, 850nm, 940nm and white light. The 850nm provides a maximum irradiation range of 25m, the 940nm provides a maximum irradiation range of 20m, and the white light provides a maximum irradiation range of 25 m.

  • Page 63: Low Battery Alert

    were not sent: The camera is able to send constantly, but if the signal is too weak, it may not work stably. Receive partial image or some is incomplete: The camera  was in motion when sending pictures. Or the signal was unstable.

  • Page 64: Precautions

    Precautions 9.1 Battery safety The camera can hold 6 18650 lithium batteries, about the use and storage of batteries, please note:  Do not short-circuit the battery.  Do not soak the battery in the water.  Do not approach and place the battery in the fire. ...

  • Page 65: Introduction Of 18650 Lithium Battery

    2 hours to avoid the harm to the eyes. 9.3 Introduction of 18650 Lithium Battery Ltl Acorn provides two types of 18650 Lithium battery for different working temperatures of -10℃ and -40℃. Users can choose battery according to the actual working temperature of the camera.

  • Page 66: Firmware Upgrades

    Attention: The upgrade program of Ltl-6630-4G is not compatible to other models. In other word, an upgrade for Ltl-6630-4G only applies to Ltl-6630-4G model. If a camera is accidently upgraded by running a non-compatible program, it will quit working and needs to be sent back for repair.
  • Page 67 the remote control mobile phone number (to receive SMS of upgrade finished).  Switch the camera to ON mode and trigger it to take picture. The module would be activated after shooting and start the upgrade. The file testsim would be deleted after the upgrade is finished, then the module would send the message of upgrade successfully to the remote mobile number.

  • Page 68: Remote Update Program Via Ltl Acorn Camera Cloud System

    Conditions of online update： 1、 The camera send status is set to 'Ltl Acorn Camera Cloud System' and the upload parameters are set correctly. 2、 Enter ON mode to ensure that the files captured by the camera are properly uploaded to the Ltl Acorn Camera Cloud System.
  • Page 69 2、 Find the camera that needs to be updated in the camera manage list, click the edit button in operation line at the right side to pop up the edit window.In the window you can see the camera's current program version and the file selection buttos.
  • Page 70 Find the camera software program 'FW66304G' you want to update through the open file window that pops up in the browser , choose and click ‘Open’, you can see the FW66304G.bin appears at the right side of select file button;...
  • Page 71 4、Then click the confirm button below the edit window, wait patiently for about 20 seconds (the wait time is different depends on different network speed), the edit window will be automatically closed, camera program uploaded successfully. Note: Click the confirm button below the edit window to start uploading program, during upload process, please to be patiently to wait till the window is closed automatically, do not click the confirm...

  • Page 72: Limited Warranty

    It does not cover normal wear of the product. Please contact our tech support department to determine the nature of the problem before you return a LTL ACORN product under this warranty for repair or exchange.

  • Page 73: Appendix I: Technical Specification

    Appendix I: TECHNICAL SPECIFICATION Model Parameters Image Sensor 14 Mega Pixels BSI CMOS sensor FOV=60° ; F=1.6 Auto IR-Cut Lens FOV=120° ; 7G+1P; F=1.8;Auto IR-Cut; 6 ultra-high brightness LED lights (940nm, IR Flash 850nm, white light; optional) Automatically adjust brightness of IR LED in Auto IR Adjustment black and white video, reduce current after about 10s to lower power consumption.
  • Page 74 Camera + Video First take Picture then Video On/Off; Time Stamp Includes serial number, longitude and latitude, temperature, moon phase, date and time Timer1 On/Off; Programmable Timer2 On/Off; Programmable Password 4 Digits (0~9) Serial No. 4 digits and alphabets (0~9, A~Z) Off/ On;...
  • Page 75 DC charging voltage: 12V~24V Supply (optional) (DC power supply standard of customized camera: 7.4V~8V,1~2A) LTL ACORN weak light solar panel can be used Solar panel charging to charge the rechargeable battery in the (optional) camera, saving energy and the battery can work for long time without changing.

  • Page 76: Appendix Ii: Package Contents

    Standby time 3 year (6 x 18650 Lithium Battery) (4G module is closed) Auto power off in 4 minutes without any Auto Power Off operation in TEST mode. 280mA(+670mA when 940nm IR LED up; Power Consumption +600mA when white light or 850nm IR LED up) Type -C socket;...

  • Page 77: Appendix Iii: Illustration Of Battery Box Installation

    Appendix III: Illustration of Battery Box Installation 1、Please follow the positive and negative labels on battery box to load the 6x18650 lithium batteries. 2、Close the camera with battery box. Align and close both sides...
  • Page 78 3、Hook camera body with two lock buckles on side of battery box. Hook up the camera catching groove 4、 Snap on lock buckles.

  • Page 79: Appendix Iv: Place And Install Camera

    Appendix IV: Place and Install Camera 1、 Mount on tripod There is a 1/4" nut hole on the back of the camera battery box, fix the camera to tripod by screw up the nut, and then adjust shooting angle. Nut hole 2、...
  • Page 80 Plastic pillar hole Conical Plastic Pillar Cable hole...
