  • Page 1 ® LTL ACORN Infrared Scouting Camera Ltl-6310-3G WCDMA Cellular Mobile Communication Series 1080P HD Video Trigger Time 0.8 Seconds USER’S MANUAL...

  • Page 2: Table Of Contents

    View Local MPNO Name and Signal Strength on TFT Screen . 25 Features and Working Condition of 3G Wireless Module ..26 Ltl-6310 Series Products ................29 Ltl-6310-3G Series Model: ............29 IMPORTANT INFORMATION ..............30 Power Supply ................. 30 SD Card ..................

  • Page 3: General Information

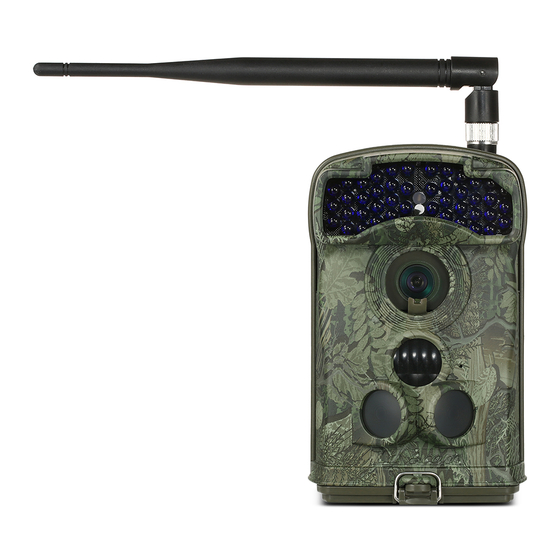

    3G WCDMA cellular mobile communication scouting camera by Ltl Acorn, with unique WCDMA 3.5G wireless module and high speed of communication. The module of Ltl-6310-3G scouting camera is able to send full size picture of 12MP or video file up to 50MB to your email at high communication speed with 3G WCDMA network, however, the other brands 3G scouting camera is sending thumbnail only.
  • Page 4  Function of intensive transmission, make it possible to send all unsent picture or video at once to reduce power consumption greatly.  LTL-6310W wide angle series products with high quality wide lens of 100 degrees to wider the shooting range. ...

  • Page 5: Application

    Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz 1.2 Application  Wildlife animal and plants observation  Security and surveillance 1.3 Illustration  Figure 1.1 shows the front view of the camera  Figure 1.2 shows the bottom view of the camera  Figure 1.3 shows the back view of the camera Light Sensor IR LED Light Motion Indicator...
  • Page 6 Battery door TV out jack USB Port SD card slot External DC Power/Mode switch Power in jack Standby battery compartment SIM card slot Figure 1.2 Bottom View of the Camera The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack.

  • Page 7: Getting Started

    CAUTION: If you are not using the camera for an extended period of time, it is highly recommended that you remove the batteries from the camera to avoid possible acid leak that may damage the camera and void the warranty. Getting Started 2.1 Insert SIM Card A SIM card is needed from a Mobile Phone Network Operator...

  • Page 8: Insert Sd Card And Format It

    2.3 Insert SD Card and Format It Open the hasp and bottom cover, then you can see the SD card slot, insert the SD card as the sign aside the card slot. Figure 2.2 Insert the SD Card The camera does not come with internal memory. It will not work without a SD (Secure Digital) memory card or SDHC (High Capacity) card.

  • Page 9: Enter Live Mode

    SHOT key to play or stop playing when replaying video.  Press REPLAY key to enter REPLY mode (to confirm setting in menu mode). Press up arrow key and down arrow key to turn page, left and right arrow key to zoom in and restore picture. ...

  • Page 10: Advantages Of Prep Pir Sensors

    The trigger time varies among different scouting camera brands on the market, generally from 1 to 5 plus seconds. Our LTL ACORN scouting camera has an impressive 0.8 seconds trigger time. The shorter of the trigger timer, the higher possibility to capture the animal.

  • Page 11: Advanced Settings

    Advanced Settings 3.1 Set up Parameters on Camera The LTL ACORN scouting camera comes with preset default settings. You can change the settings as your requirements. Switch to TEST mode after installation of batteries and SD card, then you can start setting parameters.
  • Page 12 All files will be deleted after formatting the SD card. Highly recommended to format the SD card on the camera at Format Enter the first suing. Caution: make sure the important files on the SD card are backed up. Select desired resolution for photos from 2 to 12 megapixels.
  • Page 13 Select On if you want the camera ID, temperature, moon phase, date & time to be imprinted on photo. Notice: The temperature shown is internal temperature of the camera, the Time Stamp On, Off camera will heat at work, it makes the difference between internal...

  • Page 14: File Format

    Select On, the camera takes photos/videos automatically at the preset interval (note: in this mode, the PIR sensor is disabled). This is Time Lapse Off, On helpful to observe the ectotherm or the process of plant growing, etc. This feature can work together with Timer feature.

  • Page 15: Set Up 3G Parameters On Camera

    3.3 Set up 3G Parameters on Camera In Test mode, please press to enter 3G setting menu. Press key to move the marker, press key to change setting and always press key to confirm and save the changes, or the new setting cannot be saved.
  • Page 16 Immediately: The camera will send the photo/ video to mobile/ email address by MMS/ email after shooting. The full size photo can be sent by email only but not MMS. The thumbnail, full size photo and video all can be sent to 3G Send the pre-set email account.

  • Page 17: Set Up Camera On Pc

    Obtain the CD from the gift box and insert into PC, the disc drive may be needed if the PC without the disc drive. Then run the 3G-Setup.exe software from the CD. Or download the software from website of Ltl Acorn: http://www.ltlacorn.cn/about/downloaden.html (Download→Classification→PC Setup→3G-Setup.exe) Below is the icon of the 3G-Setup.exe software:...
  • Page 18 Select language English and click Camera Setup to enter camera setting interface: Set the camera as your requirements. Please refer to section 3.1 Set up Parameters on Camera for better operation. Click to choose the save directory, SD card root directory is recommended (connect SD card with computer first).
  • Page 19 and the window will pop out. Then click OK to exit. A file named menu.dat has been created and saved in the selected directory, please copy the menu.dat file to the root directory of the SD card if you didn’t choose SD card to save the file before.

  • Page 20: Set Up Mms Function On Pc

    Obtain the CD from the gift box and insert into PC, the disc drive may be needed if the PC without the disc drive. Then run the 3G-Setup.exe software from the CD. Or download the software from website of Ltl Acorn: http://www.ltlacorn.cn/about/downloaden.html (Download→Classification→PC Setup→3G-Setup.exe) Below is the icon of the 3G-Setup.exe software:...
  • Page 22 There are 2 pages of the 3G Parameter Settings, click...
  • Page 23 to enter next page, click to turn to previous page, change the 3G setting parameters as your request in this interface, please refer to 3.3 Set up 3G Parameters on Camera for details. In this interface, you can set 3G Send Options “MMS or Email”, operator information of the SIM card (choose the pre-load operator or input URL, Gateway, APN and Port...

  • Page 24: Sms Remote Control & Table Of Command Code

    named CFG.BIN has been created and saved in the selected directory, please copy the CFG.BIN file to the root directory of the SD card if you didn’t choose SD card to save the file before. Click to exit the setting interface. Copy the CFG.BIN file to the root directory of the SD card, retrieve and insert the SD card into camera.
  • Page 25 the command you sent is in the correct format, “Message format error” for the incorrect command. Table of Command Code Command Function of Command Example Meaning Code Code Mode: Camera (0), Video (1), Camera+ 01*1# set to video mode Video (2) Image Size: 12MP (0), 02*1# 5MP (1), 2MP (2)
  • Page 26 Time Stamp: Off (0), On 09*0# Side PIR: Off (0), On (1) 10*1# Send Status: Off (0), 11*2# MMS (1), Email (2) Recipient Phone 12*15197611 Phone Number: Number 1: Maximum 48 542# 15197611542 types Recipient Phone 13*1857820 Phone Number: Number 2: Maximum 48 8363# 18578208363 types...

  • Page 27: View Local Mpno Name And Signal Strength On Tft Screen

    Remote Interval: 0-24, 0 indicates interval of 10 Off ( need to turn minutes, 25 indicates 21*25# on manually after Off. 1-24 indicates turning off) interval time to receive SMS command. Request full size picture: The camera would send the full size picture to the remote recipient email address after Request full size...

  • Page 28: Features And Working Condition Of 3G Wireless Module

    Module the SD card into camera. Ltl-6310-3G series camera is able to take photo/ video automatically and send to mobile and computer with 3G wireless module working, also users can Switch control camera or change setting by sending SMS command to 3G wireless module on mobile.
  • Page 29 3G function. 3G communication of Ltl-6310-3G is working with below conditions:  Camera is in On mode and functioning well. SD card with enough storable capacity.
  • Page 30 closed for sending MMS picture.  49 indicates the number of the picture is taken per day, 00 indicates no limit. You can choose other number for the limitation of MMS sending. If the daily limit has been reached, you can reset it on PC or TFT screen, or wait the camera to count it from 1 at next day.

  • Page 31: Ltl-6310 Series Products

    3G wireless communication module which with perfect performance of message transfer, optional lens angle of 55 degrees and 100 degrees. The only difference between Ltl-6310-3G and Ltl-6310W-3G is the lens: Ltl-6310-3G with 55 degrees standard angle lens, while Ltl-6310W-3G with 100 degrees wide angle lens.

  • Page 32: Important Information

    12 AA alkaline batteries in the field and by being powered by an external solar panel Ltl-SUN of Ltl Acorn. It can work up to 1 year in field with ample sunshine and small number of shooting, but please check it and replace batteries regularly for avoiding battery leakage if it works for long time.

  • Page 33: 850Nm And 940Nm Ir Led

    5.4 850nm and 940nm IR LED There are two types of IR LED for optional of Ltl-6310-3G series scouting camera, 850nm and 940nm. For Ltl-6310-3G series (standard angle lens), 850nm provides flash distance up to 115 feet/ 35m whereas 940nm up to 59 feet/ 18m. For Ltl-6310W-3G series (wide angle lens), 850nm provides flash distance up to 98 feet/ 30m, 940nm up to 42 feet/ 13m.

  • Page 34: Low Battery Alert

    5.7 Low Battery Alert The camera shows the battery level on each MMS picture. When the battery level is high, a code B3 shows on the bottom left corner of the image. After the battery level drops, the code changes to B2. When the battery level gets very low, the code changes to B1, which means it’s time to change the batteries.

  • Page 35: Firmware Upgrades

    Attention: The upgrade program of Ltl-6310-3G is not compatible to other models. In other word, an upgrade for Ltl-6310-3G only applies to Ltl-6310-3G model. If a camera is accidently upgraded by running a non-compatible program, it will quit working and needs to be sent back for repair.
  • Page 36  Copy the program file ebdat_cust_entry.elf to the root directory of the SD card.  Retrieve SD card from computer and insert into camera.  Set the “3G Send Status” as “MMS” or “Email”, “3G Send Mode” as “Send Immediately”, input the remote mobile number (to receive message of finishing upgrade).

  • Page 37: Limited Warranty

    We take great pride in our products. We always stand behind our promises. We provide leading warranty term and service. Every LTL ACORN trail camera comes with a limited times warranty. We guarantee our trail cameras to be free of defects in...
  • Page 38 It does not cover normal wear of the product. Please contact our tech support department to determine the nature of the problem before you return a LTL ACORN product under this warranty for repair or exchange.

  • Page 39: Appendix I: Technical Specification

    Appendix I: TECHNICAL SPECIFICATION Model Parameters Image Sensor 5 Mega Pixels Color CMOS FOV=55° ; Auto IR-Cut Lens FOV=100° ; Auto IR-Cut 940nm (55 degrees standard lens flashes 18 meters/ 59 feet) 940nm (100 degrees wild angle lens flashes 13 meters/ 42 feet) IR Flash 850nm (55 degrees standard lens flashes 35...
  • Page 40 Trigger Interval 0sec - 60min; Programmable Photo Burst Video Length 1-60sec.; Programmable Camera + Video First take Picture then Video Playback Zoom In 1~16 Times On/Off; Include serial No., temperature, moon Time Stamp phase, date and time. Timer1 On/Off; Programmable Timer2 On/Off;...

  • Page 41: Appendix Ii: Package Contents

    Stand-by Current 0.4mA Stand-by Time 4~6 Months (4xAA~12xAA) Auto power off in 3 minutes without any Auto Power Off operation in TEST mode. Power Consumption 180mA (+620mA when 940nm IR LED lights up) TV out; USB; SD Card Slot; SIM Card Slot; 6V Interface DC External Mounting...
