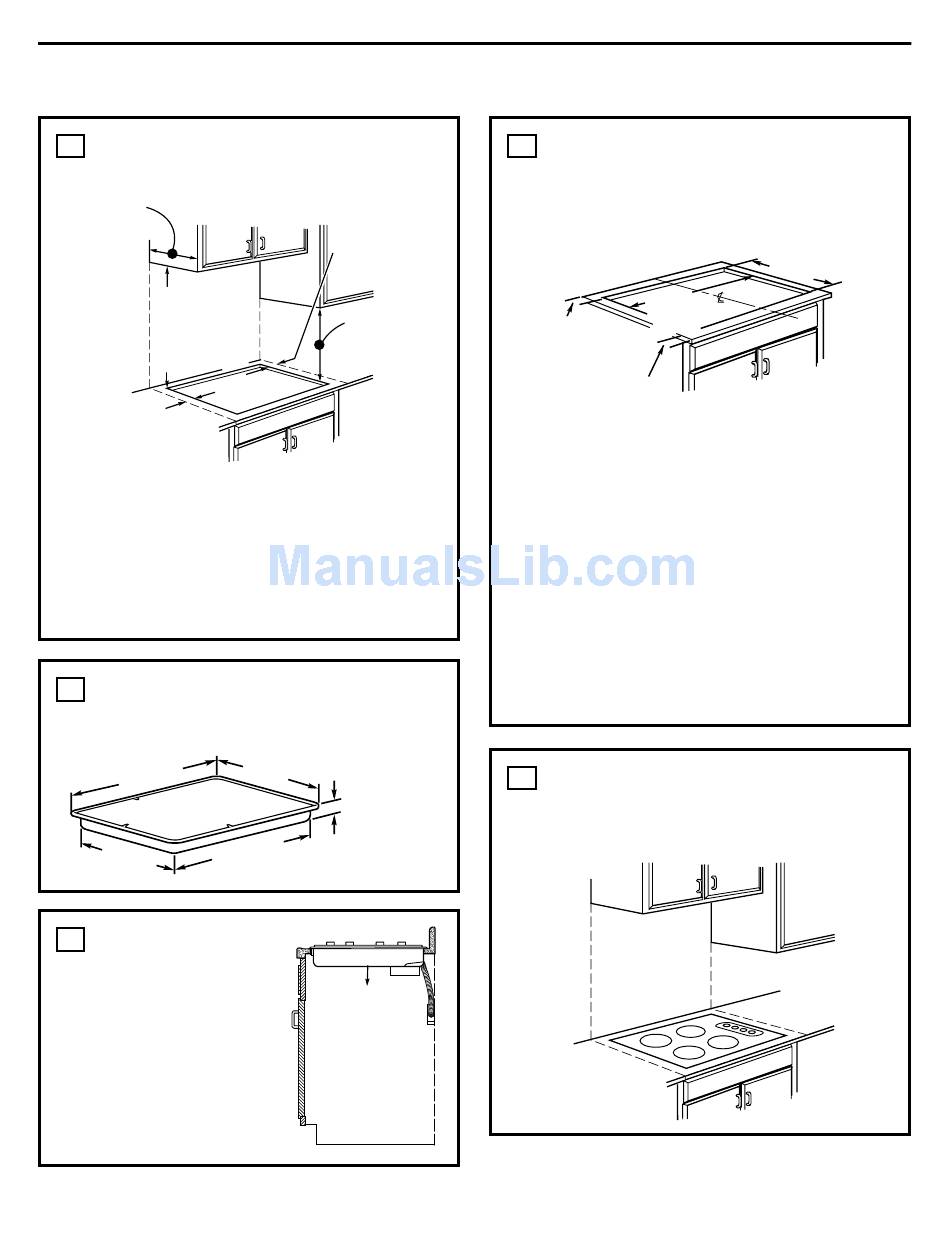

PREPARING THE OPENING

1
The following MINIMUM clearance
dimensions must be maintained.
13" MAX. Depth of uprotected
overhead cabinets
30" MIN.
Clearance from
countertop to
unprotected
overhead
surface
2" MIN. Clearance
from cutout to
side wall on the
left of the unit
If a 30" clearance between the cooking
surface and overhead combustible materials
or metal cabinets cannot be maintained, a
minimum clearance of 24" is required and
the underside of the cabinets above the
cooktop must be protected with not less
than 1/4" insulating millboard covered with
sheet metal not less than 0.0122" thick.
OVERALL COOKTOP
2
DIMENSIONS
29-3/4"
Cooktop
19-1/4"
3
Five inches (5")
minimum vertical
clearance between
the cooktop bottom
and any combustible
surfaces.
Installation Instructions
1-1/2" MIN.
Clearance from
cutout to side
wall on the right
of the unit
18" MIN. Height
from countertop
to nearest
cabinet on either
side of unit
20-7/8" (21-1/2" Max. on
Curved Front Models)
3-1/4" Front
4-5/8" Rear
at the conduit
location
6-1/4" Rear on
28"
Model JP950
5" Min.
Vertical Clearance
CUTOUT DIMENSIONS
4
OF THE COUNTERTOP
To insure accuracy, it is best to make a
template when cutting the opening in
the counter.
1-3/4" Min. Between
cutout and the wall
behind the cooktop
2-1/2" Min.
from front edge
of cutout and
front edge of
countertop
JXTR32X CUTOUT FILLER TRIM KIT:
A filler trim kit is available for use if
your countertop cutout is larger than the
dimensions shown, up to 29-13/16" x
20-7/16". Order JXTR32X to reduce the cutout
opening for installation of this cooktop. This
kit may be ordered from your GE Dealer.
JXFLM2XX FLUSH INSTALLATION KIT:
A flush mount installation kit is available
for use in a flush mount or recessed cooktop
installation. Order JXFLM2XX from your
GE Dealer.
5
Make sure the wall coverings, countertop
and cabinets around the cooktop can
withstand heat (up to 200°F) generated
by cooktop.
Wall covering,
cabinets and
countertop must
withstand heat
up to 200°F.
4
19-5/8" width of cut
28-1/2"
length of
cut
