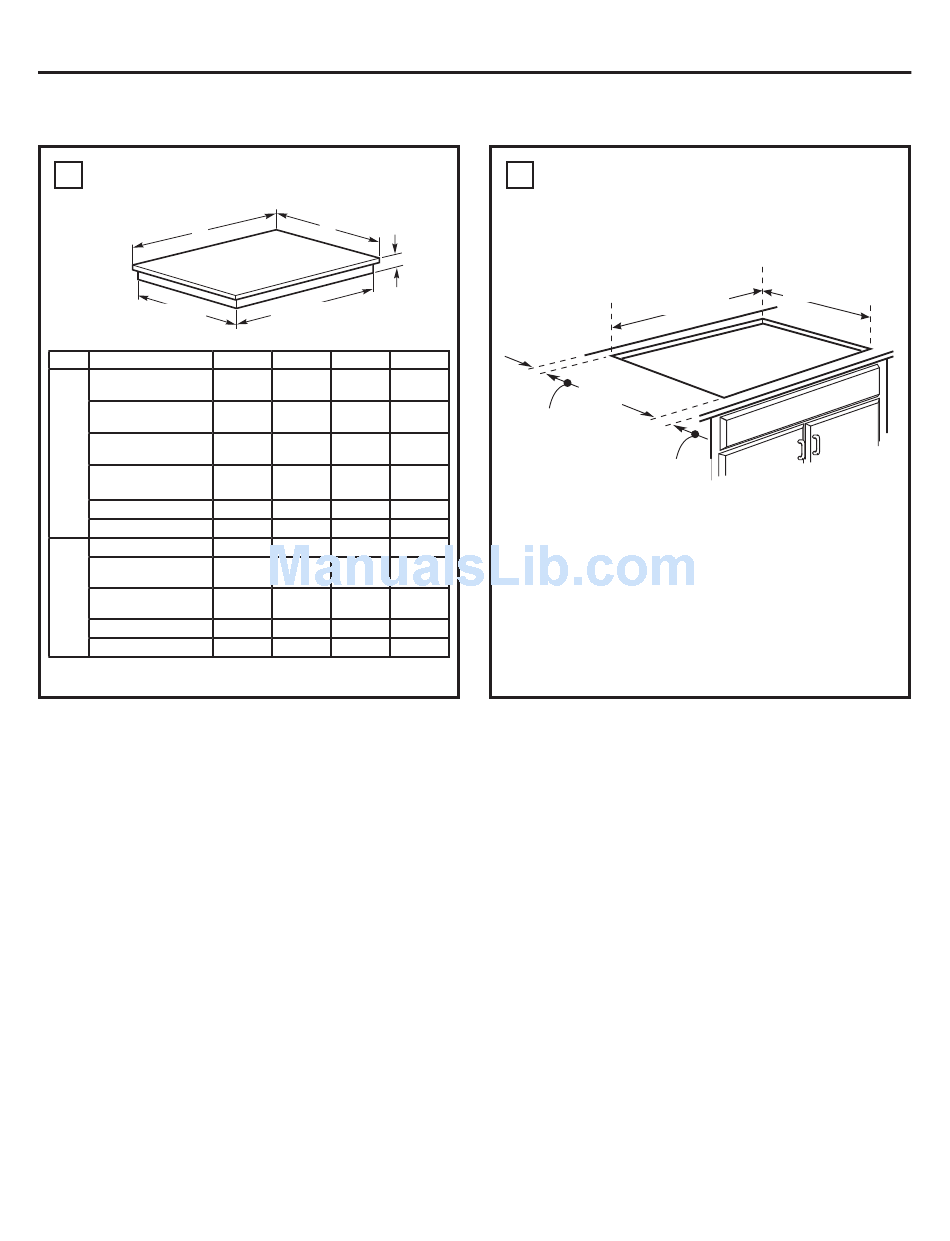

PREPARING THE OPENING

APPROXIMATE COOKTOP
1
DIMENSIONS
X
30" models: 19 1/4"
36" models: 18 7/8"
Size
Models
X
30"
JP3030D, T
29 3/4"
JP3530D, T
JP3030SJSS,
29 7/8"
JP3530SJSS
CP9530D, JP5030D,
29 3/4"
PP7030D, PP7030E
JP5030S, PP7030S,
29 7/8"
PP9030S
PP9030D
29 3/4"
ZEU30RS
29 7/8"
36"
CP9536S
36"
JP3036D, S, T
36 1/8"
JP3536D, S, T
JP5036D, S
36 1/8"
PP7036D, S
PP9036D, S
36"
ZEU36RSJSS
36 1/8"
* Depth at rear of cooktop at conduit location.
4
Installation Instructions
Y
Z
Cooktop
30" models: 28 1/16"
36" models: 33 3/4"
Y
Z Front
Z Rear*
20 7/8"
3 1/4 "
4"
21"
3 1/4"
4"
20 7/8"
3 9/16"
5 9/16"
21"
3 9/16"
5 9/16"
20 7/8"
3 3/4"
5 13/16"
21 7/16"
3 9/16"
5 9/16"
20 3/8"
3 9/16"
5 9/16"
20 7/16"
3 9/16"
4 1/16"
20 7/16"
3 9/16"
5 9/16"
20 3/8"
3 9/16"
5 9/16"
20 7/8"
3 9/16"
5 9/16"
CUTOUT DIMENSIONS
2
OF THE COUNTERTOP
To ensure accuracy, it may be best to create a
template when cutting the opening in the counter.
28 1/2 - 28 5/8" (30")
33 7/8 - 34" (36")
length of cut
1-3/4" MIN. Between rear
edge of cutout and the
wall behind the cooktop.
2-1/2" MIN. From front
edge of cutout and front
edge of countertop.
JXTR32 CUTOUT FILLER TRIM KIT
(for use with 30" models):
A filler trim kit is available for use if your countertop
cutout is larger than the dimensions shown, up to
29-13/16" x 20-7/16". Order JXTR32B (black) or
JXTR32W (white) to reduce the cutout opening for
installation of this cooktop. This kit may be ordered
from your dealer or directly from GE Appliances at
www.geappliances.com.
19 5/8 - 19 3/4" (30")
19 1/8 - 19 1/4" (36")
width of cut
31-11072-1
