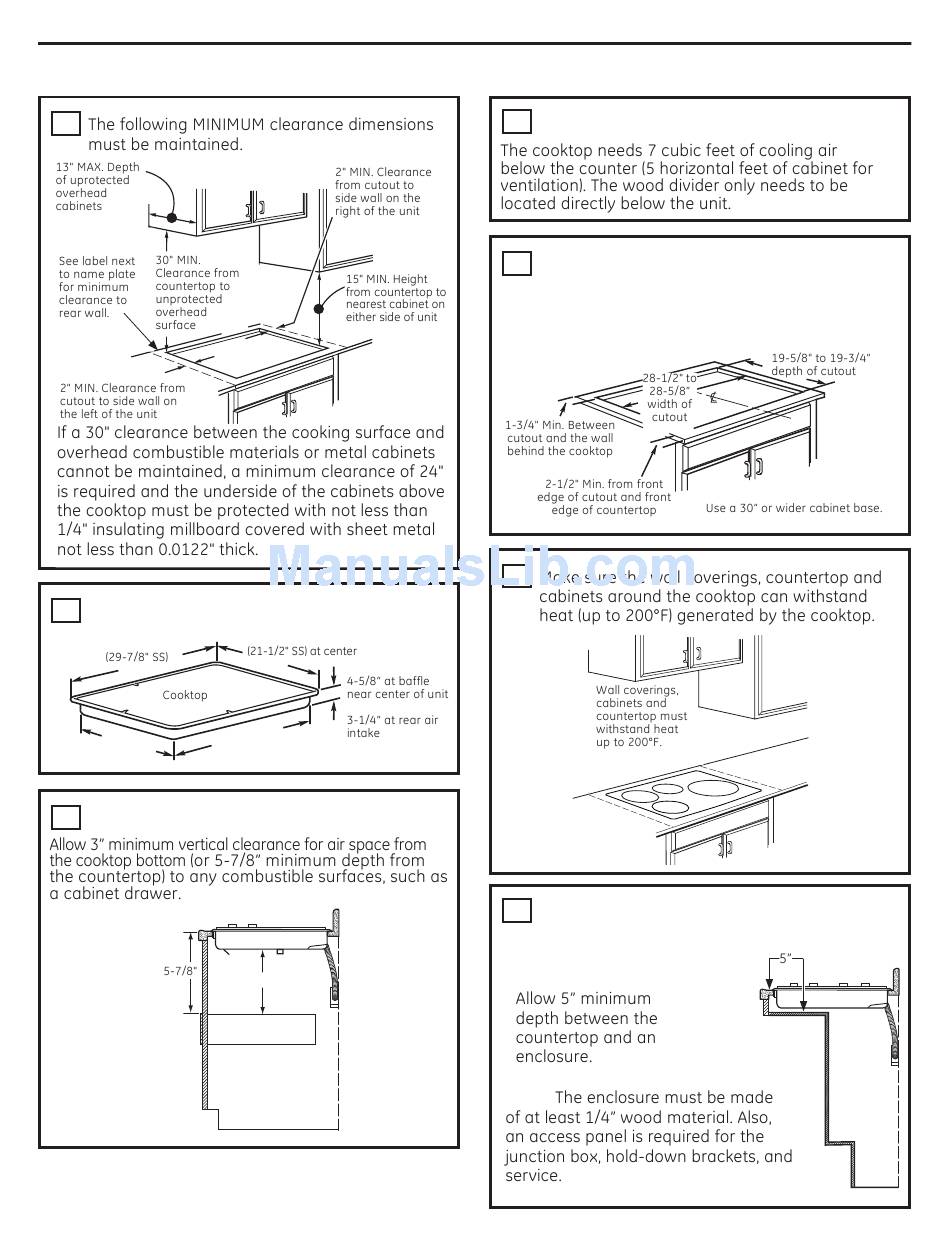

PREPARING THE OPENING

1
2 APPROXIMATE COOKTOP DIMENSIONS
29-3/4"
19-3/8"

3 VERTICAL CLEARANCES

Installation Instructions
21-3/8"
28-1/4"
3"
DRAWER
3 VERTICAL CLEARANCES (Cont.)
4 CUTOUT DIMENSIONS OF THE
COUNTERTOP
To insure accuracy, it is best to make a template
when cutting the opening in the counter.
5
6 FOR AMERICANS WITH DISABILITIES
ACT (ADA) FORWARD APPROACH
INSTALLATION ONLY:
NOTE:
