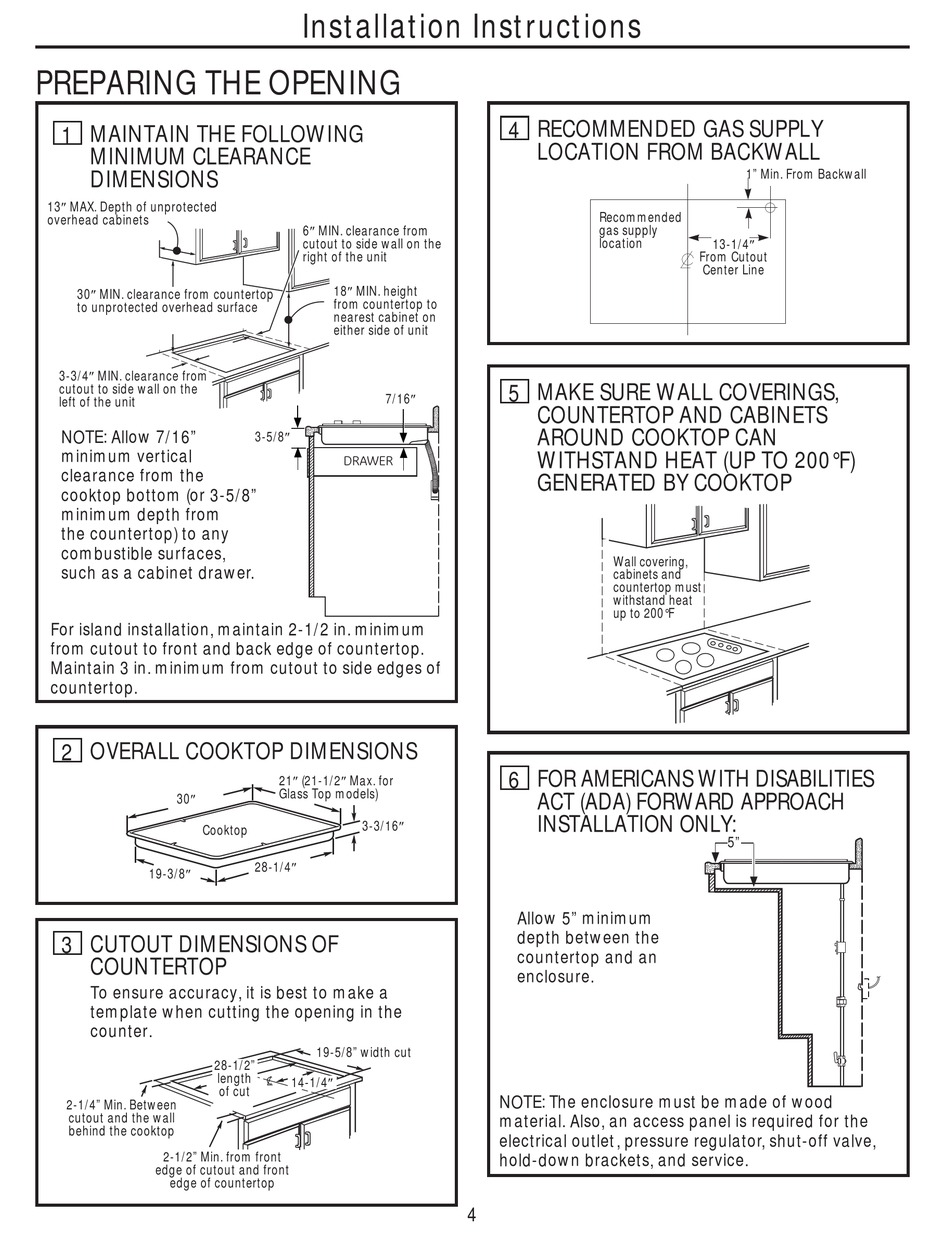

PREPARING THE OPENING

1 MAINTAIN THE FOLLOWING
MINIMUM CLEARANCE
DIMENSIONS
13 MAX. Depth of unprotected
overhead cabinets
30 MIN. clearance from countertop
to unprotected overhead surface
3-3/4 MIN. clearance from
cutout to side wall on the
left of the unit
NOTE: Allow 7/16"
minimum vertical
clearance from the
cooktop bottom (or 3-5/8"
minimum depth from
the countertop) to any
combustible surfaces,
such as a cabinet drawer.
For island installation, maintain 2-1/2 in. minimum
from cutout to front and back edge of countertop.
Maintain 3 in. minimum from cutout to side edges of
countertop.
2 OVERALL COOKTOP DIMENSIONS
30
Cooktop
19-3/8
3 CUTOUT DIMENSIONS OF
COUNTERTOP
To ensure accuracy, it is best to make a
template when cutting the opening in the
counter.
28-1/2"
2-1/4" Min. Between
cutout and the wall
behind the cooktop
2-1/2" Min. from front
edge of cutout and front
edge of countertop
Installation Instructions
6 MIN. clearance from
3 3/4 MIN.
cutout to side wall on the
right of the unit
18 MIN. height
from countertop to
nearest cabinet on
either side of unit
7/16
3-5/8
DRAWER
21 (21-1/2 Max. for
Glass Top models)
3-3/16
28-1/4
19-5/8" width cut
length
14-1/4
of cut
4 RECOMMENDED GAS SUPPLY
LOCATION FROM BACKWALL
Recommended
gas supply
location
5 MAKE SURE WALL COVERINGS,
COUNTERTOP AND CABINETS
AROUND COOKTOP CAN
WITHSTAND HEAT (UP TO 200°F)
GENERATED BY COOKTOP
Wall covering,
cabinets and
countertop must
withstand heat
up to 200°F
6 FOR AMERICANS WITH DISABILITIES
ACT (ADA) FORWARD APPROACH
INSTALLATION ONLY:
Allow 5" minimum
depth between the
countertop and an
enclosure.
NOTE: The enclosure must be made of wood
material. Also, an access panel is required for the
electrical outlet, pressure regulator, shut-off valve,
hold-down brackets, and service.
4
1" Min. From Backwall
13-1/4
From Cutout
Center Line
5"
