ASSEMBLY

• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• After shipping, there may be an oily substance on
the exterior of the treadmill. This is normal. If there
is an oily substance on the treadmill, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.

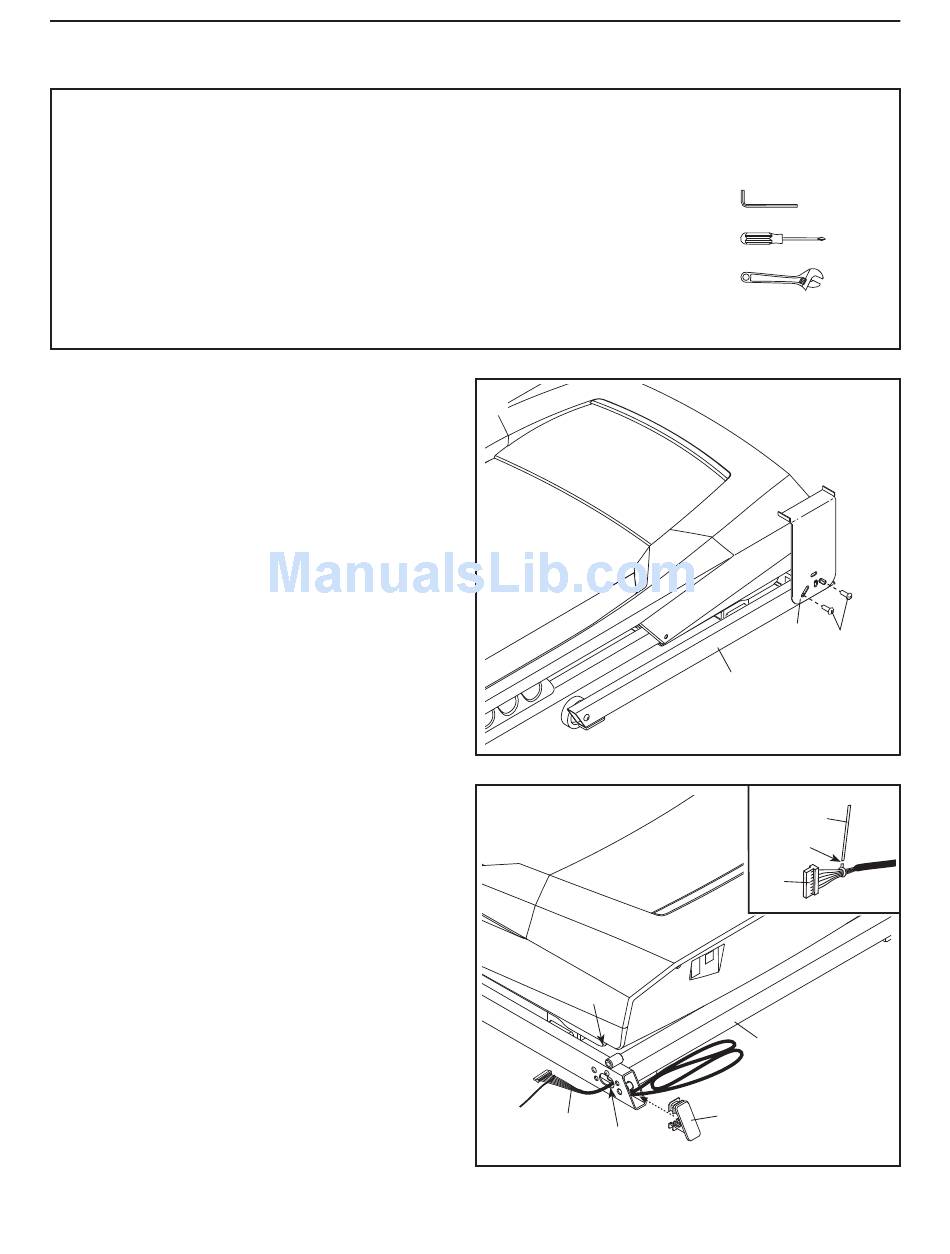

1. Make sure that the power cord is unplugged.
Remove and discard the two screws (A) and the
shipping bracket (B) from the right side of the
Base (74).
Then, remove and discard the screws and the
shipping bracket (not shown) from the left
side of the Base (74).
2. Locate the Upright Wire (63) bundled between
the Base (74) and the Belly Pan (52). Route the
Upright Wire into the Base and out of the indi-
cated hole.
Press a Base Cap (70) into each side of the
Base (74).
See the inset drawing. Cut the plastic tie near
the Upright Wire (63). Be careful not to dam-
age the Upright Wire.
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
one adjustable wrench
To avoid damaging parts, do not use power tools.
1
2
52
63
Hole
7
B
A
74
Tie
Cut
63
74
70
