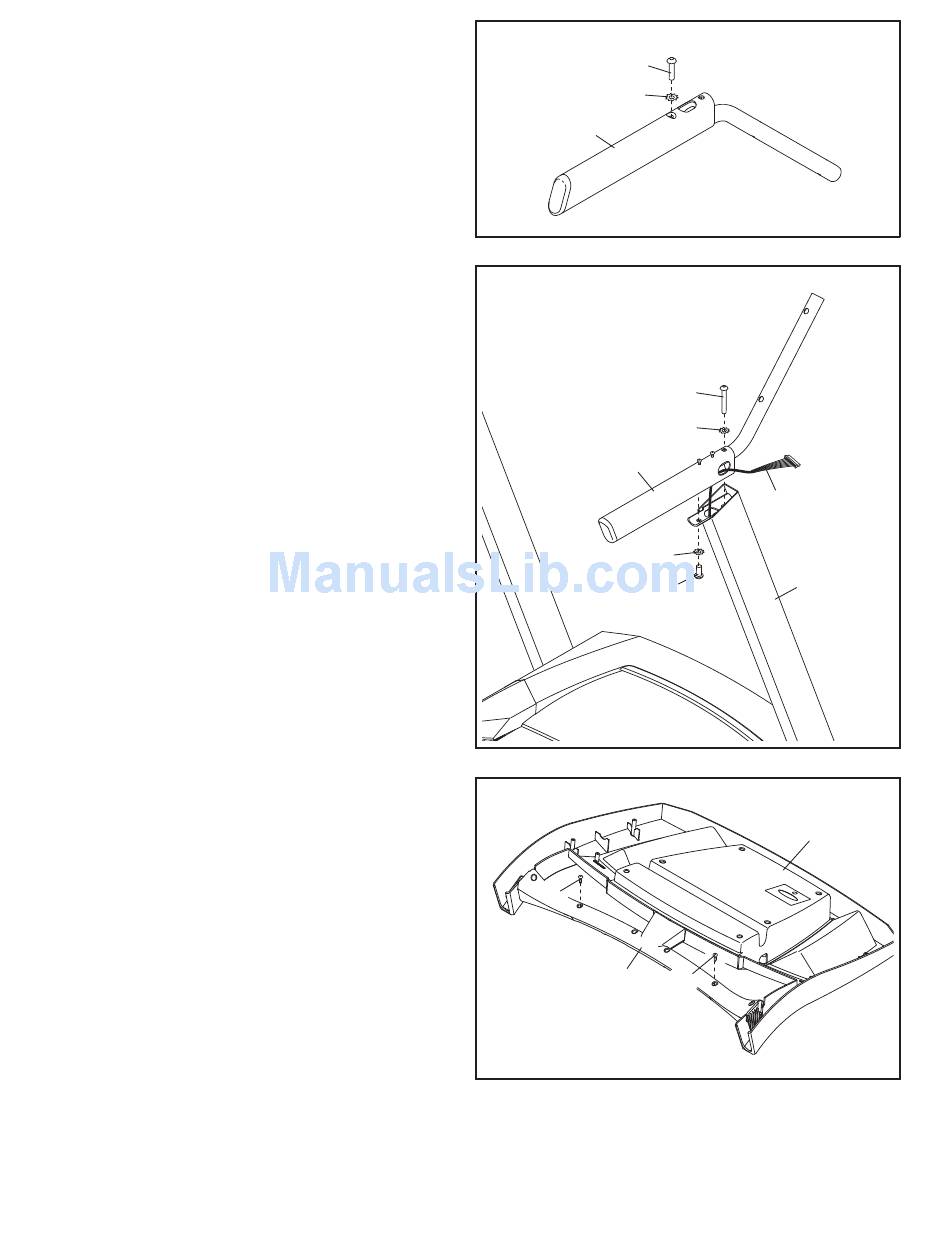

5. Identify the Right Handrail (64), which is marked
"Right."
Remove the 5/16" x 3/4" Screw (5) and the 5/16"
Star Washer (6) from the Right Handrail (64).
Note: The Screw and the Star Washer will be
used in step 6.
Repeat this step for the Left Handrail (not
shown).
6. Have a second person hold the Right Handrail
(64) near the Right Upright (76).
Route the Upright Wire (63) into the bottom of
the Right Handrail (64) and out of the hole in the
Right Handrail.
Be careful not to pinch the Upright Wire (63).
Insert and partially tighten a 5/16" x 3/4" Screw
(5) with a 5/16" Star Washer (6) into the Right
Upright (76) and the Right Handrail (64). Do not
fully tighten the Screw yet.
Then, partially tighten a 5/16" x 3" Screw (7)
with a 5/16" Star Washer (6) into the Right
Handrail (64) and the Right Upright (76). Do not
fully tighten the Screw yet.
Attach the Left Handrail (not shown) in the
same way. Note: There are no wires on the left
side.
7. Set the console assembly face down on a
soft surface to avoid scratching the console
assembly.
Remove the two Screws (C) from the Console
Crossbar (61). Remove the Console Crossbar.
Discard the Screws.
