Parts Manual; Mechanical Drawings; General Body Parts - CMA Dishmachines UC 60e Parts Manual

1. Parts Manual

1.1.

1.1.1. General Body Parts

ID P- Code
4300 560917 Cover
Back panel
4305 560938
Body
4310 560900
4315 15065/A Cable-fastener with screw
4320 560925 Surface filter
4325 15188 2,7KW - 230V heating element
4330 560914 Right side
Left side
4335 560915
M10x25 040 black foot (minimum 4 pcs)
4340 10786
MODEL UC60E PARTS MANUAL Rev. 1.00A

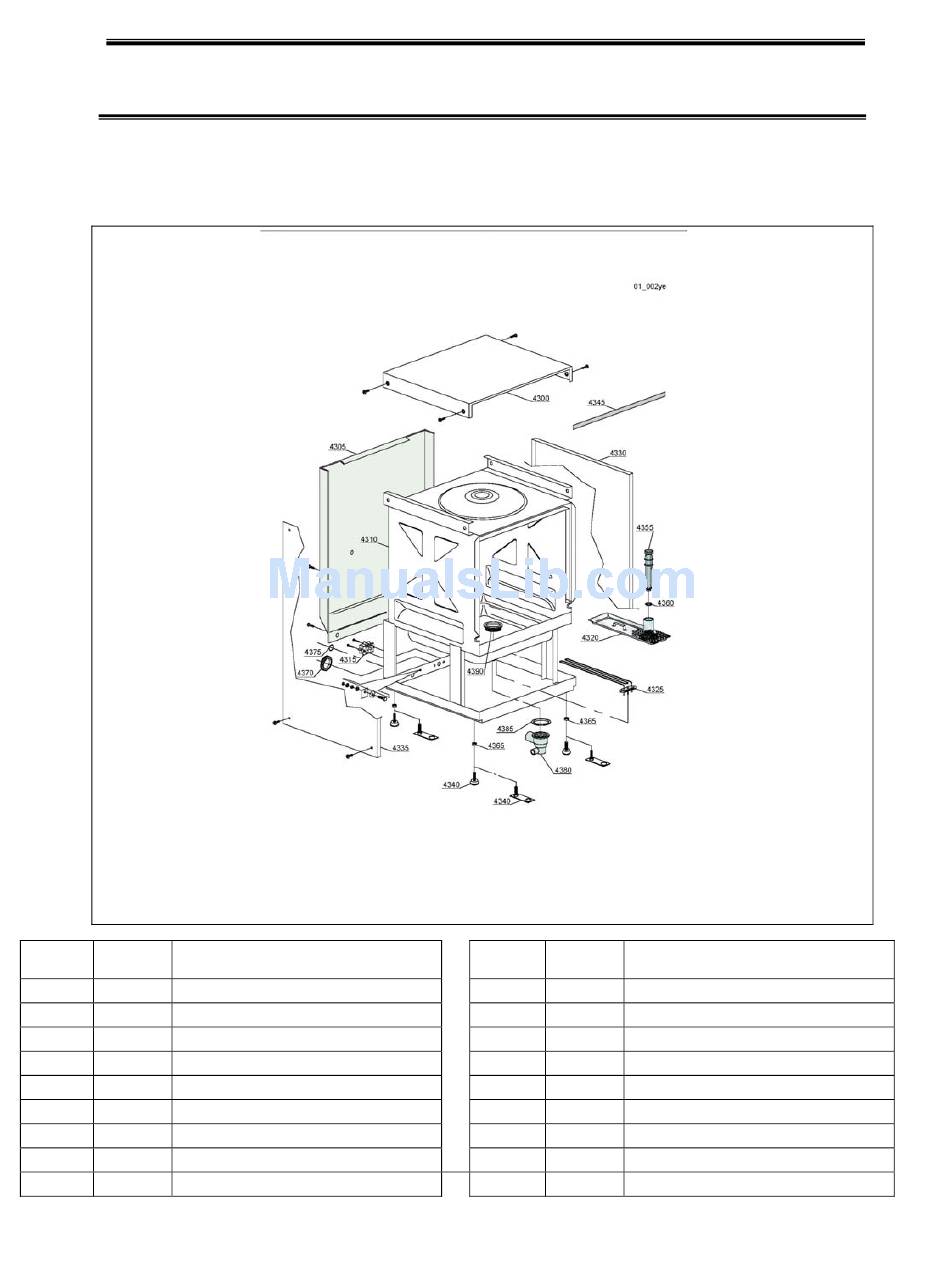

Mechanical Drawings

DESCRIPTION ID P- Code
4345 560021 Profile for door O-ring
4355 560020 Drain pump Overflow pipe
4360 13021 DEM 40 O-ring (minimum 2 pieces)
4365 11711 M10 zinc plated nut (minimum 20 pcs)
4370 13317 D.40mm unloading pipe (min 2 pcs)
4375 13323 D.13mm dosing pipe (minimum 2 pcs)
4380 500606 Right side scrap tray
4385 80208 D 95x75x3 O-ring
4390 500601 Right nut
Parts Manual
DESCRIPTION
Page
3
