EUROCOM Monster 3.0 User Manual page 69

Expert Mode will allow you to access more advanced configuration menus for
Speaker, Microphone and Stereo Mix.
Note that to adjust the Left & Right volume balance independently click the Sync
Note that you will need to install the Sound Blaster Cinema audio application in order to get
maximum audio performance. See

Sound Blaster Cinema Audio
"Sound Blaster Cinema EQ" on page 7 - 24
Storage Devices, Audio & Mouse
Syncing Left & Right
If you wish to adjust the left
and right channel volume
levels separately, you will
need to adjust this from the
VIA HD Audio Deck in Ex-
pert Mode.
Click Speaker in VIA HD
Audio Deck (in Expert
Mode) and click the Sync
Left and Right volume
button (see left). You can
then adjust the volume slid-
ers independently (this set-
ting also
Balance setting in the Win-
dows Sound control pan-
el).

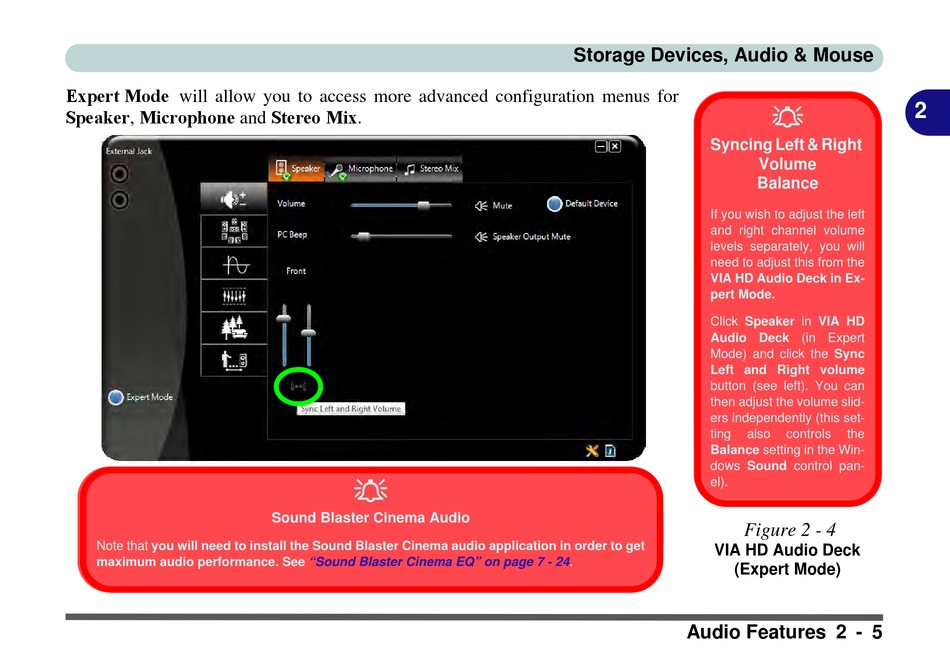

Figure 2 - 4
VIA HD Audio Deck
.
(Expert Mode)
Audio Features 2 - 5
2

Volume
Balance
controls the
