Replacing The Component Bay Cover - EUROCOM Monster 3.0 User Manual

Upgrading The Computer
6
Figure 6 - 5
Component Bay
Cover Replacement
6 - 8 Removing the Component Bay Cover

Replacing the Component Bay Cover

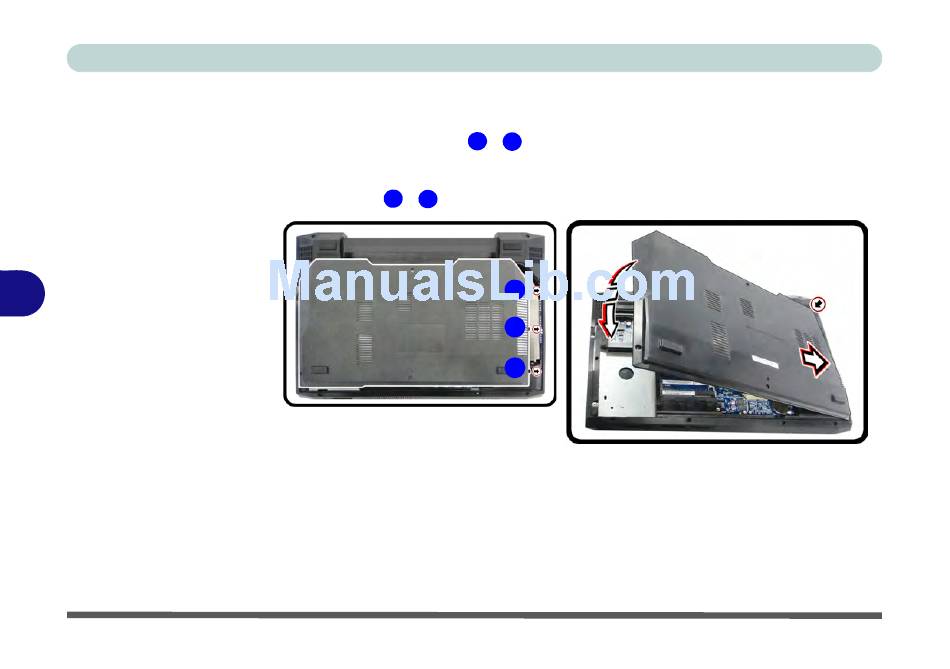

1. Reinsert the component bay cover by placing it on the bottom case assembly and
aligning the three pins
2. Angle the cover up to make sure that the cover pins fit in the slots, and then place
the cover down onto the computer and ensure that the fit is tight before replacing
the screws - (Figure 6 - 3 on page 6 -
1
3
- with the slots in the case.
1 3
6).
1
2
3
