46
System Power Cord
To attach the system power cord:
1.
Ensure the base unit circuit breaker switch is in the Off (down) position before attaching the power
cord to the system and wall outlet.

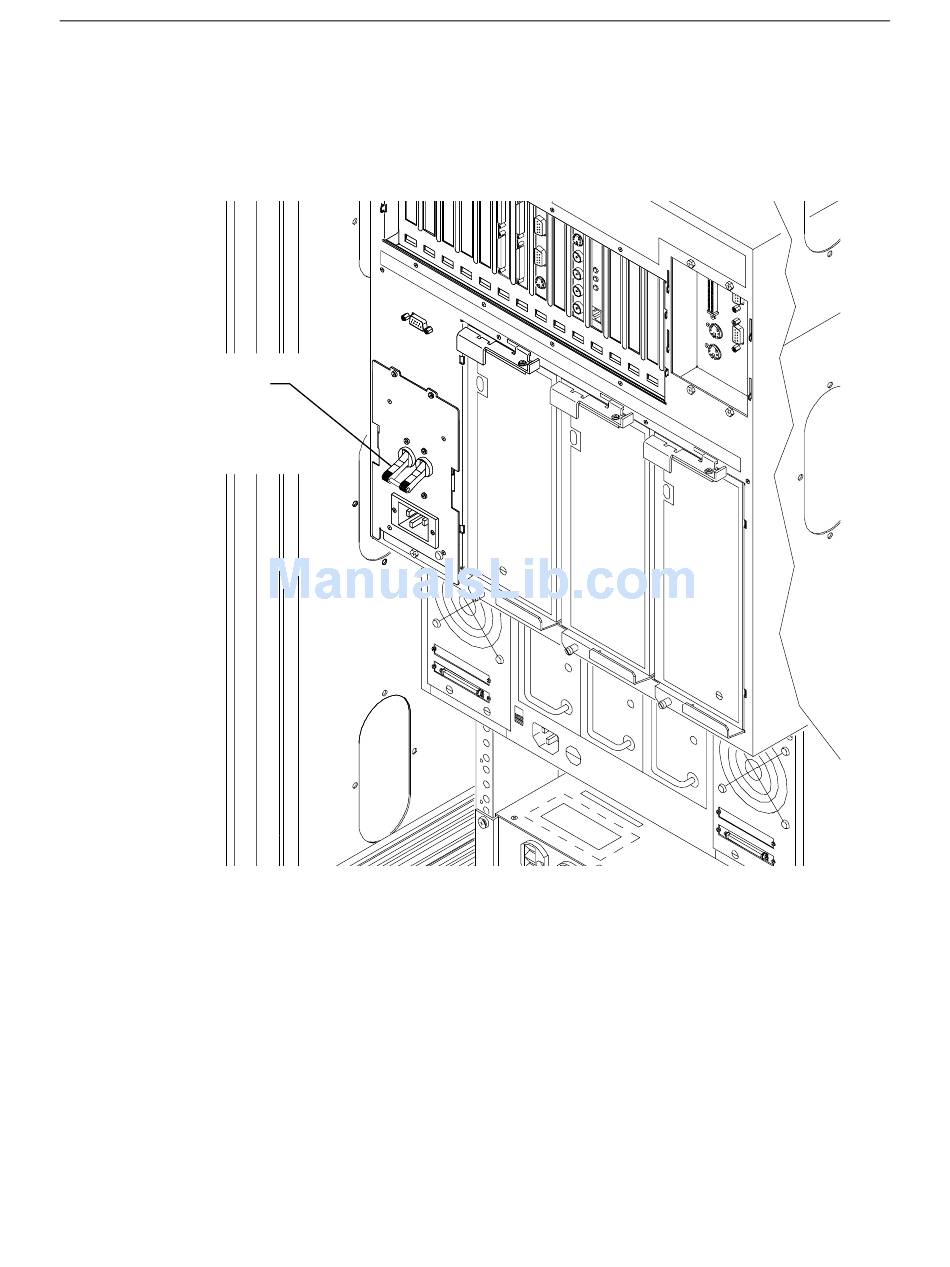

Circuit Breaker
Switch
(In Off Position)
2.
Connect the power cord to the base unit and to the AC distribution box.
3.
Connect the power cord from the AC distribution box to the wall outlet, type NEMA L14-20R or
IEC 309.
WARNING
The wall outlet must be on a properly grounded branch circuit.
