32

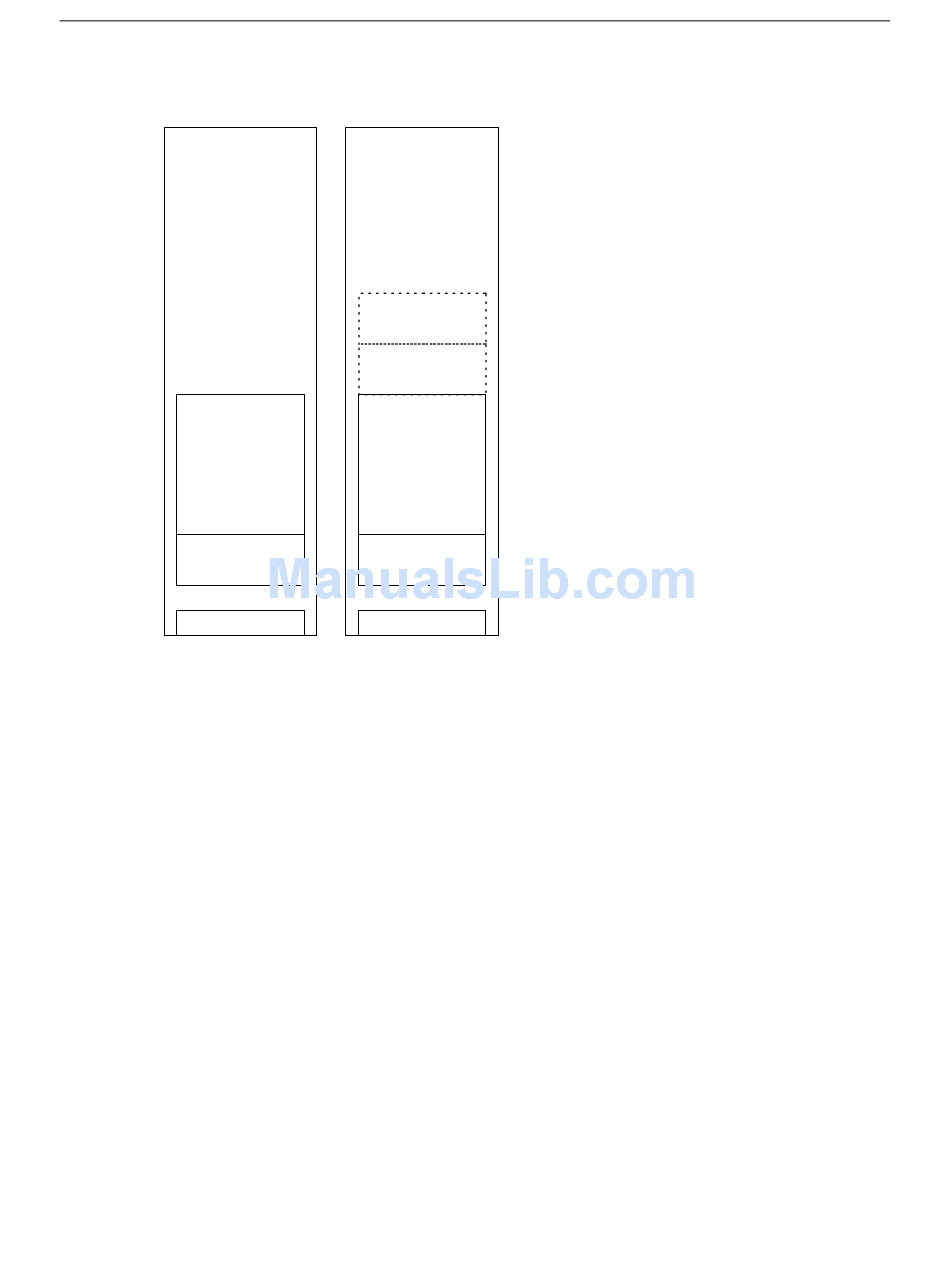

The following figure shows how the system should look fully installed. Optional InterRAID-8 cabinets
are shown by dashed lines.
StudioZ RAX
InterRAID-8
AC Dist Box

InterRAID-8 Cabinet

Unpack the InterRAID-8 from the carton and verify you have the following items.
u
Disk array cabinet
u
Mounting hardware
u
Handle brackets and screws
u
Tinnerman nuts and screws
u
Power cord
u
Documentation
The mounting hardware includes two rails to be mounted inside the rack, and two brackets to be
attached to the InterRAID-8 cabinet.
InterRAID-8
InterRAID-8
StudioZ RAX
InterRAID-8
AC Dist Box
