CAUTION System memory modules available from Intergraph have been certified for use with Intergraph
computers at extremes of temperature and system load to ensure reliable performance. System
memory modules available from other vendors may not function properly or reliably in your Intergraph
computer.

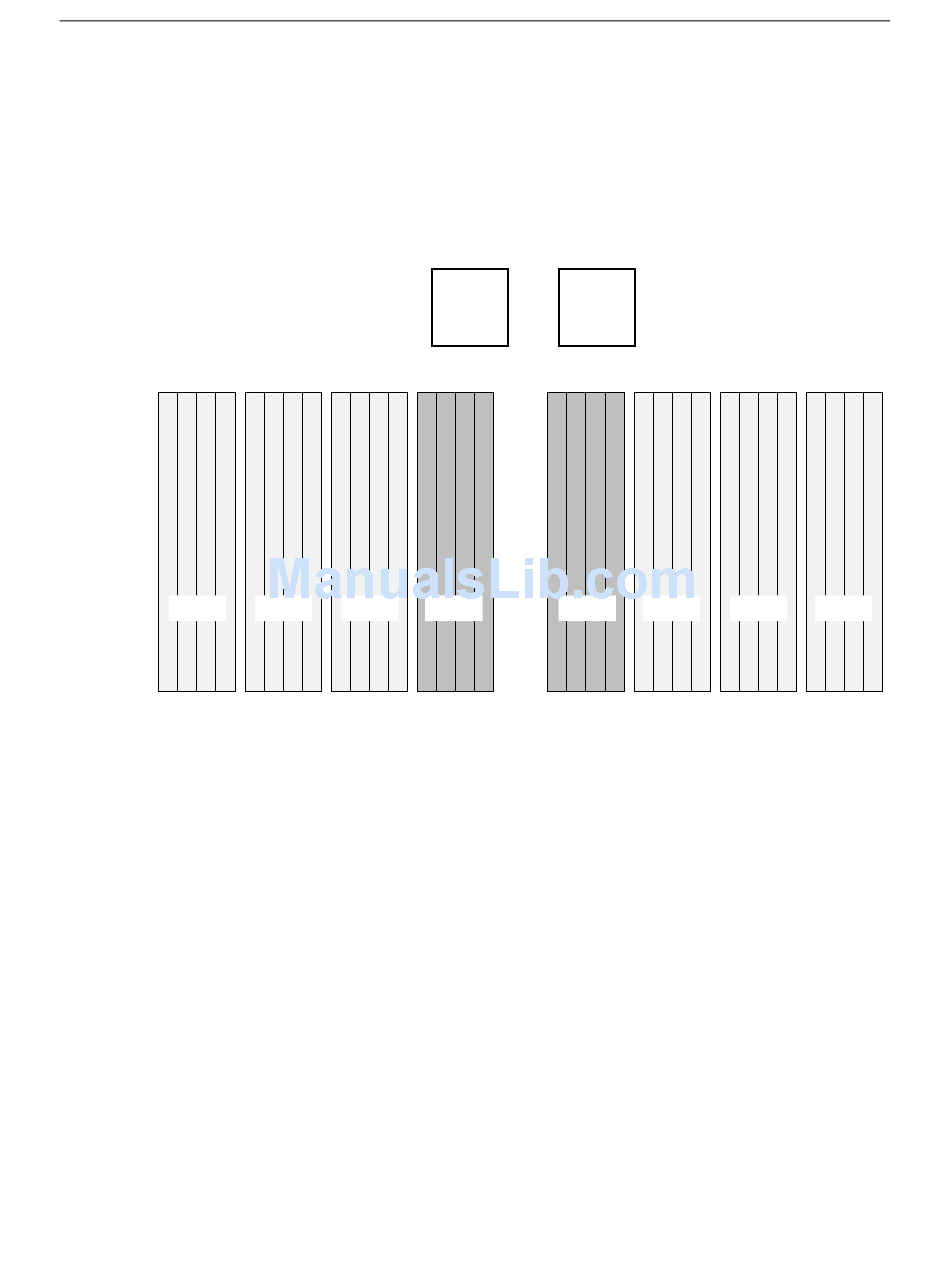

All SIMMs must be the same size and the banks must be filled sequentially. The following figure
shows the bank layout. Individual sockets are labeled J21 through J52 from left to right. Base memory
for InterServe 650 and 660 systems is installed in sockets J35, J36, J39 and J40 of Bank 0. Base
memory (eight SIMMs) for StudioZ RAX systems is installed in all Bank 0 sockets.
J21
Bank 3
To avoid damaging the SIMMs, take the following precautions.
u
Do not bend, twist, drop, or otherwise handle the SIMMs carelessly.
u
Do not expose the SIMMs to moisture or extreme temperatures.
u
Do not remove the SIMMs from the antistatic bag until installation.
J25 J29 J33
Bank 2 Bank 1
OPB OPB
Bank 0 Bank 0
J40 J44 J48
Bank 2
Bank 1
J52
Bank 3
