2. Turn the monitor on its side and remove the base from the monitor. Do not turn the monitor onto
its display screen.

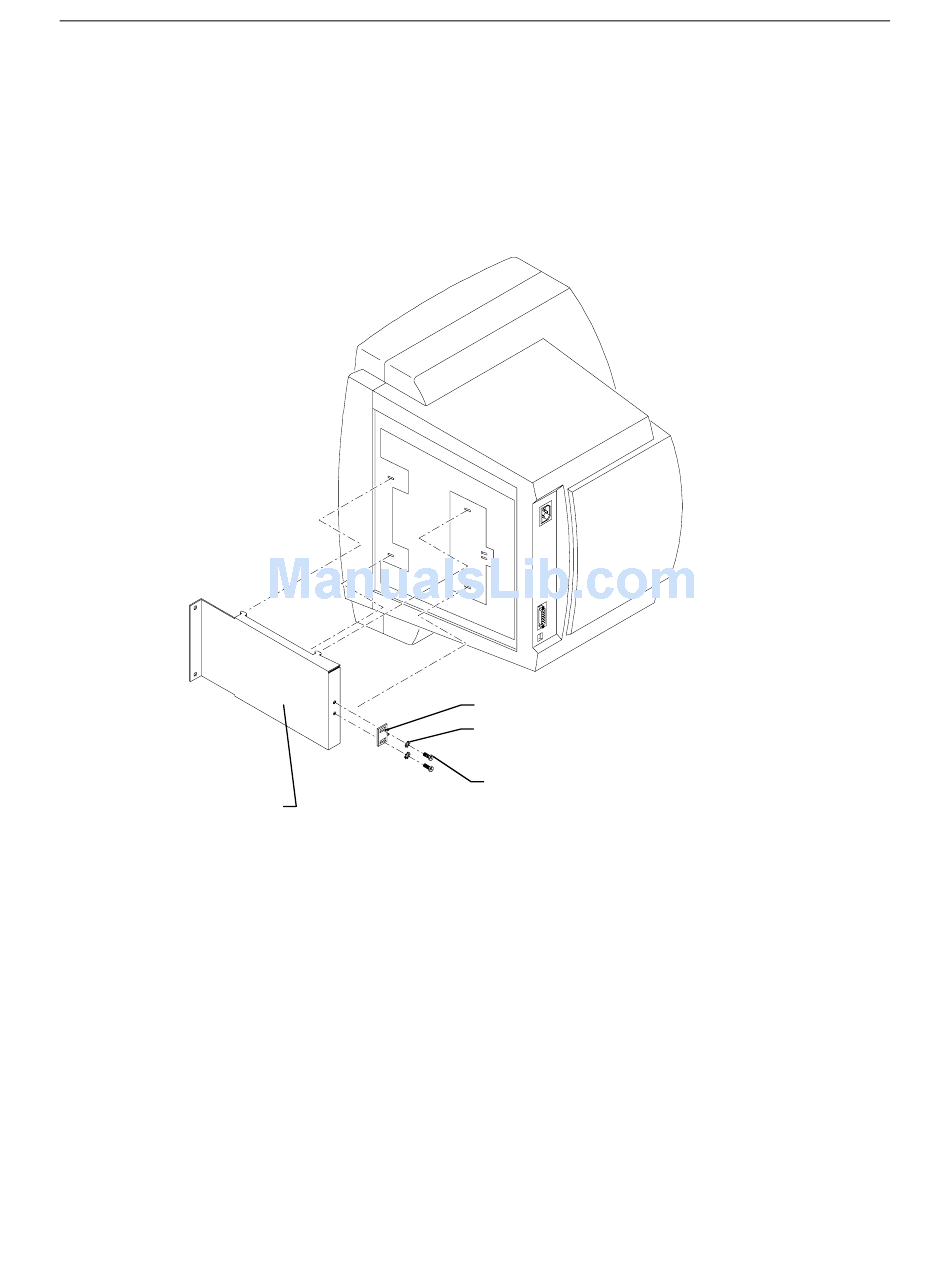

3. Attach the screws, star washers, and bracket insert to the adapter bracket as shown in the following
figure.
NOTE There are two bracket inserts to accomodate two versions of the 15-inch monitor. CFAB546 for the
Sampo 510, and CFAB622 for the Sampo 520.
4. Attach the adapter bracket to the bottom of the monitor.
Adapter
Bracket
5. Set the monitor onto the shelf though the front of the rack.
6. Secure the monitor with two screws through the front of the adapter bracket.
7. Attach the monitor cover plate onto the rack.

Remote Interface Kit

A keyboard, mouse, and monitor concentrator is included with the remote interface kit. The
concentrator comes with a 25-foot-long cable set that connects between the base unit and the
concentrator.
To install the remote interface kit:
1. Place the keyboard, mouse, and monitor in the desired location, up to 25 feet away from the base
unit.
2. Connect the keyboard, mouse, and monitor cables to the concentrator.
Bracket Insert
Star Washers
Screws
