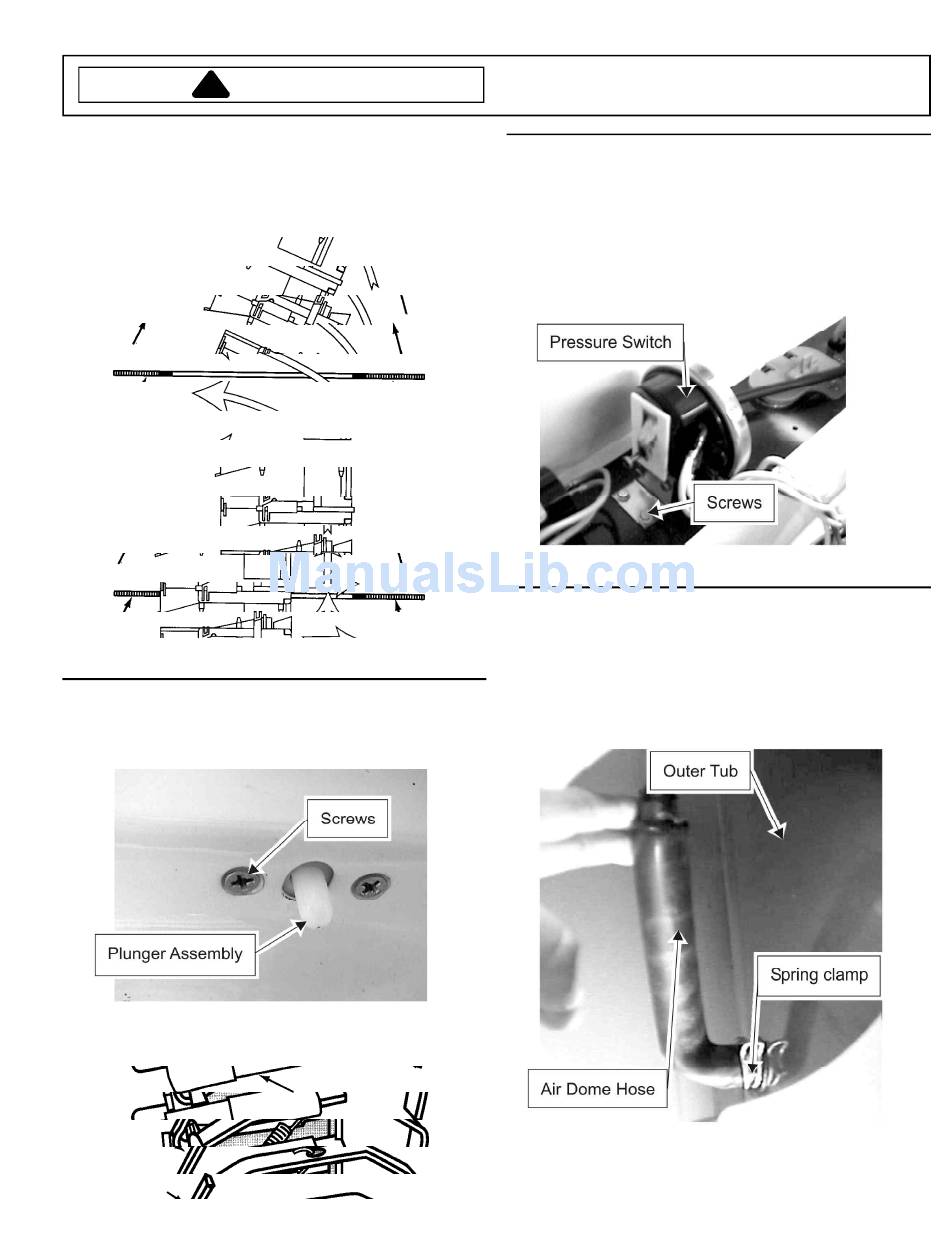

Disassembly Procedures
!
Reinstalling Lid Switch
1. Insert the lid switch assembly in the Top Cover (Push
the switch assembly straight down and back until it
locks in place).
WRONG!
Front Of
Machine
Front Of
Machine

Unbalance Lever and Plunger Assembly

1. Disconnect power supply to unit.
2. Remove Lid and tilt the Top cover backwards.
3. Remove two screws securing the plunger assembly to
the Top Cover.
Unbalance
Lever
©2003 Maytag Appliances Company
WARNING
Top
Cover
RIGHT!
Top
Cover
Plunger Assembly
16022842 Rev. 0
To avoid risk of electrical shock, personal injury or death;
disconnect power to unit before servicing.

Pressure Switch

1. Disconnect power supply to unit.
2. Remove Control Panel.
3. Disconnect wires attached to the switch.
4. Remove clamp securing Air Dome Hose.
5. Remove two screws securing Pressure Switch to the
Top Cover.

Air Dome

1. Disconnect power supply to unit.
2. Remove Control Panel and rear access service plate.
3. Remove clamp securing rubber hose to the Pressure
Switch.
4. Remove clamp securing Air Dome to the Outer Tub
spout.
5. Disconnect rubber air tube secured to the cabinet.
6. Remove the air dome hose through the rear access
opening.
19
